Crane Wire Rope
We supply crane wire rope built in our factory to meet real lifting demands across construction, ports, offshore, and mining. You get stable quality, ready stock, custom specs, and technical support that keeps your crane running without delays. Talk with us and request a quote for steel wire ropes from Powerful Machinery today.
Factory-controlled production ensures consistent strength and safe performance.
Direct manufacturer supply with stable quality, ready stock, and fast delivery to keep your crane running without delays.
Matched rope solutions extend service life and reduce replacement costs.
Supply, installation, and service in one place help you cut downtime and simplify operations.
Powerful Machinery - Your Relaible Crane Rope Manufacturer
We offer top-tier crane ropes and OEM-compatible options for major crane manufacturers.
ROTATION RESISTANT / NON-ROTATING (HOISTING)
Designed with counter-rotating layers to minimize load spinning, ideal for high-lift tower cranes.

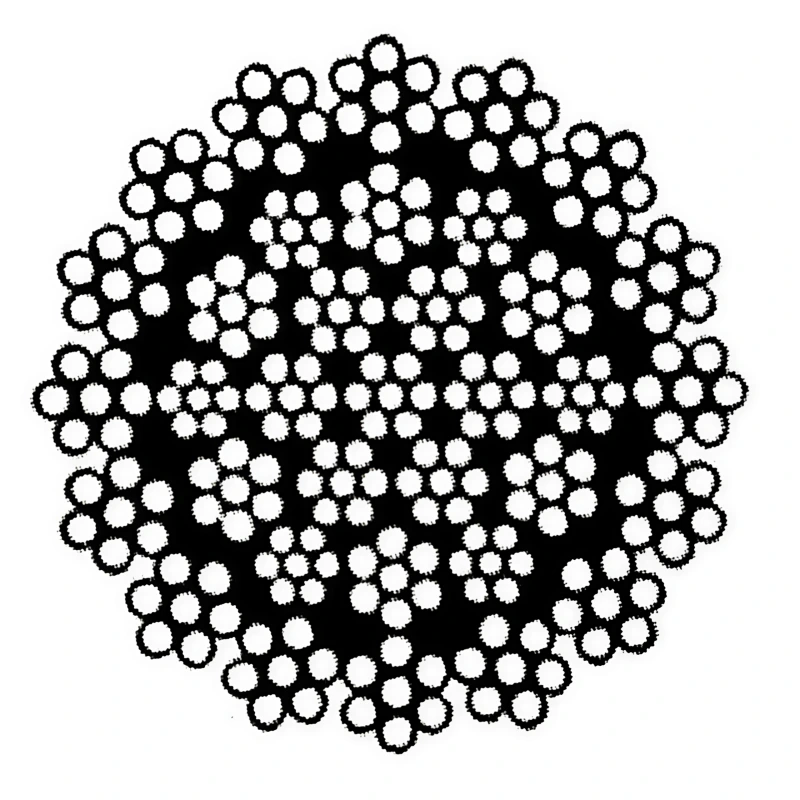

35 X 7 Wire Rope
35×7 wire rope offers high strength, strong rotation resistance, and flexible handling. This crane wire rope fits hoisting, drilling rigs, and winches for stable high-lift performance.

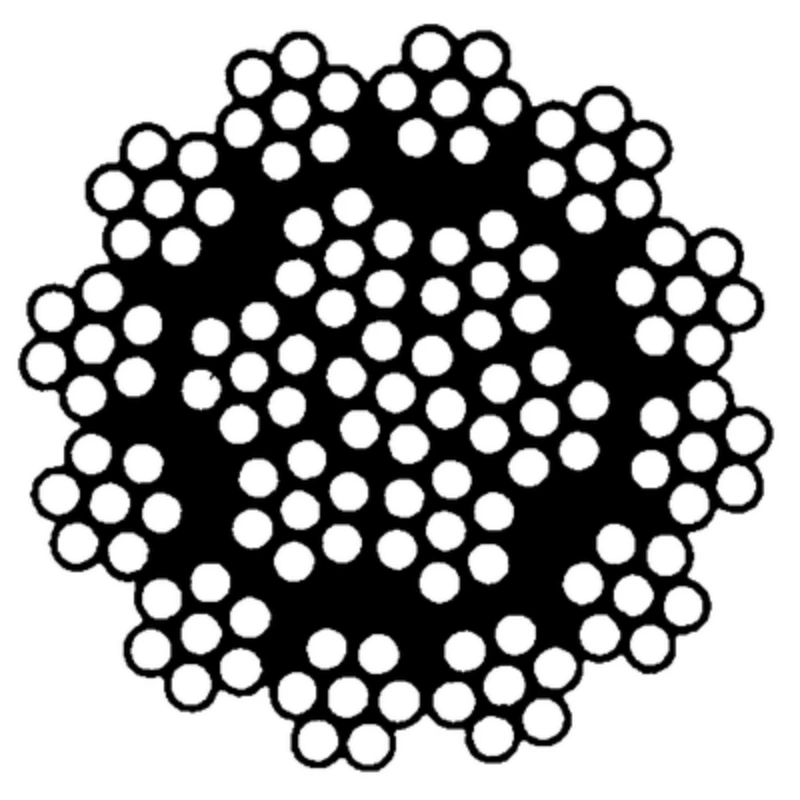

7 X 19 Wire Rope
7×19 wire rope delivers high strength, good rotation resistance, and flexible handling. This crane wire rope fits hoisting, drilling rigs, and winches for stable lifting performance.
NON-ROTATION RESISTANT / ROTATING (LUFFING)

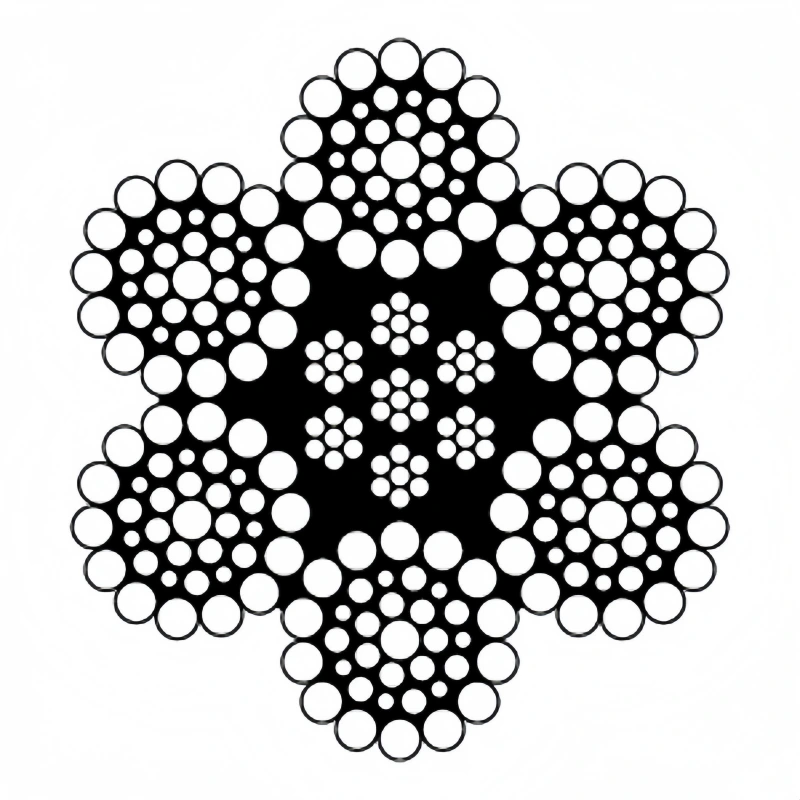

6 X 36 Iwrc Wire Rope
6×36 IWRC wire rope delivers high strength, excellent flexibility, and strong fatigue resistance. This crane wire rope fits hoist lines, winches, and mooring with reliable abrasion resistance.
6×29Fi steel wire rope delivers high flexibility and strong fatigue resistance for high-speed lifting. This crane wire rope performs well in multi-sheave systems and supports FC or IWRC cores.

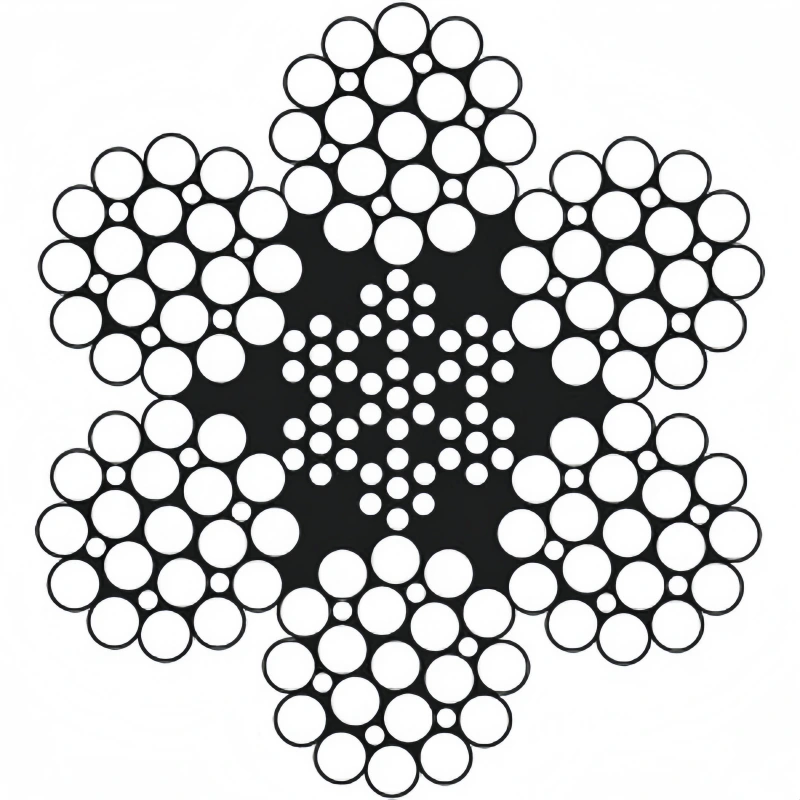

6 X 25 Iwrc Wire Rope
6×25 IWRC wire rope delivers high strength, good flexibility, and strong fatigue resistance. This crane wire rope fits hoisting and winch systems with reliable crush resistance.
NEED HELP WITH YOUR CRANE ROPES ORDER?
Let us help! Reach out today and get recommendations on materials and sizing from our experts.
Guide to Crane Ropes
Our guide to crane ropes helps you understand crane rope types, applications, and selection tips so you can choose right wire rope for crane.
What Type of Wire Rope is Used in Cranes?
Crane wire rope type selection directly controls lifting stability, fatigue life, and safety under dynamic loads. Different crane systems demand specific rope structures based on reeving design, drum configuration, and load behavior.
- 6×36 class ropes for high bending cycles
You use these ropes in overhead cranes where repeated sheave contact creates bending fatigue. Higher wire count improves flexibility and delays internal wire breakage. - 8-strand compacted ropes for multilayer drum spooling
These ropes reduce surface deformation under high radial pressure. Compacted strands increase metallic area and stabilize rope geometry across multiple drum layers. - Rotation-resistant ropes (18×7, 35×7) for long lifting heights
You control load spin in tower cranes and mobile cranes. Cross-lay strand design minimizes torque accumulation during hoisting. - Plastic-filled wire ropes for internal wear reduction
Polymer filling locks strands, reduces internal wire movement, and limits fretting fatigue under cyclic loading. - Lang lay ropes for abrasive environments
Outer wires align with rope axis, increasing surface contact area and improving abrasion resistance on worn sheaves.
Crane Wire Rope Material
Crane wire rope material directly controls tensile strength, fatigue resistance, and corrosion performance under real lifting conditions.
- High carbon steel wire for maximum strength performance
You achieve high breaking force through controlled carbon content and precise heat treatment. This material supports heavy-duty lifting with repeated load cycles. - Galvanized wire for corrosion-prone environments
Zinc coating protects against moisture, salt spray, and industrial exposure. You extend rope life in port cranes and offshore lifting systems. - Stainless steel wire for aggressive chemical exposure
You use stainless material where corrosion resistance outweighs tensile strength requirements, such as chemical plants. - Polymer-coated or plastic-filled cores for internal protection
These materials reduce internal friction, stabilize strand movement, and prevent lubrication loss under cyclic bending.
Crane Wire Rope Construction
Wire rope construction determines how load distributes across wires, strands, and core during bending and tension.
- IWRC (Independent Wire Rope Core) for structural stability
Steel core resists crushing under multilayer drum pressure and maintains rope geometry under high load. - Fiber core for enhanced flexibility and lubrication retention
You use fiber core in light-duty cranes where bending fatigue dominates over crushing force. - Compacted strand construction for higher metallic efficiency
Compaction increases contact area, reduces internal gaps, and improves breaking force within the same diameter. - Lang lay for abrasion resistance
Outer wires align with rope axis, increasing surface durability on worn sheaves. - Regular lay for torque balance and handling stability
Opposite lay direction reduces rotation tendency and simplifies installation control.
Crane Rope Capacity
Crane rope capacity depends on system design, not just rope strength. Real lifting performance changes under operational conditions.
- Minimum Breaking Force (MBF) as baseline strength
MBF defines maximum tensile capacity under static conditions. - Working Load Limit (WLL) derived from safety factor
You calculate safe load by dividing MBF by application-specific safety factor. - Reeving efficiency loss in multi-part systems
Friction at each sheave reduces effective lifting capacity across the system. - Drum multilayer spooling pressure effect
Upper layers increase radial compression, reducing rope efficiency and accelerating wear. - Dynamic load amplification during lifting cycles
Acceleration, deceleration, and shock loads increase actual stress beyond static calculations.
Crane Wire Rope Safety Factor
Safety factor defines the operational margin between working load and failure risk.
- Standard lifting operations use 5:1 to 6:1 ratios
This range balances safety and operational efficiency for general cranes. - High-risk lifting requires increased safety margins
Personnel lifting and critical loads demand higher factors to reduce failure probability. - Fatigue loading reduces effective safety margin over time
Repeated bending weakens internal wires even when external condition looks acceptable. - Shock loading rapidly consumes safety reserve
Sudden load changes create peak stress beyond calculated limits.
Safety insight:
Safety factor is not static. Real-world conditions reduce margin continuously through wear, fatigue, and environmental impact.
Crane Wire Rope Sizes
Wire rope size selection must align with crane design parameters to prevent premature wear and failure.
- Diameter must match sheave groove radius
Incorrect fit creates point loading and accelerates outer wire damage. - Tolerance control ensures consistent contact pressure
Variations in diameter disrupt load distribution across strands. - Compacted ropes deliver higher strength in same diameter
Increased metallic area improves performance without increasing size. - Drum and sheave ratio (D/d ratio) governs bending fatigue
Smaller ratios increase stress and shorten rope life.
Sizing insight:
Oversized rope does not improve performance if groove geometry and system design remain unchanged.
Crane Wire Rope Standards
Standards ensure consistency, safety, and interchangeability across global crane systems.
- ISO standards define testing methods and performance benchmarks
- EN standards regulate European compliance and safety requirements
- ASTM standards support North American engineering applications
- API specifications apply to offshore and heavy-duty lifting environments
- Traceability systems track production batches and material origin
- Mechanical testing verifies breaking force and elongation performance
Crane Wire Rope Installation
Installing wire rope on crane
Wire rope installation defines up to 50% of total service life. Poor installation introduces twist, uneven load distribution, and early structural damage.
- Control unreeling direction to prevent torsional stress
You must align rope payoff direction with drum winding direction. Reverse unreeling builds internal torque that leads to birdcaging. - Apply controlled pre-tension during spooling
Maintain 2%–5% of minimum breaking force. Proper tension eliminates loose layers and prevents rope crushing under upper wraps. - Manage fleet angle within design limits
Excessive fleet angle causes uneven flange pressure and accelerates outer wire wear near drum edges. - Verify drum groove compatibility
Groove radius must match rope diameter. Incorrect groove profile creates localized contact stress and rapid diameter reduction. - Stabilize first layer spooling pattern
The first layer acts as the foundation. Irregular winding multiplies stress concentration across all upper layers.
Critical field insight:
Most early rope failures originate from installation defects, not material quality. Cross-lay distortion and uneven spooling create internal damage within the first operating cycles.
Crane Rope Lubrication
Lubrication protects internal wires and reduces friction during bending.
- Penetrating lubricants reach core and reduce internal wear
- Surface lubricants protect against corrosion and abrasion
- Automatic lubrication systems ensure consistent application
- Lubrication frequency depends on environment and duty cycle
We supply ropes with factory-applied lubrication optimized for long-term performance.
Crane Wire Rope Maintenance
Understanding crane wire rope maintenance
Maintenance extends service life and prevents unexpected failures.
- Clean rope surface regularly to remove abrasive particles
- Monitor diameter reduction as an early wear indicator
- Check lubrication condition and reapply when dry
- Inspect drum and sheave alignment to avoid uneven wear
- Record service hours and load cycles for predictive maintenance
We recommend building a maintenance schedule based on actual usage data.
Crane Wire Rope Inspection Checklist
A high-level inspection system identifies hidden damage before failure. Visual checks alone cannot detect internal fatigue progression.
- Broken wire distribution analysis, not just counting
Concentrated breaks in one lay length indicate localized fatigue zones rather than normal wear. - Diameter reduction mapping across rope length
Measure multiple نقاط along the rope. Localized reduction signals core failure or internal strand collapse. - Internal corrosion detection through stiffness variation
Sections with reduced flexibility often contain internal rust and lubrication loss. - Surface wear pattern evaluation
Flat spots and shiny zones reveal sheave misalignment or improper groove geometry. - End termination stress inspection
Socket areas experience the highest stress concentration. Micro-cracks often initiate near termination points. - Birdcaging and strand displacement detection
These indicate sudden load release or torsional imbalance during operation.
Advanced inspection insight:
Internal wire breaks develop earlier than outer damage. You should combine visual inspection with magnetic or non-destructive testing for high-duty cranes.
Crane Wire Rope Damage Types
Wire rope failure develops through progressive damage mechanisms.
- Bending fatigue from repeated sheave cycles
Internal wires crack due to cyclic stress reversal. - Abrasive wear from contact surfaces
Rough sheaves and drums remove outer wire material. - Corrosion-induced material weakening
Rust reduces cross-sectional strength and accelerates fatigue. - Crushing from multilayer drum pressure
Upper layers compress lower wraps and distort rope structure. - Torsional imbalance leading to birdcaging
Sudden load release causes strand separation and deformation.
Crane Wire Rope Rejection Criteria
Rejection criteria define when continued use becomes unsafe.
- Broken wires exceeding allowable concentration limits
Localized clusters indicate fatigue failure zones. - Diameter reduction beyond specified thresholds
Loss of metallic area reduces load capacity. - Severe corrosion and pitting damage
Surface degradation weakens structural integrity. - Deformation such as kinks, birdcaging, or strand displacement
Structural distortion disrupts load distribution. - Core failure or internal collapse
Loss of core support leads to rope instability.
Rejection insight:
Delaying replacement after reaching limits significantly increases risk of sudden failure under load.
Crane Wire Rope Replacement
When to Replace Wire Rope on Crane?
Wire rope replacement is critical for maintaining lifting safety, operational efficiency, and equipment longevity. The exact timing depends on multiple factors, including wear patterns, operational environment, and load cycles. Replacing the rope at the right moment avoids catastrophic failures and maximizes the rope’s service life.
- When visible damage exceeds rejection criteria
Broken wires concentrated within one lay length, severe birdcaging, or flattened strands indicate that rope integrity is compromised and failure is imminent. - When diameter reduction exceeds allowable limits
Regular diameter checks reveal gradual internal damage. If the rope’s diameter reduces beyond specified thresholds, its load-bearing capacity diminishes, signaling the need for replacement. - After reaching predefined cycle count or usage hours
Heavy-duty cranes with high load cycles or abrasive environments (e.g., offshore, ports) may require rope replacement even without visible damage. Use cycle-based replacement schedules for high-demand operations. - When rope exhibits excessive corrosion or wear
Corrosion from environmental exposure leads to reduced wire strength. Replace ropes with significant rust, pitting, or reduced flexibility to prevent breakage.
How to Change Crane Wire Rope?
Changing crane wire rope involves a systematic process that minimizes downtime and ensures safety:
- Secure and shut down the crane system
Disable the crane’s power and release any load to eliminate strain during rope replacement. - Remove the damaged rope
Carefully unwind the old rope, making sure it is completely detached from the sheaves, drum, and end connections. - Prepare the drum and sheaves
Clean and inspect the drum and sheaves for any signs of damage, wear, or misalignment. Address any issues before installing new rope. - Spool new rope onto the drum
Install the new rope according to the correct winding pattern. Ensure there is no twist in the rope and that the rope fits the grooves snugly. - Pre-tension the rope
Apply proper pre-tension to align the rope and minimize the risk of loose layers or compression. - Test the crane operation
Once the rope is installed, run the crane at low speed and load to verify rope performance, correct spooling, and operational integrity.
Have More Questions of Crane Wire Ropes?
Got more questions about crane wire ropes? Whether you’re wondering how to choose the best rope, install it, or keep it in top shape, we’re here to help. Explore expert advice on crane rope maintenance and replacement, ensuring safety and efficiency in every lift.
