You rely on DIN 766 chains for demanding industrial tasks such as securing anchors and protecting cargo. These chains deliver consistent performance and help maintain strict safety standards.
Understanding DIN 766 chain specifications ensures you achieve maximum safety, as chains must meet a minimum safety factor of 4:1 and pass rigorous testing. Suppliers provide certificates traceable to batch numbers, confirming quality.
Powerful Machinery stands out as a trusted source for high-performance chains that meet industry requirements.
Minimum Safety Factor
Testing Requirements
Certification
4:1
Non-destructive testing for each batch
Test certificates traceable to batch numbers
Key Takeaways
Choose DIN 766 chains for reliable performance in industrial tasks. Their design ensures safety and durability in demanding environments.
Always verify the chain’s specifications and load capacity before use. This step helps maintain safety and compliance with industry standards.
Select the right material for your environment. AISI 316 stainless steel offers excellent corrosion resistance, ideal for marine applications.
Regularly inspect your chains for wear and damage. This practice extends their life and ensures safe operation in your projects.
Purchase from reputable suppliers like Powerful Machinery. Their certified chains meet strict standards, providing peace of mind and long-term value.

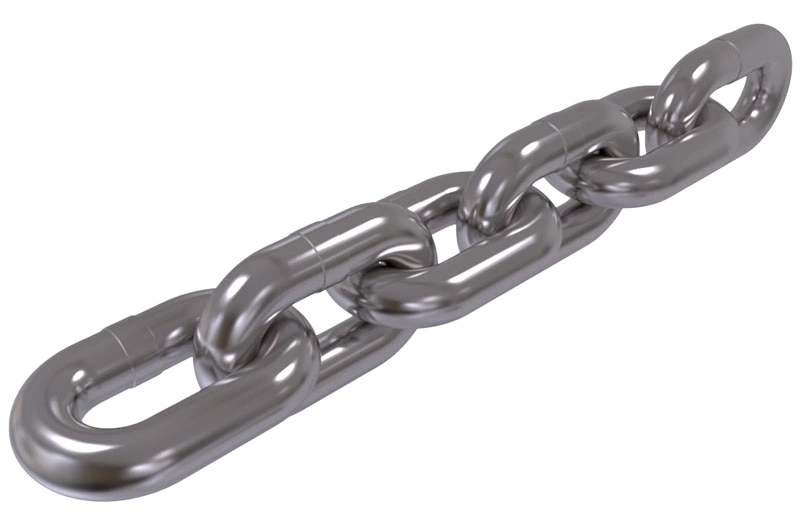

DIN 766 Chain Overview
What Is DIN 766 Chain?
You encounter the DIN 766 chain in many demanding environments. This chain follows the DIN 766 standard, which sets strict requirements for dimensions and performance. The standard ensures that every chain link meets precise measurements, so you can trust its reliability in critical tasks.
You will find that the DIN 766 chain features a short-link design. This design increases strength and reduces the risk of tangling during use.
When you select a DIN 766 chain, you choose a product that meets international expectations for safety and durability. The chain comes in a range of sizes, from 2mm to 32mm, to fit different needs.
Manufacturers use high-quality materials such as super carbon steel or AISI 316 stainless steel. These materials give the chain excellent resistance to corrosion and wear. You can also choose from finishes like zinc-plated or black-painted, which add another layer of protection.
Powerful Machinery stands out as a leader in supplying certified DIN 766 chains. You benefit from their decades of experience and commitment to quality. Their chains undergo strict testing and carry certifications that meet or exceed global standards.
Industrial Applications
You rely on the DIN 766 chain for a wide range of industrial applications. The chain’s robust construction and compliance with the DIN standard make it suitable for many sectors. Here are some common applications:
Marine sector: You use the chain for anchor chains, where strength and corrosion resistance are essential.
Construction sector: The chain serves as barriers, helping you secure work zones and equipment.
Security applications: You depend on the chain for anti-theft purposes, protecting valuable assets.
You see the DIN 766 chain in action wherever you need secure, reliable solutions. Its versatility allows you to address different challenges in industrial applications. Powerful Machinery’s expertise ensures you receive chains that perform under pressure and meet your project’s demands.
DIN 766 Chain Specifications
Material and Construction
When you select a DIN 766 chain, you invest in a product built for demanding environments. Manufacturers use high-quality materials such as super carbon steel and AISI 316 stainless steel.
These materials provide the chain with exceptional strength and resistance to corrosion. You can choose from finishes like zinc-plated or black-painted, which add another layer of protection against harsh conditions.
The construction process focuses on durability and performance. Each chain undergoes intermediate-frequency heat treatment, hardening above the AC3 point, and tempering before proof testing. This process ensures the chain resists wear, deformation, and fatigue.
You benefit from a product that maintains its structural integrity under impact and vibration, making it ideal for high-stress industrial applications.
Material | Properties |
|---|---|
Super Carbon Steel | High tensile strength, excellent durability |
AISI 316 Stainless Steel | Superior corrosion resistance, longevity |
20CrNiMo, SAE8620, 23MnNiMoCr54 | Exceptional strength, high service temperature |
You can rely on Powerful Machinery’s DIN 766 chain for consistent performance. The chain meets strict DIN 766 specifications, ensuring every link delivers the strength you need for safety standards in marine, construction, and cargo handling sectors.
Dimensions and Tolerances
Accurate chain measurement is essential for safety and compatibility. DIN 766 chain specifications define precise dimensions and tolerances for each size. You find chains ranging from 2mm to 32mm in diameter, each with specific inside length, inside width, outside width, and weight per meter.
These specifications guarantee that the chain fits your equipment and meets your operational requirements.
SIZE | INSIDE LENGTH (mm) | INSIDE WIDTH (mm) | OUTSIDE WIDTH (mm) | LENGTH PER 11 LINKS (mm) | WEIGHT PER M (kg) |
|---|---|---|---|---|---|
2 | 12 | 3.5 | 7.5 | 132 | 0.07 |
3 | 16 | 4.2 | 11 | 176 | 0.16 |
4 | 16 | 5 | 13.7 | 176 | 0.32 |
5 | 18.5 | 6 | 17 | 203.5 | 0.5 |
6 | 18.5 | 7.2 | 20.2 | 203.5 | 0.8 |
7 | 22 | 8.4 | 23.8 | 242 | 1.1 |
8 | 24 | 9.6 | 27.2 | 264 | 1.4 |
9 | 27 | 10.8 | 30.6 | 297 | 1.8 |
10 | 28 | 12 | 34 | 308 | 2.2 |
11 | 31 | 13.2 | 37.4 | 341 | 2.7 |
12 | 36 | 14.4 | 40.8 | 396 | 3.1 |
13 | 36 | 15.6 | 44.2 | 396 | 3.8 |
14 | 41 | 16.8 | 47.6 | 451 | 4.4 |
16 | 45 | 19.2 | 54.4 | 495 | 5.7 |
You should always verify the chain measurement before installation. This step ensures the chain matches your equipment and meets all safety standards. Powerful Machinery provides detailed specifications for every product, helping you make informed decisions.
Load Capacity
Understanding load capacity is critical for safe operation. DIN 766 chain specifications define minimum breaking loads and working load limits for each chain size. As the diameter increases, both the weight and strength of the chain rise. You must select the correct size based on your application’s requirements.
Wire Diameter (mm) | Min. Breaking Load (kN) | Weight (kg/m) |
|---|---|---|
3 | 1.5 | 0.22 |
4 | 2.5 | 0.38 |
5 | 4 | 0.59 |
6 | 6.3 | 0.85 |
8 | 11.2 | 1.5 |
10 | 17.5 | 2.4 |

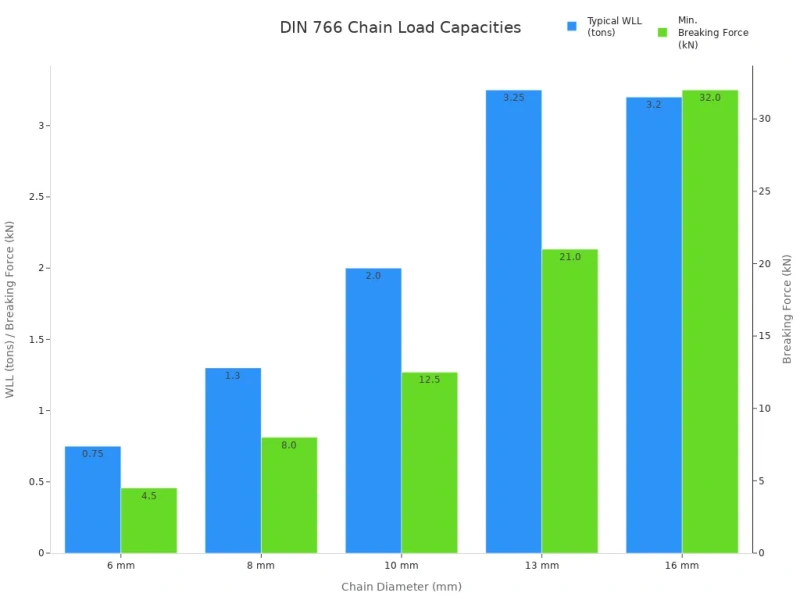

Chain Diameter (mm) | Typical WLL (tons) | Min. Breaking Force (kN) |
|---|---|---|
6 | 0.75 | 4.5 |
8 | 1.3 | 8.0 |
10 | 2.0 | 12.5 |
13 | 3.25 | 21.0 |
16 | 3.2 | 32.0 |
You must ensure that the chain you choose meets or exceeds the required working load limit. Proof load and breaking load tests are mandatory for every batch. Manufacturers also conduct elongation measurements, bend tests, and hardness checks.
Each chain undergoes dimension checks and heat treatment before proof testing. These steps guarantee that the chain meets all safety standards and delivers the strength you expect.
Tip: Always review the chain measurement and load capacity before use. This practice helps you maintain compliance with DIN 766 specifications and ensures workplace safety.
Marking and Compliance
You need to confirm that your DIN 766 chain complies with all relevant standards. Each chain must display specific markings, including the DIN 766 logo and a ‘T’ marking. These marks show that the chain has passed rigorous testing for quality and performance.
Manufacturers provide test certificates for every batch, confirming compliance with DIN 766 specifications and international safety standards.
Marking Type | Description |
|---|---|
DIN 766 Logo | Indicates compliance with the DIN 766 standard |
‘T’ Marking | Signifies the chain passed quality and performance tests |
Test Certificate | Confirms compliance with standards and safety requirements |
You should always request documentation when purchasing chains. This step ensures traceability and confirms that the chain meets all technical and safety standards.
Powerful Machinery supplies chains that not only meet DIN 766 specifications but also exceed many international requirements. You gain peace of mind knowing your chain delivers the strength, reliability, and compliance your industry demands.

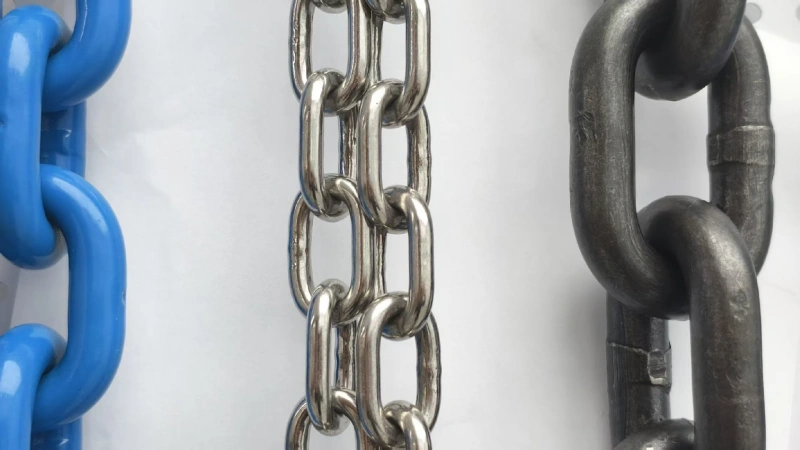

Key Features of DIN 766 Chain
Corrosion Resistance
You need reliable performance in harsh environments. The DIN 766 chain delivers outstanding corrosion resistance, especially when you choose AISI 316 stainless steel. This material contains chromium, which forms a protective layer on the chain surface. You benefit from excellent protection against moisture and pollutants.
This feature makes the DIN 766 chain ideal for marine settings and other areas with high exposure to the elements. You can also select finishes such as galvanized, hot-dip galvanized, or electro-galvanized.
These finishes add anti-rust and anti-corrosion benefits, extending the service life of your chain and reducing maintenance needs.
Tip: For maximum durability in saltwater or outdoor environments, choose AISI 316 stainless steel or a galvanized finish.
Versatility and Applications
You can use the DIN 766 chain in a wide range of industrial settings. Its short-link design and robust construction allow you to address many challenges. The chain adapts well to marine, construction, and cargo handling tasks.
However, you should remember that the DIN 766 chain is not intended for overhead lifting. This restriction ensures you maintain safety and compliance in your operations.
Application Type | Performance Requirement |
|---|---|
Lifting | High strength to resist heavy loads |
Towing | Corrosion resistance for durability |
Securing heavy loads | Smooth operation to prevent wear and breakdowns |
You gain flexibility with the DIN 766 chain, as it meets the demands of securing, towing, and protecting valuable assets.
Quality Assurance and Certifications
You expect consistent quality and proof of compliance. Powerful Machinery subjects every din 766 chain to rigorous proof testing and inspection. Each chain meets or exceeds the requirements set by the DIN standard.
You receive products with full certification, including ISO9001, TUV Rheinland, and other international marks. These certifications confirm that your chain will perform reliably, even in the toughest conditions. You can trust the DIN 766 chain to support your operations and uphold the highest safety standards.
Selection Criteria for DIN 766 Chain
Assessing Load and Application
You must start by understanding your load requirements. Consider both static and dynamic loads, as well as any shock loads that may occur. The chain you select must meet or exceed the minimum breaking load for your application. Review the table below to match your needs with the right chain features:
Factor | Details |
|---|---|
Material Types | Galvanized and stainless steel offer different corrosion resistance and strength. |
Grades | Higher grades provide greater durability, essential for heavy load requirements. |
Compatibility | Ensure the chain fits your equipment to avoid operational issues. |
Different industries have unique requirements. For example, marine applications demand corrosion resistance, while mining requires high strength and durability. Always match your chain to the specific requirements of your sector.
Choosing the Right Size
Selecting the correct size is vital for safety and performance. Follow these steps:
Determine your load requirements, including all forces involved.
Refer to DIN 766 chain specifications to choose the proper diameter.
Check that the chain matches your equipment and meets manufacturer specifications.
Inspect the chain for compliance with standards and required markings.
Assess connection points and attachments for compatibility.
Improper sizing can lead to anchor failure, chain slippage, or premature wear. Always verify the number of links and dimensions to meet class society rules.
Material Compatibility
You need to ensure the chain material suits your environment. For saltwater, select 316 stainless steel. For chemical exposure, use specialized alloys. Outdoor applications benefit from hot-dip galvanization.
Confirm that the chain integrates with your machinery by checking pitch size, link dimensions, and attachment types. Adhering to DIN standards ensures reliable performance.
Inspection and Maintenance
Regular inspection keeps your chain safe and extends its life. Check for wear, elongation, or cracks. Remove any chain from service if wear exceeds 10% of the original link diameter. Clean and lubricate the chain, and store it in a dry place.
Avoid overloading and ensure correct installation to maintain safety and meet standards.
Manufacturer and Cost Considerations
Choose a reputable manufacturer like Powerful Machinery. Look for chains made from high-grade materials that comply with DIN 766 chain specifications and international standards. Request test certificates for every batch. Evaluate both initial cost and long-term value.
Proper maintenance reduces operational costs and increases chain longevity.
Tip: Consult with Powerful Machinery’s experts for custom solutions that fit your exact requirements.
Benefits of DIN 766 Chain Specifications Compliance
Safety and Reliability
You improve safety when you follow DIN 766 chain specifications. These standards set strict requirements for every chain you use. You reduce the risk of accidents because each chain meets minimum breaking loads and passes proof testing. You can trust the chain to perform under pressure.
Powerful Machinery’s customers, like Ben Carter from Canada, report fewer incidents and greater peace of mind after switching to certified chains. You protect your team and your assets by choosing products that meet din standards.
Note: Always check for the DIN marking and test certificate before using any chain in your operations.
Reduced Maintenance
You lower your maintenance costs when you use chains that comply with din 766 chain specifications. The precise manufacturing process and high-quality materials prevent premature wear. You spend less time inspecting and replacing chains.
For example, David Müller from Germany noticed a significant drop in downtime after upgrading to Powerful Machinery’s certified chains. You keep your operations running smoothly because the chain resists corrosion and deformation. You also avoid unexpected failures, which saves you money and time.
Regular inspections become easier because the chain’s dimensions and markings follow clear standards.
You can quickly identify and remove any chain that does not meet specifications.
Long-Term Value
You gain long-term value by investing in chains that meet DIN 766 chain standards. These chains deliver optimal performance over many years. You avoid frequent replacements, which lowers your total cost of ownership.
Liam O’Connell from Australia values the durability and reliability of Powerful Machinery’s chains in harsh environments. You also benefit from full certification, which helps you pass audits and meet industry requirements.
When you choose chains that follow DIN 766 chain specifications, you secure your investment and ensure optimal performance for every project.
Benefit | How You Gain Value |
|---|---|
Fewer replacements | Lower long-term costs |
Reliable performance | Fewer disruptions |
Full certification | Easier compliance with standards |
Conclusion
You ensure safety and reliability when you understand and follow DIN specifications for your chain. Choosing certified DIN products from Powerful Machinery gives you confidence in every application. You improve efficiency and gain long-term value by trusting proven solutions.
For the best results, consult with industry experts who can guide you to the right chain for your needs.
FAQ
What is the main advantage of using a DIN 766 chain?
You gain consistent performance and safety when you use a DIN 766 chain. Its short-link design and strict dimensional standards ensure reliable operation in marine, construction, and security applications.
Can you use DIN 766 chains for overhead lifting?
You should not use DIN 766 chains for overhead lifting. These chains are designed for securing, towing, and anchoring tasks. Always select a certified lifting chain for hoisting or load-bearing operations.
How do you verify DIN 766 chain compliance?
You check for the DIN 766 marking and request a test certificate from your supplier. These documents confirm that your chain meets all required standards and has passed proof testing.
What materials are available for DIN 766 chains?
You can choose from super carbon steel or AISI 316 stainless steel. Each material offers specific benefits for corrosion resistance and strength, allowing you to match the chain to your environment.
How often should you inspect your DIN 766 chain?
You should inspect your chain regularly for wear, elongation, or damage. Remove any chain from service if you notice significant wear or deformation. Routine checks help maintain safety and extend service life.
