You might wonder how a hydraulic lift table works when you see it in action at an industrial site. Powerful Machinery designs these tables so you can raise or lower heavy loads with minimal effort. Hydraulic lift tables rely on Pascal’s Law, which means pressure applied to a confined fluid moves equally in all directions.
This principle allows you to lift impressive weights safely and efficiently. As industrial automation grows, more sectors use hydraulic lift tables for material handling, workplace safety, and efficiency.
Aspect | Details |
|---|---|
Largest End-User Sector | Industrial sector |
Projected CAGR | 5.5% through 2033 |
Key Application Areas | Construction, healthcare, logistics |
Growth Drivers | Automation, efficiency, safety |
Key Takeaways
Hydraulic lift tables use Pascal’s Law to lift heavy loads with minimal effort, making them essential for industrial material handling.
Key components include the platform, base frame, scissor mechanism, hydraulic cylinder, and pump, all working together for safe and efficient operation.
Regular maintenance is crucial for safety and performance; inspect for leaks and check fluid levels to ensure smooth operation.
Safety features like overload protection and emergency stop buttons enhance user safety and prevent accidents during operation.
Adjustable height functionality improves ergonomics, reduces injuries, and boosts productivity in various industrial applications.

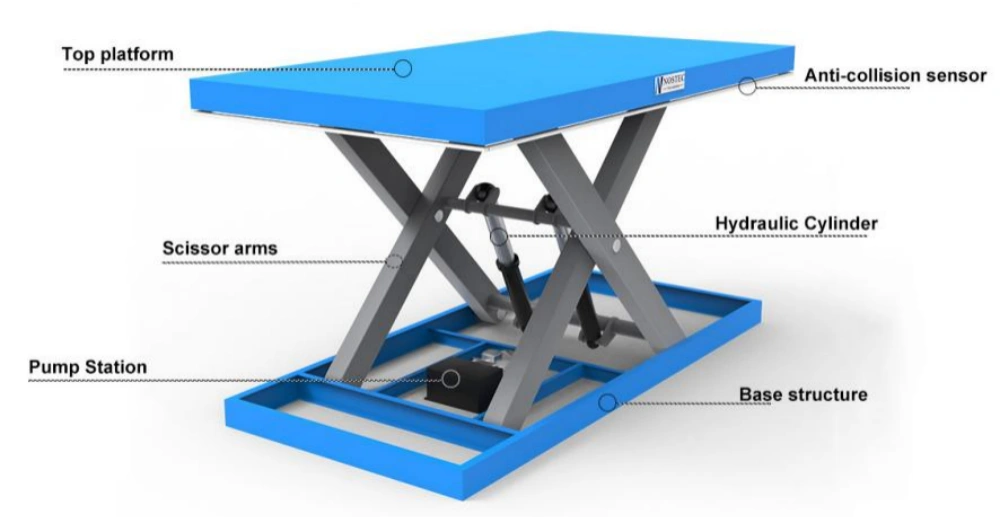

Hydraulic Lift Table Components
Platform and Base Frame
When you operate a hydraulic lift table, the platform and base frame form the foundation for safe and reliable lifting. The platform supports your load, while the base frame anchors the entire hydraulic lift table to the floor. Powerful Machinery uses welded steel construction and high-section modulus steel for frames.
These materials give you the strength and rigidity needed for heavy-duty industrial use. Tubular steel legs maximize rigidity and provide an optimal strength-to-weight ratio. You can trust the durability of Powerful Machinery’s hydraulic lift tables, even in demanding environments.
Note: The stability and performance of a hydraulic lift table depend on the quality of its base and frame. A strong base prevents tipping, and a reinforced frame ensures the platform stays level under load.
Component | Contribution |
|---|---|
Base | Provides stability and support for the entire structure, essential for safe operation, especially with heavy loads. |
Frame | Connects the scissor mechanism to the base, enhancing the overall structural integrity of the lift table. |
Scissor Mechanism
The scissor mechanism gives your hydraulic lift table its vertical movement. When you activate the hydraulic system, the scissor arms extend or retract, raising or lowering the platform. The geometry of the scissor mechanism multiplies force, especially at lower heights.
This design lets you lift heavy loads with less effort. Powerful Machinery engineers each hydraulic lift table to balance strength, weight, and cost, using mild steel or high-strength alloys for the scissor arms. Safety standards guide the design, so you can operate with confidence.
Component | Function |
|---|---|
Scissor Mechanism | Extends and retracts to raise or lower the platform when pressure is applied or released. |
Hydraulic Cylinder | Provides the force to lift the platform by pushing the scissor arms apart when hydraulic fluid is pumped in. |
Control System | Manages the flow of hydraulic fluid to the cylinder for lifting and lowering the platform. |
The scissor mechanism’s mechanical advantage can increase output force by eight to twelve times when the arms are nearly horizontal.
As the platform rises, the mechanical advantage decreases, so actuator sizing is critical for consistent travel and weight capacity.

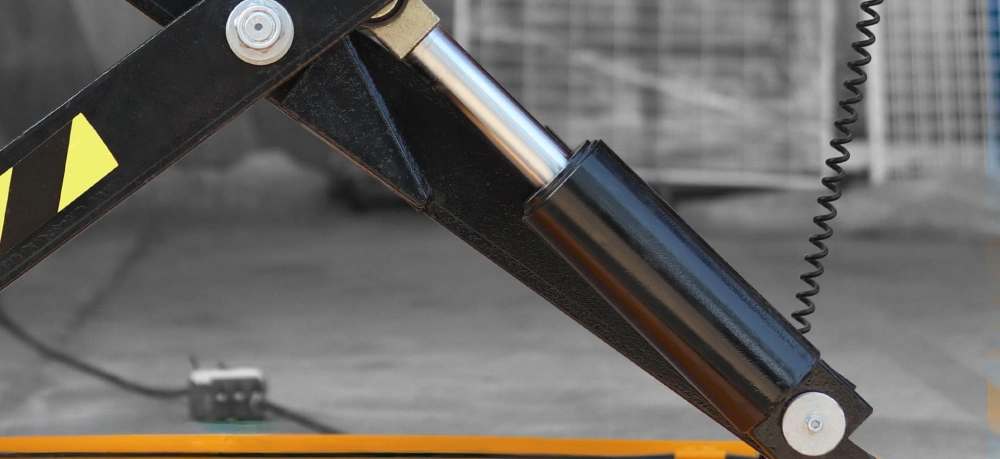

Hydraulic Cylinder and Pump
You control the lifting power of your hydraulic lift table through the hydraulic cylinder and pump. The hydraulic pump draws fluid from the reservoir and pressurizes it. This high-pressure hydraulic fluid enters the cylinder, which converts the pressure into linear motion.
The cylinder extends, pushing the scissor arms apart and raising the platform. Powerful Machinery uses high-pressure hydraulic cylinders for reliable performance and long service life. Regular maintenance keeps your hydraulic lift table running smoothly.
You should inspect for leaks, check fluid levels, and test all controls to ensure safe operation.
Component | Role in Hydraulic Lift Tables |
|---|---|
Hydraulic Pump | Generates hydraulic pressure by drawing fluid from the reservoir and pressurizing it before sending it to the cylinder. |
Hydraulic Cylinder | Converts hydraulic fluid pressure into linear motion, extending to lift the load when fluid is pumped into it. |
Daily, weekly, and monthly maintenance routines help you maximize the durability and safety of your hydraulic lift tables.
How Does a Hydraulic Lift Table Work?
Understanding how a hydraulic lift table works helps you operate it safely and efficiently. You rely on hydraulic power to lift and lower heavy loads with minimal effort.
Powerful Machinery’s hydraulic lift tables use advanced engineering to deliver consistent, reliable performance in demanding industrial environments. Let’s break down how it works, step by step.
Lifting Process Step-by-Step
When you want to raise a load, the hydraulic lift table follows a precise sequence:
Power Activation: You start by pressing the control button or lever. This action activates the electric motor and hydraulic pump.
Pressure Building: The hydraulic pump draws fluid from the reservoir and forces it into the hydraulic cylinder. Pressure builds up against the piston inside the cylinder.
Lifting Motion: The pressurized hydraulic fluid pushes the piston upward. This movement causes the scissor mechanism to extend, raising the platform and your load.
Height Maintenance: Once the platform reaches the desired height, the control valves close. The hydraulic fluid remains trapped in the cylinder, holding the platform steady.
Ready for Lowering: The platform stays in position until you activate the lowering control.
Hydraulic lift tables use Pascal’s principle to multiply force. When you apply pressure to the hydraulic fluid, it transmits equally in all directions. This allows a small input force to lift a much heavier load.
The hydraulic cylinder and scissor mechanism work together to provide smooth, controlled lifting. Powerful Machinery’s hydraulic lift tables ensure you get reliable lifting power every time.
Tip: Always check the load capacity before lifting. Powerful Machinery’s hydraulic lift tables include overload protection to keep you safe.
Lowering Process Step-by-Step
Lowering the platform on a hydraulic lift table is just as controlled as lifting. Here’s how you do it:
Lowering Activation: You press the lowering control, which opens the control valve.
Fluid Release: The hydraulic fluid flows out of the cylinder and returns to the reservoir.
Platform Descent: As the fluid leaves the cylinder, the piston retracts. The scissor mechanism contracts, and the platform lowers smoothly.
Controlled Speed: Safety valves regulate the speed of descent, preventing sudden drops.
End Position: The platform reaches the base frame and stops. Safety features ensure the platform does not descend too quickly or unexpectedly.
Powerful Machinery’s hydraulic lift tables use limit switches and emergency stop buttons to enhance safety during lowering. These features prevent over-travel and allow you to stop the table instantly if needed.
Note: Regular maintenance of the hydraulic system ensures smooth lowering and extends the life of your hydraulic lift table.
Interaction of Components
Each component of a hydraulic lift table plays a vital role in both lifting and lowering operations. The hydraulic pump, cylinder, scissor mechanism, platform, and control system work together seamlessly. Here’s a closer look at how these parts interact:
Operation | Description |
|---|---|
Lifting the Table | Hydraulic fluid is forced into the cylinder, causing the scissor legs to extend and raise the platform. |
Lowering the Table | Hydraulic fluid is released from the cylinder, allowing the platform to descend. Safety mechanisms prevent uncontrolled descent. |
You benefit from a system designed for reliability and safety. Powerful Machinery’s hydraulic lift tables feature high-quality materials, ergonomic design, and advanced safety features.
These include overload protection, emergency stop buttons, and limit switches. You can trust the table to handle heavy loads, maintain stability, and provide smooth operation every time.
Performance Metric | Description |
|---|---|
Safety Features | Locking mechanisms, overload prevention, and non-slip surfaces keep you safe. |
Weight Capacity | Handles heavy loads without risk of failure. |
Ergonomic Design | Reduces strain and improves comfort during use. |
Adjustable Height Range | Adapts to various tasks and user needs. |
Ease of Mobility | Durable wheels allow you to move the table easily. |
High-Quality Materials | Ensures long-term durability and reliability. |
Emergency Stop Buttons | Lets you stop the table instantly in an emergency. |
Limit Switches | Prevents the platform from moving beyond safe limits. |
Overload Relays | Protects the system from excessive weight. |
When you ask, how does a hydraulic lift table work, you see that every part has a purpose. The hydraulic system multiplies your input force, the scissor mechanism provides stable vertical movement, and the safety features protect you and your load.
Powerful Machinery’s hydraulic lift tables deliver the performance and reliability you need for industrial material handling. If you want to understand how it works, just watch the smooth interaction of hydraulic power and mechanical design in action.

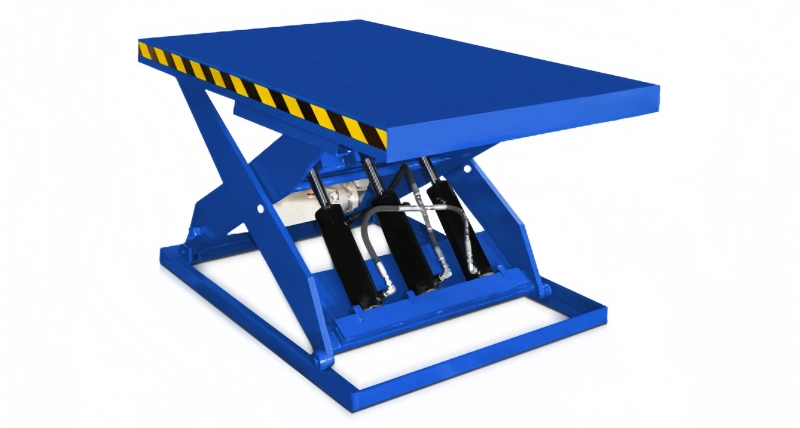

Hydraulic Scissor Lift Table Safety
Operate a Hydraulic Scissor Lift Table Safely
You must always operate a hydraulic scissor lift table safely to protect yourself and your team. Before you start lifting heavy loads, inspect the hydraulic system for leaks, cracks, or loose parts. Check the platform and base for stability.
Never exceed the weight limit, as overload protection prevents accidents and keeps the hydraulic system working properly. Keep your hands, feet, and clothing away from moving parts. Only trained operators should use the controls, and you should never leave the hydraulic scissor lift table unattended while in motion.
Maintain a clean and organized workspace to avoid slips and ensure safety and accuracy during operation.
Tip: Always review the user manual and follow all safety protocols before you operate a hydraulic scissor lift table safely.
Built-In Safety Features
Powerful Machinery’s hydraulic scissor lift tables come with advanced safety features to give you enhanced safety and peace of mind. These tables include:
Overload protection to prevent lifting heavy loads beyond capacity
Emergency stop button for immediate shutdown in case of danger
Non-slip hydraulic lifting platform to reduce slippage
Safety locking mechanisms to keep the lift stationary during maintenance
Toe guards and safety skirting to protect your feet
Pressure relief valves to prevent hydraulic overload
Limit switches to stop the platform at safe heights
These safety and control features work together to ensure you can lift and lower loads with confidence. Overload protection, limit switches, and the emergency stop button are essential for preventing accidents and meeting industry standards.
Common Safety Concerns
When you use hydraulic scissor lift tables, you face several common safety concerns. Operator training is critical, as human error often leads to accidents. Routine inspections help you spot visible damage and confirm that all safety features function correctly.
A clutter-free workspace reduces the risk of tripping or interference with the hydraulic system. If you want to choose the right hydraulic scissor lift table, always look for models with comprehensive safety and control features.
These features help you achieve both safety and accuracy when lifting heavy loads in any industrial environment.
Industrial Hydraulic Lift Table Benefits
Ergonomics and Efficiency
You experience immediate benefits when you use an industrial hydraulic lift table in your facility. These tables improve workplace ergonomics by letting you adjust the platform height to a comfortable level. You reduce back and shoulder injuries, minimize repetitive bending, and avoid overreaching.
This adjustment helps you maintain proper posture and lowers the risk of strain. Many hydraulic lift tables feature smooth lifting and lowering, which prevents sudden movements that could cause muscle fatigue or accidents.
Adjustable height functionality allows you to position the hydraulic scissor lift table for each task.
You improve load positioning accuracy, which supports OSHA safety compliance.
You increase overall worker productivity by reducing physical effort.
Feature | Benefit |
|---|---|
Load capacity | Handles loads from 500 lb to 20,000 lb and beyond. |
Height adjustment | Raises materials to 70 inches for easy access. |
Ergonomics | Reduces manual lifting and operator fatigue. |
Workflow efficiency | Streamlines tasks like assembly and packing. |
Mobility | Optional wheels for quick repositioning. |
Industrial hydraulic lift tables help you streamline workflow efficiency. You move materials faster and more safely, which leads to increased productivity. You also see fewer workplace injuries, which saves costs and keeps your team healthy.
Hydraulic scissor lift tables can reduce lifting injuries by up to 35% and back injury claims by 40-60%. You may also see a 15-30% improvement in productivity.
Customization and Applications
Powerful Machinery offers industrial hydraulic lift tables with a wide range of customizable options. You can select the right load capacity for your operation, from standard models to custom builds up to 50,000 lbs.
Adjustable lift heights let you tailor each hydraulic lift table to your workflow. You can choose between fixed, mobile, tilt-top, or turntable designs to match your specific needs.
Custom load capacities for heavy-duty or light-duty tasks
Mechanical screw-type options for precise, repeatable motion
Dock lift packages for efficient load handling at shipping bays
Optional wheels for mobility across your workspace
Industrial hydraulic lift tables fit many applications. You use them for material handling, assembly lines, warehousing, logistics, retail, automotive, and maintenance. Each hydraulic scissor lift table supports efficient load handling and improves workflow efficiency in your daily operations.
Application Area | Benefit |
|---|---|
Material handling | Safe loading and unloading of goods |
Assembly and production | Ergonomic positioning of components |
Warehousing and logistics | Optimized pallet stacking and storage |
Automotive and manufacturing | Lifting vehicles and heavy equipment |
You invest in industrial hydraulic lift tables for long-term value. Their durability and minimal maintenance requirements lower your operating costs. Enhanced safety and increased productivity make them a smart choice for any industrial environment.
Conclusion
You gain clear advantages when you choose hydraulic lift tables from Powerful Machinery. These tables help you work more safely and faster by lifting loads to the right height. You see fewer injuries and better productivity in your facility.
Improved workplace safety
Faster loading and unloading
Versatility for many industries
When you select a hydraulic lift table, check load capacity, lift height, and safety features. Powerful Machinery gives you reliable performance and custom options for every material handling need.
FAQ
What is the maximum weight a hydraulic lift table can handle?
You can choose hydraulic lift tables from Powerful Machinery with load capacities ranging from 500 lbs to over 25,000 lbs. Custom options are available for heavier loads. Always check the product specifications before use.
How often should you maintain a hydraulic lift table?
You should inspect your hydraulic lift table daily for leaks or damage. Perform thorough maintenance monthly. Regular checks help you ensure safe operation and extend the equipment’s lifespan.
Can you customize a hydraulic lift table for your application?
Yes, you can request custom sizes, load capacities, lift heights, and special features. Powerful Machinery offers tailored solutions to fit your unique material handling needs.
What safety features come standard on Powerful Machinery’s hydraulic lift tables?
You get overload protection, emergency stop buttons, limit switches, and non-slip platforms. These features help you operate the lift table safely and prevent accidents.
Where can you use hydraulic lift tables?
You can use hydraulic lift tables in warehouses, factories, assembly lines, automotive shops, and logistics centers. They improve efficiency and safety in any material handling environment.
