When you choose a chain for boating, high-test chains like G40 and G43 often work best for marine anchor chain selection. These chains match most windlasses and offer higher strength, which keeps your anchoring system safe and reliable.
Many boaters get confused by different chain grades and names. The table below shows common grades and their main features:
| Chain Grade | Material Type | Characteristics |
|---|---|---|
| G30 | Carbon/Mild Steel | General purpose, does not work with windlasses. |
| G40 | High Carbon Steel | High test, fits most windlasses, double the working load of BBB chain. |
| G43 | High Carbon Steel | Used for high test applications. |
| G70 | Heat-Treated Steel | Very high strength-to-weight, not compatible with many windlasses. |
| BBB | Low Carbon Steel | Short link, works with gypsies, previously standard for windlasses. |
| G4 | High Carbon Steel | Standard for most windlasses today, marked every foot. |
You want to pick a chain that passes the proof test and fits your boating equipment. Powerful Machinery offers certified options that help you anchor with confidence.
Key Takeaways
- Choose high test chains like G40 and G43 for marine anchoring. They offer higher strength and compatibility with most windlasses.
- Understand the working load limits: proof coil chains handle 1,300 to 6,900 lbs, while high test chains manage 2,600 to 13,000 lbs.
- Select chains with a galvanized finish to resist rust and extend lifespan in saltwater environments.
- Always match the chain size to your windlass specifications to ensure smooth operation and prevent damage.
- Regularly inspect your anchor chain for wear and corrosion to maintain safety and reliability on the water.
Proof Coil vs High Test Chain： Quick Comparison
Key Differences
When you compare the proof coil chain and ht chain, you notice several important differences. Proof coil chain uses low-strength carbon steel. Ht chain uses higher-grade carbon steel, which gives it more strength and better wear resistance. Both chains have a 3:1 design factor, but their working load limits are not the same.
- Proof coil chain: Working load limit ranges from 1,300 lbs to 6,900 lbs.
- Ht chain: Working load limit ranges from 2,600 lbs to 13,000 lbs.
Saltwater can cause corrosion in both chains. Proof coil chain rusts faster because of its lower carbon content. Ht chain resists wear better, but salt exposure still leads to corrosion over time.
Tip: Always choose a chain with a galvanized finish for marine use. Galvanized coatings help slow down rust and extend the lifespan of your chain.
You can see the difference in average lifespan below:
| Chain Type | Average Lifespan | Notes |
|---|---|---|
| High Test Chain | Longer | Superior strength and wear resistance |
| Proof Coil Chain | Shorter | Less strength and more wear susceptibility |

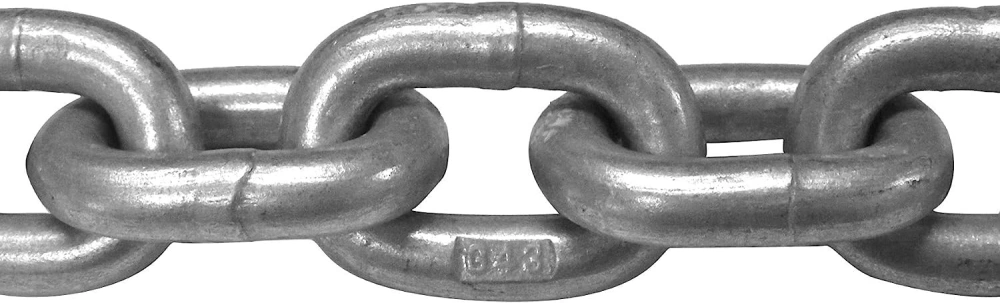

When to Use High Test？
You should use ht chain for most marine anchor applications. Ht chain offers higher strength, which means you can anchor safely even in rough conditions.
Major anchor chain manufacturers recommend high-test chains like G43 and G4 for marine use. These chains work well with windlasses and mooring systems. You get better reliability and longer service life.
- Ht chain fits most windlasses.
- It provides about 20% more strength than standard chains of the same diameter.
- You can use ht chain for marine mooring systems and various types of vessels.
If you want a chain that lasts longer and resists wear, ht chain is the best choice. You protect your boat and equipment by choosing a chain with superior strength.

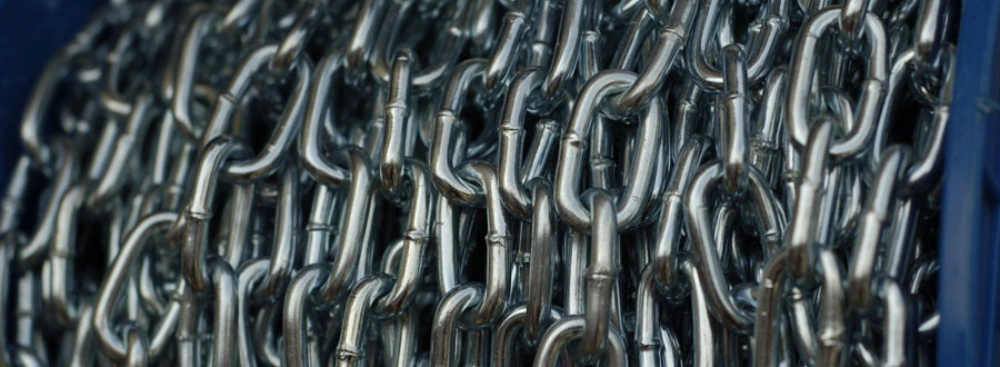

When is Proof Coil Chain suitable？
You can use a proof coil chain for general utility tasks. It works well for towing, securing cargo, and farm use. Proof coil chain is not rated for overhead lifting or heavy marine anchoring. You should avoid using it in saltwater for long periods because it rusts quickly.
- Proof coil chain is ideal for ground-level applications.
- You can buy it by the foot for custom lengths.
- It meets safety standards for industrial and farm use.
If you need a chain for non-marine tasks or short-term use, proof coil chain gives you a reliable and cost-effective solution.
Chain Grades and Materials
Proof Coil Chain by Powerful Machinery
You can rely on Powerful Machinery’s proof coil chain for versatile marine and industrial applications. This chain uses low-carbon steel, which provides solid tensile properties for general use. You find it available in self-colored, zinc-plated, and galvanized finishes.
Galvanized proof coil chain resists corrosion, making it suitable for short-term marine tasks. The chain meets NACM, OSHA, and ASTM standards, so you know it delivers consistent tensile performance and safety.
Here is a quick look at common materials used in marine chains:
| Material Type | Description |
|---|---|
| Low Carbon Steel | General-purpose material for proof coil chains. |
| Zinc Plated | Used for grade 30 proof coil chains. |
| Galvanized | Provides corrosion resistance for marine use. |
| Aluminum | Lightweight option for various applications. |
| High Strength Steel | Heat-treated for enhanced strength in marine use. |
| Alloy Steel | Offers high durability in harsh environments. |
G43 High Test Chain Features
You get superior performance when you choose the g43 high test chain for marine anchor systems. This chain uses high-strength steel, which is heat-treated to boost tensile capacity. G43 chain offers about 50% more tensile strength than grade 30 chains.
You see it available in finishes like galvanized and zinc-plated, which help resist abrasion and corrosion. G43 chain fits most windlasses and meets ASTM and NACM standards. You can use it for anchoring, mooring, and towing heavy loads.
- The G43 chain provides a 3:1 design factor for safety.
- The tensile strength of G43 chain allows each link to withstand loads exceeding one ton.
- Galvanized coatings protect the chain from seawater exposure and maintain tensile strength over time.
- G43 chain resists fatigue and abrasion, ensuring a long service life.
Grade Impact on Strength
You need to understand how chain grade affects tensile strength and safety. Higher grades like g43 use alloy or high-strength steel, which increases tensile strength and durability. Lower grades, such as proof coil chain, use low-carbon steel and offer less tensile strength.
International standards require a minimum breaking load based on anchor mass. In the U.S., g43 chains must meet a 3:1 tensile strength to working load limit ratio. European and Australian standards often use a 4:1 safety factor.
| Property | Description |
|---|---|
| Tensile Strength | High-carbon or alloy steels in g43 chains withstand heavy loads without yielding. |
| Flexibility | Chain links bend and twist, absorbing shock loads. |
| Corrosion Resistance | Galvanized coatings maintain tensile strength in marine environments. |
| Fatigue Life | G43 chain resists metal fatigue, lasting decades under constant motion. |
| Abrasion Resistance | Large radii link designs and coatings resist wear from seafloor contact. |
Tip: Always check the tensile rating and grade before selecting a marine anchor chain. The G43 chain gives you the best balance of tensile strength, safety, and reliability for demanding marine conditions.
Dimensions and Compatibility
Link Size and Fit
You need to pay close attention to link size when selecting a marine anchor chain. Standard link sizes vary, and each dimension plays a role in how well the chain works with your windlass.
Short link chains are most common for marine use, but there is no single global standard for their measurements. The pitch, or the distance between links, is especially important. If the pitch does not match your windlass gypsy, you may experience problems during operation.
- Chain pitch determines how smoothly the chain moves through the windlass.
- EN and DIN standards offer similar link diameters, but pitch and width can differ.
- North American chains sometimes have longer and wider links than ISO or European chains.
- Calibration ensures the chain fits your windlass perfectly.
You should always check the manufacturer’s specifications for both your windlass and chain. Matching these details helps prevent issues and keeps your anchoring system reliable.
Windlass Requirements
Your windlass relies on the correct chain dimensions to function properly. If the chain does not fit the windlass gypsy, you may notice bouncing or slipping when retrieving the anchor. Poor fit can also cause excessive wear and lead to malfunction. Many windlass failures result from improper chain size or fit.
- Proper fit allows the windlass to grip each link securely.
- Incorrect dimensions can damage both the chain and windlass.
- You reduce the risk of breakdowns by choosing a chain designed for your windlass.
Tip: Test the chain with your windlass before heading out on the water. This simple step can save you time and prevent costly repairs.
Labeling and Standards
You should look for chains that meet recognized labeling and certification standards. These standards ensure the chain’s strength, durability, and traceability.
Classification societies such as RINA, Lloyd’s Register, and Bureau Veritas set technical rules based on years of research and experience. They inspect products to confirm compliance with their specifications.
| Specification Type | Description |
|---|---|
| Material Requirements | Specifications for materials ensuring strength and durability. |
| Design and Dimensions | Guidelines on design and dimensions for compatibility with marine vessels. |
| Manufacturing Processes | Instructions on processes like welding and heat treatment for quality production. |
| Testing and Inspection | Requirements for testing to ensure standards for strength and performance are met. |
| Marking and Identification | Guidelines for marking to ensure traceability and compliance with regulations. |
You gain peace of mind when you choose chains that carry proper certification and clear labeling. General certification assures construction quality. Individual certification is often required for larger anchors.
Type approval is helpful, though not always necessary for smaller chains. Always check for these marks before making your selection.

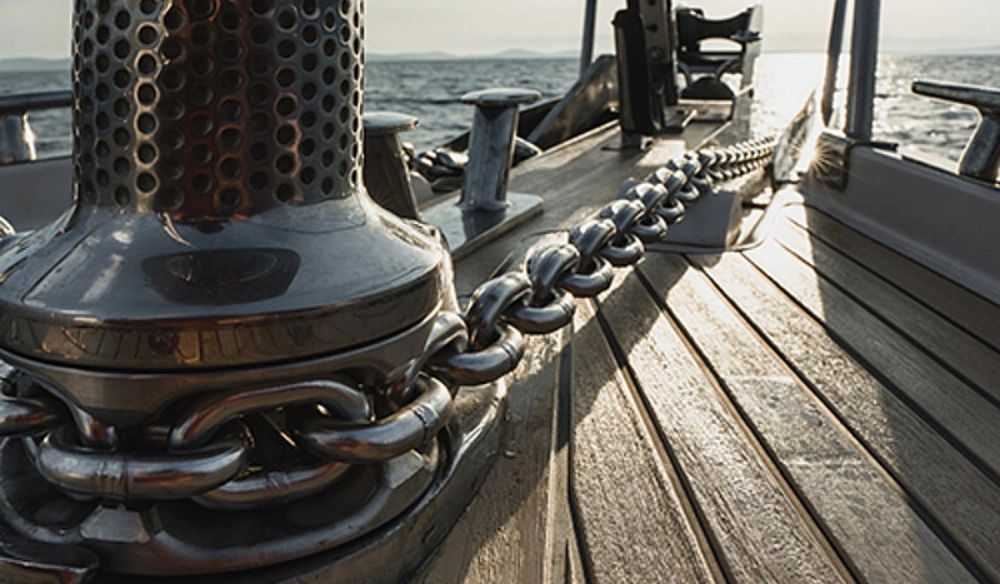

Marine Anchor Chain Selection
Choosing the Right Chain
You face many choices during marine anchor chain selection. You must consider several factors to ensure your anchor chain matches your vessel and environment. Start by looking at the size and weight of your boat. Larger vessels need thicker and stronger chains to provide enough holding power.
You also need to match the anchor type and weight with the right chain size. Each anchor has a recommended chain size for optimal performance.
Follow these steps for effective marine anchor chain selection:
- Vessel Size and Weight: Choose a chain with enough strength for your boat’s size. Heavy boats require chains with higher working load limits.
- Anchor Type and Weight: Match the chain to your anchor’s specifications. This ensures the anchor holds securely.
- Water Depth: Use a scope ratio of 5:1. Your chain should be five times the water depth for safe anchoring.
- Holding Requirements: Think about weather, currents, and seabed type. You may need a larger chain for rough conditions.
- Regulatory Guidelines: Check maritime regulations for chain size recommendations. Classification societies provide rules for different vessel types.
Environmental conditions also play a big role in marine anchor chain selection. Salinity and temperature affect how your chain performs. In warm, salty waters, you should look for chains with high corrosion resistance.
Duplex stainless steel and super duplex stainless steel offer excellent protection against rust and high temperatures. Chains with higher Pitting Resistance Equivalent Number (PREN) and Critical Pitting Temperature (CPT) values last longer in harsh marine environments.
Powerful Machinery gives you access to a wide range of certified chains for marine anchor chain selection. You can choose from proof coil chains for utility tasks or G43 high test chains for demanding marine use.
Each product meets strict international standards, including BS ISO 1704:2022, which sets guidelines for stud-link anchor chains in the maritime sector. You get reliable strength and durability for every application.
Tip: Always check the chain’s certification and finish before making your final choice. Galvanized chains resist corrosion and extend service life in marine conditions.
Testing and Manufacturer Advice
You need to make sure your anchor chain passes every important test before you trust it on the water. Manufacturers use several testing procedures to guarantee reliability and strength. These tests confirm that each chain meets safety standards and performs well in marine anchor chain selection.
| Testing Method | Purpose |
|---|---|
| Tensile Testing | Measures breaking strength and elongation properties. |
| Charpy Impact Testing | Checks impact resistance and toughness. |
| Hardness Testing | Assesses resistance to indentation, showing strength and wear. |
| Fatigue Testing | Simulates repeated stress to gauge endurance. |
| Corrosion Testing | Evaluates resistance to marine corrosion. |
| Load Testing | Examines loading and deformation under stress. |
| Chemical Analysis | Verifies material composition for strength and durability. |
You should always ask your supplier for test results and certifications. Powerful Machinery provides chains that pass every required test and meet international standards.
You can rely on their products for consistent strength and long-term performance. If you have a windlass, test the chain fit before heading out. This step helps prevent problems and ensures smooth operation.
Note: Regular inspection and testing of your anchor chain keep your anchoring system safe. Replace chains that show signs of wear or corrosion to maintain strength and reliability.
Safety and Load Limits
Working Load Limit
You need to understand the working load limit before you select a marine anchor chain. The working load limit tells you the maximum weight the chain can safely handle during normal use.
Manufacturers calculate this value based on the minimum tensile strength and the minimum breaking strength of the chain. Proof coil chains and high test chains have different working load limits. You can see the comparison in the table below:
| Chain Type | Working Load Limit (WLL) |
|---|---|
| Proof Coil/BBB | 25% of the breaking strength |
| High Test (HT) | 33% of the breaking strength |
You should always choose a chain with a working load limit that matches your vessel and anchor size. This step helps you maintain safety and avoid overloading your equipment.
Safety Factors
Safety factor plays a key role in marine anchor chain selection. You want a chain that offers a high safety factor to protect your boat and crew. The safety factor is the ratio between the minimum tensile strength and the working load limit.
High test chains use high carbon steel and provide a higher safety factor than proof coil chains. The table below shows how material and compatibility affect safety:
| Chain Type | Material | Working Load | Compatibility with Windlasses |
|---|---|---|---|
| Proof Coil | Low Carbon Steel | Standard | No |
| High Test | High Carbon Steel | Higher (twice that of BBB) | Yes |
You get better safety when you use high-test chains for marine anchoring. These chains offer a higher minimum tensile strength and work with most windlasses.
Tip: Always check the safety factor before you install a new chain. A higher safety factor means more protection for your vessel.
Interpreting Ratings
You need to read chain ratings carefully to ensure safety. Manufacturers mark chains with their minimum tensile strength, working load limit, and safety factor. You should look for these ratings on the product label or certification documents.
The minimum breaking strength tells you the force needed to break the chain. The working load limit shows the safe operating range. The safety factor gives you extra assurance during rough conditions.
- Check the minimum tensile strength for every chain.
- Confirm the working load limit matches your anchor and vessel.
- Review the safety factor to ensure reliable performance.
You protect your boat and crew when you understand and follow these ratings. Always choose certified chains from trusted suppliers to guarantee safety on the water.
Proof Coil Chain Applications
Marine Uses
You can use a proof coil chain in many marine settings. This chain helps you secure small equipment or tools on offshore platforms. You often see it supporting aquaculture cages, keeping them stable on buoys or fixed brackets in seawater. You can lift or lower these cages easily for cleaning or replacement.
The chain’s corrosion-resistant finishes, such as galvanized or zinc-plated, make it suitable for short-term exposure to saltwater. Powerful Machinery’s proof coil chain meets strict safety standards, so you get reliable performance for every marine task.
- Fixes small equipment on offshore platforms
- Hangs aquaculture cages on buoys or brackets
- Allows easy lifting or lowering of cages for maintenance
Tip: Choose a galvanized finish for marine use to extend the chain’s lifespan in harsh environments.
Industrial and Utility Uses
You find proof coil chains in many industrial and utility applications. Its versatility makes it a popular choice for securing pipelines during installation, operating rotary cutters, and supporting playground swings.
Truck tailgates often rely on this chain to keep loads secure. You also see it used in agriculture for farming equipment and in automotive tie-downs.
| Application Type | Description |
|---|---|
| Pipeline Installation | Used for securing pipelines during installation. |
| Rotary Cutters | Employed in machinery for cutting operations. |
| Swings | Utilized in playground equipment for swings. |
| Truck Tailgates | Commonly used for securing loads in truck tailgates. |
- Agriculture: Used in farming equipment
- Automotive: Common in tie-downs
Powerful Machinery offers customization options to fit your needs. You can select from surface treatments like hot-dip galvanized, zinc-plated, electrophoresis, powder-coated, or polished finishes.
You choose link sizes and adjust the structure or length for specific applications. Each chain meets international certifications, including NACM, OSHA, and ASTM standards.
Note: Customizing your chain ensures the best fit and performance for your project.
Conclusion
Choosing the right marine anchor chain means you protect your vessel and crew. You should focus on strength, compatibility, and safety. Review the main factors before you decide:
| Factor | Description |
|---|---|
| Weight and Size of Vessel | Determines the type and size of anchor chain needed for effective anchoring. |
| Type of Anchoring Ground | Different seabeds require specific types of anchor chains for optimal holding power. |
| Chain Material | Galvanized steel offers durability and corrosion resistance. |
Always consult the windlass manufacturer’s guidelines and check product labeling. Test the chain fit with your windlass. Explore Powerful Machinery’s certified chains for reliable anchoring. Certified chains feature uniform links and tough galvanized coatings, which help you anchor safely in any marine environment.
FAQ
What is the main difference between a proof coil and a high test chain?
You see a proof coil chain made from low-carbon steel. High test chain uses high carbon steel. High test chain offers more strength and better wear resistance. You should choose a high test chain for most marine anchor applications.
Can you use a proof coil chain with a windlass?
You cannot use a proof coil chain with most windlasses. The link size and shape do not match windlass gypsies. You should select a high test chain or BBB chain for windlass compatibility.
How do you know if a chain is certified for marine use?
You should check the product label and certification marks. Look for standards like NACM, ASTM, or ISO. Powerful Machinery provides certified chains that meet international safety and quality requirements.
What finish should you choose for marine chains?
You should choose a galvanized finish for marine chains. Galvanized coatings protect against rust and corrosion. This finish helps your chain last longer in saltwater environments.
