Wire Rope Clamps

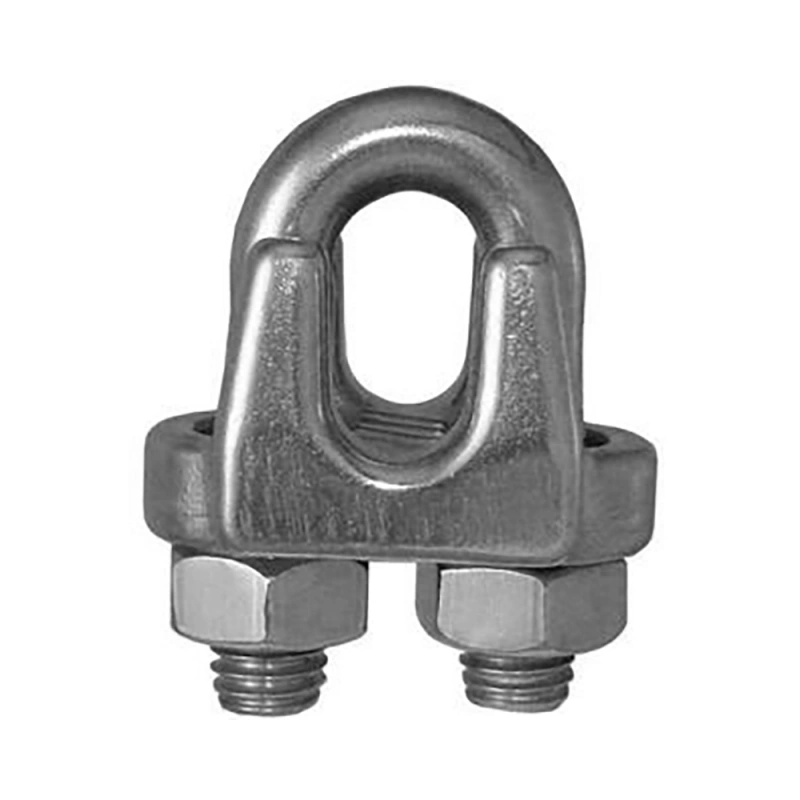

Powerful Machinery manufactures wire rope clamps in galvanized, stainless steel, and zinc malleable finishes for secure wire rope fastening. We deliver stable quality, custom sizes, and dependable bulk supply. Request a quote for wire rope clips from Powerful Machinery.
Consistent wire rope clamps quality from batch to batch for lower claims and smoother supply
Direct factory pricing on wire rope clamps to help you control cost and protect margins
Reliable bulk production and delivery to keep your wire rope clamps supply on schedule
Custom wire rope clamps sizes, finishes, and OEM support for your exact market needs
Powerful Machinery - Your Reliable Wire Rope Clamp Manufacturer
We supply work provide dependable wire rope clamps for industry leaders.

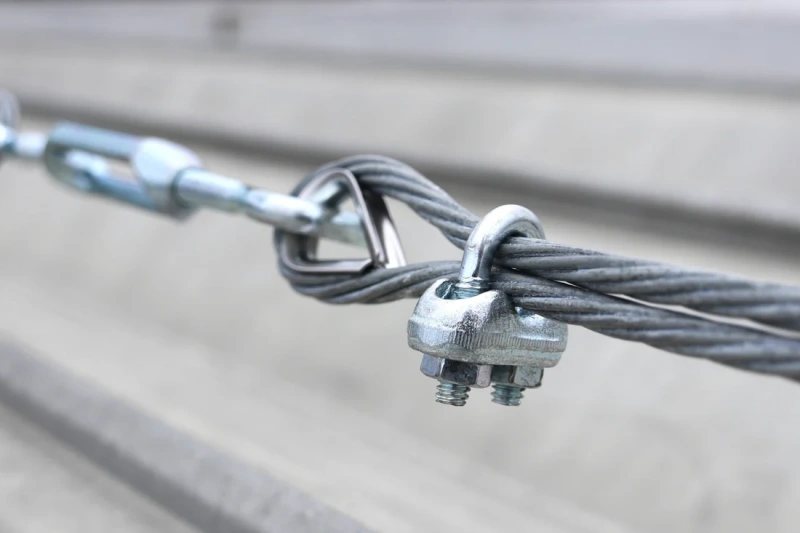

WIRE ROPE CABLE CLAMPS
Our wire rope clamps support secure wire rope fastening, custom production, and stable bulk supply for industrial and rigging applications.

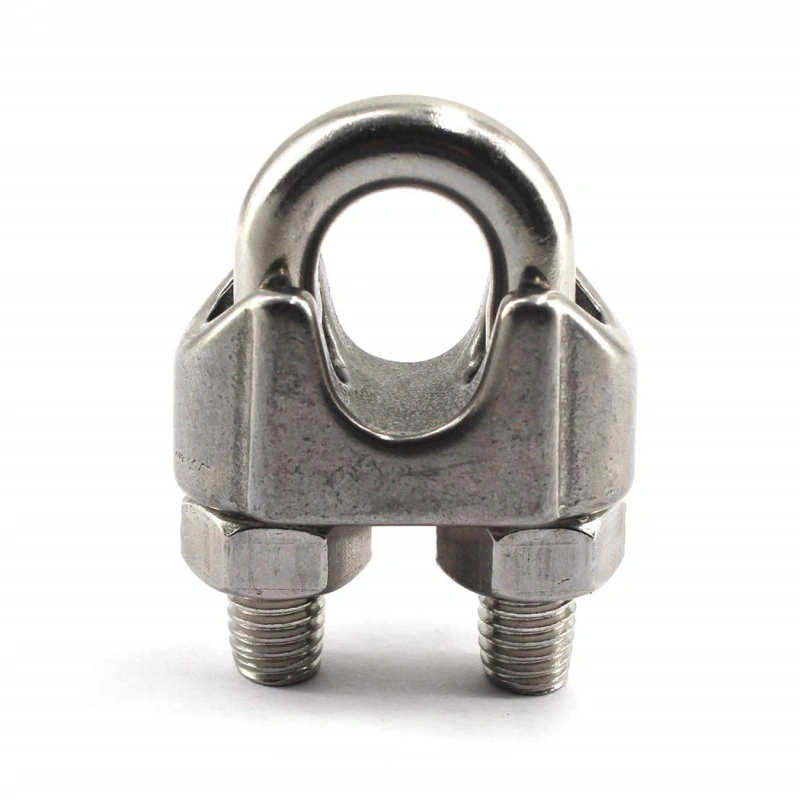

U Bolt Clamp for Wire Rope
U bolt clamp for wire rope features a U-bolt, saddle, and two nuts for secure loop fastening. Fit the saddle on the live end for correct installation.

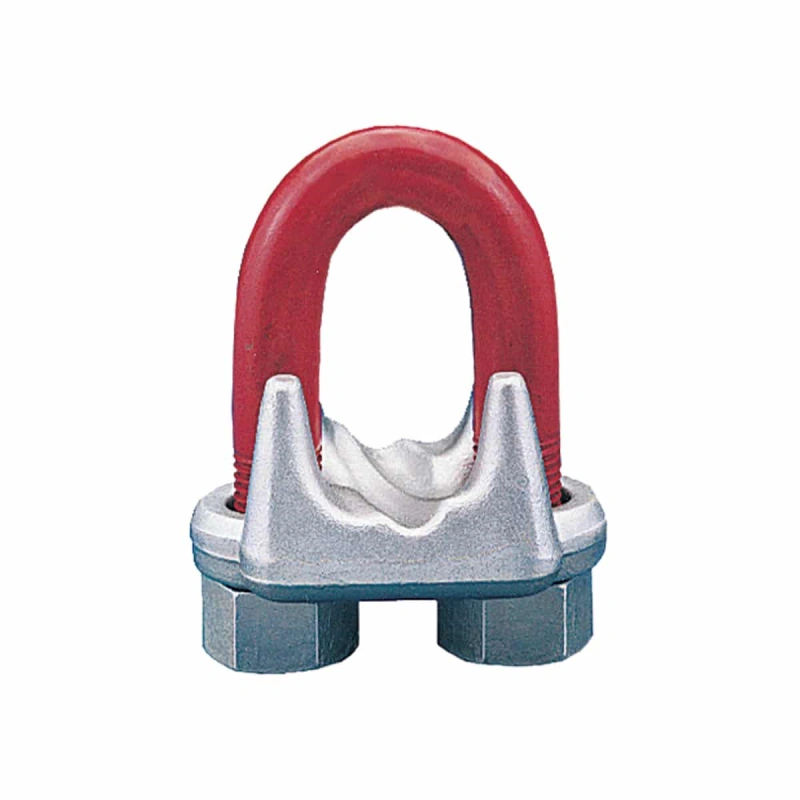

Forged wire rope clamp delivers reliable strength for heavy-duty wire rope fastening in lifting, mooring, suspension, and industrial applications.

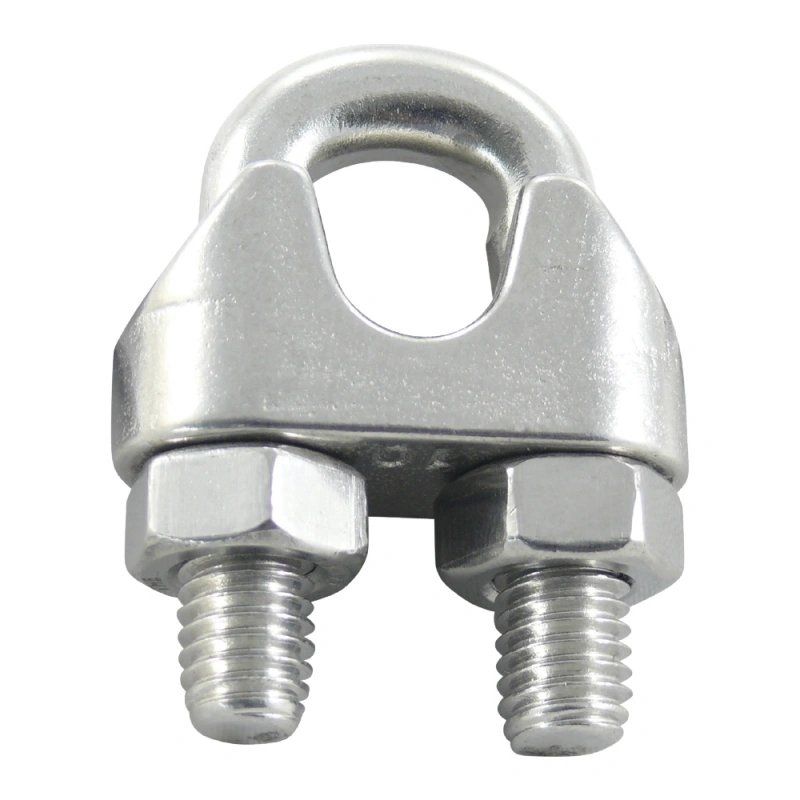

Stainless Steel Wire Rope Clamps
Stainless steel wire rope clamps provide corrosion-resistant performance for reliable wire rope fastening in marine, chemical, and outdoor applications.

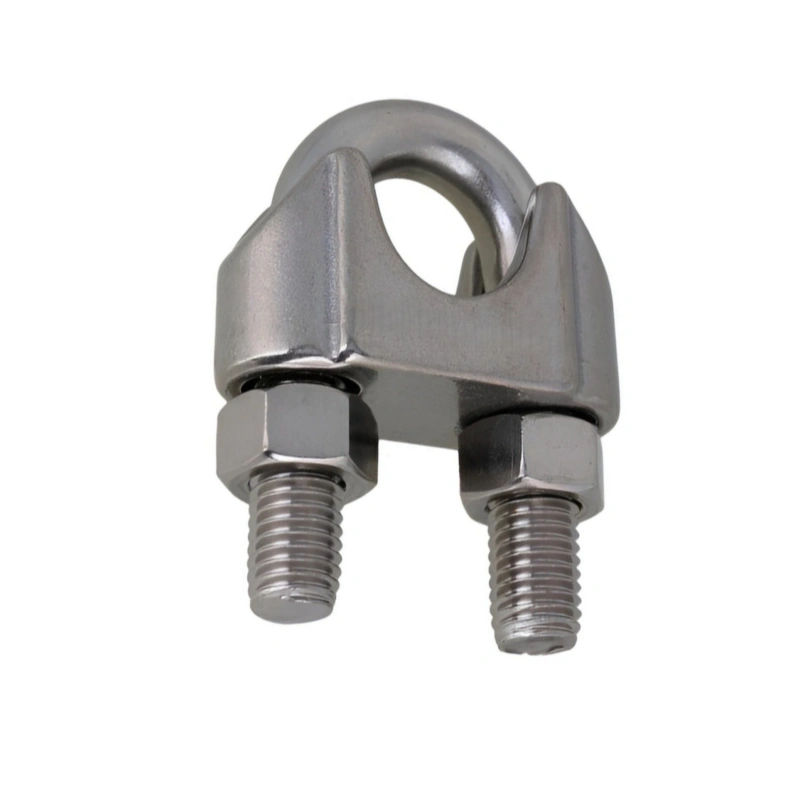

Steel Wire Rope Clamp
Steel wire rope clamp secures loops or joins with a U-bolt, saddle, and nuts for strong, adjustable fastening in rigging, lifting, and structural use.

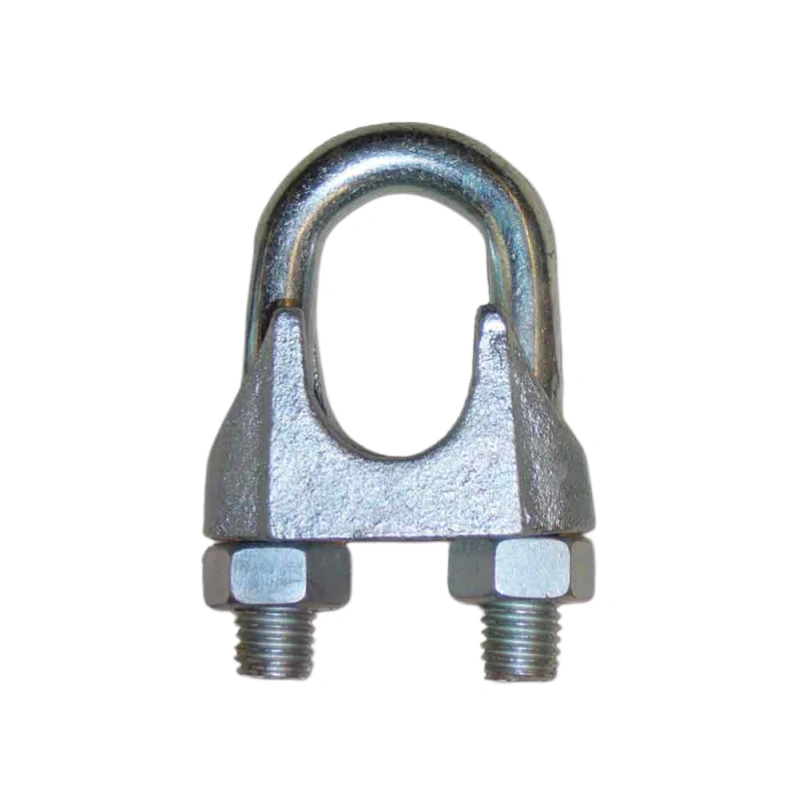

Galvanized Wire Rope Clamps
Galvanized wire rope clamps use a zinc-coated steel body to secure loops or wire rope joins with reliable rust resistance for rigging, mooring, and structural use.
NEED HELP WITH YOUR WIRE ROPE CABLE CLAMP ORDER?
Let us help! Reach out today and get recommendations on materials and sizing from our experts.
Guide to Wire Rope Clamp
Guide to wire rope clamp covers clamp types, sizes, installation, and selection for reliable wire rope fastening and sourcing.
Wire Rope Clamp Types
How Do Wire Rope Clamps Work?
Wire rope clamps are essential components for securing wire rope assemblies in industrial, marine, and rigging applications. To ensure safe and reliable performance, it is important to understand not only how the clamp works, but also how the complete assembly is specified and installed.
- Wire rope clamps secure rope through controlled gripping pressure.
The clamp works by applying balanced force to hold the wire rope firmly in place without allowing unwanted movement. - The U-bolt fits around the dead end, or short tail, of the rope.
This part of the clamp helps create the clamping force needed to keep the wire rope assembly tight and secure. - The saddle supports the live end of the wire rope.
Proper saddle placement is critical because it helps maintain rope integrity and prevents damage to the load-bearing section. - The nuts tighten the assembly and lock the rope in position.
As the nuts are tightened, the clamp compresses the rope and helps it retain its intended shape and connection. - Wire rope clamps can be used in several common configurations.
These include forming an eye loop, securing a loose tail, or creating an adjustable end connection for various operational needs. - In B2B procurement, a wire rope clamp should never be treated as a basic commodity item.
Performance depends on the total assembly design, not only on the clamp itself. - The holding strength of the connection is influenced by multiple factors.
These include:- clamp size
- wire rope diameter
- rope construction
- number of clamps used
- spacing between clamps
- tightening method
- actual service conditions
- Even a high-quality clamp can fail if installation is poor.
Incorrect assembly practices can reduce holding performance and create safety risks during operation. - Professional buyers usually evaluate the complete system rather than focusing only on unit price.
This approach helps reduce risk, improve reliability, and support long-term operational safety. - For industrial, marine, and rigging applications, installation requirements should be verified before approval.
Buyers should confirm:- installation instructions
- recommended torque practices
- inspection and maintenance requirements
- suitability for the intended service environment
Wire Rope Clamping Method
A proper wire rope clamping method is essential for safe installation, consistent performance, and long-term reliability. For B2B buyers and suppliers, a clear and standardized clamping process helps ensure professional results across different projects, installers, and order volumes.
- Start by matching the wire rope clamp to the correct rope diameter.
Proper sizing is the foundation of a secure connection and helps ensure the clamp performs as intended. - Form the loop or overlap according to the application requirement.
The wire rope should be arranged correctly before any clamps are installed to support a stable and effective assembly. - Use a thimble when wear protection is required.
In applications where the loop is exposed to friction or repeated load contact, a thimble helps protect the rope and extend service life. - Place the first clamp close to the eye of the rope assembly.
Correct positioning of the first clamp is important for maintaining loop shape and securing the connection properly. - Always position the saddle on the live end of the rope.
This is a key installation rule that helps protect the load-bearing side of the wire rope and maintain assembly strength. - Install the remaining clamps with equal spacing.
Consistent spacing supports even load distribution and improves the overall stability of the clamped connection. - Tighten the nuts in a balanced and controlled pattern.
Even tightening helps apply uniform pressure across the assembly and reduces the risk of uneven gripping. - In B2B supply, installation consistency is just as important as hardware quality.
Customers expect repeatable and dependable performance, not results that vary from one installation to another. - Inconsistent clamping methods can make product performance appear unreliable.
When installation practices differ from batch to batch or from installer to installer, performance variations may occur even if the clamp itself remains unchanged. - A professional supplier should provide clear installation support.
This should include:- product drawings
- size charts
- guidance on clamp quantity
- spacing recommendations
- torque instructions
- Clear installation guidance helps customers reduce claims and improve field performance.
Standardized instructions make it easier to achieve consistent installation quality across different job sites and purchasing volumes. - A well-defined clamping method supports correct product use in diverse applications.
This improves customer confidence and helps ensure the clamp is applied properly in real working conditions.
Wire Rope Clamp Installation
A professional wire rope clamp installation process should be simple, clear, and repeatable.
- Begin by checking the condition of the wire rope.
Inspect the rope carefully to make sure it is suitable for installation and free from visible damage, deformation, or excessive wear. - Confirm that the clamp size matches the wire rope diameter.
Correct sizing is essential for safe installation and helps ensure the clamp delivers reliable holding performance. - Form the loop according to the application requirement.
The rope should be arranged properly before installation so the final assembly maintains the correct shape and function. - Install a thimble when additional wear protection is needed.
A thimble helps protect the eye of the rope from abrasion and supports longer service life in demanding applications. - Place the first clamp close to the eye of the assembly.
Proper positioning of the first clamp helps secure the loop and maintain the intended structure of the connection. - Always place the saddle on the live end of the rope.
This is a critical installation principle that helps protect the load-bearing side of the rope and preserve connection strength. - Install the remaining clamps with even spacing.
Equal spacing improves load distribution and helps the full clamp assembly work more consistently. - Tighten both nuts evenly so the saddle sits flat on the rope.
Balanced tightening helps create uniform pressure and reduces the risk of uneven clamping performance. - Apply the correct tightening torque after positioning the clamps.
Proper torque is necessary to achieve the intended grip and support safe, repeatable installation results. - Test the assembly under a controlled load.
A controlled load test helps verify that the installation is secure and performing as expected before actual service use. - Recheck the nuts after the rope has settled.
Wire rope may shift slightly after initial loading, so retightening inspection is important to maintain connection reliability.
How Many Cable Clamps on Wire Rope?
It depends on the wire rope diameter, clip material, rope construction, and application. You should not use one fixed number for every job. OSHA guidance shows that the required number of U-bolt wire rope clips increases as rope diameter increases, and non-drop-forged clips usually require more clips than drop-forged clips. OSHA also says you should follow the manufacturer’s recommendations for installation.
A practical reference for U-bolt wire rope clips is:
- 1/2 in. or smaller: 3 drop-forged clips, 4 other-material clips
- 5/8 in.: 3 drop-forged, 4 other-material
- 3/4 in. to 7/8 in.: 4 drop-forged, 5 other-material
- 1 in.: 5 drop-forged, 7 other-material
- 1-1/8 in. to 1-1/4 in.: 6 drop-forged, 7 to 8 other-material
- 1-3/8 in. to 1-1/2 in.: 7 drop-forged, 8 to 9 other-material
You should also watch the rope construction. Powerful Machinery states that its table is based on common 6×19 or 6×37 class wire rope, and for Seale construction or similar large outer wire ropes in 1 inch and larger sizes, you add one more clip. Powerful Machinery also says to match clip size to rope size and retighten after the first load.
If your application is suspension scaffold wire rope, OSHA gives a specific minimum: at least 3 clips, spaced at least 6 rope diameters apart, installed per the manufacturer’s instructions, with retightening after initial loading and inspection at the start of each shift.
How to Tighten Wire Rope Clamps?
Tighten wire rope clamps evenly with a torque wrench, keep the saddle on the live end, and re-tighten after the first load.
A clean step-by-step version for your page:
- Match the clamp size to the wire rope diameter.
- Form the loop or end connection.
- Put the saddle on the live end and the U-bolt on the dead end.
- Snug both nuts evenly.
- Use a torque wrench.
- Alternate between the two nuts until you reach the recommended torque.
- Load the assembly lightly.
- Re-tighten the nuts to the specified torque after the rope seats.
- Inspect and recheck the clamps during service.
What Size Wire Rope Clamp Do I Need?
You need a clamp that matches the actual wire rope diameter exactly. Powerful Machinery’s guidance says to match the same size clip to the same size wire rope. Do not size it by eye, by nut size, or by the overall clamp body.
Use this simple rule:
- Measure the rope diameter
- Match the clamp size to that diameter
- Stay in the same system: inch rope with inch clamps, metric rope with metric clamps
- Follow the manufacturer’s table for clamp count, spacing, and torque
Examples
- 1/8 in. wire rope → 1/8 in. wire rope clamp
- 1/4 in. wire rope → 1/4 in. wire rope clamp
- 6 mm wire rope → 6 mm wire rope clamp
What you should check before you buy:
- Rope diameter: this is the first sizing point
- Clamp material: galvanized steel or stainless steel, depending on the environment
- Clamp type: U-bolt, duplex, simplex, flush, or other design
- Application: light-duty, marine, rigging, fencing, railing, or industrial use
- Installation data: required number of clamps, spacing, and tightening torque
One important caution: OSHA says that if manufacturers’ recommendations are available, you should follow them; if U-bolt clip instructions are not available in some regulated cases, OSHA tables are used for number and spacing of clips, not as a shortcut for picking a mismatched clamp size.
Wire Rope Clamp Capacity
Wire rope clamp capacity does not come from the clamp alone. In practice, the holding capacity comes from the full rope termination system: rope diameter, rope construction, clip type, number of clips, spacing, torque, loading method, and service condition all affect the result. OSHA also notes that rated loads depend on factors such as material strength, design factor, hitch type, loading angle, D/d ratio, and fabrication efficiency.
For clip-built assemblies, OSHA says you should follow the clip manufacturer’s recommendations or a qualified person’s guidance for the number of clips, spacing, and torque values. OSHA also says you should place the U-bolt over the dead end, tighten clips evenly to the recommended torque before and after the initial load, and inspect them regularly.
One important limit: OSHA says you should not use wire rope clips to fabricate wire rope slings, except where the application does not allow a prefabricated sling and a qualified person designs the sling for that specific use. OSHA also says do not use slings made with wire rope clips in a choker hitch and do not use malleable cast iron clips to fabricate slings.
Wire Rope Clamp Distance
Wire rope clamp distance usually means the spacing between the clamps and the position of the first clamp on the dead end of the rope. For general installation, Powerful Machinery says to place the first clip one base width from the dead end of the rope. When more clips are required, the remaining clips should follow the maker’s layout and torque instructions.
If manufacturer instructions are not available for some regulated applications, OSHA tables give minimum spacing by rope diameter. For example, OSHA’s table shows minimum spacing of 3 inches for wire rope 1/2 inch or smaller, 3 3/4 inches for 5/8 inch rope, 4 1/2 inches for 3/4 inch rope, and 6 inches for 1 inch rope.
For suspension scaffold use, OSHA gives a more specific rule: install at least 3 wire rope clips and keep them a minimum of 6 rope diameters apart. OSHA also requires installation per the manufacturer’s recommendations, with re-tightening after initial loading.
Wire Rope Clamp vs Ferrule
Wire rope clamps (clips) are removable, adjustable, and installed with standard tools, making them ideal for temporary, on-site, or light-duty use. Ferrules (swage sleeves) are compressed onto the rope using hydraulic tools for a permanent, stronger, and more streamlined connection, ideal for heavy-duty lifting. Clamps are common for guy lines; ferrules for lifting slings.
Wire Rope Clamps (Clips)
Installation: Easy to install using a wrench. No special tools needed.
Reusability: Yes, they can be removed and reused.
Strength: Generally 80–90% of the rope’s capacity, assuming correct installation.
Best Use: Field assembly, rigging, temporary connections, guy lines, and security applications.
Types: U-bolt (standard) and Fist-Grip (heavy-duty, double saddle).
Ferrules (Swage Sleeves)
Installation: Require a specialized swaging or crimping tool to compress the metal onto the wire.
Permanence: Permanent; cannot be reused once swaged.
Strength: Provides high-strength connections, often preferred for lifting.
Best Use: Permanent factory-fitted rigging, safety-critical applications, or where a smooth finish is required.
Materials: Typically aluminum, copper, or steel.
Key Considerations
Safety: Ferrules are generally safer for lifting. Improperly installed clamps can lead to failure.
Inspection: Both require inspection, but clamps specifically require checking bolt tension.
Size: Both must be carefully selected to match the wire rope diameter.
Have More Questions of Wire Rope Clamps?
Have more questions about wire rope clamps? Contact our team for support on sizes, materials, specifications, installation, and bulk orders. We help you choose the right product for your application.
