When it comes to heavy lifting, wire rope thimbles always outperform simple loops. You want maximum safety, higher load capacity, and long-lasting durability. Powerful Machinery delivers certified wire rope solutions trusted by professionals worldwide. Take a look at industry standards for thimbles in heavy lifting:
| Aspect | BS 464 | BS EN Din6899a |
|---|---|---|
| Standards Compliance | Withdrawn, older standard | Current European standard |
| Material | Mild steel | Mild steel |
| Finish | Hot-dipped galvanization | Hot-dipped galvanization |
| Performance | Less stringent requirements | More stringent performance |
| Certification | No certification available | Certificates of conformity |
Wire Rope Thimbles vs Wire Rope Loop: Strength Difference is clear—thimbles win every time.
Key Takeaways
- Wire rope thimbles provide extra support and protection, preventing wear and extending the lifespan of your wire rope.
- Using thimbles helps maintain the shape of the wire rope loop, ensuring higher minimum breaking strength during heavy lifting.
- Thimbles distribute load evenly, reducing stress on the rope and enhancing overall efficiency in lifting operations.
- In harsh environments, thimbles made from galvanized or stainless steel resist corrosion, keeping your equipment safe and reliable.
- For maximum safety and performance, always choose thimbles over simple loops, especially in critical lifting situations.
Strength Difference

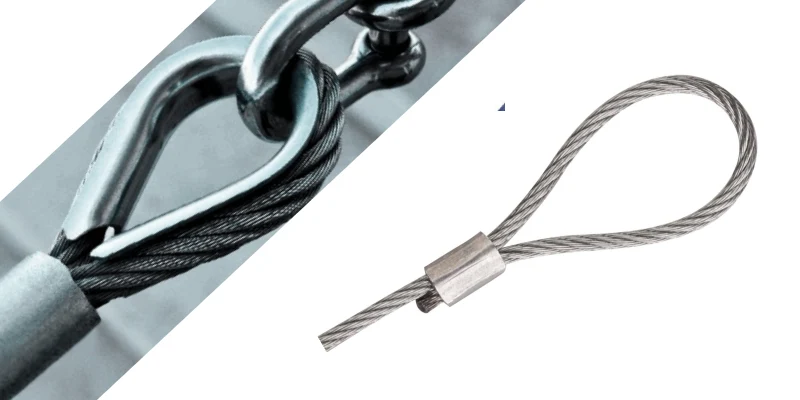

Wire Rope Thimbles vs Wire Rope Loop: Strength Difference
When you look at wire rope thimbles vs wire rope loop: strength difference, you see a clear gap in performance. Wire rope thimbles give your wire rope assemblies extra support and protection. They help prevent abrasion and wire fatigue. You get a stronger loop because the thimble keeps the rope from bending too much and stops direct contact with hardware. This means your wire rope keeps its mechanical strength longer, especially in tough jobs.
Simple loops, on the other hand, do not have this extra layer of defense. The rope bends sharply around hooks or shackles. This can cause the wires to rub against each other or the hardware. Over time, this weakens the rope and lowers its minimum breaking strength. You want your wire rope to last, and thimbles help make that happen.
Powerful Machinery’s thimbles, like the Stainless Steel Thimble, DIN6899B, and BS464, are designed to boost the strength of your wire rope. These thimbles distribute the load evenly and help maintain the loop’s shape. You get better efficiency and a higher minimum breaking strength. When you use a thimble, you protect your investment and keep your lifting system safer.
Weak Points of Simple Loops
If you use a simple loop, you face several weak points that can affect the strength and safety of your wire rope. Here’s what usually goes wrong:
| Failure Mode | Description |
|---|---|
| Wire Breakage | Fatigue, wear, or overload can break wires, lowering the rope’s strength. |
| Deformation | The loop can kink or flatten, making it less flexible and strong. |
| Corrosion | Exposure to moisture or chemicals weakens the rope and causes early failure. |
| Slipping | The rope can lose grip, leading to sudden drops or accidents. |
| Flower Knotting | Knots can form, causing severe damage and safety risks. |
| Wear | Rubbing against hardware reduces diameter and minimum breaking strength. |
| Twisting | Uneven stress can twist the rope, leading to more wear and possible breaks. |
You also see mechanical damage, broken wires, crushed or flattened rope, and bending fatigue. These problems show up more often in simple loops because there is nothing to protect the rope from sharp bends or heavy loads. The minimum breaking strength drops quickly when these issues appear.
Strength Data
Let’s break down the wire rope thimbles vs wire rope loop: strength difference with some key facts:
- Wire rope thimbles protect the rope from wear and keep the loop strong under load.
- Thimbles help the loop hold its shape, which keeps the minimum breaking strength high.
- You get even load distribution, which means the rope works more efficiently.
- Thimbles stop premature splice failure, which is important for heavy lifting.
- They shield the rope from too much pressure and friction, which can lower the breaking strength.
- Rigging thimbles reinforce the loop, so it can handle the demands of lifting, securing, or tensioning.
- Thimbles are essential for industries that need strong and safe wire rope terminations.
When you use a thimble, you help your wire rope reach its full minimum breaking strength. The thimble keeps the rope from bending too tightly, which can cut the breaking strength by up to 50% in a simple loop. With a thimble, you keep the tensile strength and breaking strength closer to the rope’s rated value. This is why thimbles are a key part of any system where strength and safety matter.
Safety and Durability
Wire Rope Protection
You want your wire rope to last through tough jobs and harsh conditions. Thimbles give your wire rope the protection it needs. When you use a heavy duty thimble, you add a layer of defense that keeps the rope from fraying, crushing, or deforming. This is especially important in marine and industrial settings, where moisture and heavy loads can wear down your gear fast.
- Thimbles are crafted from high-quality steel and often galvanized to resist rust.
- Stainless steel thimbles stand out in marine environments. They fight off corrosion and keep your wire rope strong, even when exposed to saltwater.
- Thimbles help your wire rope maintain its shape. This means less chaffing and abrasion, which can weaken the rope over time.
- You get a longer service life for your slings and assemblies because thimbles keep the correct D/d ratio and prevent kinks.
Take a look at how thimbles benefit your wire rope in industrial applications:
| Benefit | Description |
|---|---|
| Corrosion Resistance | Thimbles made from galvanized or stainless steel offer excellent resistance to corrosion, making them suitable for use in harsh and marine environments. |
| Cost-Effective | Using thimbles helps prevent premature wear and damage to wire ropes, reducing replacement costs and maintenance efforts. |
Thimbles also act as a protective barrier. They reduce friction and abrasion, prevent kinks, and minimize stress concentrations. You get a safer and stronger wire rope assembly.
Long-Term Performance
You want your wire rope to perform well, not just today but for years to come. Thimbles play a big role in long-term durability. When you use thimbles, you reinforce the rope eye and create a secure point of contact. This lowers the risk of slippage or total failure during lifting and hoisting. Your equipment and crew stay safer.
Properly installed thimbles help your wire rope keep its loop shape and distribute load evenly. This reduces stress and extends the rope’s lifespan, especially in high-tension or repetitive-load jobs. Bending fatigue tests show that wire rope with thimbles lasts longer than simple loops. The rope resists breaking and stands up to repeated heavy lifting cycles.
Powerful Machinery’s thimbles meet strict safety and durability standards. Check out these certifications:
| Certification/Standard | Description |
|---|---|
| US Federal Specification FF-T 276-b Type III | Compliance for safety and durability standards. |
| BS EN 13411-1 | European standard for lifting equipment. |
| Material | Made from mild steel or forged steel for strength. |
| Finish | Hot-dip galvanized for corrosion resistance. |
You get peace of mind knowing your wire rope assemblies meet top industry standards. Thimbles from Powerful Machinery are built for long-term use in tough environments. You can trust them to keep your wire rope strong and safe, job after job.
Best Practices
When to Use Thimbles
You want your wire rope to last and perform at its best. Thimbles help you get there. They protect the eye of your wire rope and keep it from kinking or wearing out too soon. If you work in construction, marine, or heavy industry, you know how important it is to keep your gear safe and reliable. Here are some situations where you should always use thimbles:
- You need to protect the eye of your wire rope in slings, rigging assemblies, or mooring lines.
- You want to reduce stress and spread the load evenly, especially when using hooks or shackles.
- You work in marine or offshore environments where saltwater and moisture can cause corrosion.
- You want to keep your wire rope loop in shape and avoid crushing or flattening.
Powerful Machinery offers a full range of thimbles, including stainless steel, DIN6899B, and BS464 types. These thimbles help you meet industry standards and keep your wire rope strong under tough conditions. When you choose the right thimble, you protect your investment and keep your team safe. Remember, using the right lifting equipment and maintaining it regularly is key to preventing accidents and keeping your operation running smoothly.
Tip: Investing in quality wire rope fittings and training your crew pays off in the long run. Regular checks and maintenance help you avoid costly failures.
Acceptable Uses for Simple Loops
Sometimes you might see a simple loop used with wire rope, but this should be rare. Simple loops do not offer the same protection or working load limit as thimbles. They can make it hard to inspect the wire rope and spot damage. If a simple loop gets damaged, you cannot repair it—you must replace the whole sling. Simple loops may work for light-duty, temporary tasks where the load is low and safety is not a big concern. For anything involving heavy lifting, repeated use, or critical safety, always use a thimble.
| Simple Loop Risks | Why It Matters |
|---|---|
| Lower strength-to-weight | Can fail under heavy loads |
| Hard to inspect | Hidden damage increases risk |
| Not repairable | Must replace at first sign of wear |
You want your wire rope to deliver maximum strength and safety. Thimbles are the standard for most jobs. Simple loops are only for special cases where the risks are low and the job is short.

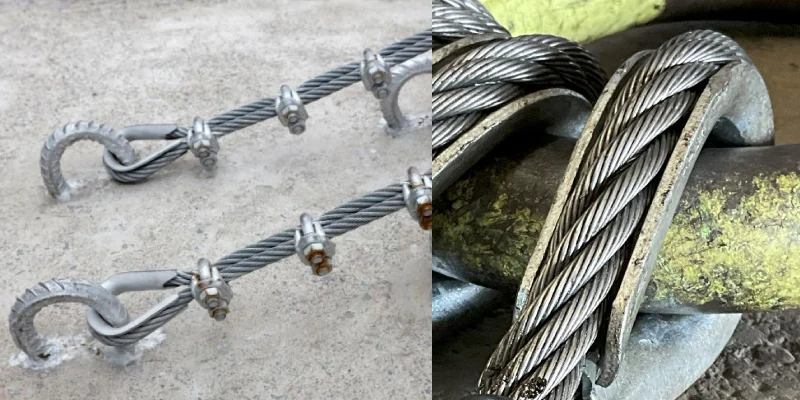

Powerful Machinery Solutions
Stainless Steel Thimble
If you want your wire rope to last in tough environments, the Stainless Steel Thimble from Powerful Machinery is a smart choice. You get a product that stands up to heavy lifting, saltwater, and harsh weather. This thimble helps your wire rope keep its shape and strength, even after repeated use. Here’s what makes it stand out:
- Enhanced load distribution keeps your wire rope from wearing out too soon.
- Increased safety means you can trust your gear with heavy loads.
- Versatility lets you use it in marine, construction, and industrial jobs.
- Cost-effectiveness saves you money by reducing downtime and replacements.
- Corrosion resistance protects your wire rope in wet or salty conditions.
You can check out the Stainless Steel Thimble here.
DIN6899B Wire Rope Thimble
When you need a wire rope thimble for serious lifting, the DIN6899B type delivers. This thimble has a heart-shaped design and thick walls, so it handles heavy loads without bending or breaking. You see it used in oil and gas, crane work, cable installation, and marine lifting. Here’s a quick comparison:
| Feature | DIN 6899 A Thimble | DIN 6899 B Thimble |
|---|---|---|
| Design Shape | Rounded, wide opening | Heart-shaped, narrow |
| Load Capacity | For lighter loads | For heavier loads |
| Material Thickness | Thinner | Thicker, more durable |
| Applications | Light-duty, general rigging | Heavy-duty, lifting, towing |
You can find more about the DIN6899B Wire Rope Thimble here.
BS464 Wire Rope Thimble
For jobs that demand the highest safety and performance, the BS464 wire rope thimble is your go-to. This thimble uses a unique design to spread stress across the wire rope, cutting down on wear and deformation. It’s made from low carbon steel and finished with hot-dip galvanizing, so it resists corrosion. You get a product that meets strict standards and fits a range of wire rope sizes. Here’s what you get:
| Feature | Description |
|---|---|
| Structural Design | Spreads stress, reduces wear |
| Materials | Low carbon steel, hot-dip galvanized |
| Specification Adaptation | Sizes from 8mm to 38mm |
| Standards | Meets BS 464, EN13411-1, FF-T-276b Type III |
Explore the BS464 Wire Rope Thimble here.
Tip: Choosing the right wire rope thimble from Powerful Machinery helps you get the most out of your wire rope, whether you work on land or at sea.
When you want the strongest and safest option for heavy lifting, thimbles always beat a simple wire rope loop. You get more protection, longer wire rope life, and better performance. Powerful Machinery’s certified thimbles give you real advantages:
| Benefit | Description |
|---|---|
| Extended Cable Lifespan | Prevents metal-to-metal contact, so your wire rope lasts longer. |
| Safer Load Transfer | Distributes tension evenly, keeping your wire rope strong and secure. |
| Built for Tough Jobs | Handles harsh environments and heavy loads with ease. |
Ready to upgrade your wire rope setup? Reach out to Powerful Machinery’s team, share your needs, and get a quote for certified thimbles that keep your projects safe and efficient.
FAQ
What does a wire rope thimble actually do?
A wire rope thimble protects the loop at the end of your wire rope. It keeps the rope from bending too sharply and stops it from wearing out fast. You get a stronger, longer-lasting loop.
Can I use a simple loop for heavy lifting?
You really shouldn’t. Simple loops can weaken your wire rope and make it unsafe for heavy loads. Always use a thimble when you need strength and safety for lifting.
How do I choose the right thimble size?
Check your wire rope’s diameter first. Pick a thimble that matches it. If you’re not sure, ask your supplier or check the product chart. The right fit keeps your rope strong and safe.
Are Powerful Machinery thimbles good for marine use?
Yes! Powerful Machinery thimbles, especially the stainless steel ones, resist rust and corrosion. They work great in marine, offshore, and wet environments
Conclusion
In summary, the comparison between wire rope thimbles and simple loops clearly demonstrates that thimbles are the superior choice for safety, durability, and performance in demanding applications. By reinforcing the eye, distributing load evenly, and protecting against abrasion and deformation, thimbles significantly extend the service life of the wire rope assembly and ensure a higher minimum breaking strength is maintained.
For any critical lifting, rigging, or mooring operation, opting for a certified thimble from a trusted provider like Powerful Machinery is not just a best practice—it is an essential investment in operational safety and long-term cost-effectiveness.
