You need a reliable chain block inspection checklist to ensure every lift meets the highest safety and performance standards. Regular inspection keeps your equipment compliant with international regulations such as ISO-TR 4558 and ASME B30-26. Powerful Machinery’s certified products help you achieve this level of trust.
Inspection Type | Key Points |
|---|---|
Visual Inspection | Check for damage, weld integrity, manufacturer details, and rigging hooks. |
Functional Inspection | Test lift/lower attachments, proof load tests, and breaking force tests. |
Standards Used | ISO-TR 4558, AS 2319, ASME B30-26, ASTM F1145-05 |
Chain Block Inspection protects you, your team, and your investment.
Key Takeaways
Regular inspections of chain blocks enhance safety by identifying potential issues before they lead to accidents.
Keep detailed inspection records to ensure compliance with safety regulations and to track maintenance history.
Always check the Safe Working Load (SWL) markings to prevent overloading and ensure safe operation.
Use manufacturer-approved cleaning and lubrication methods to maintain optimal performance and extend equipment life.
Consider third-party evaluations for unbiased assessments and to ensure compliance with industry standards.
Chain Block Inspection Documentation
Inspection Records
You need to keep detailed inspection records for every chain block in your facility. These records help you prove legal compliance and ensure your equipment remains safe for use. Start by recording the date of each inspection, the name and signature of the qualified inspector, and the location of the chain block.
Always include the manufacturer, model, and serial number. List all inspected components, such as the chain, hook, and brakes. If you find any defects, describe them and note the corrective actions taken. Mark the final status, such as “Approved for Service” or “Remove from Service for Repair.”
Tip: Keep your inspection records available for review at any time. Tag repaired slings with the date, nature of repairs, and the person or company who performed the work.
Certification & Compliance
You must ensure your chain blocks meet compliance with industry standards. Only use equipment with a valid inspection certificate. Powerful Machinery’s products carry certifications that meet or exceed global requirements, including ISO9001, TUV Rheinland, and OSHA.
These certifications show your commitment to compliance and safety.
Certification Name | Organization |
|---|---|
ISO9001 | ISO |
TUV Rheinland | TUV |
OSHA | OSHA |
EURO CERT | EURO CERT |
ASTM | ASTM |
You should always check for up-to-date certificates to maintain legal compliance and compliance with industry standards.
SWL & Identification Marks
Every chain block must display clear identification marks and the Safe Working Load (SWL). Manufacturers stamp or emboss these marks on the chain and hooks. Look for the manufacturer’s identifier, the grade number, and the SWL.
Chains without clear markings do not meet compliance and must not be used.
Markings should be easy to read and placed at regular intervals.
SWL marks help you avoid overloading and ensure compliance with industry standards.
By following these documentation steps, you support compliance, safety, and efficient operation every day.

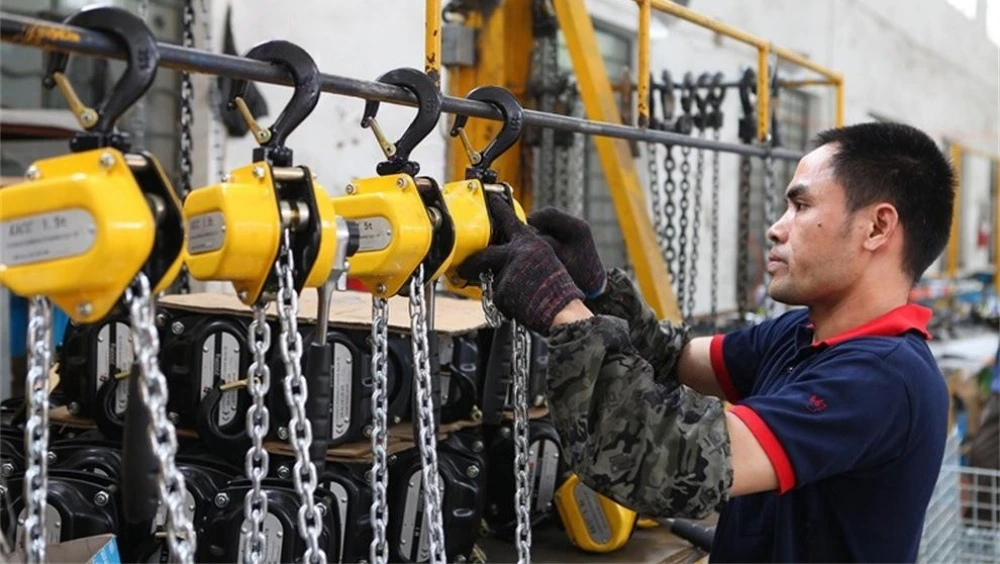

Cleaning & Preparation for Safety
Safe Cleaning Methods
You need to start every chain block inspection with a thorough cleaning. Dirt, dust, and old lubricant can hide damage and reduce performance. Powerful Machinery designs chain blocks for durability, but proper cleaning helps you get the most from your equipment. Follow these steps to clean your chain block safely:
Remove dirt and debris with a wire brush. Focus on the chain and hooks.
Use a manufacturer-approved solvent to break down grease and old oil.
Apply the solvent sparingly. Avoid soaking the chain block, as too much liquid can harm internal parts.
Wipe all surfaces with a clean, dry cloth.
Inspect the chain for any stuck particles or buildup.
Tip: Always clean the chain before applying new lubricant. This prevents grit from getting trapped and causing wear.
Lubrication Practices
Lubrication is essential for maintaining both safety and optimal performance. You should use a lubricant that penetrates the chain links but also stays in place during use. The right lubricant protects against rust, reduces wear, and keeps the chain block running smoothly. Here is a simple process to follow:
Clean the chain first to remove any dirt or old lubricant.
Apply a light coat of oil to the chain using a small brush or squirt bottle.
Focus on the gaps between the outer and inner plates of each link.
Run the chain back and forth to work the lubricant into the links and bearing surfaces.
Wipe off any excess oil to prevent dust from sticking.
Petroleum-based lubricants work well for most environments. For high temperatures or dusty areas, consider open-gear or synthetic lubricants. Regular lubrication extends the life of your chain block and ensures consistent performance.
When you maintain your equipment this way, you support optimal performance and reduce the risk of breakdowns.
Physical Condition Inspection Checklist
A thorough inspection checklist helps you keep every chain pulley block in good condition and ensures safety during every lift. You need to inspect the chain pulley block components for cracks, wear, and other defects that could affect the integrity or functionality.
Powerful Machinery designs each chain pulley block with robust construction and advanced safety features, but regular inspection is essential for reliable operation.
Hooks & Safety Latches
Hooks and safety latches play a critical role in the integrity and functionality of your chain pulley block. You must check these parts carefully to ensure they are free from defects and in good condition. Use this checklist to guide your inspection:
Make sure the manufacturer’s identification and rated load markings are present and easy to read.
Remove the hook from service if you see cracks, nicks, or gouges.
Look for excessive pitting or corrosion on the hook surface.
Check for deformation or any visible distortion in the hook’s throat opening. If the opening exceeds 5% of its original size, replace the hook.
Inspect the safety latch for proper functionality. The latch should close securely and not show any signs of damage.
Confirm that the hook attachment is secure and undamaged.
Do not use hooks that have been exposed to heat or show signs of unauthorized alterations.
If the self-locking feature does not work, remove the hook from service.
Tip: Always check for cracks in chain blocks, especially around the hook and latch area. Even a small crack can compromise the integrity and safety of your lifting equipment inspection.
Block Body & Attachments
The block body and its attachments must be in good condition to maintain the integrity and functionality of the chain pulley block. You should inspect the entire body for cracks, corrosion, and other defects. Follow these steps:
Examine the lifting chain, hand chain, and block body for any signs of wear, corrosion, or cracks.
Look for bent or cracked components, especially around attachment points.
Check all bolts, pins, and fasteners for tightness and integrity.
Inspect for nicks, gouges, or any deformation that could affect the working condition of the block.
Ensure all attachments are free from defects and securely fastened.
A chain pulley block that is free from corrosion and cracks will provide reliable performance and maintain the highest level of safety.

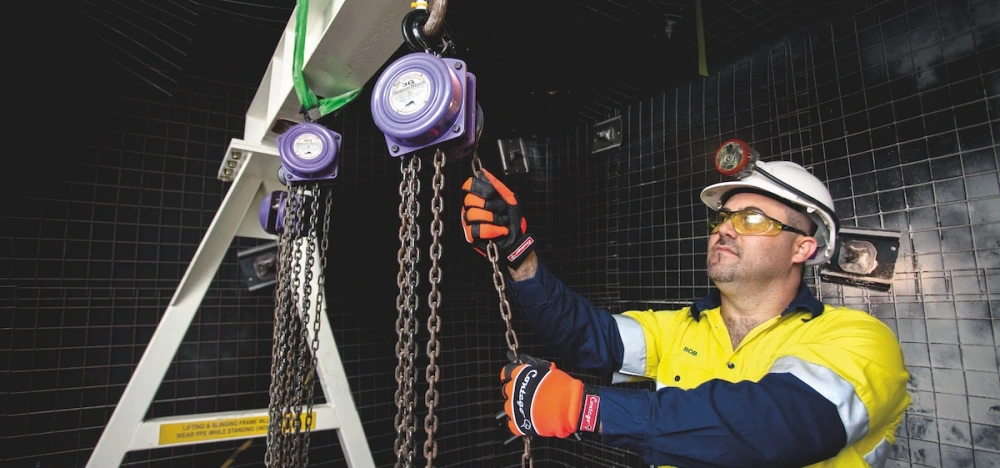

Chain Condition
The chain is a vital part of the chain pulley block. You need to inspect it link by link to ensure integrity and functionality. Here’s how you can check the chain’s condition:
Visually inspect for cracks, gouges, nicks, weld splatter, or distorted links.
Measure the thickness of several links and calculate the average to check for excessive wear.
Measure the pitch over 11 links to detect elongation. If elongation reaches 20% of the original length, remove the chain from service.
Look for rust, rough patches, or pitting after cleaning and oiling. If you find pitting, the chain is not in good condition and must be replaced.
Collapse the chain to separate each link for easier inspection.
Ensure all links fit together correctly and are free from defects.
Check for permanent elongation or stretching beyond original dimensions.
Make sure the chain is free from corrosion and has been tested and inspected for integrity.
Note: A chain pulley block with a chain in working condition will deliver optimal functionality and safety. Never use a chain that shows cracks or excessive wear.
Hoist Mechanism
You must inspect the hoist mechanism of the chain pulley block to confirm its integrity and functionality. Follow this ordered checklist:
Check the name plate. It should be secure, visible, and display the rated capacity and other critical information.
Inspect the hooks and latches. They must be fastened, functional, and free from cracks or obstructions.
Examine both the load and hand chains. Look for twists, corrosion, discoloration, and confirm adequate lubrication.
Inspect the exterior of the hoist body. Make sure there are no major flaws, cracks, or damage that could affect the operation.
A chain pulley block that passes this inspection checklist will be free from defects and ready for safe use. Powerful Machinery ensures every chain pulley block is manufactured to the highest standards, but regular lifting equipment inspection is the key to maintaining integrity and functionality.
Remember: Always inspect chain pulley block components before every use. This practice keeps your equipment in good condition and ensures safety for everyone on your team.
Safety Features & Markings
When you inspect a chain block, you must check that all safety features are present and working. Powerful Machinery designs every chain block with secure hook systems and reliable safety latches. These features help you meet international standards and protect your team during every lift.
Rotating Parts Coverage
You need to make sure that all rotating parts have proper coverage. This coverage prevents accidental contact and reduces the risk of injury. International standards require you to check the block body for corrosion, cracks, and damage.
You should also inspect the dead-end anchorage and attachment points for security. When you keep these parts covered and in good condition, you improve safety and reliability for every operation.
Inspect the block body for cracks or corrosion.
Check that all covers are secure and undamaged.
Make sure attachment points are tight and free from rust.
A well-covered chain block keeps moving parts away from hands and clothing, which helps prevent accidents.
Safety Latch Function
The safety latch on each hook is a critical feature. It prevents the load from slipping off the hook during lifting. You must check that the latch closes fully and locks in place. If the latch does not work, you should remove the hook from service.
Requirement | Description |
|---|---|
Latch Requirement | Hoisting hooks must have a latch to prevent accidental release of slings or attachments. |
Special Applications | Hooks without latches may be used only if approved for specific tasks and with safety organization approval. |
Safety latches are especially important when you lift personnel or work under a suspended load. Powerful Machinery’s chain blocks use self-closing safety latches to keep every lift secure.
Color Codes & Load Markings
Color codes and load markings help you identify the chain grade and safe working load at a glance. These markings are required for safety and compliance. You should always check that the markings are clear and easy to read.
Chain Grade | Color Code |
|---|---|
Gold-colored finish | |
Grade 120 | Blue, green, or bright colors |
You will find the safe working load (SWL) stamped or embossed on the chain and hooks. These markings help you avoid overloading and ensure you use the right equipment for each job. When you follow these markings, you support safety and reliability in your workplace.
Tip: Never use a chain block if the safety markings or color codes are missing or unclear.
Usage Guidelines & Precautions
Capacity Limits
You must always know the safe working load for your chain block before starting any lifting procedure. Chain blocks come in a wide range of capacities. Some models can handle loads from 750kg up to 10,000kg. Others can lift as little as 250kg or as much as 30 tonnes.
For example, a 2-ton chain block can safely lift 2,000 kg, while a 3-ton model can handle 3,000 kg. Each chain block is designed with a 4:1 safety factor to prevent accidents.
Never stretch above its capacity. Always check the chain diameter and make sure it matches the requirements for your job. Using the right capacity keeps your equipment reliable and your team safe.
Pre-Use Inspection
Before you use a chain block, you need to follow a clear procedure to check its condition. Inspect the equipment for any signs of damage, such as cracks, deformation, or corrosion. Make sure the hook is in good shape and the safety latch works properly.
The chain should be free from defects and rust. Look for a visible safe working load marking. Check that all rotating parts have proper covers. Only use chain blocks that have a valid inspection certificate and meet legal requirements.
If you find any problems, do not use the equipment until repairs are made. This step helps you avoid accidents and keeps your lifting procedure safe.
Proper Handling
Proper handling of your chain block is essential for safety and efficiency. Train all operators on inspection and safe operation techniques. Always inspect the lifting area for hazards and remove any obstacles. Use balanced loads and clear communication during every lift.
Make sure the chain pulley block has the correct safe working load and certifications. Update your safety protocols regularly to meet industry standards. Powerful Machinery designs chain blocks for easy use and reliable performance, making it simple to follow these requirements.
Careful handling protects your team and your equipment from unnecessary risk.
Operational Testing
Operational testing is a crucial part of your chain block inspection routine. You need to confirm that your equipment works smoothly and safely before you lift any heavy load. Powerful Machinery builds chain blocks to meet strict performance standards, but you should always test each unit before use.
This step helps you catch problems early and keeps your team safe.
Light Load Test
Start your operational test by lifting a light load. This test lets you check the basic function of the chain block without putting it under full stress. Attach a load that is well below the safe working limit. Raise and lower the load several times. Watch for smooth movement in both directions.
Listen for unusual noises or grinding. The chain should move freely, and the hooks should stay secure. If you notice any sticking or jerking, stop the test and inspect the equipment further.
Tip: Always use a light load first. This simple step can reveal hidden issues before they become serious problems.
Detecting Faults
You need to look for faults during every chain block inspection. Begin by checking the lever, reversing ratchet, and free wheel mechanism. Each part should move easily and lock into place. Inspect the slack end anchor for the load chain. It must hold firm and withstand twice the safe working load.
Examine the load chain for signs of wear, bent or stretched links, and corrosion. Check the bottom hook and safety catch for any distortion or malfunction. If you find any fault, remove the chain block from service and arrange for repairs.
Inspect all moving parts for smooth operation.
Check the security of the slack end anchor.
Look for damage or wear on the load chain.
Test the bottom hook and safety latch for proper function.
Regular operational testing as part of your chain block inspection helps you maintain high safety standards and ensures reliable performance every time.

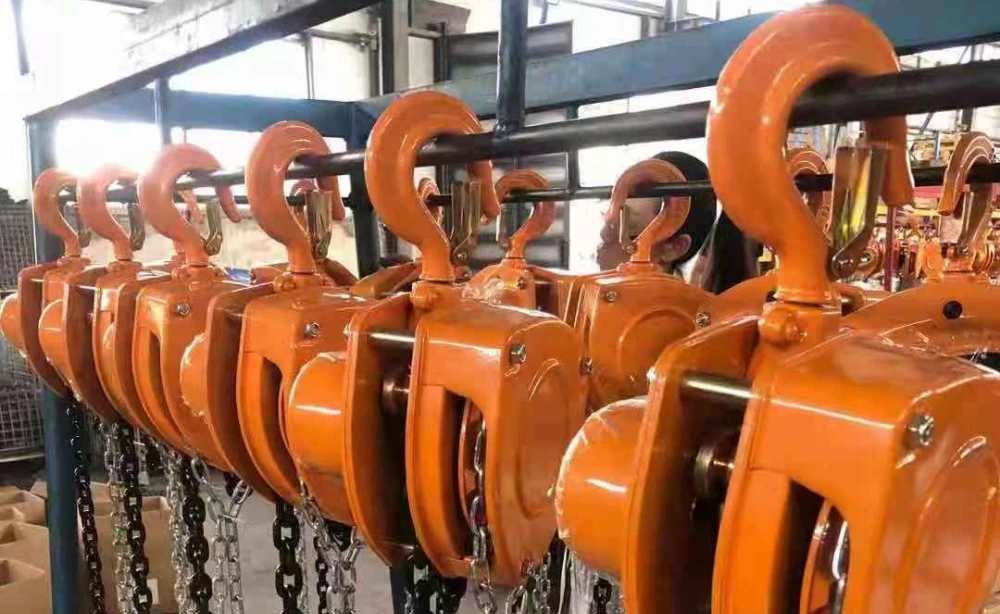

Benefits of Regular Chain Block Inspection
Regular chain block inspection gives you many advantages in your workplace. When you follow a clear inspection checklist, you protect your team, your equipment, and your business. Powerful Machinery’s certified products help you meet high standards for safety and reliability.
Enhanced Safety
You improve safety every time you use an inspection checklist for your chain block inspection. You spot problems before they cause accidents. You keep your lifting equipment in top condition. The table below shows how regular inspections help you create a safer environment:
Benefit of Regular Inspections | Description |
|---|---|
Identify Potential Issues | You find problems early and prevent accidents or damage. |
Enhance Workplace Safety | You follow safety guidelines and keep your team safe. |
Extend Equipment Life | You check your chain blocks often and keep them working longer. |
You make your workplace safer by using a consistent inspection checklist and checking your chain block before every lift.
Compliance & Efficiency
You meet legal requirements and boost efficiency with regular chain block inspection. You avoid penalties and keep your business running smoothly. The table below highlights how inspections help you stay compliant and efficient:
Benefit | Description |
|---|---|
Enhanced Regulatory Compliance | You follow safety rules and avoid fines. |
Improved Risk Management | You find risks early and take action. |
Boosted Operational Efficiency | You fix problems quickly and reduce downtime. |
Strengthened Corporate Governance | You show transparency and responsibility. |
Cultivated Safety Culture | You build a team that values safety. |
A regular inspection checklist helps you prepare for audits and keeps your operations efficient.
Equipment Longevity
You extend the life of your chain block when you inspect it often. You find signs of wear, corrosion, or damage before they get worse. You perform maintenance or replace parts as needed. This proactive approach keeps your equipment working longer and saves you money.
You spot wear and damage early.
You schedule repairs before breakdowns happen.
You keep your chain block reliable for years.
When you use a thorough inspection checklist and choose Powerful Machinery’s certified products, you get the best results for safety, compliance, and equipment life.
Professional Inspection Services
Third Party Evaluation
You can improve the reliability of your chain block inspections by using third-party evaluation services. These independent experts bring a fresh perspective to your safety checks. They do not have any internal bias, so you get an honest and accurate assessment of your equipment.
Third-party inspectors use advanced techniques and industry knowledge that may not be available within your team. They help you spot hidden problems before they become serious.
Here are some key advantages of third-party evaluation:
Advantage | Description |
|---|---|
Enhanced Objectivity | You receive unbiased evaluations, free from internal influence. |
Specialized Expertise | Inspectors use advanced skills and industry knowledge for thorough checks. |
Compliance with Standards | They ensure your equipment meets all required regulations and certifications. |
Improved Risk Management | Early detection of issues helps you avoid costly repairs and downtime. |
Increased Customer Confidence | Independent checks boost trust in your safety practices and brand reputation. |
Cost-Effective Quality | Preventing defects and ensuring compliance saves money over time. |
Powerful Machinery’s chain blocks come with certifications recognized worldwide. When you combine these products with third-party inspections, you show your commitment to safety and quality.
Industry Standards
Professional inspection services help you meet both local and international safety standards. You need to follow these standards to pass regulatory audits and keep your workplace safe. Third-party inspectors provide the necessary documentation and certifications to prove your compliance.
This process is important for legal reasons and for building trust with your customers.
Inspections confirm that your chain blocks meet strict safety requirements.
You receive official certificates and records for your equipment.
Compliance with standards helps you avoid penalties and supports a strong safety culture.
By choosing Powerful Machinery’s certified products and using professional inspection services, you ensure your lifting operations meet the highest industry standards. This approach protects your team and supports your business reputation.
Conclusion
You protect your team and equipment when you follow a complete chain block inspection checklist. Industry experts highlight these key points:
You maintain physical integrity and compliance.
You ensure the hook and safety latch work properly.
You confirm the chain is free from defects.
You prevent overloading and overstretching.
You support optimal performance with pre-use inspection.
Certified products from Powerful Machinery add value by meeting strict standards and passing rigorous testing:
Feature | Importance |
|---|---|
Compliance with Standards | Enhances reliability and safety. |
Rigorous Testing | Confirms performance during lifting. |
Certifications | Assures users. |
For best results, perform chain block inspection daily, every 3 to 6 months, and yearly. Regular inspection keeps your workplace safe and your equipment reliable.
FAQ
How often should you inspect your chain block?
You should inspect your chain block before each use. Schedule more detailed inspections every 3 to 6 months. Annual inspections help you catch hidden issues and keep your equipment safe.
What should you do if you find damage during inspection?
Remove the chain block from service right away. Do not use it until a qualified technician repairs or replaces the damaged part. This step keeps your team safe.
Can you use any lubricant on a chain block?
You should use a manufacturer-approved lubricant. The right oil protects against rust and reduces wear. Avoid heavy grease, as it can trap dirt and cause damage.
Why is certification important for chain blocks?
Certification proves your chain block meets safety and quality standards. You can trust certified products to perform reliably. Powerful Machinery provides fully certified chain blocks for peace of mind.
Tip: Always keep your inspection records up to date. Accurate records help you track maintenance and prove compliance during audits.
