When you compare ring bolts vs eye bolts, you notice clear differences in structure and performance. Selecting the right fastener ensures safety and efficiency in your lifting and rigging work.
In industrial settings, you often use eye bolts for lifting steel plates, motors, and containers, while ring bolts and swivel hoist rings handle loads that require movement.
Type | Common Applications | Best Use Case |
|---|---|---|
Eye Bolts | Lifting items like steel plates, motors, dies, and containers | Straight, in-line pull |
Swivel Hoist Rings | Lifting similar items with angular movement | Situations requiring movement |
Swivel hoist rings maintain load capacity at any lift angle, improving both safety and efficiency. Eye bolts lose strength with angular lifts, so always align them with the load.
Key Takeaways
Eye bolts are best for straight, vertical lifts. They lose strength when used at angles, making them unsafe for anything other than direct pulls.
Ring bolts, or swivel hoist rings, allow for 360-degree rotation and 180-degree pivoting. This flexibility makes them ideal for lifting loads that may move or rotate.
Choose the right fastener based on your lifting needs. Use eye bolts for simple lifts and ring bolts for complex rigging tasks that require movement.
Always consider the environment when selecting bolts. Stainless steel offers excellent corrosion resistance, making it suitable for marine and chemical applications.
Regularly inspect your bolts for wear and damage. This practice ensures safety and reliability during lifting operations.
Ring Bolt vs Eye Bolt
Structure Comparison
When you compare ring bolts vs eye bolts, you notice important differences in their design and construction. Eye bolts have a loop head, a shoulder, and a threaded shank. You use them for straight-line lifting.
Ring bolts, often called hoist rings, have a body, a bail, a shoulder pin, a bushing, and a washer. These parts allow the ring to pivot and swivel during lifting.
Here is a table that highlights the key structural differences:
Feature | Eye Bolts | Hoist Rings (Ring Bolts) |
|---|---|---|
Main Components | Loop head (eye), shoulder, shank | Body, bail, shoulder pin, bushing, washer |
Movement | Primarily for straight-line pulling or lifting | Allows for 180° pivot and 360° swivel, accommodating multi-axis movement during lifting |
Construction | Typically made from hardened steel, robust construction | Made from high-grade alloy steel, engineered for high-load capacities |
Intended Use | Suitable for straight pulls, available in shouldered and non-shouldered versions | Designed for complex loads that may move or rotate during lifting operations |
You see that eye bolts work best for vertical lifts. Ring bolts can handle loads that move or rotate. The shape of each fastener affects how it performs. Shouldered eye bolts support both vertical and angular lifts.
Non-shouldered eye bolts only work for vertical lifts. Forged eye bolts offer extra strength for heavy-duty jobs. Collared eye bolts help distribute the load and reduce stress on the shank.
Powerful Machinery manufactures both eye bolts and ring bolts using high-quality materials like stainless steel and alloy steel.
The company follows strict testing protocols, including tensile strength and fatigue tests, to ensure every product meets industry standards. You can trust Powerful Machinery for reliable fasteners that perform well in demanding environments.
Function and Use
The function of ring bolts vs eye bolts depends on how you plan to lift or secure a load. Eye bolts serve as fixed anchor points. You attach lifting slings, chains, or ropes to them for vertical lifting.
If you try to lift at an angle, the load capacity drops sharply. For example, a 45-degree lift can reduce an eye bolt’s strength by over 70%. This makes eye bolts unsafe for anything other than straight lifts.
Ring bolts, or swivel hoist rings, solve this problem. You can rotate them 360 degrees and pivot them 180 degrees. This flexibility lets you lift at various angles without risking damage or failure.
Ring bolts maintain their load capacity even when the direction of the lift changes. You use them for complex rigging tasks where the load may move or rotate.
Here are some important points about their function:
Eye bolts are fixed and designed for vertical lifting.
Ring bolts can swivel and pivot, allowing for safe lifting at different angles.
Eye bolts lose strength when used for angled lifts.
Ring bolts keep their load capacity, even with angled or rotating loads.
Industry standards like ASME B30.26-2.5.3 require manufacturers to mark eye bolts with the name, size, and rated load. Powerful Machinery meets these standards and provides clear guidelines for installation and maintenance. You get peace of mind knowing your fasteners are safe and reliable.
When you choose between ring bolts vs eye bolts, think about the direction of the load and the movement required. Eye bolts work well for simple, vertical lifts. Ring bolts are better for jobs that need flexibility and safety in multiple directions.
Eye Bolt vs Ring Bolt: Composition and Design
Eye Bolt Features
When you look at eye bolts, you see a simple yet strong design. Each eye bolt has a looped head, a straight shank, and a threaded end. This structure lets you attach ropes, chains, or cables with ease.
Powerful Machinery’s Stainless Steel Eye Bolts use high-grade stainless steel, which gives you excellent resistance to rust and corrosion. This makes them a smart choice for marine, outdoor, and chemical environments.
You can find eye bolts in several materials. Here is a table that shows how different materials affect their performance:
Material | Strength | Durability | Corrosion Resistance |
|---|---|---|---|
Forged Alloy Steel | High | High | Moderate |
Stainless Steel | Moderate | High | High |
Galvanized Steel | Moderate | Moderate | High |
Stainless steel eye bolts from Powerful Machinery meet strict industry standards like ASTM F541 and ASME B18.15. You get peace of mind knowing your fasteners are safe and reliable. These bolts come in many sizes and styles, such as lag eye bolts and lifting eye nuts, so you can match them to your project needs.
Tip: Stainless steel eye bolts offer the best corrosion resistance for harsh environments.

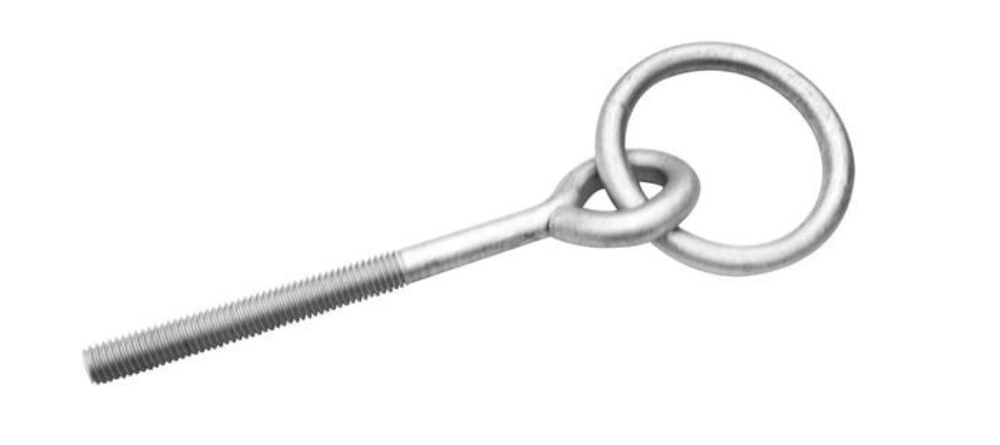

Ring Bolt Features
Ring bolts, often called hoist rings, have a more complex design. You see a strong body, a pivoting bail (the ring), and a secure mounting system. This design lets the ring rotate and pivot, which helps distribute the load more evenly. You can use ring bolts for heavy-duty lifting tasks where the load may move or shift.
Here are some key points about ring bolts vs eye bolts:
Eye bolts work well for lighter loads and straight pulls.
Ring bolts handle heavy loads and provide better support when the direction of the lift changes.
Ring bolts from Powerful Machinery use high-strength alloy steel or stainless steel. This gives you both durability and excellent load capacity. The pivoting ring reduces stress on the bolt and helps prevent failure during complex lifts.
When you compare ring bolts vs eye bolts, you notice that ring bolts give you more flexibility and safety for demanding lifting jobs. Both types meet international safety standards, so you can trust them in critical applications.
Applications

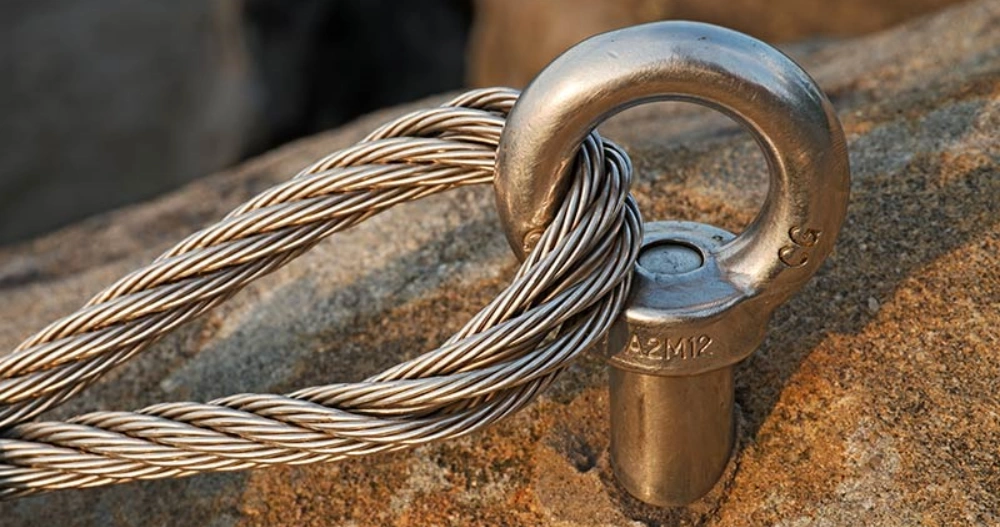

Eye Bolt Uses
You often see eye bolts in many industries because they provide secure anchor points for lifting and rigging. In construction, you use them to anchor scaffolding, secure safety nets, and attach hoists.
In marine environments, you rely on eye bolts to secure equipment, attach lines, and create anchor points on boats and ships. Offshore workers use them for mooring, rigging, and securing cargo.
Here are some common ways you might use eye bolts:
Lifting and securing heavy materials
Creating connection points for rigging
Adding tie-down points on vehicles and trailers
Securing cargo and equipment on ships
Industry/Application | Description |
|---|---|
Lifting and Rigging | Secure attachment point for hooks, cables, or other lifting equipment. |
Construction and Building | Used for anchoring scaffolding, securing safety nets, and hoists. |
Marine Applications | Securing equipment, attaching lines, and anchor points on boats and ships. |
Offshore Applications | Used for securing cargo, mooring, and rigging in marine environments. |
Powerful Machinery’s Stainless Steel Eye Bolts stand out in these demanding environments. Their corrosion resistance makes them ideal for outdoor and marine use, where saltwater and moisture can cause other fasteners to rust. You can trust these eye bolts to deliver reliable performance, even in harsh conditions.
Note: Always consider the environment when choosing fasteners. Stainless steel eye bolts resist rust and corrosion, making them a smart choice for marine and chemical settings.
Ring Bolt Uses
Ring bolts, also known as hoist rings, give you more flexibility when you need to lift loads that might move or rotate. You use them in rigging to create secure anchor points for lifting and moving heavy equipment.
In construction, ring bolts help you add tie-down points for materials and machinery. On boats and trailers, you use them to secure loads that may shift during transport.
Adding connection points for lifting purposes
Creating rigging points in industrial and construction settings
Securing loads on trailers and boats
Industry | Typical Applications |
|---|---|
Rigging | Securing anchor points for lifting and rigging |
Marine | Connection points for securing loads on boats |
Construction | Adding tie-down points for materials and equipment |
When you compare ring bolts vs eye bolts, you notice that ring bolts allow for movement and angular lifting. This makes them valuable in situations where the load may not stay still.
You should always match the fastener material to the environment. For example, in saltwater or chemical settings, stainless steel or silicon bronze ring bolts provide the best durability.
Tip: Understanding your environment helps you choose the right fastener for long-lasting performance.
Pros and Cons
Eye Bolt Advantages
You benefit from eye bolts because they offer a simple and quick installation process. You can attach them easily to machines, vehicles, or structures. Eye bolts made from high-strength steel give you durability and safety, even under heavy loads.
When you select an eye bolt, always choose one with a working load limit (WLL) at least four times greater than the weight you plan to lift. This practice helps you reduce risks during lifting.
Eye bolts allow for fast setup and removal.
You can use them in many applications, from construction to marine work.
Regular inspections help you spot damage early, keeping your operations safe.
Powerful Machinery’s Stainless Steel Eye Bolts stand out for their corrosion resistance and compliance with international standards. You can use them in harsh environments, such as chemical plants or marine settings, without worrying about rust or wear.
Material | Corrosion Resistance | Durability | Applications |
|---|---|---|---|
Stainless Steel | High | High | Moisture, chemicals, extreme temperatures |
Galvanized Steel | Moderate | Moderate | General, less extreme conditions |
Tip: Stainless steel eye bolts from Powerful Machinery meet strict safety standards, giving you peace of mind in demanding jobs.
Ring Bolt Advantages
Ring bolts, especially swivel hoist rings, give you flexibility when lifting loads that may rotate or shift. You can rotate these bolts 360°, which lets you adapt to loads from any direction. This feature makes ring bolts ideal for complex rigging tasks.
Swivel ring bolts handle heavy loads that need rotation or turning.
You get better safety and control when lifting at different angles.
Ring bolts reduce the risk of failure during multi-directional lifts.
Limitations
When you compare ring bolts vs eye bolts, you notice some important limitations. Eye bolts lose load capacity quickly when you lift at an angle. For example, a stainless steel eye bolt with a 1/4 inch shank supports 600 lbs in a straight lift, but only about 480 lbs at a 15° angle.
You should always apply loads in the plane of the eye and avoid angular lifts greater than 45 degrees.
Angle of Lift | Load Capacity |
|---|---|
0° | 600 lbs |
15° | 480 lbs |
Proper seating and alignment are essential to prevent failure.
International standards require you to use shoulder eye bolts for rigging and to avoid excessive angular loading.
When using multiple bolts, spreader bars or lifting beams help distribute the load safely.
Note: Always follow safety guidelines and inspect your hardware before each use to ensure reliable lifting operations.
Selection Tips
Choosing the Right Bolt
Selecting between an eye bolt and a ring bolt starts with understanding your lifting needs. You should look at how the load will move and what direction the force will come from.
If you need a secure anchor for a straight, vertical lift, an eye bolt works well. For jobs where the load might rotate or shift, a ring bolt or swivel hoist ring gives you more safety and flexibility.
Here is a quick guide to help you decide:
Criteria | Eye Bolt Type |
|---|---|
Shouldered vs Non-Shouldered | Shouldered is versatile; Non-shouldered is for vertical lifts only. |
Sling Angle | Must consider angle; it affects weight capacity. |
Load Rotation | Standard eye bolts are not for rotating loads; use swivel eye bolts instead. |
Tip: Always check the angle of your lift. Eye bolts lose strength at angles, while ring bolts keep their capacity even when the load moves.
Factors to Consider
You need to think about several important factors before making your choice:
Material compatibility: Make sure the fastener material matches the materials you are joining.
Load requirements: Pick a bolt that can handle the weight and stress of your job.
Environmental conditions: Think about moisture, temperature, and chemicals that could affect the bolt.
When you work with a trusted manufacturer like Powerful Machinery, you get expert advice and certified products. Here are some steps to follow when consulting with them:
Review the material and any coatings for better performance.
Check the size and make sure it fits your application.
Confirm that the bolt meets industry standards for safety.
Think about how often you will adjust or remove the fastener.
Assess the environment, including temperature and humidity.
Choose the right type and material for your needs.
Note: Powerful Machinery offers stainless steel eye bolts and ring bolts that meet strict international standards. Their team can help you select the best option for your lifting and rigging projects.
Conclusion
You see clear differences between ring bolts and eye bolts. The table below highlights their unique features and best uses:
Feature | Ring Bolts | Eye Bolts |
|---|---|---|
Composition | Threaded handle with a circular hole | Two threaded holes with a rotatable link |
Application | Lifting heavy loads, securing objects | Connecting ropes, cables, or chains |
Advantages | Easy to install, resists bending | Highly adjustable, versatile |
Disadvantages | Limited adjustment, fixed position | More complex installation |
When you choose lifting hardware, always:
Select the right material for your load and environment.
Check for certifications like ASTM A193 and 3.1 for safety.
Inspect hardware regularly for damage.
“Each component must be perfectly suited to the load it will bear and fully compatible with the other elements of the system.”
Certified products like Powerful Machinery’s Stainless Steel Eye Bolts give you strength, corrosion resistance, and peace of mind in every lift.
FAQ
What is the main difference between an eye bolt and a ring bolt?
You use an eye bolt for straight, vertical lifts. A ring bolt, also called a hoist ring, lets you lift at different angles because it can swivel and pivot. This makes ring bolts safer for loads that might move.
Can you use eye bolts for angular lifts?
You should avoid using standard eye bolts for angular lifts. Their load capacity drops quickly when you pull at an angle. For angled or rotating lifts, choose a ring bolt or a swivel hoist ring.
How do you choose the right material for bolts?
You pick the material based on your environment. Stainless steel works best for wet or corrosive areas. Alloy steel handles heavy loads indoors. Use this table for quick reference:
Environment | Best Material |
|---|---|
Marine/Outdoor | Stainless Steel |
Indoor/Heavy Duty | Alloy Steel |
Are the Powerful Machinery’s eye bolts certified for safety?
Yes. Powerful Machinery’s stainless steel eye bolts meet international standards like DIN 580 and JIS 1168. You get reliable, tested products for your lifting and rigging needs.
Do you need to inspect bolts before each use?
Yes. Always check your bolts for wear, corrosion, or damage before lifting. Regular inspections help you prevent accidents and keep your worksite safe.
Tip: Replace any bolt that shows signs of bending, cracking, or rust.
