Cargo Nets Manufacturer & Industrial Lifting Nets
Custom Sizes • Webbing and Rope Constructions • Attachment Options • Testing and Documentation Reviewed per Order
Powerful Machinery supplies webbing, rope, pallet and heavy-duty cargo nets for industrial lifting, handling and load-securing projects. Share your load, net size, mesh, attachment points and required WLL or SWL, and we will review a practical configuration for quotation.
Cargo Nets for Lifting, Handling and Load Securing
A cargo net gives buyers a flexible way to support, contain or restrain loads that do not suit a rigid frame. The correct construction depends on what the net must do, how force enters the assembly and where it will be used. Start with the application, maximum load, finished dimensions, mesh opening and connection layout—not a product photo alone. New to the product? Read what a cargo net is.
Cargo Net Types We Manufacture
Our cargo lifting nets support heavy load lifting operations across diverse applications. Our selection includes:

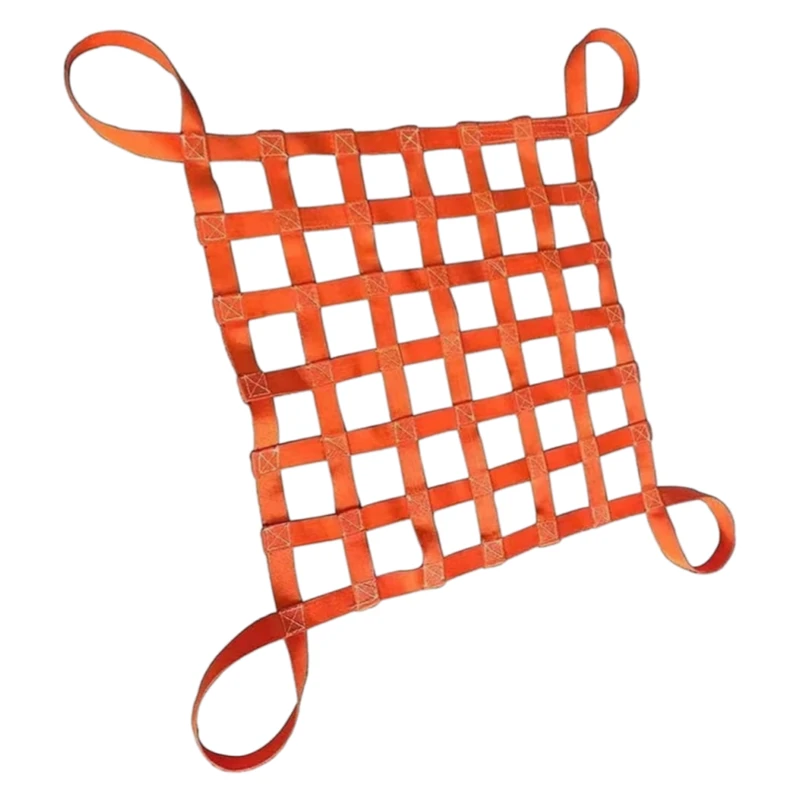

Flat webbing creates a broad contact surface and a defined grid. This construction can suit pallet containment, industrial handling and transport restraint when the webbing width, stitching, perimeter and attachment pattern are matched to the job.

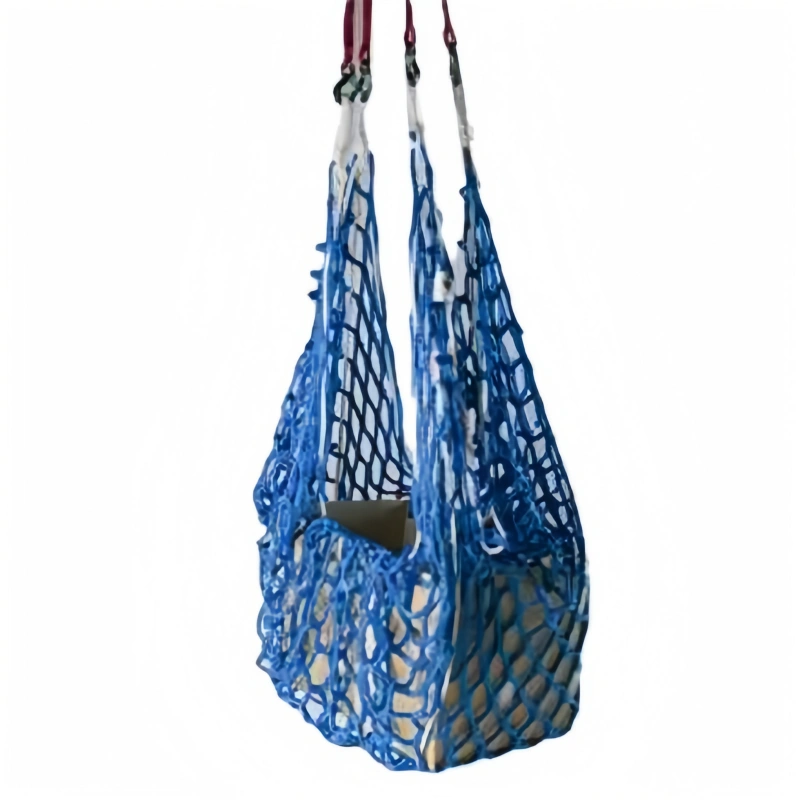

Rope Cargo Net
Rope cargo nets conform around irregular shapes and can cover a wide working area without a rigid structure. Specify the rope material and diameter, mesh pattern, perimeter rope, corner treatment and connection method as one assembly.

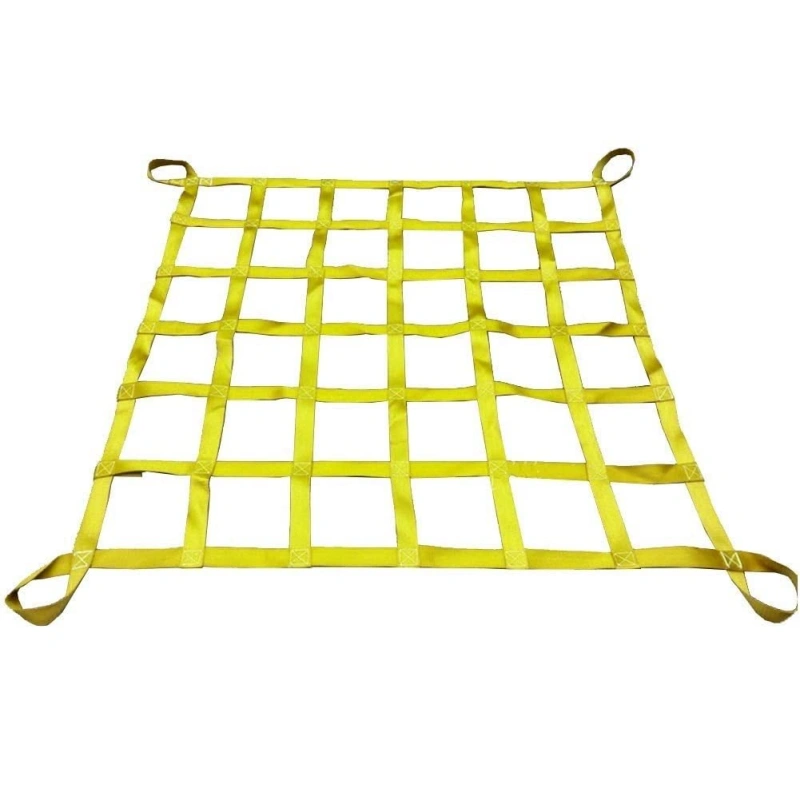

Pallet Cargo Net
Pallet cargo nets are sized around the pallet footprint, load height and handling routine. A closer mesh can help contain smaller packages, while reinforced edges and practical closures support repeated warehouse use. Send the pallet dimensions and load profile so the net can be laid out around the real unit.

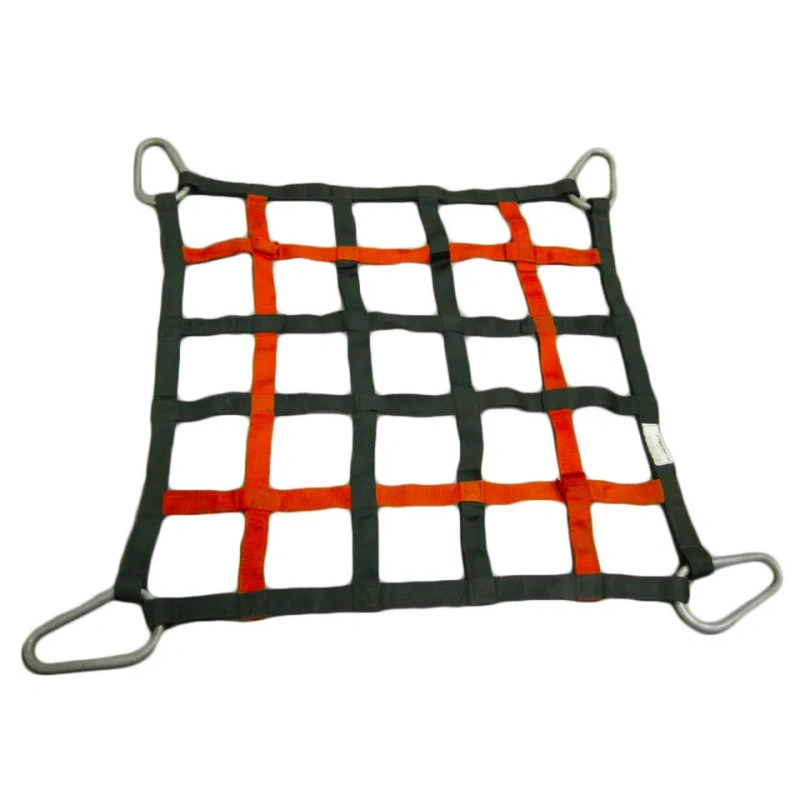

Heavy-Duty Cargo Lifting Nets
Heavy-duty cargo lifting nets are considered for demanding loads that need reinforced perimeters, defined lifting points and a clear rating basis. The finished assembly, connections and load path must be reviewed together. See the Cargo Lifting Net page for product-level configuration details.
Cargo Net Specifications & Load Ratings
| Specification | Buyer should provide | Why it matters |
|---|---|---|
| WLL or SWL | Required working or safe working load and unit | Sets the rating target for the complete assembly |
| Finished size | Length, width, depth or perimeter, plus tolerance | Confirms fit around the load and anchor points |
| Mesh opening | Opening size, pattern and close-mesh areas | Controls containment and load contact |
| Material and construction | Material, webbing width or rope diameter, joining method | Defines the load-bearing structure |
| Attachments | Loops, lifting eyes, rings, hooks, edge rope or customer hardware | Confirms how forces enter the net |
| Testing and documents | Test basis, inspection record, tag, label or certificate required | Defines what evidence ships with the order |
Safety note: Do not select a cargo net from outside dimensions alone. Material, mesh, joining method, perimeter, attachments and load path all affect the finished assembly. Safety-critical and overhead-lifting applications require review by a qualified person before use.
Materials, Mesh Sizes and Attachment Options
Material choice starts with the working environment. Tell us about abrasion, UV, moisture, chemicals, temperature, sharp edges and cleaning conditions. Mesh opening should retain the smallest item without making the net harder to handle than necessary. Connection options may include loops, lifting eyes, rings, hooks or reinforced edges where the quoted design allows them.
Custom Cargo Nets for Your Application
Custom cargo nets make sense when a stock size leaves excess slack, misses the anchor points or cannot contain the load.
Send a drawing or marked-up photo with the finished dimensions, mesh opening, material preference, attachment locations, label requirements, quantity and destination. We will use those details to define the quotation and identify anything that still needs confirmation.
- Application and handling method
- Maximum load and required WLL/SWL
- Finished net size and mesh opening
- Material and construction preference
- Connection points and mating hardware
- Environment, quantity, labeling and documents
How to Select the Right Cargo Net?
1. Define whether the net will lift, contain, support or restrain the load.
2. Record the maximum load, dimensions, smallest item and center of gravity.
3. Map the anchor points, connection hardware and available clearance.
4. Describe abrasion, sharp edges, weather, chemicals and duty cycle.
5. Agree on the rating basis, inspection, testing, labeling and documents.
Cargo Net Applications
Warehousing & Palletizing — contain mixed or irregular pallet loads around a repeatable footprint.
Manufacturing & Construction — support custom handling layouts where load shape and attachment points drive the design.
Ports & Heavy Handling — review reinforced edges, lifting points and the complete load path for demanding cargo.
Trucks & Trailers — match the net to the anchor layout, restraint method and abrasion exposure.
Quality Control and Load Testing
Approved Drawing / Material Identification / Dimensional Inspection / Construction Check / Load-Test Record / Label and Packing Review
Before production, align the drawing, materials, dimensions, mesh, attachments, label and required records. During inspection, check the construction and finished dimensions against the approved specification.
Where testing is required, the quotation should state what is tested, the basis used and which report or certificate will be supplied.
Why Source Cargo Nets from Powerful Machinery?
- Application-led specification review
- Webbing, rope, pallet and lifting-net options assessed in one place
- Custom dimensions, mesh and attachments reviewed against your drawing
- Testing, labeling, packing and documentation clarified before order
- One commercial contact from initial requirement through quotation
Comparing suppliers? See our cargo net manufacturer guide.
Cargo Net FAQs
Can cargo nets be made to a custom size?
Yes, size, mesh, perimeter and attachment layout can be reviewed against your drawing and application. Feasibility, rating, material and commercial terms are confirmed in the quotation.
What information is needed for a cargo net quote?
Send the application, maximum load, WLL/SWL, finished size, mesh, material preference, attachment points, environment, quantity, destination and required testing or documents. Photos or drawings reduce assumptions for irregular loads.
How are load rating and testing confirmed?
They depend on the finished construction and agreed use. The quotation should identify the rating basis, inspection or test requirement, product identification and documents supplied. Do not assume that one rating applies to every size or configuration.
What are the MOQ and lead time for custom cargo nets?
MOQ and lead time vary with material, size, attachments, testing, quantity and sample approval. Include your target delivery date so the quotation can state the commercial assumptions and schedule clearly.
Request a Cargo Net Quote
Tell us what the net must do and how the load will be handled. Include the maximum load, required WLL/SWL, finished size, mesh, material, attachment method, quantity, destination and documentation needs. Attach a drawing or marked-up photo for irregular loads, and we will review the request against a defined configuration.
