If your manual pallet jack will not lift or lower, leaks oil, or has a wheel that drags, start with what you can see and hear before ordering parts. A hand pallet truck may have debris caught in a wheel or a fault in its hydraulic unit. The checks are different.
This guide covers manual hydraulic pallet jacks, also called hand pallet trucks or manual pallet trucks. Electric pallet jacks need a separate diagnostic process for their battery, motor, and controls.

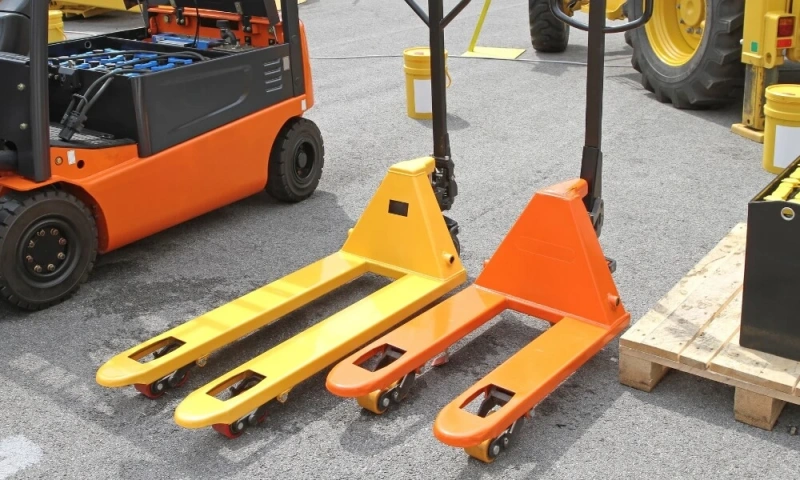

If the truck is carrying a load, unload it only when you can do so safely. Keep clear of raised forks and moving linkages. Remove the truck from service if it leaks, lets the forks drift down, or has damaged forks or frame members. Pump and valve designs vary by model; use the correct service information before opening or adjusting the hydraulic unit.
Quick Pallet Jack Troubleshooting Table
| Symptom | Possible causes | First check and action |
| Will not lift | Control setting, leak, low fluid, air, pump or valve fault | Check lever position and visible leaks; remove from loaded use if fault persists. |
| Lifts partway | Possible hydraulic fault, binding or obstruction | Check unloaded travel and visible interference; arrange service if lift remains incomplete. |
| Lifts empty, not loaded | Overload or failure to hold hydraulic pressure | Check the marked capacity and load position; do not repeat a failed loaded lift. |
| Forks drift downward | Internal valve or seal fault; external leak | Remove load safely and tag truck out of service. |
| Will not lower | Obstruction, linkage, release, or damaged parts | Check for visible interference without reaching beneath a raised load. |
| Oil leak | Damaged seal or hydraulic unit | Record leak location; stop using the truck. |
| Hard to steer | Debris, wheel or bearing damage | Inspect steering wheels and load rollers; remove accessible debris. |
How a Manual Pallet Jack Works?
The handle steers the truck and operates a control lever. Pumping the handle with the lever set to lift drives the hydraulic unit and raises the forks through the linkage. The lowering control releases the lift in a controlled way.
Large steering wheels turn the truck; small load rollers beneath the forks carry and roll the load. Knowing which action fails helps you narrow the fault without treating every lifting problem as a broken pump. For the basic operating sequence, see our hand pallet truck operating guide.
Pallet Jack Won’t Lift: Causes and Troubleshooting
If the pallet jack will not lift, do not keep pumping under load. Once the load is safely removed, check that the control lever is in the lift position, that nothing blocks the forks or linkage, and that the truck has no visible damage or fresh oil around the hydraulic unit. Check the load against the capacity marked on the truck before trying another loaded lift.
Jack Does Not Lift at All
With the truck unloaded, move the control lever to lift and pump the handle. If the lever will not select lift, inspect its visible connection for loose or bent parts. If it selects lift but the forks stay down, possible causes include a fluid problem, trapped air, or a pump or valve fault.
Check for external leaks, then have a trained repairer diagnose the hydraulic unit using the instructions for that model. Do not copy a valve adjustment from another truck.
Jack Lifts Only Partway
An incomplete lift can point to a hydraulic problem, binding linkage, or physical obstruction. Check unloaded fork travel and look for visible interference. If the lift still stops short, remove the truck from service for diagnosis. Use the pump documentation to confirm the correct fluid and filling procedure; do not top up by guesswork.
Jack Lifts Without a Load but Not With a Load
Check the load against the truck’s marked capacity and make sure the pallet is centered on both forks. If the load exceeds the rating, use suitable equipment instead. If a suitable load still cannot be raised, the hydraulic system may be losing pressure through a seal, valve, or other component. Remove the truck from loaded service for diagnosis. Never adjust or bypass an overload device to force a lift.
Forks Rise but Slowly Drop
Forks that sink with the control in the hold position indicate a holding fault. Keep clear of the raised load, arrange for it to be safely lowered or supported, and take the truck out of service. Fresh oil suggests an external leak, but an internal valve or seal fault may leave no visible oil. The fault must be repaired and checked before reuse.
Why Won’t My Pallet Jack Lower?
A pallet jack may refuse to lower because the release linkage is damaged, something obstructs the mechanism, or a component has seized or bent. From outside the fork path, check whether the control lever moves normally and whether anything visibly blocks travel.
Never reach beneath raised forks or force them down. If a load remains raised, isolate the area and arrange for a trained person to support or transfer it safely before repair.

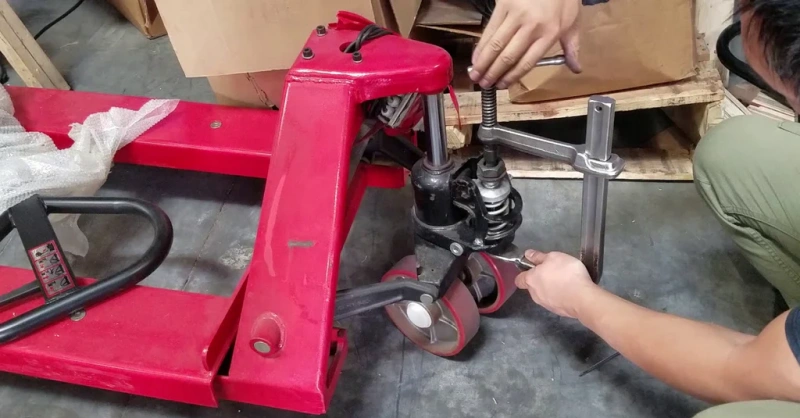

Pallet Jack Hydraulic Pump Problems
No lift, short travel, and downward drift can all involve the hydraulic unit, but they do not identify the failed part. First, note whether the problem affects lifting, holding, or both, and look for oil outside the unit or damage to the housing.
An external check cannot distinguish a worn internal seal from a valve fault. A qualified repairer can identify the pump and follow its service instructions before deciding whether it needs repair or replacement.
What to Do If a Pallet Jack Is Leaking Hydraulic Oil
Unload and park the truck safely. Look for fresh oil around the accessible pump body, piston area, and joints. Record where it appears and whether the forks drift down. A drip does not, by itself, identify which seal or component has failed.
Take a leaking truck out of loaded service. Do not tighten fittings on a pressurized unit or install a seal merely because it looks similar. A repairer needs to match the part and fluid to the specific hydraulic unit, then check its function. If you lack the model documentation, send the nameplate and clear photos to the supplier or a qualified technician.

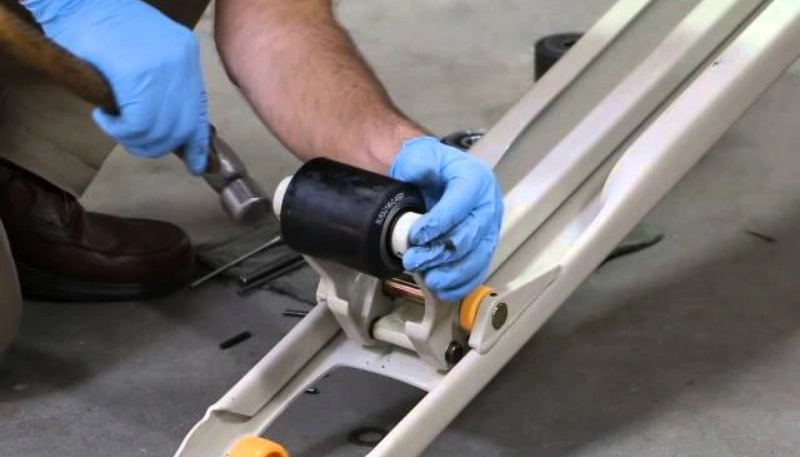

Pallet Jack Is Hard to Pull or Steer
Check the steering wheels and the rollers under both forks. String, stretch wrap, or pallet debris can bind a wheel; remove material that is accessible after the truck has been unloaded and made stable. Flat spots, cracks, uneven wear, a seized bearing, or a damaged axle call for a closer inspection. If one fork drags or the truck tracks to one side, also check the fork and frame for alignment damage.
A wheel replacement must match its dimensions, axle, and mounting arrangement. Powerful lists nylon, rubber, and polyurethane wheel options for the ORM-HP; the right replacement depends on the actual configuration and floor conditions.
Handle and Release Linkage Problems
With the truck unloaded, move the control lever through its normal positions and watch the visible connection. A bent, loose, or missing part may explain why lifting or lowering fails. Do not change a linkage setting without the model instructions: the setting can affect both functions. Have damaged controls repaired with compatible parts and tested before reuse.
Fork and Frame Damage
Bent forks, cracked welds, severe corrosion, obvious frame distortion, or unequal fork height are reasons to stop. Do not straighten a fork by force, weld a structural crack without an approved repair decision, or continue using the truck to see whether it holds. Arrange an assessment of the damaged structure and its repairability. If the frame or forks cannot be restored to the applicable specification, replace the truck.
Which Pallet Jack Repairs Can You Do Yourself?
Start with your training, site authorization, and the truck’s instructions. Operators can report symptoms and make visible checks. Routine work may be appropriate for trained maintenance staff. Internal hydraulic or structural repairs require the right parts, service information, and a competent repairer.
| Task | Usual boundary |
| Remove accessible wheel debris; visual check | Repair bent forks, cracked welds, or frame |
| Lubricate specified external points | Only as directed for the model; keep lubricant away from unintended areas. |
| Replace a wheel | Conditional on training, stable support and verified compatible assembly. |
| Replace seals; open pump; adjust internal valve | Qualified technical repair using matching service information. |
| Repair bent forks, cracked welds or frame | Structural assessment; do not improvise a field repair. |
Repairing and Selecting Parts for Powerful Manual Pallet Jacks
Powerful Machinery lists the ORM-HP hand pallet truck in 2,000, 2,500, and 3,000 kg capacities. Its published product information describes a hydraulic cylinder with a safety valve, a hard chrome-plated piston, and nylon, rubber, or polyurethane wheel options.
Those options do not establish that every wheel, seal, or pump part fits every ORM-HP configuration. Review the ORM-HP hand pallet truck specifications before discussing a replacement.
When you contact our team, send a model or nameplate photo, rated capacity, fork dimensions, wheel type and size if known, photos of the damaged area, and a short account of what happens during lifting, holding, and lowering. We can check the applicable product information and whether compatible parts are available for your configuration.
Checks After Repair
Before the truck returns to work, the person responsible for the repair should check that all fitted parts are secure, the wheels rotate and steer freely, and the forks lift and lower smoothly without a load. Look again for oil leakage and confirm the forks remain level and hold as expected.
Any controlled test with a load should follow the procedure for that truck and your site. Record the repair and unresolved concerns. For ongoing operator checks, use our pallet jack inspection checklist; it covers routine inspection in more detail than this repair guide.
FAQs
Why is my pallet jack not lifting?
A control set incorrectly, an obstruction, or a hydraulic fault can prevent lifting. Once unloaded, check lever response, visible damage, and leaks. The symptom alone cannot identify a failed internal part.
How do you fix a manual pallet jack that won’t lift?
After unloading, set the lever to lift and remove accessible debris. If it still will not rise, or oil is leaking, arrange model-specific diagnosis instead of repeatedly pumping under load.
Why won’t my pallet jack lower?
Check for visible obstruction and whether the release control moves. A linkage or valve fault may need repair. Keep clear of raised forks, especially if a pallet remains suspended.
Why does my pallet jack slowly lower after lifting?
The holding circuit may be losing pressure through a valve, seal, or external leak. If you see fresh oil, record its location. Do not use the truck with a load until the cause is fixed.
Can a pallet jack hydraulic pump be repaired?
Some hydraulic units can be serviced, while others are better replaced as complete compatible assemblies. The answer depends on the pump design, damage, parts availability, and the model-specific instructions.
Why is my pallet jack leaking hydraulic oil?
A seal, joint, or other hydraulic component may be leaking. Note the visible leak location; the precise part requires inspection of the model’s hydraulic unit.
Can I repair a manual pallet jack myself?
An authorized operator can usually report faults and make visible checks. Wheel work depends on training and part compatibility. Leave internal hydraulics and structural work to qualified personnel.
When should a pallet jack be repaired instead of replaced?
Repair is reasonable when the structure is sound and a compatible, verifiable repair is available. Replace the truck if damage cannot be repaired to the required specification or recurring faults make reliable use doubtful. Cost alone cannot set a universal cutoff.
