A combined shackle and sling order may look straightforward. In practice, the two product groups require different checks. The shackle must fit the sling eye, hook, or lifting point and support the required load in the intended direction. The sling needs the correct construction, length, end fittings, and rated capacity for its hitch and sling angle. A supplier is useful only when it can document the exact items to be supplied.
Use this guide to compare manufacturers and suppliers for a complete rigging order. If you are purchasing only one category, start with the individual shackle range or lifting sling range. Those pages cover the product families in greater detail.
What a Combined Supplier Should Be Able to Confirm?
Ask what the company manufactures, what it sources, and who is responsible for the final specification. A supplier may make one product group and procure the other. That can still meet project requirements if the manufacturer identity, approved specification, inspection scope, and records are clear for each item. Do not assume a “one-stop” supplier manufactures every component in-house.
For repeat orders, look beyond a broad catalog. Ask how part numbers, drawings, finishes, sling assembly details, markings, and document packages are controlled between shipments. Review any substitution against the same fit, capacity, and documentation requirements.
Build Two Product Lists Before Asking for a Quote
For shackles, specify the required working load limit (WLL), bow or Dee body style, screw pin or safety bolt, pin diameter, jaw opening, internal dimensions, intended load direction, and finish. Powerful Machinery lists G-209 screw-pin bow, G-210 screw-pin Dee, G-2130 safety-bolt bow, and G-2150 safety-bolt Dee patterns.
Confirm ratings and material details from the exact product data. The shackle range is the current purchasing entry point.
For slings, state whether you need a chain, wire rope, flat web, round, or other sling construction. Provide the load, hitch, number of legs, sling angle, effective length, end fittings, and service conditions. Chain grade applies to the relevant chain sling, not automatically to synthetic or wire rope products. Review the available lifting sling types before finalizing the assembly specification.
For an assembled chain sling, identify the chain and components as a matched system. Include grade, leg count, hook or link type, shortening hardware where required, working length, and identification requirements. A spare shackle remains a separate rated item; its WLL is not the rating of the complete sling assembly.

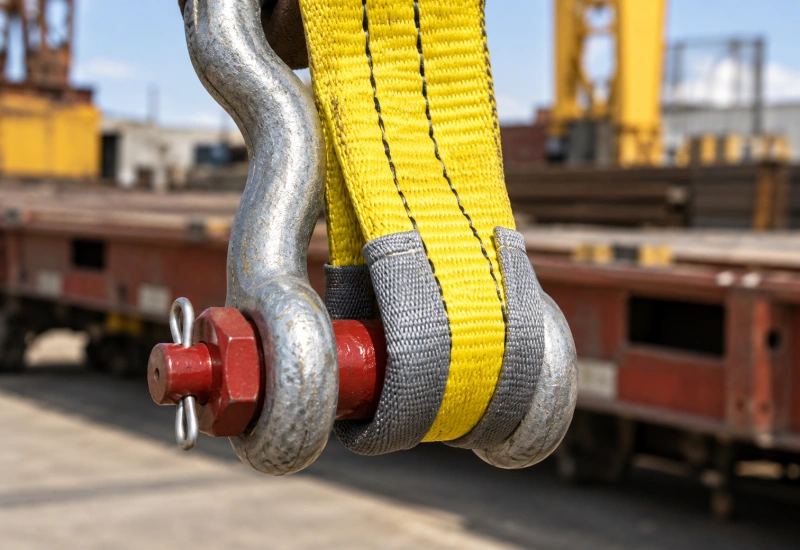

Check the Sling and Shackle Connection Together
A shackle rating alone does not show whether a sling eye will seat correctly on its bearing surface. Give the supplier the sling-eye dimensions and the shackle’s pin and body dimensions. Confirm that the eye is not pinched, bunched, or forced around unsuitable curvature. If multiple sling legs meet at one point, verify that the exact shackle design and instructions permit the arrangement.
Load direction also matters. A bow body does not automatically permit side loading, and a safety bolt does not increase WLL by itself. If the assembly may be angled, request the model-specific instructions and any applicable WLL reduction. The guide on how to measure a shackle can help you record critical dimensions before sending the RFQ.
Compare Suppliers on Evidence You Can Check
| Buyer Question | Useful Evidence to Request |
| Can they supply both categories to the same specification? | A product list identifying the manufacturer and exact model or assembly for each item. |
| Will the components fit as an assembly? | Dimensional drawings, sling-eye and end-fitting details, plus a sample or fit review where needed. |
| How is capacity established? | Product markings, shackle WLL data, sling rated-capacity data, and applicable hitch or sling-angle information. |
| What records will arrive with the order? | Required certificates, test or inspection reports, traceability records, and applicable standard editions. |
| Can repeat orders remain consistent? | Approved samples or drawings, revision control, a substitution procedure, and agreed inspection points. |
Treat quality management system certification and product evidence separately. ISO 9001 concerns a quality management system; it is not blanket approval of every shackle or sling. ASME B30.9 addresses slings, ASME B30.26 addresses rigging hardware, and OSHA publishes workplace requirements rather than manufacturer “certification.”
Ask which requirements apply to the exact products and request evidence for the agreed scope. For shackle-only comparisons, use the shackle manufacturer’s guide.
Plan the RFQ as One Package With Separate Line Items
Start with a short description of the lifting or resale application, destination market, and required delivery date. Then give each sling and shackle its own line item. A clear RFQ is easier to quote and makes substitutions easier to identify.
- For each shackle: body and pin style, WLL, dimensions, finish, quantity, markings, and required documents.
- For each sling: construction, rated capacity for the required configuration, length, number of legs, hitch or sling angle, end fittings, quantity, identification tag, and required documents.
- For the connection: mating-component dimensions, load direction, bearing area, available clearance, and any sample-approval requirement.
- For the order: applicable standard or customer specification and edition, inspection or testing scope, packaging, shipping destination, and target date.
If the connection or marking falls outside a standard product range, send the drawing early. Powerful Machinery can review custom OEM rigging requirements for the required dimensions, finish, and documentation scope; any proposed design or rating requires separate engineering and order confirmation.
How Powerful Machinery Can Support a Combined Order?
Powerful Machinery offers bow and Dee shackle patterns alongside chain, wire rope, and synthetic sling categories. Quoting them together allows one discussion of load ratings, component fit, quantities, markings, and documentation. Provide assembly details and ask the team to confirm the exact models, sling constructions, and records included in the quotation.
For multi-site or repeat purchasing, agree on an approved specification for each line item. Keep changes in material, fittings, finish, dimensions, or documentation scope visible in the quotation so receiving teams can check delivered items against the order.
FAQs
Does One Supplier Need to Manufacture Both Shackles and Slings?
Not necessarily. Ask which products the supplier manufactures and which it sources, then verify the responsible manufacturer, rating, inspection requirements, and records for each item. Make that distinction clear in the purchase specification.
Can I Use the Same Certificate for Every Item in a Combined Order?
Do not assume so. A quality management system certificate, material report, proof-test record, and product conformity document serve different purposes. State the documents required for each shackle and sling line item and confirm availability before ordering.
Should the Shackle WLL Match the Sling Tag Capacity?
Both components must suit the actual assembly and load path. Compare the shackle’s rating for the intended load direction with the sling’s rated capacity for its hitch, sling angle, and leg arrangement. Matching two numbers does not correct poor fit or an unsuitable configuration.
What Should I Send to Request a Combined Quote?
Send the load and connection details, separate shackle and sling specifications and quantities, required standards or drawings, service environment, documents, packaging, and destination. Attach photographs or a dimensioned sketch when fit is difficult to describe. Review quoted models and substitutions before approval.
