When you work with wire rope, you encounter several wire rope clamp types designed for industrial, marine, and rigging applications. The table below shows the most common options and their main uses:
Type | Description | Primary Use |
|---|---|---|
U-Bolt Clamps | U-bolt, saddle, and two nuts; most common design | Lifting and rigging |
Fist Grip Wire Rope Clips | Grips wire rope tightly without damage | Cost-effective, general use |
Double Saddle Clamps | Two saddles for heavy-duty applications | High loads, vibrations in construction or marine |
Simplex Wire Rope Clips | Single saddle, U-bolt design | Light-duty, securing or joining wire ropes |
Selecting the right clamp keeps you safe and ensures top performance. For example, a 6mm stainless clamp can secure loads up to 500 kg, while a 12mm clamp handles up to 2,000 kg. Powerful Machinery delivers certified wire rope clamps trusted by professionals worldwide.
Key Takeaways
Understand the four main types of wire rope clamps: U-bolt, fist grip, double saddle, and malleable. Each type serves different applications and load capacities.
Always match the clamp size to your wire rope diameter for a secure fit. This ensures safety and optimal performance in lifting and rigging tasks.
Follow proper installation steps: place the saddle on the live end, tighten nuts evenly, and use the correct number of clamps based on rope diameter.
Regularly inspect wire rope clamps for signs of wear or damage. This helps maintain safety and reliability in your projects.
Choose the right material for your environment. Use stainless steel clamps for marine or chemical settings to prevent corrosion and ensure durability.
Main Wire Rope Clamp Types
Understanding the main wire rope clamp types helps you select the right solution for your project. Each type offers unique features, materials, and advantages. Powerful Machinery manufactures a full range of certified wire rope clamps to meet the demands of construction, marine, transportation, and rigging industries.

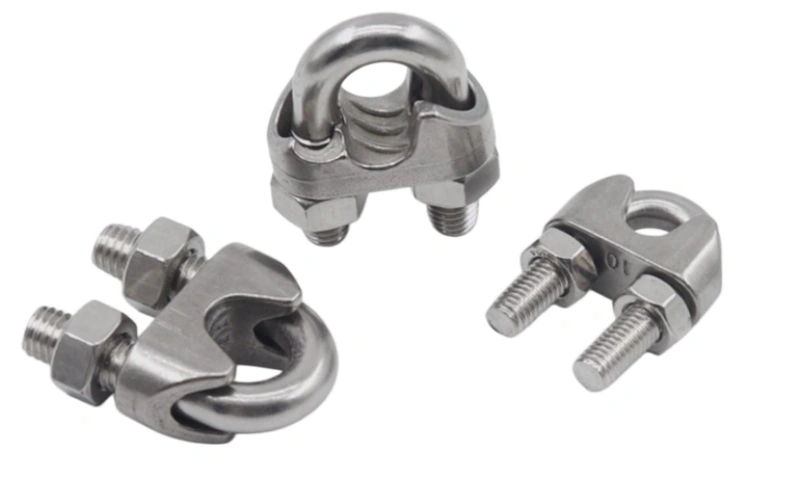

U-Bolt Wire Rope Clamps
U-bolt wire rope clamps are the most common type you will encounter. They consist of a U-shaped bolt, a saddle, and two nuts. You place the wire rope in the saddle, then secure it by tightening the nuts onto the U-bolt. This design provides a strong grip and is easy to install.
You can choose between forged and malleable U-bolt clamps. Forged clamps have a thicker profile and suit heavy-duty projects like overhead lifting, guy lines, towing lines, and scaffolding. Malleable clamps use thinner material and work best for light-duty tasks such as fencing and guard rails.
Tip: For maximum safety, always place the saddle on the live end of the rope and the U-bolt on the dead end.
Powerful Machinery offers U-bolt wire rope clamps in galvanized steel, stainless steel, and zinc malleable finishes. These clamps meet international standards and deliver consistent performance in demanding environments.
Type of U-Bolt Clamp | Features | Typical Applications |
|---|---|---|
Forged | Thick, heavy-duty, high-strength | Lifting, rigging, support lines, towing |
Malleable | Thin, flexible, cost-effective | Fencing, guard rails, handrails |

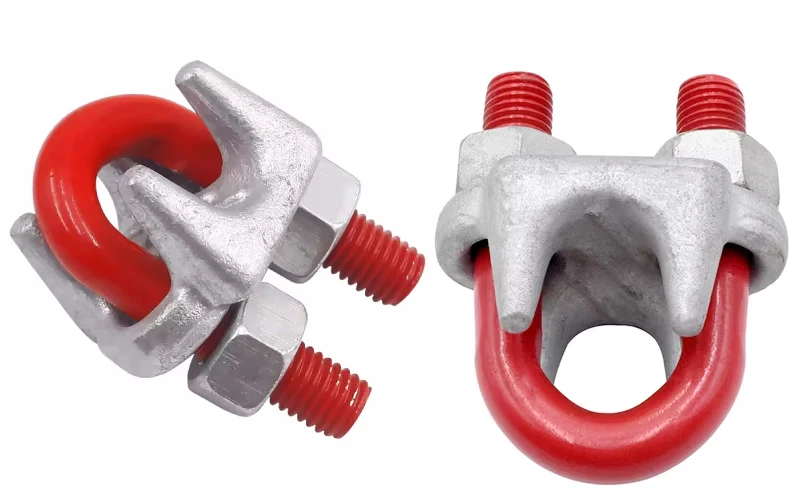

Drop Forged Wire Rope Clamps
Drop forged wire rope clamps stand out for their exceptional strength and reliability. Manufacturers use forged steel, which increases density and durability. You will find these clamps in critical applications where safety cannot be compromised.
These clamps comply with strict standards such as ASME B30.5 and ASME B30.26. They perform reliably under high torque and do not fracture under pressure. You should use drop forged clamps for construction, marine, agriculture, and transportation projects that require maximum holding power.
Feature | Drop Forged Wire Rope Clamps | Malleable Cast Iron Clips |
|---|---|---|
Base Material | Forged Steel | Malleable Cast Iron |
Strength Consistency | High and reliable | Inconsistent |
Compliance with Standards | Yes | Limited |
Performance in Testing | Reliable under torque | May fracture |
Powerful Machinery’s drop forged wire rope clamps are trusted by professionals worldwide. You can rely on their certified quality for lifting, mooring, and structural applications.

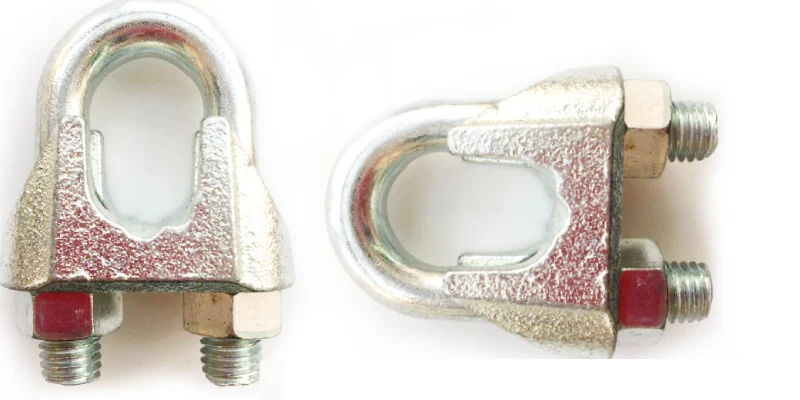

Malleable Wire Rope Clamps
Malleable wire rope clamps use malleable iron, which offers flexibility and cost savings. These clamps are less strong than drop forged types but provide enough holding power for lighter-duty jobs. You will often use malleable clamps for guy lines, support lines, and scaffolding.
If you need an economical solution for non-critical applications, malleable wire rope clamps are a smart choice. They are easy to install and adjust, making them popular for general rigging and agricultural projects.
Key characteristics:
Flexible and lightweight
Suitable for light-duty tasks
More affordable than forged clamps
Powerful Machinery supplies malleable wire rope clamps in various sizes and finishes, including US Type Malleable 450D11 and DIN741, to match your project requirements.
Stainless Steel Wire Rope Clamps
Stainless steel wire rope clamps deliver maximum corrosion resistance and long-term durability. Manufacturers use 304 or 316 grade stainless steel, which contains high levels of chromium and nickel. This composition protects the clamp from rust, even in harsh marine or chemical environments.
You should use stainless steel wire rope clamps when you need to secure the loose end of a wire rope, form a thimble eye, or create a loop in rigging applications. These clamps are ideal for marine, industrial, and outdoor projects where exposure to moisture or chemicals is common.
Advantages:
Excellent corrosion resistance
Long service life, even in saltwater
Reduced maintenance and replacement costs
Powerful Machinery offers stainless steel wire rope clamps in both 304 and 316 grades. You can select the right size and finish for your specific environment, ensuring reliable performance and safety.
Fist Grip (Double Saddle) Wire Rope Clips
Fist grip, or double saddle, wire rope clips feature two saddles instead of one. This design prevents incorrect installation and ensures even pressure on both the live and dead ends of the rope. You will find these clips easier to install and more secure for heavy-duty applications.
Fist grip wire rope clips require fewer units for lap splices compared to U-bolt types. They provide high efficiency, with ratings up to 90% for larger sizes. You should use these clips for construction, marine, and industrial projects that demand superior holding power and safety.
Key features:
Two saddles for a balanced grip
Simple, error-proof installation
High efficiency for heavy loads
Powerful Machinery manufactures fist grip wire rope clips in galvanized and stainless steel finishes. These products meet international standards and deliver dependable performance in the toughest conditions.
Note: Always match the clamp size to your wire rope diameter for optimal safety and efficiency.
You can find all these wire rope clamp types in Powerful Machinery’s certified product range. Each clamp is engineered for strength, reliability, and ease of use, giving you confidence in every connection.
How Wire Rope Clamps Work?
Basic Mechanism and Components
Wire rope clamps play a critical role in securing wire rope ends for lifting, rigging, and anchoring tasks. You use these clamps to fasten two ends of a wire rope together or to attach the rope to an anchor point. The main components include:
Saddle: This part sits directly on the wire rope, providing a stable surface.
U-bolt: The U-shaped bolt wraps around the rope and holds the saddle in place.
Hex nuts: These nuts secure the U-bolt, ensuring a tight and reliable grip.
You can form loops by bending one end of the rope back and securing it with two or three wire rope clamps. This method creates a strong connection that resists slippage under load.
Installation Principles
Proper installation of wire rope clamps ensures safety and reliability. You should always follow these steps:
Position the clamp where you want to create a loop or connection.
Place the saddle on the live end of the rope, centered over the U-bolt.
Tighten the nuts alternately to the recommended torque.
Use the correct number of clamps for your rope diameter—usually two or three.
Recheck the tightness after the rope is loaded for the first time.
Tip: Always match the clamp size to your wire rope diameter. Arrange the clamps in a straight line, and make sure the U-bolt contacts only the dead end of the rope.
Common installation errors can lead to serious risks. For example, placing the saddle on the wrong side, using too few clamps, or over-tightening can weaken the connection. You should avoid sharp bends, mismatched hardware, and neglecting regular inspections.
Installation Error | Consequence | Solution |
|---|---|---|
Improper use of wire rope clamps | Slippage or failure under load | Saddle on live end, correct number of clamps |
Over-tensioning | Rope damage or stretching | Use calibrated tensioning tools |
Mismatched hardware | Corrosion or uneven load | Use compatible materials |
Advantages of Powerful Machinery Wire Rope Clamps
When you choose Powerful Machinery wire rope clamps, you gain several advantages:
Certified quality that meets international safety standards
Corrosion-resistant finishes for marine and industrial use
Custom sizes and OEM support for unique project needs
Easy installation and consistent performance in demanding environments
You can trust these wire rope clamps for secure, long-lasting connections in construction, marine, and rigging applications.
How to Use Wire Rope Clamps?
Selecting the Right Clamp Type and Size
Choosing the correct cable clamps for your project ensures safety and performance. Start by selecting a reputable manufacturer with a proven track record in rigging hardware. Always consult the instruction manual for installation and load capacity details.
If you have unique requirements, seek expert advice or take advantage of Powerful Machinery’s custom sizes and OEM solutions. Follow these steps to make the right choice:
Match the clamp size to your wire rope diameter for a secure fit.
Consider environmental factors—use stainless steel cable clamps for marine or chemical settings.
Regularly inspect and maintain your clamps to extend their lifespan.
Store wire clamps in a dry, cool place to prevent corrosion.
Refer to the table below for industry guidelines on matching clamp size, number, and torque to your rope diameter:
ROPE DIAMETER | MINIMUM # OF CLIPS | MINIMUM TURN BACK FROM THIMBLE | REQUIRED TORQUE (ft-lbs.) |
|---|---|---|---|
1/8″ | 2 | 3-1/4″ | 4.5 |
1/4″ | 2 | 4-3/4″ | 15 |
1/2″ | 3 | 11-1/2″ | 65 |
1″ | 5 | 26″ | 225 |
2″ | 8 | 71″ | 750 |
3″ | 10 | 106″ | 1200 |
Wire Rope Clamp Installation Instructions and Best Practices
Proper installation of cable clamps is essential for forming a safe load-bearing eye or securing a wire rope. Follow these steps:
Select the correct size of cable clamp for your rope.
Prepare the rope, leaving enough length for the loop.
Place the first clamp near the loop, with the saddle on the live end.
Add additional wire clips as needed, spacing them six rope diameters apart.
Tighten all nuts evenly using a torque wrench, and re-torque after initial loading.
Tip: Always inspect your wire rope and hardware before installation. For harsh environments, choose stainless steel cable clamps.
Inspection and Maintenance Tips
Routine inspection keeps your wire rope clamps safe and reliable. Clean the rope, check under good lighting, and wear gloves to feel for damage. Scan the entire length, focusing on high-stress areas. Measure the diameter at several points and compare to the original specs. Look for these warning signs:
Fraying or broken strands
Flattened or worn areas
Rust, corrosion, or deep pitting
Kinks, birdcaging, or core protrusion
Crushing or severe bends
Lubricate as needed to prevent friction and corrosion. For critical applications, consider advanced testing methods. Powerful Machinery recommends regular checks to ensure your cable clamps and wire rope assemblies remain in top condition.
Conclusion
You have many wire rope clamp types to choose from, each with unique advantages and installation notes:
Wire Rope Clamp Type | Advantages | Installation Notes |
|---|---|---|
Fist Grip Clips | Simpler installation, fewer clips | Tighten bolts to the manufacturer’s torque, re-torque |
U-bolt Clips | Standard design, widely used | Position live and dead ends carefully |
Certified clamps from Powerful Machinery improve safety and performance. For best results, always follow these steps:
Inspect clamps regularly for damage or wear.
Use the correct number and type for your application.
Consult sizing charts and expert guidance when in doubt.
Regular maintenance and proper installation keep your wire rope assemblies safe and reliable.
FAQ
What is a wire rope clip, and how does it work?
A wire rope clip is a device you use to secure the loose end of a wire rope. You place the wire rope clip over the rope, then tighten the nuts to hold the rope in place. This creates a strong, reliable connection.
How many wire rope clips do you need for a safe connection?
You should use at least two or three wire rope clips for most applications. The exact number depends on the diameter of your wire rope. Always check the manufacturer’s recommendations to ensure your wire rope clip setup meets safety standards.
Can you reuse a wire rope clip after removal?
Yes, you can reuse a wire rope clip if it shows no signs of damage or deformation. Inspect each wire rope clip carefully before reusing it. Replace any wire rope clip that appears worn, bent, or corroded to maintain safety.
Which material should you choose for a wire rope clip in marine environments?
You should select a stainless steel wire rope clip for marine or chemical environments. Stainless steel resists corrosion and provides long-lasting performance. This ensures your wire rope clip remains secure and reliable, even in harsh conditions.
What is the difference between a wire rope clip and a ferrule?
A wire rope clip is adjustable and removable. You can use it for temporary or adjustable connections. A ferrule creates a permanent bond. You cannot remove a ferrule without cutting the rope. Choose a wire rope clip for flexibility.
Tip: Always match your wire rope clip size to your wire rope diameter for the best results.
Application | Recommended Wire Rope Clip Type |
|---|---|
Lifting | Drop forged |
Marine | Stainless steel |
Fencing | Malleable |
Heavy-duty rigging | Fist grip |
