To learn how to use a turnbuckle correctly, start by inspecting the hardware and connected components. Attach compatible end fittings to suitable connection points, then rotate the central body to adjust tension gradually. When the required system condition is reached, secure the adjustment using the method specified for that turnbuckle and assembly. Always stay within the exact model’s rated limits.
That is the basic process for using a turnbuckle. Before you begin, confirm that the product matches the connection, adjustment range, and required rating. You can review available industrial turnbuckles separately; this guide stays focused on installation and tensioning.
Before You Start: Confirm the Turnbuckle and Connection
If you are learning how to install a turnbuckle, start with the exact product rather than a general rule. A reliable turnbuckle installation depends on the model identification, end configuration, thread system, adjustment range, material or finish, and any manufacturer-listed working load or system limit. Do not calculate a rating from nominal size alone.
Make sure each end fitting is compatible with the intended connector and that the surrounding components have been selected for the same assembly. If you need to compare eyes, hooks, jaws, toggles, swage ends, or body styles, use the separate guide to turnbuckle types. For thread size, take-up, open length, closed length, and model-specific ratings, check turnbuckle sizes and load ratings.
- Review the exact product drawing and instructions before installation.
- Confirm the required adjustment range without exceeding the stated thread limits.
- Verify the connection points, pins, fasteners, and terminals as parts of the complete system.
- Isolate, support, or restrain the assembly as required so it cannot move unexpectedly while you work.
Step 1: Inspect the Turnbuckle and Connected Hardware
Inspect the turnbuckle before you install or adjust it. Look at the body, threaded ends, end fittings, pins, and any model-specific retaining parts. Check for deformation, cracks, damaged or contaminated threads, excessive corrosion, missing components, or markings that can no longer be identified.
Continue the check into the connected hardware. A sound turnbuckle cannot correct a damaged anchor, cable terminal, rod end, pin, or connector. If any component is damaged, mismatched, or of uncertain rating, stop and follow the applicable replacement or engineering review process.
Inspection limit: This is a pre-use condition check, not a universal inspection schedule. Inspection frequency and acceptance criteria must follow the exact product, system, service conditions, and applicable requirements.
Step 2: Attach the Turnbuckle to Compatible Connection Points
Set the turnbuckle within the starting position permitted for the model, leaving the required thread engagement at both ends. Do not extend the threaded fittings simply to make an undersized assembly reach. The correct initial position should provide room for the planned adjustment while keeping both threaded ends properly engaged.

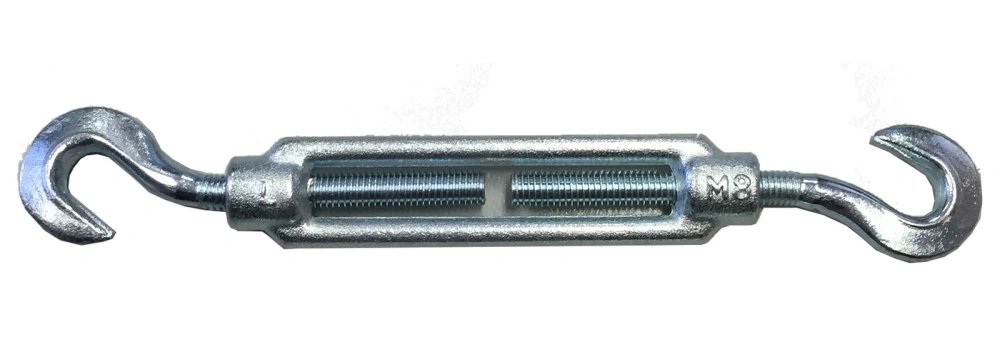

Attach each end to its matching connection point. A jaw connection may use its specified pin and retaining component; an eye requires a compatible connector; a hook must seat only where that design and the assembly permit it. Install every pin, fastener, or retainer in the orientation required by the exact product instructions.
If you are researching how to attach wire to a turnbuckle, treat the wire or cable termination as a separate engineered connection. Do not clamp bare wire or wire rope to an end fitting unless that termination method is specified for the system. A swage terminal, eye, jaw, or other connector must match the cable, turnbuckle, and design requirements.
End fittings vary by model, so the complete taxonomy remains on the turnbuckle types guide rather than being repeated here.
Step 3: Adjust the Turnbuckle
To understand how to adjust a turnbuckle, focus on the central body. Because the threaded ends use opposite thread directions, turning the body moves both ends inward or outward together. One direction shortens the assembly and increases tension; the other lengthens it and reduces tension. Confirm the correct direction on the actual installation before continuing.
Make the turnbuckle adjustment gradually. Keep the connected ends, terminals, and anchors in their intended positions while the body turns. Watch the thread engagement on both sides and check that the assembly is not binding, twisting a cable, pulling a fitting out of position, or contacting nearby parts.
Use only the operating surfaces and tools intended for the exact model. If adjustment requires abnormal force, stop and investigate the cause instead of adding improvised leverage. Damaged threads, contamination, misalignment, or an overloaded system can all prevent normal movement.
If you want a short explanation of the opposite-thread mechanism, see how a turnbuckle works. Keep detailed adjustment decisions tied to the product drawing and the complete system requirements.
How to Tighten a Turnbuckle？
To tighten a turnbuckle, rotate the body in the direction that draws the threaded ends inward. Work in small increments and observe the connected cable, rod, or assembly after each change. Tightening is complete only when the required system condition has been reached within the rated and dimensional limits of the exact components.
There is no universal number of turns or correct “firm” feel. Required tension depends on the system design, span, connected components, service conditions, and the measurement method specified for the job. If the system requires a numerical tension value, use the approved measurement procedure and acceptance limit for that assembly.
Do not continue tightening to remove every visible movement if doing so would exceed the planned tension, reduce thread engagement below the permitted amount, distort a fitting, or load the assembly in an unapproved direction. Recheck the connection geometry if the required condition cannot be achieved within the available take-up.
Using a Turnbuckle with Wire Rope or Cable
When using a turnbuckle as a wire or cable tensioner, first confirm that the turnbuckle, cable terminal, connector, anchor, and cable are compatible as one system. The turnbuckle adjusts length and tension; it does not make an unsuitable termination or undersized connection acceptable.
After the cable ends have been terminated by the specified method, connect the matching terminal or connector to the turnbuckle. Position the assembly so the cable and fittings can follow the loading direction permitted for the exact model.
Then rotate the body gradually while watching for cable twist, fitting interference, loss of thread engagement, or uneven response elsewhere in the system.
If you are learning how to tighten cable with a turnbuckle, do not rely on visual straightness alone as a tension value. Use the system-specific target and measurement method when one is required. Never exceed the exact turnbuckle rating or the limit of any connected component.
For product selection and model-level specifications, compare Powerful Machinery’s industrial turnbuckles rather than treating “turnbuckle wire tensioner” as one universal design.
Step 4: Secure the Adjustment
After the final adjustment, secure the turnbuckle using the retention method specified for that model and system. Securing turnbuckles is design-specific: a locking turnbuckle may use lock nuts, pins, retainers, or another feature. Do not assume that every turnbuckle should be secured with lock nuts or safety wire.
Confirm that pins and retaining components are fully installed, threaded ends remain within the permitted engagement range, and the body cannot rotate unintentionally under the expected service conditions. Also verify clearances and the loading direction allowed for the exact product family.
Make a final condition check of the complete assembly before placing it in service. Maintenance, lubrication, and follow-up inspection intervals should come from the instructions and requirements applicable to the product, environment, and system—not from a generic schedule.
Common How-To Mistakes
Most problems in learning how to use turnbuckles come from treating the component as universal. Avoid these installation and adjustment mistakes:
- Selecting by body size or appearance without confirming the exact model, end fittings, thread system, adjustment range, and rating.
- Using incompatible pins, terminals, connectors, anchors, or cable components.
- Extending the threaded ends beyond the engagement permitted by the product instructions.
- Turning the body while a cable, terminal, or end fitting twists or binds.
- Tightening by feel when the system requires a defined tension or dimensional target.
- Applying improvised leverage instead of stopping to identify contamination, damage, misalignment, or overload.
- Using a universal locking method instead of the securing feature specified for the exact assembly.
- Returning damaged or unidentifiable hardware to service without an applicable inspection and acceptance decision.
Where turnbuckles are used: Turnbuckles appear in many cable, rod, and rigging assemblies, but each application has different connection, tension, environmental, and inspection requirements. Review the separate guide to turnbuckle applications for application examples without mixing that broader topic into this installation guide.
FAQ
How do you tighten a turnbuckle?
Attach compatible ends, then rotate the body in the direction that draws both threaded fittings inward. Tighten gradually, maintain the required thread engagement, and stop at the system-specific condition or measured tension within the limits of every component. Secure the final adjustment using the method specified for the model and assembly.
How do you adjust a turnbuckle to reduce tension?
Control or support the system as required, release any model-specific locking feature, and rotate the body in the direction that moves the threaded ends outward. Reduce tension gradually without exceeding the permitted open length or minimum thread engagement. Re-secure the assembly after reaching the required condition.
How do you lock a turnbuckle after adjustment?
How to lock a turnbuckle depends on the exact product and system. The design may use lock nuts, pins, retainers, or another approved feature. No single locking instruction applies to every turnbuckle, so verify the product and assembly requirements before use.
How do you use a turnbuckle with wire rope?
Connect the turnbuckle only through a compatible wire-rope terminal or connector specified for the system. Confirm the cable termination, turnbuckle, anchors, and related hardware together. Rotate the body gradually to adjust tension while monitoring the cable and fittings for twist, interference, or loss of proper engagement.
Can a turnbuckle be reused after disassembly?
Reuse cannot be assumed. The exact product and system must permit it, and the turnbuckle and connected hardware must meet the applicable inspection and serviceability requirements. Do not reuse a component with damaged threads, deformation, excessive corrosion, missing parts, unreadable identification, or another rejection condition.
