Powerful Machinery manufactures industrial turnbuckles for wire rope, cable, chain, lashing, and general tensioning assemblies. Available options include galvanized, hot-dip galvanized, and stainless steel turnbuckles with eye, hook, jaw, stub-end, swage, and toggle end configurations. For multi-product sourcing, turnbuckles can also be supplied alongside other industrial rigging hardware, including shackles, lifting hooks, and wire rope fittings.
For OEM or custom turnbuckle enquiries, provide the thread size, end fitting, open and closed length or required take-up, material, finish, quantity, destination, and drawing if available. Custom sizes, finishes, and packaging can be supplied. Samples can also be arranged once the model specifications and shipping terms are confirmed.
Start with the connection style, material and dimensional system required by your assembly. Each product page carries the relevant model details; send the exact item or a drawing when you need a quotation.
Explore DIN 1480 turnbuckles for industrial wire rope and tensioning assemblies. Available configurations include drop-forged DIN 1480 turnbuckles with stub ends as well as hook-and-eye designs. When requesting a quotation, specify the catalogue model, required dimensions, finish, quantity, and any project-specific load or installation requirements.
The US-type turnbuckle range includes common eye, hook, and jaw combinations for cable, wire rope, and general tensioning assemblies. For pinned end connections, see jaw and jaw turnbuckles. Mixed-end configurations include hook eye turnbuckles and jaw eye turnbuckles.
Choose stainless steel turnbuckles where the project requires stainless material for applications such as marine, coastal, architectural, or outdoor tensioning systems. Specify the required stainless steel grade, dimensions, end configuration, and operating environment so the correct model can be matched to the application.

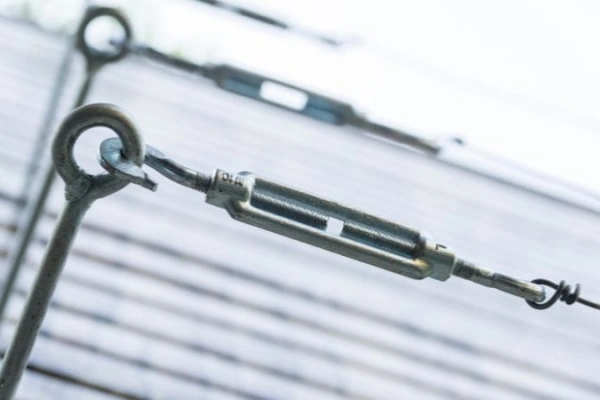

Deck lashing turnbuckles are designed for transport and deck-lashing assemblies where adjustable tension is required. For project enquiries, provide the mating lashing hardware, required adjustment or take-up range, connection details, and relevant system requirements.
Malleable iron commercial turnbuckles provide an economical option for general commercial tensioning applications. Specify the thread size, end combination, finish, and intended service conditions when ordering. Where a project requires a rated, certified, or application-specific turnbuckle, select the appropriate product family rather than substituting a general commercial model.
The wider Powerful Machinery range also includes Korean-type turnbuckles, Dee-Dee/Hamburg turnbuckles, JIS F-3403 rigging screws, and JIS forged steel frame turnbuckles. These product-family names help identify the required configuration, while dimensions, material, finish, end fittings, and applicable specification should be confirmed for the destination market and project.
The end fitting determines how the turnbuckle connects to the rest of the tensioning assembly. Select an end configuration that matches the mating hardware and maintains proper alignment through the connection. Eyes, hooks, jaws, stub ends, swage fittings, and toggles are intended for different connection methods and should not be substituted without checking the assembly requirements.
Eye: A closed end fitting used with compatible pins, shackles, or connecting hardware.
Hook: An open end fitting that allows quicker attachment where a hook connection is suitable for the application.
Jaw: A clevis-style end with a removable pin for connection to compatible eyes, lugs, or other pinned fittings.
Stub end: A plain end configuration used where the turnbuckle is incorporated into a fabricated or application-specific connection.
Swage or toggle: Connection styles used in selected stainless steel, wire rope, cable, architectural, and marine-type assemblies.
For a broader comparison of turnbuckle body styles, end fittings, and common configurations, see our guide to types of turnbuckles.
Material and surface finish should be selected according to the turnbuckle design, operating environment, corrosion exposure, mating components, appearance requirements, and project specification. Powerful Machinery supplies turnbuckles in carbon steel, malleable iron, and stainless steel, with drop-forged constructions available for selected product families. Surface treatments include galvanized, hot-dip galvanized, and model-specific custom finishes.
Galvanized: Commonly used for general industrial and outdoor applications where a protective zinc finish is required.
Hot-dip galvanized: Specify this finish when required by the project, drawing, or procurement specification, and confirm availability for the selected model and size.
Stainless steel: Specify the required stainless steel grade for marine, coastal, architectural, outdoor, or other corrosion-sensitive applications.
Custom finish: Provide the required coating system, finish standard, color, appearance, or corrosion requirement for feasibility review.
For a side-by-side comparison, see galvanized vs stainless steel turnbuckles or review our detailed turnbuckle material guide. Final material and finish selection should be based on the applicable project specification, service environment, and model-specific product data.

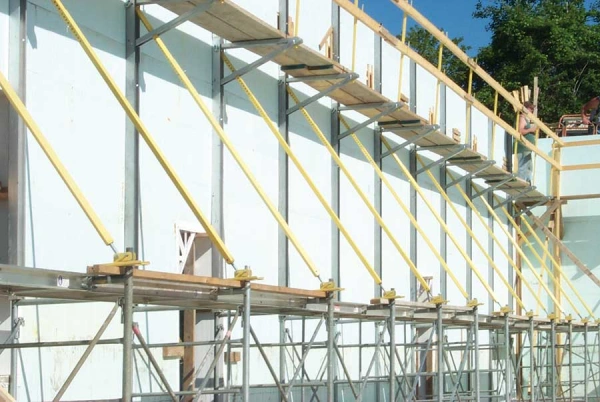

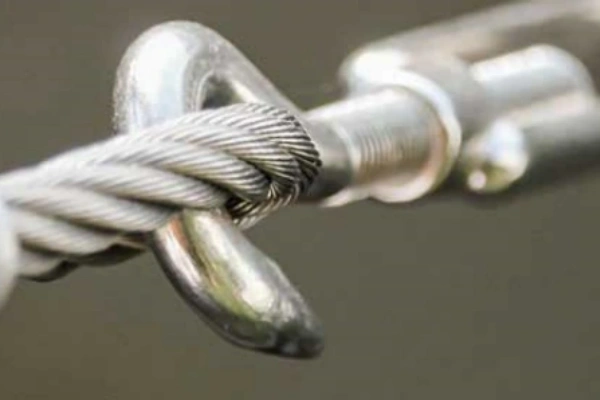

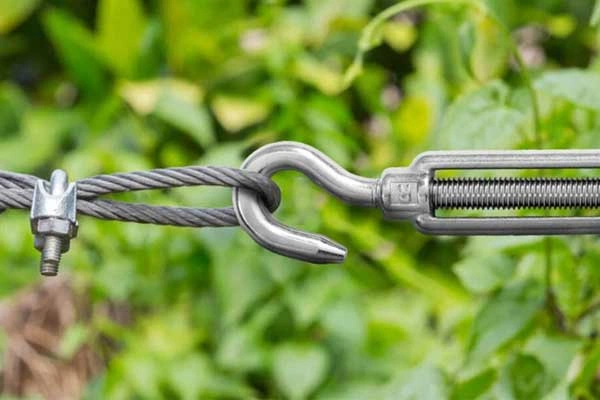

Turnbuckles are used to adjust tension in wire rope and cable assemblies, transport lashing systems, construction bracing, marine assemblies, selected offshore applications, agricultural equipment, and general industrial installations. The mating hardware, surrounding components, connection geometry, and anchor points should be compatible with the selected turnbuckle and the requirements of the complete assembly.
For practical application examples, see our guide to what turnbuckles are used for. For assemblies with unusual load paths, restricted clearances, non-standard connection geometry, or project-specific interfaces, send the assembly drawing with your enquiry so the configuration can be reviewed before quotation.
A complete RFQ should identify both the required turnbuckle and the assembly in which it will be used. Providing the information below helps Powerful Machinery match the enquiry to the appropriate product family, check model availability, and identify any specifications that still need confirmation.
For heavy-duty applications, do not use the term “heavy duty” as the only selection criterion. Provide the required load, applicable safety or design requirements, service conditions, connection details, and any relevant project standard so the available turnbuckle models can be reviewed against the application.
If you need help defining the required dimensions before requesting a quotation, see our turnbuckle sizes and dimensions guide.
Powerful Machinery supports OEM turnbuckle orders, custom dimensions, model-specific finishes, and customized packaging for international B2B customers. Samples can be arranged for selected products after the model, quantity, sample cost, and shipping terms are confirmed. MOQ, production lead time, and delivery terms vary by product and order requirements and are confirmed in the quotation.
For export or project enquiries, provide the destination market together with any required standard, inspection, certification, marking, or documentation requirements. Product-family descriptions such as DIN, JIS, US-type, or Korean-type should not be treated as certification or compliance statements on their own. Any required conformity, test documentation, certificates, or supporting records should be confirmed for the exact model before ordering.
Use these technical resources to compare turnbuckle configurations, dimensions, installation considerations, and inspection requirements before specifying or ordering a product.
For broader component checks and rigging hardware inspection requirements, review the general inspection guide for related load-rated hardware.
Yes. We manufacture turnbuckles and support standard product families, OEM work, custom sizes, custom finishes and packaging customization. Send the model or drawing so we can confirm the suitable production route.
MOQ varies by model and customization. Send the product, finish and quantity you need; sales will confirm the applicable MOQ in the quotation.
Lead time is confirmed after the model, quantity, finish, packaging and documentation requirements are reviewed. We do not publish one fixed lead time for every turnbuckle family.
Yes. Samples are available. Confirm the required model, quantity, sample cost and shipping terms with sales.
No. Do not assume a general-purpose or commercial turnbuckle is suitable for lifting. Use a product only when its model-specific documentation identifies it for the intended service and the complete assembly has been reviewed by a qualified person.
Send your model, dimensions, quantity, destination and drawing. We will review the request, identify missing details and quote the appropriate product or custom route.
