6×26SW Steel Wire Rope

Technical Specifications for 6x26SW Steel Wire Rope

The 6x26WS (Warrington Seale) is a modern, high-performance hoisting rope, widely specified as an upgrade for its enhanced durability and well-rounded characteristics. Its sophisticated strand design is a composite of two patterns: a rugged outer layer of large Seale wires provides excellent abrasion and crush resistance, while a fatigue-resistant inner layer of Warrington wires provides flexibility.

This powerful combination results in a rope that can withstand the rigors of heavy use, making it less susceptible to damage on the drum and more resilient to bending stresses than many other classifications.

NOMINAL DIAMETER	APPROX. WEIGHT			NOMINAL TENSILE STRENGTH OF ROPE(MPA)
				1570		1670		1770		1870		1960
				MINIMUM BREAKING LOAD OF ROPE
D	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
MM	KG/100M			KN
6	13.7	13.4	15	18.6	20.1	19.8	21.4	21	22.6	22.2	23.9	23.2	25.1
8	24.3	23.7	26.8	33.2	35.8	35.3	38	37.4	40.3	39.5	42.6	41.4	44.6
9	30.8	30.1	33.9	42	45.3	44.6	48.2	47.3	51	50	53.9	52.3	56.5
10	38	37.1	41.8	51.8	55.9	55.1	59.5	58.4	63	61.7	66.6	64.6	69.7
11	46	44.9	50.6	62.7	67.6	66.7	71.9	70.7	76.2	74.7	80.6	78.2	84.4
12	54.7	53.4	60.2	74.6	80.5	79.4	85.6	84.1	90.7	88.9	95.5	93.1	100
13	64.2	62.7	70.6	87.6	94.5	93.1	100	98.7	106	104	113	109	118
14	74.5	72.7	81.9	102	110	108	117	114	124	121	130	126	136
16	97.3	95	107	133	143	141	152	150	161	158	170	165	178
18	123	120	135	168	181	179	193	189	204	200	216	209	226
20	152	148	167	207	224	220	238	234	252	247	266	258	279
22	184	180	202	251	271	267	288	283	305	299	322	313	337
24	219	214	241	298	322	317	342	336	363	355	383	372	402
26	257	251	283	350	378	373	402	395	426	417	450	437	471
28	298	291	328	406	438	432	466	458	494	484	522	507	547
30	342	334	376	466	503	496	535	526	567	555	599	582	627
32	389	380	428	531	572	564	609	598	645	632	682	662	714
34	439	429	483	599	646	637	687	675	728	713	770	747	806
36	492	481	542	671	724	714	770	757	817	800	863	838	904
38	549	536	604	748	807	796	858	843	910	891	961	933	1007
40	608	594	669	829	894	882	951	935	1010	987	1070	1034	1116
42	670	654	737	914	986	972	1050	1030	1110	1090	1170	1140	1230
44	736	718	809	1000	1080	1070	1150	1130	1220	1190	1290	1252	1350
46	804	785	884	1100	1180	1170	1260	1240	1330	1310	1410	1368	1476
48	876	855	963	1190	1290	1270	1370	1350	1450	1420	1530	1490	1607
50	950	928	1050	1300	1400	1380	1490	1460	1580	1540	1660	1617	1744
52	1030	1000	1130	1400	1510	1490	1610	1580	1700	1670	1800	1748	1886
54	1110	1080	1220	1510	1630	1610	1730	1700	1840	1800	1940	1886	2034
56	1190	1160	1310	1620	1750	1730	1860	1830	1980	1940	2090	2028	2188
58	1280	1250	1410	1740	1880	1850	2000	1960	2120	2080	2240	2175	2347
60	1370	1340	1500	1870	2010	1980	2140	2100	2270	2220	2400	2328	2511

This makes the 6x26WS an outstanding choice for a multitude of demanding lifting operations. We offer it in two core configurations to serve the full spectrum of your clients’ needs:

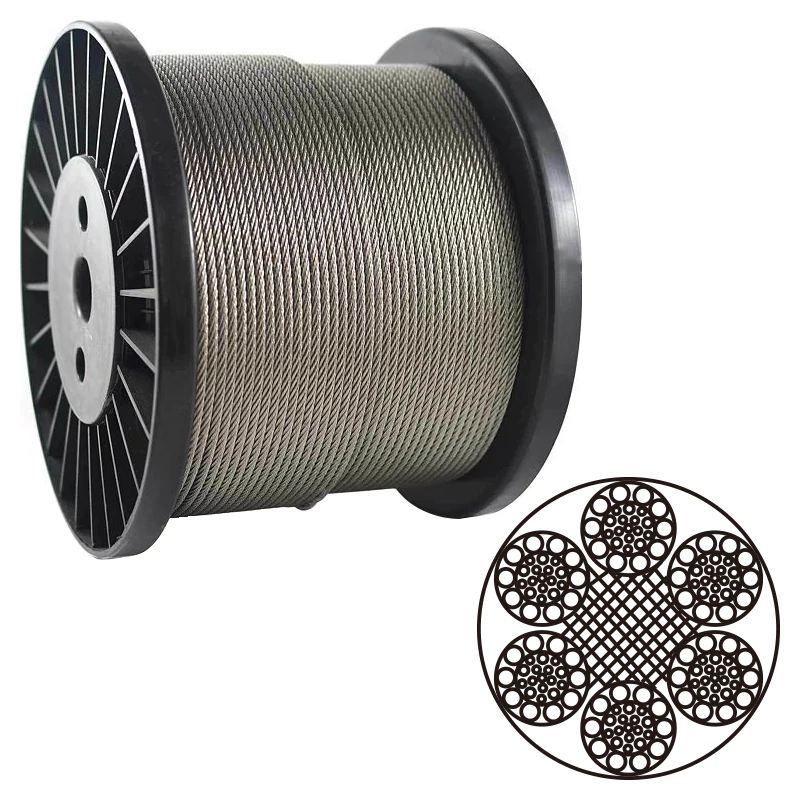

6×26WS FC Steel Wire Rope

This configuration is an excellent high-performance, all-purpose hoisting rope. The fiber core enhances its flexibility and makes it a perfect upgrade for standard overhead cranes, mobile cranes, and winch lines, especially in applications where other ropes wear out prematurely due to abrasion or drum pressure. It offers a significant increase in service life and reliability for general lifting.

6×26WS IWR Steel Wire Rope

This is the ultimate choice for heavy-duty service. Combining the crush-resistant 6x26WS strands with the solid foundation of a steel core creates a rope with maximum strength and stability.

It is the ideal specification for main and auxiliary hoist lines on industrial cranes, boom hoists, and any multi-layer spooling application where resistance to crushing and operational longevity are critical priorities.

Technical Specifications for 6x26SW Steel Wire Rope

6×26WS FC Steel Wire Rope

6×26WS IWR Steel Wire Rope
