DIAGRAMS
AUSTRALIAN STANDARD LONG LINK CHAIN

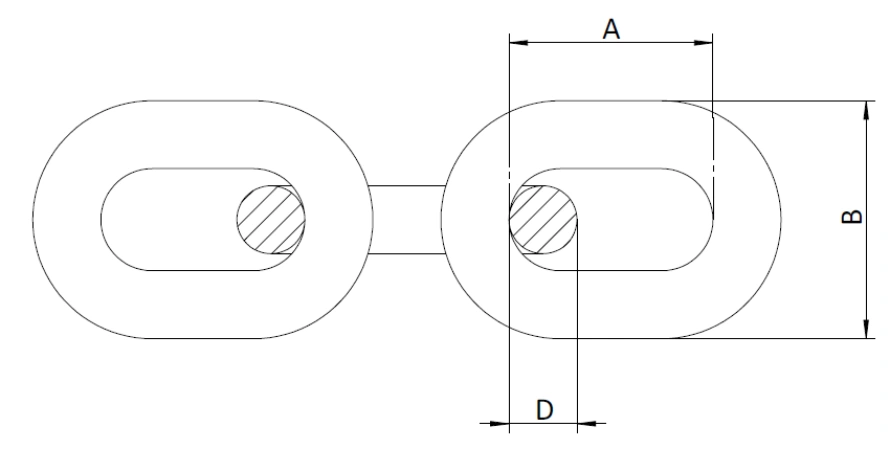

AUSTRALIAN GRADE 70 CHAIN
PRODUCT SPECIFICATIONS
AUSTRALIAN STANDARD LONG LINK CHAIN
| CHAIN SIZE | W LL | LINK DIMENSION | LENGTH PER 100KG | ||||
| DIA. | L | W | B.F. | H.D.G. | |||
| MM | KGS | MM | MM | MM | M | M | |
| 5 | 190 | 5.00 | 29.3 | 21.8 | 217.0 | 206.0 | |
| 6 | 320 | 6.30 | 34.5 | 26.1 | 135.0 | 128.0 | |
| 8 | 530 | 8.00 | 41.2 | 31.9 | 82.2 | 78.1 | |
| 10 | 830 | 10.00 | 49.0 | 38.7 | 52.9 | 50.2 | |
Australian Grade 70 Chain
| CHAIN SIZE | LINK DIMENSION | WEIGHTPER M | WEGHTPER 500KG | BREAKINGSTRENGTH | |||
| D | L | W | |||||
| MM | MM | MM | MM | KG | KG | KN | |
| 6 | 6.3 | 18.9 | 22.05 | 0.88 | 568 | 44.1 | |
| 7 | 7.1 | 21.3 | 24.85 | 1.12 | 446 | 55.9 | |
| 7.3 | 7.3 | 24.0 | 26.6 | 1.16 | 430 | 58.9 | |
| 8 | 8.0 | 24.0 | 28.0 | 1.43 | 350 | 73.6 | |
| 10 | 10.0 | 30.0 | 35.0 | 2.23 | 224 | 118.0 | |
| 13 | 13.0 | 39.0 | 45.5 | 3.75 | 133 | 176.0 | |
DESIGN
MATERIAL
- Low Carbon Steel.
Processing
- Welded
FINISH
- Supplied in Self-Color, Electro-Galvanized, and Hot-Dipped Galvanized Surface.
WORKING LOAD LIMITS
- Ultimate load is at least 2 times at working load limit
APPLICATION
- Manufacturing, Marine and Agricultural industries
PACKAGING
- Drum + Steel pallets. Custom packaging available
INSTRUCTIONS & CAUTIONS
WORKING LOAD LIMITS: This is the maximum load (in pounds) a chain should ever handle, even when it’s new and the load is evenly distributed along a straight, untwisted length. The “working load limit” doesn’t reflect the load the chain could potentially endure if conditions like wear, twisting, misuse, overloading, or corrosion are introduced. These factors can reduce the chain’s strength, so regular inspections are crucial to ensure safety.
PROOF TEST: This is the load (in pounds) a chain undergoes before leaving the factory. The chain is tested under direct tension in a straight line at a consistent speed using a standard testing machine. The purpose of this test is to identify any material or manufacturing defects.
All Australian Standard Long Link Chain, Australian Standard Medium Link Chain, and Australian Standard Short Link Chain are proof tested. When using attachments like hooks or rings, make sure they match the chain’s grade, type, and size for proper load-bearing performance.
GENERAL WARNING: Chains made from low and high carbon steel, along with weldless and welded options, are designed for pull or tension applications only. Do not use them for lifting or hoisting, especially in situations where failure could cause injury or damage. Avoid jerking or rapidly applying loads, as this can significantly increase stress on the chain.
