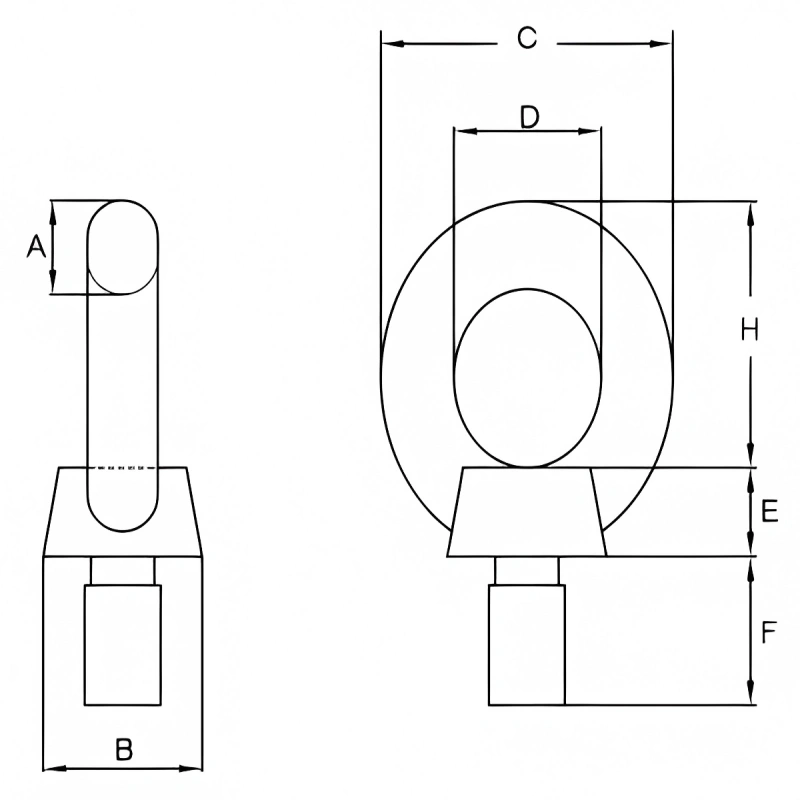

DIN 580 LIFTING EYE BOLT DIAGRAM
EYE BOLT DIN 580 SPECIFICATIONS
| ITEM NO | A | B | C | D | E | F | H | WT |
| mm | mm | mm | mm | mm | mm | mm | KGS | |
| PF0051-A/B0006 | 6 | 16 | 27 | 16 | 6 | 13 | 25 | 0.022 |
| PF0051-A/B0008 | 8 | 19 | 35 | 20 | 6 | 15 | 30 | 0.045 |
| PF0051-A/B0010 | 10 | 25 | 45 | 25 | 8 | 17 | 37 | 0.091 |
| PF0051-A/B0012 | 12 | 29 | 52 | 30 | 10 | 22 | 43 | 0.147 |
| PF0051-A/B0016 | 16 | 33 | 63 | 35 | 12 | 27 | 50 | 0.278 |
| PF0051-A/B0020 | 20 | 38 | 69 | 40 | 14 | 28 | 57 | 0.341 |
| PF0051-A/B0024 | 24 | 46 | 87 | 50 | 18 | 38 | 72 | 0.689 |
| PF0051-A/B0027 | 27 | 65 | 108 | 60 | 22 | 45 | 87 | 1.1 |
| PF0051-A/B0030 | 30 | 59 | 106 | 60 | 22 | 45 | 87 | 1.349 |
| PF0051-A/B0036 | 36 | 73 | 124 | 70 | 26 | 52 | 102 | 2.279 |
PRODUCT FEATURES
- Sizes range from M6 to M36
- Crafted from 304 or 316 stainless steel for excellent corrosion resistance
- Polished finish for long-lasting durability
- Precision-cut metric threads for a secure fit
- Ideal for vertical lifting applications (not for lifting over people)
- Drop-forged and machined contact face for strength
INSTRUCTIONS & CAUTIONS
Ensure Full Thread Engagement
Make sure the DIN 580 eye bolt is fully screwed into the base material. This ensures the threads are securely engaged, providing maximum strength and safety. A properly threaded eye bolt reduces the risk of failure during lifting or rigging. Always verify that the eye bolt is tightly fitted before applying load.
Only Use for Vertical Lifting
These eye bolts are designed for vertical lifting applications only. Avoid using them for angled or side-loading as this can reduce their load capacity significantly. For angular lifting, we recommend using hoist rings instead, as they are better suited for these applications. Incorrect usage can lead to failure of the rigging system.
Inspect Regularly for Wear or Damage
Before each use, inspect the DIN 580 eye bolts for signs of wear, corrosion, or damage. Any visible cracks or deformities should be cause for immediate replacement. Regular inspections are essential to ensure the safe operation of your rigging system, especially in high-stress environments like construction or marine applications.
Do Not Use for Lifting People
Under no circumstances should the DIN 580 eye bolt be used for lifting people or anything over people. These eye bolts are meant strictly for rigging and lifting materials, and their load ratings are based on vertical lifting only. Using them to lift people could lead to serious accidents or injuries.
OUR ADVANTAGES
Superior Quality & Safety Assurance
At Powerful Machinery, we manufacture DIN 580 Eye Bolts with high-grade 304 or 316 stainless steel, ensuring superior corrosion resistance and long-lasting durability. Our products are designed to meet the highest safety standards, so you can rely on them in heavy-duty lifting operations without compromising on performance.
One-Stop Sourcing for Convenience
At Powerful Machinery, we provide a wide range of rigging and lifting hardware, making us your one-stop supplier. From standard components to custom solutions, we simplify the ordering process and reduce your supply chain complexity. You save time and effort by sourcing everything you need from a trusted manufacturer.
Custom-Engineered Solutions
We keep Powerful Machinery Trawl Blocks in stock, so you don’t have to wait. Whether you need a quick replacement or have urgent fishing operations, our blocks are ready to ship when you need them. No delays means you can keep your marine and offshore projects running smoothly without any interruptions.
After-Sales Service & Support
Our commitment to you doesn’t stop after delivery. With Powerful Machinery, you get industry-leading customer service and after-sales support. Whether you need installation help, technical advice, or product maintenance, our team is ready to assist, ensuring your DIN 580 Eye Bolts continue performing at their best throughout their lifecycle.
OUR REVIEWS
FAQ
What is the lifting capacity of a DIN 580 Eye Bolt?
The lifting capacity of a DIN 580 eye bolt depends on its size, material, and the angle at which it’s used. For vertical lifting, capacities can range from 200kg to 10,000kg. For angled lifting (up to 45°), the capacity is reduced significantly. Always refer to the manufacturer’s specifications for precise load ratings, and ensure the eye bolt is installed correctly for optimal performance.
What is the difference between a shoulder and non-shoulder DIN 580 Eye Bolt?
The shouldered DIN 580 eye bolt allows for angular lifting (up to 45°) and offers better load distribution, making it ideal for rigging systems where the load might not be directly vertical. A non-shouldered eye bolt, however, is designed strictly for vertical lifting and should not be used at angles. Always choose the correct type based on your lifting requirements
What is the difference between DIN 580 and other lifting eye bolts?
DIN 580 Eye Bolts meet German standards for lifting applications, ensuring that they offer high-quality performance in rigging systems. Unlike some other eye bolts, they are designed for safe vertical lifting, with precision-cut threads and corrosion-resistant materials. DIN 580 bolts are known for their reliable performance and longevity compared to non-standard eye bolts.
Are your DIN 580 Eye Bolts certified?
Yes, all our DIN 580 Eye Bolts are fully certified to meet the required safety standards for lifting applications. We ensure that our products comply with industry regulations and are tested for strength and reliability before they are shipped. Our certifications give you peace of mind knowing that our products are safe and reliable for your lifting operations.
What is the maximum angle I can use a DIN 580 Eye Bolt for lifting?
For vertical lifting, DIN 580 Eye Bolts perform at their maximum load capacity. If you need to use them for angular lifting (up to 45°), the load capacity will be significantly reduced. Always check the manufacturer’s guidelines for the load reduction at angles to avoid overloading and potential failure. For angled lifting, we recommend hoist rings for better load distribution.
