Product Specifications

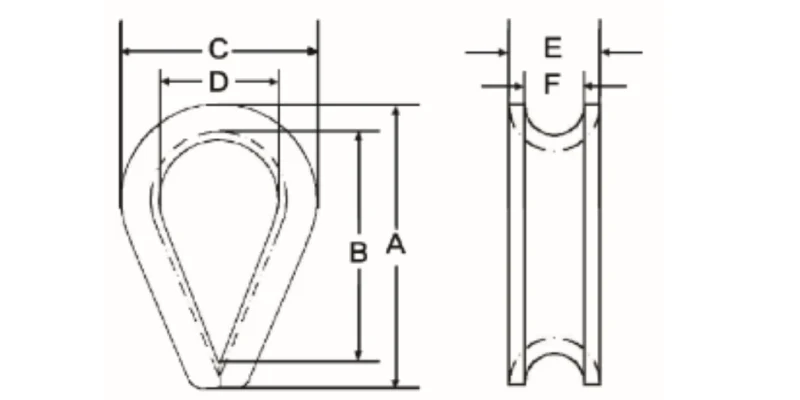

| SIZE | DIMENSIONS(MM) | WEIGHT | |||||
| MM | A | B | C | D | E | F | KG/PC |
| 2.5 | 28 | 21.5 | 16 | 10 | 5 | 3 | 0.14 |
| 3 | 30 | 23.5 | 17 | 11 | 5.5 | 3.5 | 0.35 |
| 4 | 34 | 26.5 | 19 | 12 | 6 | 4 | 0.42 |
| 5 | 36 | 28 | 20 | 13 | 7 | 5 | 0.8 |
| 6 | 38 | 30 | 22 | 14 | 8 | 6 | 0.85 |
| 7 | 43 | 33 | 24 | 15 | 9 | 7 | 1.1 |
| 8 | 46 | 35 | 26 | 16 | 10 | 8 | 1.7 |
| 9 | 50 | 39 | 29 | 18 | 11 | 9 | 2.1 |
| 10 | 56 | 43 | 32 | 20 | 13 | 10 | 3.5 |
| 11 | 60 | 47.5 | 36 | 22 | 14 | 11 | 3.7 |
| 12 | 68 | 51.5 | 40 | 24 | 15 | 12 | 5.25 |
| 13 | 75 | 56.5 | 44 | 26 | 17 | 13 | 7.25 |
| 14 | 82 | 61 | 48 | 28 | 18 | 14 | 8.33 |
| 16 | 91 | 69.5 | 54 | 32 | 21 | 16.5 | 12.3 |
| 18 | 102 | 78 | 59 | 35 | 24 | 18 | 18.5 |
| 20 | 114 | 86.5 | 68 | 40 | 28 | 20 | 31.5 |
| 22 | 126 | 95 | 76 | 44 | 30 | 22 | 36.5 |
| 24 | 135 | 103.5 | 84 | 48 | 32 | 24 | 41.7 |
| 28 | 162 | 120.5 | 100 | 56 | 38 | 28 | 72.1 |
Products Diagrams
The Italy Type Wire Rope Clip features a robust U-bolt and saddle structure, providing even pressure along the rope. Its rounded saddle edges protect the wire strands, ensuring high grip strength without deformation during use.
Easy to install in both field and workshop conditions, these clips maintain a firm hold under load and vibration. Their standardized design ensures compatibility with European rigging systems and consistent performance across various industrial environments.
Material Specification
Grade:
Manufactured from high-tensile carbon steel for superior mechanical strength and long-term durability under heavy load conditions.
Finish:
Electro-galvanized or hot-dip galvanized finish provides lasting corrosion protection, extending product life even in outdoor and marine environments.
Attachment:
Equipped with precision-threaded U-bolts and matching nuts for stable, vibration-resistant wire rope fastening.
Type:
Designed according to European Italy Type standards for uniform fit, reliable clamping, and easy interchangeability with standard rigging systems.
Material:
Forged or precision-cast steel body with zinc or galvanized coating ensures dependable grip, resilience, and load security.
Application
Construction Industry
Used in scaffolding, cable anchoring, and lifting systems for safe wire rope terminations and secure connections.
Marine & Offshore
Ideal for rigging, mooring, and towing applications where strength and corrosion resistance are crucial.
Mining Industry
Provides dependable wire rope fastening in lifting, hoisting, and transport systems under extreme working conditions.
Advantages
Corrosion & Finish Protection
Hot-dip galvanized coating ensures long-term rust resistance, extending service life in harsh and humid conditions.
Customization & Traceability
Available in multiple sizes and finishes with batch codes and logo engraving for brand and compliance identification.
Load Control & Durability
Precision-forged construction delivers strong load retention and superior vibration resistance for safety-critical operations.
Bulk Capacity & Lead Time
Large-scale production ensures fast delivery, stable supply, and consistent quality for global wholesalers and distributors.
What Our Clients Say
FAQ

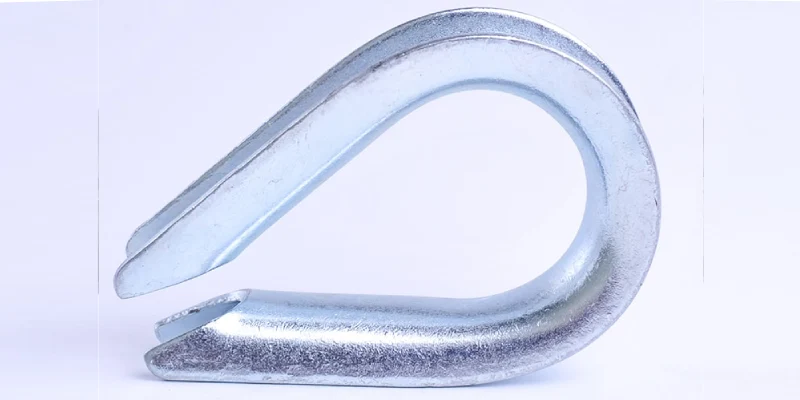

What is the purpose of a DIN6899A Type Wire Rope Thimble?
It prevents the wire rope eye from abrasion and deformation when connected to shackles or hooks. It maintains the rope’s loop shape, ensuring safety and durability during load handling.
How do I install a DIN6899A Type Wire Rope Thimble?
Insert the thimble inside the rope loop, wrap the wire around its groove, and secure it using wire rope grips or ferrules for a tight, safe connection.
What is the difference between DIN6899A and DIN6899B thimbles?
DIN6899A thimbles are lighter and used for general-purpose rigging, while DIN6899B thimbles are heavier-duty and suitable for more demanding load conditions.
Can the thimble resist corrosion in marine applications?
Yes. The galvanized finish provides excellent corrosion resistance, making it suitable for coastal, marine, and offshore environments.
What wire rope sizes are compatible with this thimble?
They are available in sizes from 2mm to 40mm. Custom diameters can also be manufactured to fit specific wire rope assemblies.
Do you provide certificates or quality assurance?
All thimbles are tested and traceable, accompanied by material certificates and production records to ensure consistent quality for industrial clients.
