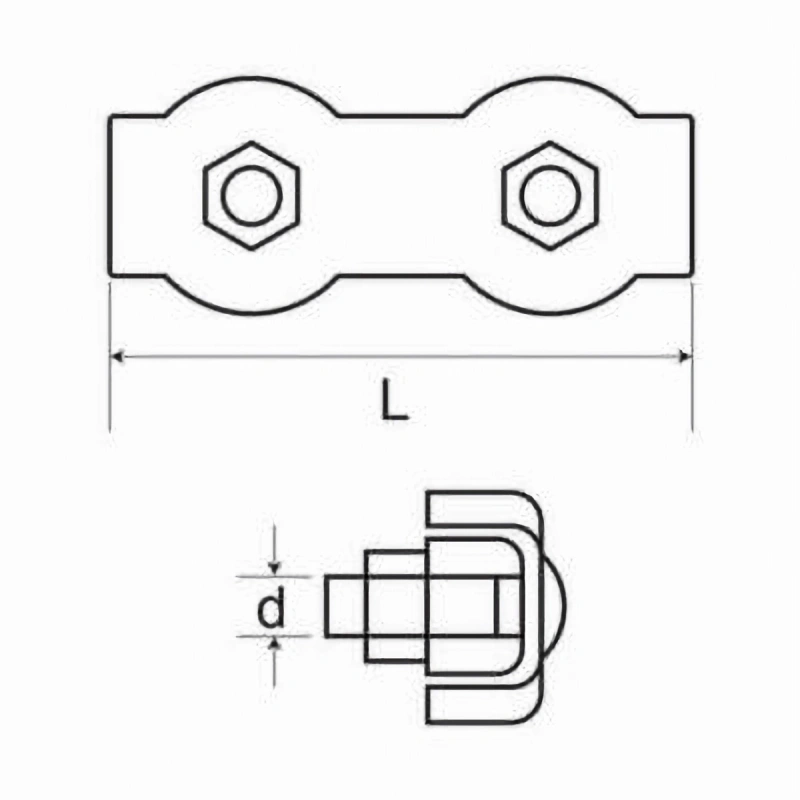

DIAGRAM
SPECIFICATIONS
| NO. | Wire | d | L |
| (mm) | (mm) | (mm) | |
| PFSSDC02 | 2 | M4 | 33 |
| PFSSDC03 | 3 | M4 | 38 |
| PFSSDC04 | 4 | M5 | 43 |
| PFSSDC05 | 5 | M5 | 51 |
| PFSSDC06 | 6 | M6 | 63 |
| PFSSDC08 | 8 | M8 | 78 |
| PFSSDC10 | 10 | M10 | 95 |

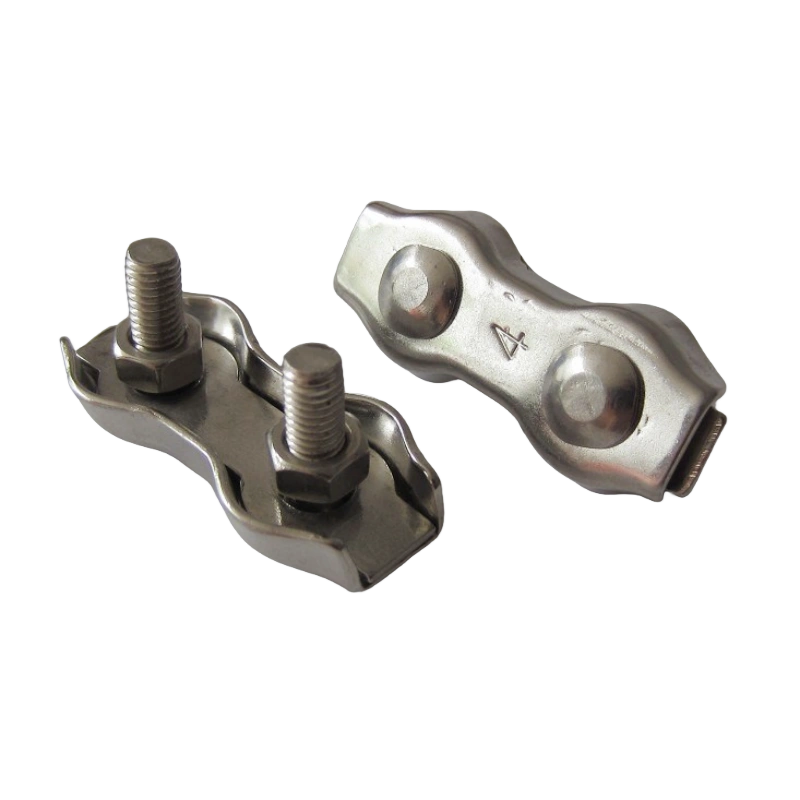

PRODUCT FEATURES
-
High-quality 304 or 316 stainless steel
-
Polished finish for enhanced durability
-
Available in sizes from 2mm to 10mm
-
No washers or locknuts needed for secure fit
-
Ideal for wire rope and rope applications
INSTRUCTIONS & CAUTIONS
Ensure Proper Sizing
Choose the correct size duplex wire rope clip for your cable—available in sizes from 2mm to 10mm. A mismatch could lead to slippage or failure. Use 3 clips for cables up to 6mm and 4 clips for larger sizes (8mm+). Proper sizing ensures secure installation and performance.
Tighten Securely
Use a wrench or pliers to tighten the nuts on the duplex clip. Tighten before adding load and again once the rope is under tension. Double-check the clip’s tightness regularly to avoid loosening, which can compromise security.
Avoid Overloading
Duplex wire rope clips are ideal for static loads and should not be used for lifting or safety-critical applications. They should only handle up to 80% of the rope’s breaking strength. Always ensure your load stays within these limits for safe use.
Routine Inspections
Inspect your duplex wire rope clips every 6 months or more often if used in harsh conditions. Check for signs of wear, corrosion, or loosening nuts. Replace any damaged clips immediately to maintain a secure system.
OUR ADVANTAGES
Flexible Customization Services
We offer flexible customization options to meet your specific requirements. Whether it's a unique size, material, or design, we have the expertise to create solutions tailored to your needs. This flexibility sets us apart from other manufacturers and allows you to deliver products that align with your customers’ expectations.
Unmatched Product Quality
We focus on delivering high-quality rigging and lifting hardware, backed by rigorous testing and industry certifications. Our products are manufactured using top-grade materials, ensuring long-lasting performance even in the toughest environments. With Powerful Machinery, you can trust that each product meets your standards for strength and durability.
Customer-Centric Approach
At Powerful Machinery, we prioritize our customers’ needs by providing tailored solutions and fast response times. Our team works closely with you to ensure you receive the best rigging hardware for your specific application. We take the time to understand your business and offer expert advice to ensure seamless integration of our products into your projects.
Timely Delivery and Stock Availability
Our efficient supply chain and vast inventory ensure that you receive the products you need, when you need them. We understand that timely delivery is critical to your operations. Whether it’s a bulk order or customized request, we work hard to meet deadlines and avoid any delays, allowing you to keep your projects on track.
OUR REVIEWS
FAQ
How to Use a Stainless Steel Duplex Wire Rope Clip?
-
Unscrew the Nuts: Begin by unscrewing the nuts on the bolts of the duplex wire rope clip.
-
Remove the Cover Plate: Carefully remove the cover plate from the clip to access the loop for the wire rope.
-
Position the Steel Cable: Place your steel cable into the loop of the duplex clamp, ensuring it is aligned correctly.
-
Tighten the Nuts: Use a wrench or spanner to firmly tighten the nuts, securing the wire rope in place.
-
Check the Tension: Double-check the tension to ensure the clip is securely fastened and ready to handle the load.
Can I use duplex wire rope clips with any type of wire rope?
Yes, duplex wire rope clips are ideal for use with flexible 7×19 strand steel wire ropes. However, we do not recommend using them with stiffer 1×19 or 7×7 strands, especially for diameters above 8mm. Flexible wire ropes are easier to pass through the duplex clips, ensuring a secure grip without slippage.
Can I use duplex wire rope clips with non-steel ropes?
While duplex wire rope clips are specifically designed for steel wire ropes, they can also be used with synthetic ropes, depending on the application. However, ensure that the rope material is compatible with stainless steel and that the rope diameter fits the clip.
What is the difference between duplex wire rope clips and simplex clips?
Duplex wire rope clips feature two nuts and bolts for added security, providing a stronger and more stable connection compared to simplex clips, which have a single nut. Duplex clips are ideal for high-tension applications, while simplex clips are better suited for lighter-duty tasks.
