Product Specifications
| SIZE | WLL(LBS) | DIMENSIONS(MM) | WEIGHT | |||||
| IN. | CARBON | ALLOY | D | R | L | M | E | LBS/PC |
| 1/4″ | 2600 | 3150 | 12.7 | 65 | 92 | 68.50 | 23 | 0.40 |
| 5/16″ | 3900 | 4700 | 16 | 72.5 | 106 | 76.00 | 26 | 0.64 |
| 3/8″ | 5400 | 6600 | 18 | 86.5 | 124 | 89.50 | 33 | 1.11 |
| 7/16″ | 7200 | 8750 | 20.5 | 98.5 | 142 | 108.00 | 40 | 1.56 |
| 1/2″ | 9200 | 11300 | 23 | 109.5 | 156 | 116.50 | 43 | 2.10 |
| 5/8″ | 13000 | 15800 | 28.8 | 132.5 | 195 | 143.00 | 52 | 3.90 |
| 3/4″ | 20200 | 24700 | 35 | 147.5 | 222 | 169.00 | 55 | 6.93 |

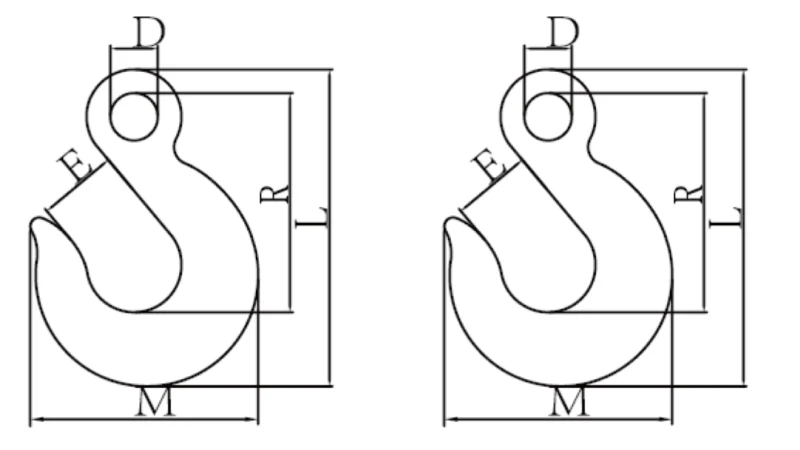

Products Diagrams

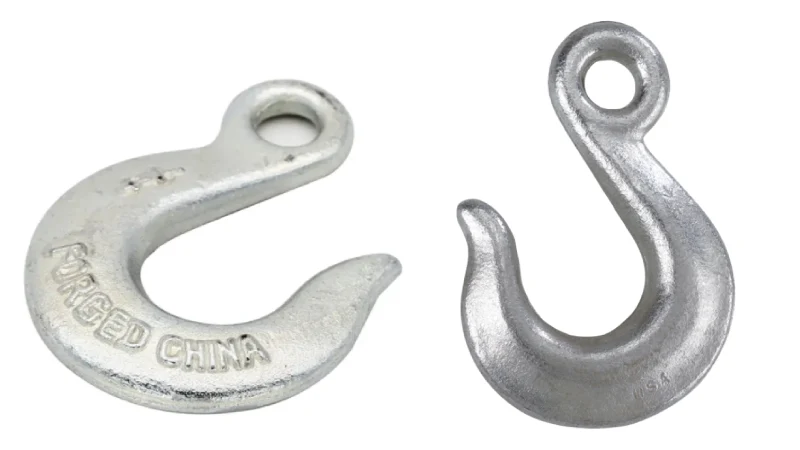

This hook features an eye design that allows quick attachment to chains or wire ropes. Its slip style provides easy release, making it ideal for adjustable and flexible lifting operations.
Forged from high-grade steel and heat-treated for maximum strength, the EYE SLIP HOOK H324/A324 includes a latch for load security. Its smooth curvature reduces stress and prevents accidental unhooking.
Material Specification
Grade:
Manufactured from Grade 80 or 100 forged alloy steel, ensuring superior load-bearing capacity and resistance to mechanical stress.
Finish:
Zinc-plated or painted finish for long-term corrosion protection and consistent surface performance in harsh working environments.
Attachment:
Eye end allows strong and secure connection with chains, slings, or lifting assemblies for stable load handling.
EYE SLIP HOOK H324/A324 Type:
Slip-type hook with safety latch, suitable for variable load attachment and easy tension adjustments.
Material:
High-tensile forged alloy steel offering strength, toughness, and durability in continuous lifting or rigging operations.
Application
Construction Industry
Used for lifting, securing, and load movement in construction sites, cranes, and scaffolding operations.
Marine & Offshore
Ideal for securing ropes, mooring systems, and rigging applications in saltwater or offshore environments.
Mining Industry
Applied in heavy machinery hoisting, conveyor systems, and load handling under extreme working conditions.
Advantages
Corrosion & Finish Protection
Anti-rust coating ensures reliable outdoor use and long service life even in wet or marine conditions.
Customization & Traceability
Available with customizable sizes, markings, and finishes; every hook batch is fully traceable for quality assurance.
Load Control & Durability
Forged alloy steel provides high load capacity and excellent resistance to wear, deformation, and impact.
Bulk Capacity & Lead Time
We support bulk production with short lead times and flexible delivery schedules for distributors and OEMs.
What Our Clients Say
FAQ
What is the EYE SLIP HOOK H324/A324 used for?
It is commonly used in lifting, towing, and rigging applications. The slip design allows easy load adjustment, while the safety latch prevents accidental release during operation.
What materials are used in this hook?
It’s made from high-strength forged alloy steel, heat-treated for durability and resistance to bending or breaking under heavy loads.
Can it be used with all types of chains or wire ropes?
Yes, the eye design fits standard chain links and wire rope fittings, offering secure attachment for various lifting and pulling applications.
How does the safety latch improve performance?
The latch adds an extra layer of safety by keeping the load in place, preventing unintentional detachment during lifting or movement.
Is this hook corrosion-resistant?
The surface is zinc-plated or painted, providing excellent resistance against moisture, chemicals, and salt exposure.
