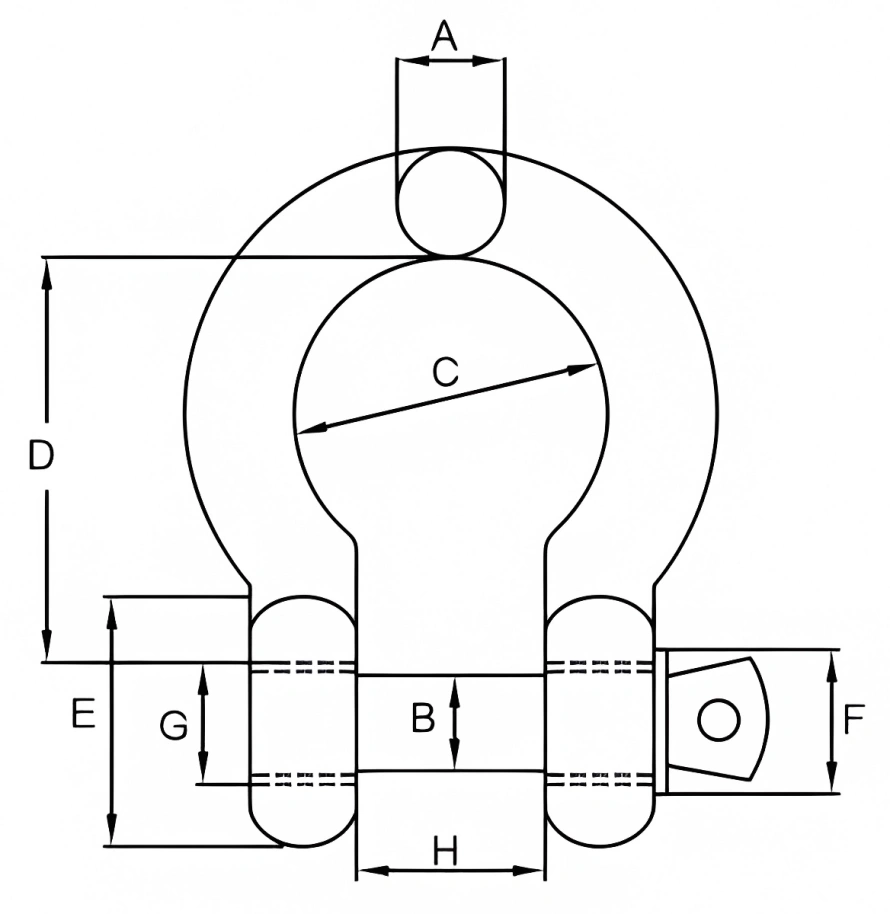

DIAGRAM
SPECIFICATIONS
| ITEM NO | SIZE | B | C | D | E | F | G | H | I | J |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| PF0061-A/B03/16 | 3/16 | 5 | 6 | 16 | 22 | 13 | 9.5 | 6 | 2 | 5 |
| PF0061-A/B001/4 | 1/4 | 6 | 8 | 20 | 28 | 15.5 | 11.5 | 8 | 2.5 | 6 |
| PF0061-A/B05/16 | 5/16 | 8 | 10 | 21 | 30 | 19 | 13.5 | 10 | 3 | 8 |
| PF0061-A/B003/8 | 3/8 | 10 | 12 | 26 | 52 | 23 | 16 | 12 | 3.5 | 10 |
| PF0061-A/B07/16 | 7/16 | 11 | 12 | 29 | 42 | 27 | 16.5 | 12 | 3.5 | 11 |
| PF0061-A/B09/16 | 9/16 | 12 | 14 | 33 | 47 | 30 | 21.5 | 14 | 4.5 | 12 |
| PF0061-A/B001/2 | 1/2 | 14 | 16 | 38 | 53 | 34 | 24 | 16 | 5 | 16 |
| PF0061-A/B005/8 | 5/8 | 16 | 18 | 43 | 60 | 38 | 27 | 18 | 5.5 | 20 |
| PF0061-A/B003/4 | 3/4 | 20 | 22 | 51 | 71 | 46 | 30 | 22 | 6 | 22 |
| PF0061-A/B007/8 | 7/8 | 22 | 25 | 58 | 83 | 53 | 34 | 24 | 6 | 16 |
| PF0061-A/B00001 | 1 | 25 | 28 | 68 | 95 | 60 | 36 | 27 | 6.5 | 17 |
| PF0061-A/B011/8 | 1.1/8 | 28 | 30 | 74 | 107 | 68 | 40 | 30 | 6.5 | 18 |

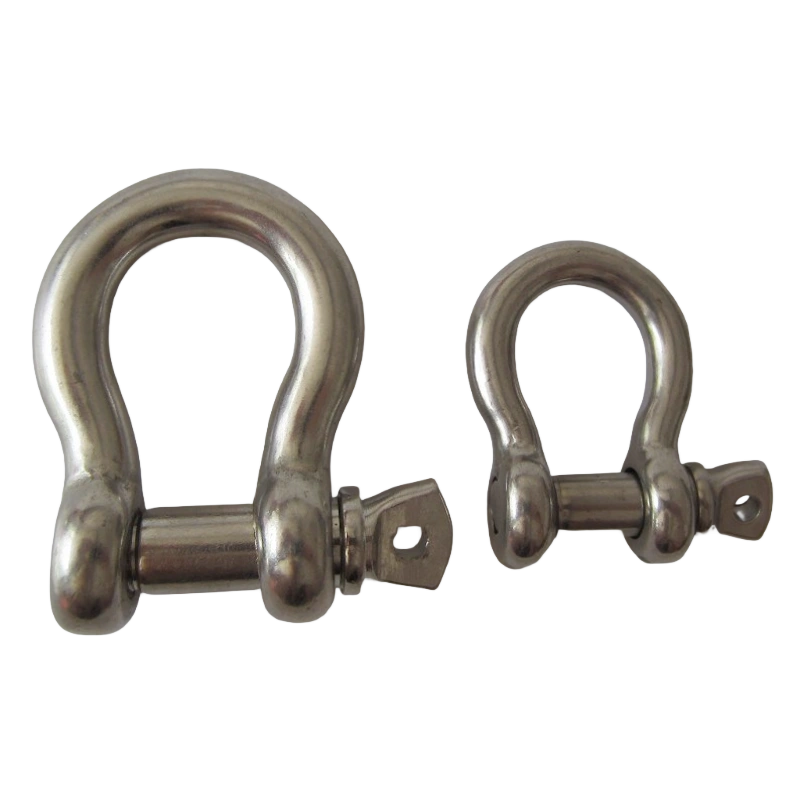

PRODUCT FEATURES
- Made from AISI 304/316 stainless steel for excellent corrosion resistance.
- Screw pin design for easy installation and removal.
- Suitable for marine, towing, rigging, and vehicle recovery.
- Large rounded shape allows handling loads from multiple directions.
- Ideal for multi-leg slings and temporary connections.
INSTRUCTIONS & CAUTIONS
Inspect Before Use
Before using the G209 shackle, always check for signs of wear or damage, especially on the pin and bow. If you notice any distortion, cracks, or excessive wear, discard the shackle immediately. This step ensures the safety and reliability of the shackle in your rigging system.
Correct Sizing for Application
Make sure you’re using the correct size of G209 shackle for the job. If the shackle is too small or too large for the load, it could compromise the system’s integrity. Always match the shackle size with the working load limits and the type of connection required.
Secure the Pin Properly
When installing the shackle, always ensure the screw pin is securely tightened. The pin should be tightened using the keyhole provided, ensuring a firm grip. Loose pins can result in failures under load, so regular checks are essential for safety.
Avoid Side Loading
The G209 shackle is designed to handle loads from multiple directions, but side loading can cause significant damage. Always ensure that the load is applied along the pin’s axis to prevent unnecessary strain. If using the shackle in a multi-leg sling, make sure the load is evenly distributed to maintain safety.
OUR ADVANTAGES
Custom Solutions for Your Needs
We understand every project is unique. That’s why we offer custom-engineered solutions tailored to your specific requirements. Whether you need a different size, pin type, or material, our team works with you to provide the best-fit solution. No matter your application, we ensure your products meet your exact specifications for optimal performance.
Quality Assurance and Durability
At Powerful Machinery, we pride ourselves on providing top-quality stainless steel shackles that meet industry standards. Each product is rigorously tested for strength and durability, ensuring it withstands harsh environments. With our commitment to quality, you can trust that every order delivers reliable performance for your toughest lifting jobs.
Excellent Customer Support
Our customer service team goes above and beyond to assist with any questions, troubleshooting, or support needs. Whether you’re looking for installation guidance or need help with product selection, we’re here to offer expert advice. Our goal is to make your experience with Powerful Machinery seamless and hassle-free.
Fast & Efficient Logistics
Our efficient logistics network ensures your orders are delivered on time, every time. With warehouses located globally, we streamline the shipping process to minimize delays. You can count on us to get your stainless steel shackles to you quickly, so your projects stay on track and you never miss a deadline.
OUR REVIEWS
FAQ
How do I properly install a G209 shackle?
-
Insert the Pin: Start by inserting the pin through the hole in the shackle body.
-
Thread the Pin: Ensure the pin is securely threaded into place.
-
Tighten the Pin: Use a wrench or suitable tool to tighten the pin, making sure it’s firmly in place.
-
Check Security: Always verify that the shackle is fully engaged and securely fastened before applying any load or lifting.
What is the working load limit of a G209 shackle?
The working load limit (WLL) of the G209 shackle varies depending on the size and material. Typically, the shackles can handle loads ranging from several hundred kilograms to several tons. Be sure to check the specifications for your specific shackle size to determine its exact capacity.
Do the G209 shackles come with a warranty?
Yes, Powerful Machinery offers a warranty on all G209 shackles, ensuring that you receive a high-quality product. If there are any manufacturing defects or issues related to material quality, our customer service team will assist with replacement or repairs. Always consult the warranty guidelines for full details.
What is the difference between G209 shackles and other types of shackles?
The primary difference is that the G209 shackle is a screw pin anchor shackle, which is designed for quick connections and disconnections. It has a large, rounded shape that allows for load distribution from multiple directions, reducing the risk of side loads. This makes it more versatile for various lifting and rigging applications compared to other shackles.
What is the screw pin used for on the G209 shackle?
The screw pin on the G209 shackle allows for easy installation and removal of the shackle, making it a convenient option for temporary or frequent connections. The threaded pin ensures a secure fit and prevents accidental loosening during use. The pin can be easily tightened and removed with a wrench or by hand, depending on the application.
