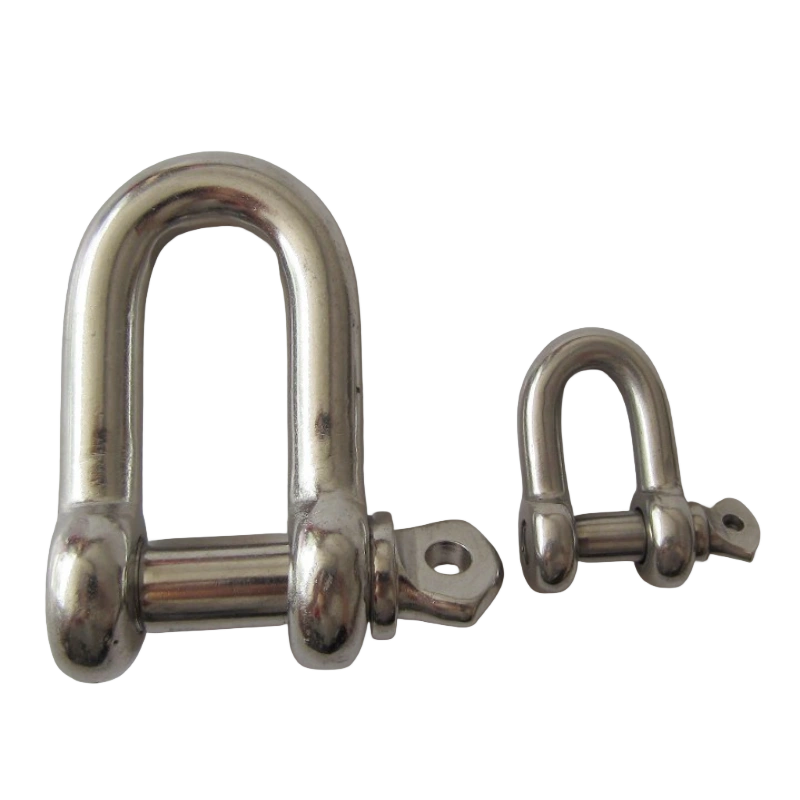

Stainless Steel G210 Shackle

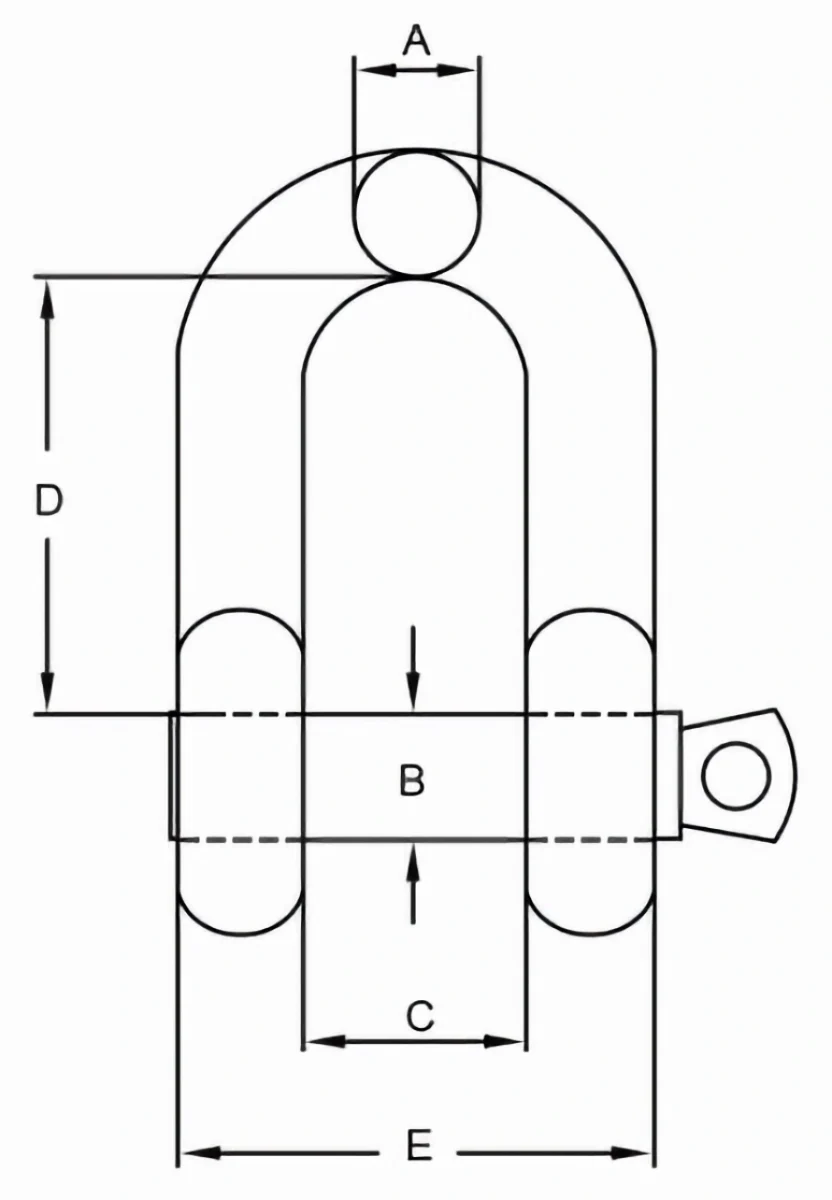

DIAGRAM

SPECIFICATIONS

ITEM NO	SIZE	A	B	C	D	E
mm	mm	mm	mm	mm	mm
PF0059-A/B03/16	3/16	5	6	10	19	20
PF0059-A/B001/4	1/4	6	8	13	22	25
PF0059-A/B05/16	5/16	8	10	14	26	30
PF0059-A/B003/8	3/8	10	12	17	32	37
PF0059-A/B07/16	7/16	11	12	18	36	40
PF0059-A/B001/2	1/2	12	14	21	41	45
PF0059-A/B005/8	5/8	16	18	27	51	59
PF0059-A/B003/4	3/4	20	22	32	60	72
PF0059-A/B007/8	7/8	22	25	37	71	81
PF0059-A/B00001	1	25	28	43	81	93
PF0059-A/B011/8	1 1/8	28	30	46	90	102
PF0059-A/B011/4	1 1/4	32	36	51	100	115

PRODUCT FEATURES

INSTRUCTIONS & CAUTIONS

Proper Installation

To install the G210 shackle, insert the screw pin through the hole in the shackle body. Tighten the pin securely using the appropriate tool, ensuring it’s fully engaged. Always double-check that the pin is tightened properly to prevent accidental loosening, especially during lifting or load-bearing activities.

Limit to Straight Line Applications

The G210 shackle is designed for use in straight-line applications only. Using it in slings with multiple legs could create side loading, which may lead to damage or failure of the shackle. Always ensure the load is applied in a straight pull direction to maintain the integrity and strength of the shackle.

Regular Inspection

Inspect the G210 shackle regularly for any signs of wear, corrosion, or pin damage. If the pin is worn or the shackle shows signs of distortion, replace it immediately. Regular inspections are crucial to ensure the safety and performance of the shackle, especially in marine or heavy-duty environments.

Avoid Overloading

While the G210 shackle is strong and corrosion-resistant, it’s important not to exceed its rated load capacity. Overloading the shackle can cause deformation or failure. Always check the load specifications and ensure the shackle is appropriate for your application.

OUR ADVANTAGES

Reliable Customization & Tailored Solutions

At Powerful Machinery, we don’t just offer off-the-shelf products. We work with you to provide customized rigging solutions that match your unique requirements. Whether it's modifying a G210 shackle or designing a complete system, we deliver products that fit your needs perfectly, ensuring maximum efficiency for your project.

Superior Quality Control & Testing

We take quality seriously. Every product we manufacture, from shackles to eye bolts, goes through stringent testing processes. Our stainless steel G210 shackles, for example, undergo multiple inspections to ensure they meet the highest standards. This way, we guarantee you’ll receive durable, reliable components every time, without compromise.

Excellent After-Sales Support & Service

Customer satisfaction doesn’t end with the sale. Our after-sales team is always ready to provide ongoing support, whether it's answering technical questions or troubleshooting any issues. With Powerful Machinery, you can rely on us for prompt assistance whenever you need it, ensuring you never face a problem alone.

Fast and Efficient Logistics

We understand the importance of timely delivery in the rigging industry. Powerful Machinery has established a streamlined logistics process to ensure that your orders—whether large or custom—arrive on time. We work with trusted shipping partners to offer fast and reliable delivery, so you can keep your projects moving forward without delays.

OUR REVIEWS

We ordered a bulk quantity of G210 shackles for a marine project, and they arrived exactly as expected. The stainless steel quality is top-notch, and the corrosion resistance is perfect for our saltwater environment. The team at Powerful Machinery was super responsive to our customization needs, adjusting the pin size and finish as requested. Delivery was on time, and everything was packed well!

As a supplier, we require high-quality, durable shackles for various lifting applications. Powerful Machinery not only met our expectations but exceeded them with the customized G210 shackles. We requested a larger pin for heavy-duty lifting, and the custom order was perfect. The shackles work flawlessly in our operations, and our clients are impressed. Reliable service and quality you can trust.

We’ve been working with Powerful Machinery for several months now, ordering G210 shackles in different sizes for multiple construction projects. Every time, the shackles come in perfect condition and on schedule. Their stainless steel material holds up well even in the most challenging conditions, and the screw pin design makes installation quick and easy. Highly recommend for any large-scale project.

FAQ

Can I use the G210 shackle for quick connections and disconnections?

Yes, the screw pin design of the G210 shackle allows for quick and easy connections and disconnections, making it perfect for temporary setups. It’s commonly used in applications that require frequent assembly and disassembly, such as rigging, towing, and lifting.

Can the G210 shackle be used for multi-leg slings?

No, the G210 shackle is best suited for straight-line applications. Using it for multi-leg slings could cause side loads and potentially weaken the shackle. For multi-leg slings, we recommend using other rigging hardware like multi-leg sling shackles or hoist rings for optimal performance and safety.

How do I know if the G210 shackle is compatible with my rigging setup?

To ensure compatibility, check the shackle’s size, pin type, and working load limit (WLL) against your rigging equipment. If you’re unsure, consult with our technical support team. We can guide you on selecting the right shackle for your specific lifting or rigging needs.

Can I order G210 shackles in bulk?

Yes, we offer bulk ordering options for the G210 shackle. Whether you’re a wholesaler, supplier, or large business, we can provide competitive pricing and timely delivery for bulk orders. Contact our sales team for more details, and we’ll help you with the specifics of your order and any customizations you may need.
