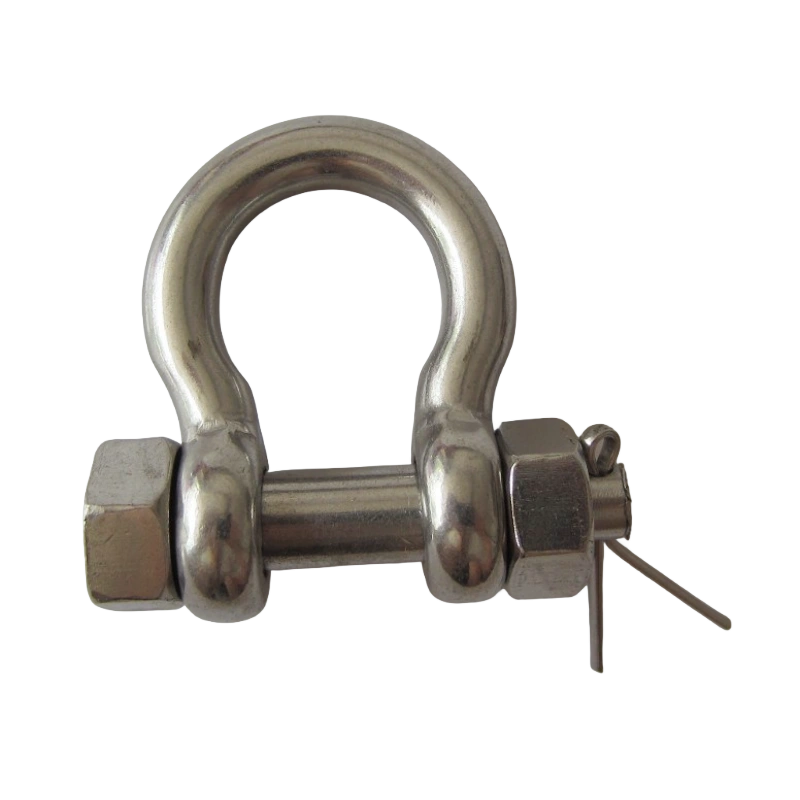

G2130 SHACKLE DIMENSIONS
ITEM NO | SIZE | WLL(t) | A | B | C | D | E | F | G | H | L |
in | in | in | in | in | in | in | in | in | in | in | |
PF0060-A/B03/16 | 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 |
PF0060-A/B001/4 | 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 1.19 |
PF0060-A/B05/16 | 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 |
PF0060-A/B003/8 | 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 |
PF0060-A/B07/16 | 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 |
PF0060-A/B001/2 | 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 |
PF0060-A/B005/8 | 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 |
PF0060-A/B003/4 | 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 |
PF0060-A/B007/8 | 7/8 | 6 1/2 | 1.44 | 1 | 3.3 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 |
PF0060-A/B00001 | 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 |
PF0060-A/B011/8 | 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 |
PF0060-A/B011/4 | 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 |
PF0060-A/B013/8 | 1 3/8 | 13 1/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 |
PF0060-A/B011/2 | 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 |
PF0060-A/B013/4 | 1 3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 |
PF0060-A/B00002 | 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 |
PF0060-A/B021/2 | 2 1/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 |
PRODUCT FEATURES
- Material: 304/316 Stainless Steel
- Safety Pin Design: Prevents accidental loosening
- Corrosion Resistance: Ideal for marine and harsh environments
- Versatile Use: Perfect for temporary and permanent applications
INSTRUCTIONS & CAUTIONS
Proper Installation
When installing the G2130 Anchor Shackle, ensure the pin is securely threaded into place, and the safety pin is properly locked. This ensures the shackle won’t loosen unintentionally. Always check that the pin is tightly fastened before applying any load. For marine or heavy-duty applications, regularly inspect the shackle to confirm it’s fully engaged and secure.
Load Limits
The G2130 Shackle is designed for secure lifting and rigging, but it’s essential to respect its load limits. Always confirm the working load limit (WLL) specified by the manufacturer to avoid overloading. Overloading the shackle can lead to permanent deformation or failure, especially in extreme conditions.
Regular Inspections
Routine inspections are key to maintaining safety. Check for signs of wear, rust, or cracks, particularly if the shackle is used in saltwater or other harsh environments. Replace any shackle that shows visible signs of damage to avoid accidents. Also, inspect the safety pin mechanism to make sure it’s functioning properly.
Avoid Side Loading
The G2130 shackle is designed for straight line applications. Never use it for side loading or in applications where the load is applied at an angle. Side loading can cause the shackle to fail or distort, compromising the safety of your rigging system. Always use the shackle in accordance with its intended use to prevent damage.
OUR ADVANTAGES
Customizable to Your Needs
At Powerful Machinery, we offer tailored solutions to meet your specific requirements. Whether you need customized sizes, finishes, or load ratings, we can adjust to fit your rigging or lifting projects. Unlike other manufacturers, we work closely with you to deliver exactly what you need for your application.
Quality and Durability You Can Count On
We use only high-quality 304/316 stainless steel for our G2130 shackles, ensuring they withstand harsh environments like marine and industrial applications. Our shackles are rigorously tested for corrosion resistance and strength, giving you peace of mind knowing your equipment will last, no matter the conditions.
After-Sales Support and Service
Our commitment to your success doesn't end with the sale. We provide dedicated after-sales support, including product usage advice, maintenance tips, and troubleshooting assistance. If you encounter any issues or need help with the installation, our knowledgeable team is always ready to assist, ensuring your investment performs optimally.
Fast and Reliable Delivery
We understand that time is crucial in your business. With efficient logistics and streamlined processes, we ensure that your G2130 shackles arrive on time, every time. Whether you're placing a small order or a large bulk purchase, we prioritize fast shipping and dependable service, so you can keep your projects moving forward without delay.
OUR REVIEWS



FAQ
What is the safety feature of the G2130 Shackle?
The G2130 shackle comes with a safety pin design that prevents accidental loosening. The pin is securely threaded, and the split pin ensures it stays in place. This feature is particularly important for applications where safety and load security are a priority, such as lifting and towing operations.
Can the G2130 Shackle be used for overhead lifting?
Yes, the G2130 shackle can be used for overhead lifting when properly rated for the load. It is designed for both vertical lifting and general-purpose securing. However, always verify that the shackle’s load capacity aligns with your lifting needs. Never exceed the recommended load limits to ensure safety.
Can I use the G2130 Shackle in extreme temperatures?
The G2130 shackle can withstand a wide range of temperatures, but extreme temperature fluctuations (like extreme cold or heat) should be avoided. Prolonged exposure to extreme conditions can affect the integrity of the stainless steel. Always ensure that the shackle is used within the specified temperature range for best results.
How do I maintain the G2130 Shackle?
-
Regular Inspection: Inspect your G2130 shackle frequently for any signs of wear, rust, or damage to ensure it remains in optimal working condition.
-
Clean After Use: Always clean the shackle after use, particularly if exposed to saltwater or dirt, to prevent corrosion and dirt buildup.
-
Lubrication: Apply lubrication to the pin and threads to keep them operating smoothly and to prevent rust and corrosion from forming.
-
Replace Damaged Parts: If any part of the shackle is damaged, replace it immediately to maintain safety and performance during use.
