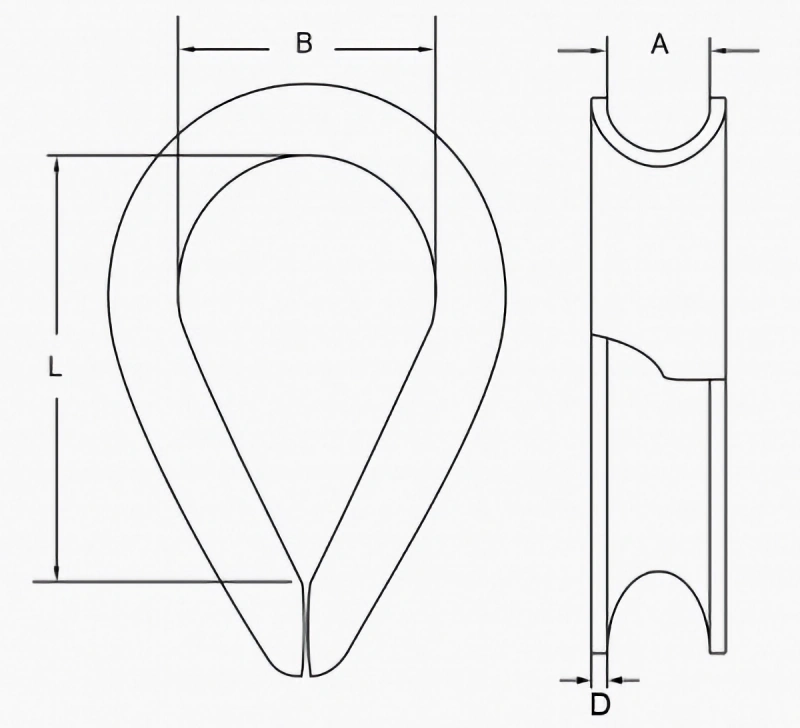

DIAGRAM
| ITEM NO | ROPE | A | B | C | D | E | F | G | H |
| in | in | in | in | in | in | in | in | in | |
| PF0065-A/B001/4 | 1/4 | 2.19 | 1.63 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.23 |
| PF0065-A/B05/16 | 5/16 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.28 |
| PF0065-A/B003/8 | 3/8 | 2.88 | 2.13 | 2.13 | 1.13 | 0.63 | 0.41 | 0.11 | 0.34 |
| PF0065-A/B07/16 | 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.13 | 0.38 |
| PF0065-A/B001/2 | 1/2 | 3.63 | 2.75 | 2.75 | 1.5 | 0.81 | 0.53 | 0.14 | 0.41 |
| PF0065-A/B09/16 | 9/16 | 3.63 | 2.75 | 2.69 | 1.5 | 0.88 | 0.59 | 0.14 | 0.41 |
| PF0065-A/B005/8 | 5/8 | 4.25 | 3.25 | 3.13 | 1.75 | 0.97 | 0.66 | 0.16 | 0.5 |
| PF0065-A/B003/4 | 3/4 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.66 |
| PF0065-A/B007/8 | 7/8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.75 |
| PF0065-A/B00001 | 1 | 6.13 | 4.5 | 4.94 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
| PF0065-A/B011/8 | 1-1/8-1-1/4 | 7 | 5.13 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.13 |
| PF0065-A/B011/4 | 1-1/4-1-3/8 | 9.06 | 6.5 | 6.81 | 3.5 | 2.19 | 1.44 | 0.38 | 1.13 |
| PF0065-A/B013/8 | 1-3/8-1-1/2 | 9 | 6.25 | 7.13 | 3.5 | 2.56 | 1.56 | 0.5 | 1.13 |
| PF0065-A/B015/8 | 2001/5/8 | 11.25 | 8 | 8.13 | 4 | 2.72 | 1.72 | 0.5 | 1.38 |
| PF0065-A/B013/4 | 2001/3/4 | 12.19 | 9 | 8.5 | 4.5 | 2.84 | 1.84 | 0.5 | 1.31 |
| PF0065-A/B017/8 | 1-7/8-2 | 15.13 | 12 | 10.38 | 6 | 3.09 | 2.09 | 0.5 | 1.5 |
| PF0065-A/B00002 | 2002/1/4 | 17.13 | 14 | 11.88 | 7 | 3.63 | 2.38 | 0.63 | 1.63 |
SPECIFICATIONS
PRODUCT FEATURES
-
Durable Stainless Steel Construction: Crafted from AISI304 or AISI316 stainless steel, ensuring exceptional corrosion resistance in tough environments like marine and industrial settings.
-
Heavy-Duty Performance: Conforms to G414 standards, built to handle demanding applications for lifting, towing, and rigging tasks.
-
Wide Size Range: Available in sizes from 1/4″ to 2-1/4″, offering flexibility for different wire rope requirements.
-
Enhanced Protection: Prevents wire rope from wearing and deforming, which significantly extends the lifespan of your rigging hardware.
-
Versatile Applications: Perfect for marine, industrial, and rigging applications, ensuring reliable performance even in harsh conditions.
INSTRUCTIONS & CAUTIONS
Ensure Correct Size Selection
Before ordering, make sure you choose the right size of the G414 Thimble to match your wire rope’s diameter. Sizes range from 1/4″ to 2-1/4″, and selecting the wrong size could affect the shackle’s performance, potentially leading to wear and damage. Always verify the required size to ensure a secure, strong connection in your rigging setup.
Regular Inspection for Wear
Inspect the G414 Thimble regularly for any signs of corrosion or damage, particularly if used in harsh environments such as marine or industrial settings. Over time, wear on the wire rope or thimble can lead to reduced strength. If you notice any cracks or deformation, replace the thimble immediately to maintain the safety and efficiency of your rigging.
Tighten Properly Before Use
Make sure the G414 Thimble is securely in place and properly tightened when used in lifting, towing, or lashing applications. A loose thimble can cause unwanted movement, leading to wear on the wire rope or even failure during use. Always double-check the fit before use to ensure optimal performance and safety.
Avoid Overloading
The G414 Thimble is designed for heavy-duty use, but it’s important not to exceed its rated load capacity. Overloading the thimble can lead to damage or deformation, which compromises its ability to protect the wire rope. Always match the thimble’s strength to the load requirements of your rigging job to ensure it performs as expected.
OUR ADVANTAGES
Custom Solutions for Unique Needs
We don’t just sell standard products; we provide tailored solutions. If your project requires customized sizes or specifications, we work with you to meet those exact needs. This means you get the precise rigging hardware necessary for specific applications, giving your customers the perfect fit for their requirements.
Unmatched Product Quality & Durability
We prioritize product durability by using only top-quality materials. Whether it’s for marine, industrial, or heavy-duty rigging, our hardware undergoes strict quality checks. This commitment ensures long-lasting performance, so your customers get products that won’t fail under pressure, which leads to fewer returns and higher customer satisfaction.
Fast and Reliable Order Fulfillment
We understand that time is money. That’s why we streamline our order process to ensure fast delivery times and on-time shipments. Whether you're placing a bulk order or need urgent restocks, we make sure your business stays fully stocked, preventing delays in your operations and ensuring smooth project execution.
Excellent Customer Support & After-Sales Service
Our customer service doesn’t stop after the sale. We offer exceptional after-sales support, helping you with any issues or inquiries that may arise. Whether you need product guidance, troubleshooting, or advice on maintenance, we’re here to help, ensuring your experience with us is seamless from start to finish.
OUR REVIEWS
FAQ
What is the typical lead time for bulk orders of G414 thimbles?
For bulk orders of G414 thimbles, the lead time typically depends on the quantity and customization requirements. Standard orders generally ship within 7-10 business days, while customized orders may take a bit longer. We’ll provide a clear timeline when you place your order, so you can plan accordingly for your project.
Can I order G414 thimbles in small quantities for testing?
Yes, we can accommodate small orders for testing or trial purposes. If you want to evaluate the performance of the G414 thimble before committing to a larger order, feel free to reach out to our sales team. We understand that testing is important for our clients, and we’ll work with you to ensure you get the exact quantity you need.
What are the shipping options for G414 thimbles?
We offer varied shipping options depending on your location and order size. For large orders, we typically use sea freight, which is cost-effective for bulk shipments. We also offer air shipping for smaller, urgent orders. Once your order is placed, we will provide you with shipping details and trackable delivery options.
Are G414 thimbles available in different finishes?
Yes, the G414 thimble is available in different finishes, including highly polished, hot-dip galvanized, and electro-galvanized options. The polished finish provides extra protection against corrosion, while the galvanized finishes offer increased durability in outdoor and marine environments. Choose the finish that best suits your application needs.
How do I place a bulk order for G414 thimbles?
-
Contact Our Sales Team:
Reach out to our sales team with the details of your order, including the quantity, size, and finish preferences for the G414 thimble. Our team is ready to assist you with your bulk order. -
Request a Quote:
Once we have your order details, we’ll provide you with an accurate quote and an estimated delivery timeline to ensure everything is clear and on schedule. -
Customization Options:
If you require any customization for your G414 thimbles, let us know! We offer tailored solutions to meet your specific requirements. -
Confirm Your Order:
After reviewing the quote and delivery schedule, confirm your order, and we’ll proceed with the processing and shipment.
Can I return G414 thimbles if they don’t meet my needs?
Yes, we accept returns for G414 thimbles under certain conditions. If the product does not meet your requirements, contact us within a reasonable timeframe, and we will assist with the return or exchange process. Please ensure that the thimbles are unused and in original packaging for returns to be processed smoothly.
