Product Specifications
| G80 EUROPEAN TYPE MASTER LINK ASSEMBLY | |||||||||
| SIZE | WEIGHT | WIL | FOR 3 OR 4 LEG | A | B | D | a | b | d |
| MM | KG/PC | TON | MM | MM | MM | MM | MM | MM | MM |
| 6 | 1.18 | 2.36 | 6 | 135 | 75 | 18 | 54 | 25 | 13 |
| 7 | 1.24 | 3.15 | 7 | 135 | 75 | 18 | 60 | 38 | 13 |
| 8 | 2.2 | 4.25 | 8 | 160 | 90 | 22 | 70 | 34 | 16 |
| 10 | 3.4 | 6.7 | 10 | 180 | 100 | 26 | 85 | 40 | 18 |
| 13 | 6.1 | 11.2 | 13 | 200 | 110 | 32 | 115 | 50 | 22 |
| 16 | 9.98 | 17 | 16 | 260 | 140 | 36 | 140 | 65 | 26 |
| 18 | 18.9 | 21.2 | 18 | 340 | 180 | 45 | 180 | 100 | 32 |
| 20 | 22.6 | 26.5 | 20 | 350 | 190 | 50 | 180 | 100 | 32 |
| 22 | 25.2 | 31.5 | 22 | 350 | 190 | 50 | 180 | 100 | 36 |
| 26 | 35.2 | 45 | 26 | 400 | 200 | 56 | 180 | 100 | 40 |
| 28 | 47 | 50 | 28 | 430 | 220 | 63 | 180 | 100 | 45 |
| 32 | 66.46 | 63 | 32 | 460 | 250 | 72 | 200 | 110 | 50 |
Products Diagrams

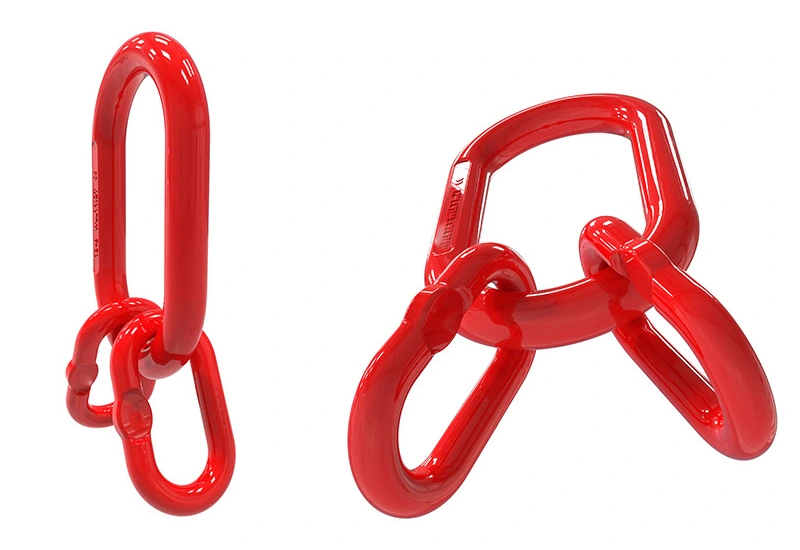

The G80 European Type Master Link Assembly is designed with a strong welded structure, ensuring maximum load-bearing safety. Its oval and sub-link combination distributes forces evenly, reducing stress concentration. This design improves connection efficiency with chains, hooks, and lifting devices in demanding environments.
This master link assembly is engineered for multi-leg sling assemblies, making lifting operations safe and efficient. Its compatibility with chains and hooks allows quick connections and reliable handling. Operators in construction, offshore, and mining industries benefit from consistent performance and reduced downtime in heavy-duty lifting.
Material Specification
Grade: Made from high-strength Grade 80 alloy steel, meeting EN and ISO lifting standards.
Finish: Durable powder-coated or painted finish, ensuring corrosion and wear resistance in tough environments.
Attachment: Designed for multi-leg chain sling assemblies, ensuring flexible lifting connections.
Hook Type: Fully compatible with G80 Omega Hooks and other lifting hooks.
Material: Manufactured using superior alloy steel, ensuring toughness and extended service life.
Application

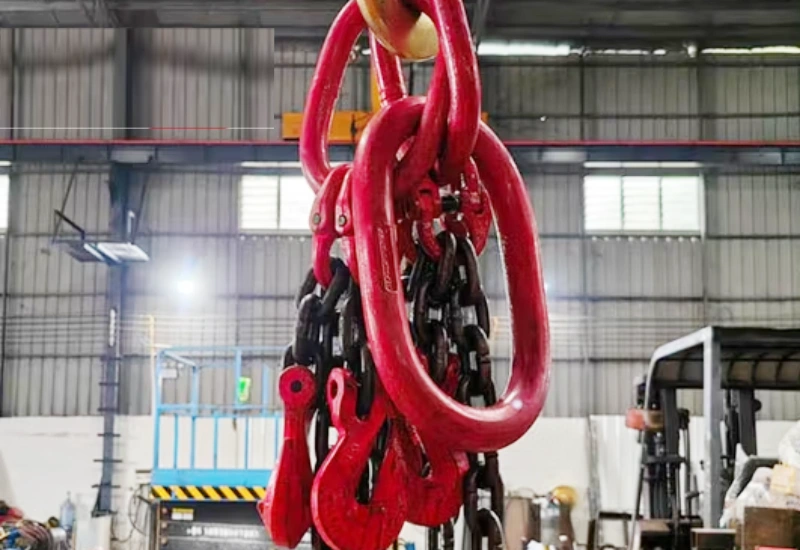

Construction Industry
Used for lifting steel beams, concrete blocks, and heavy machinery, providing secure connections for multi-leg chain sling assemblies in construction sites.

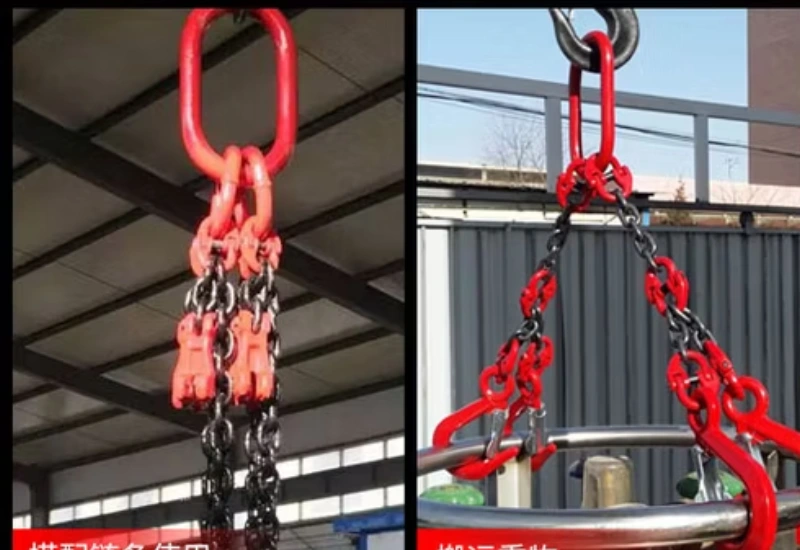

Marine & Offshore
Essential for offshore rigging, shipyard lifting, and cargo handling, ensuring safe and efficient operations in harsh marine environments.

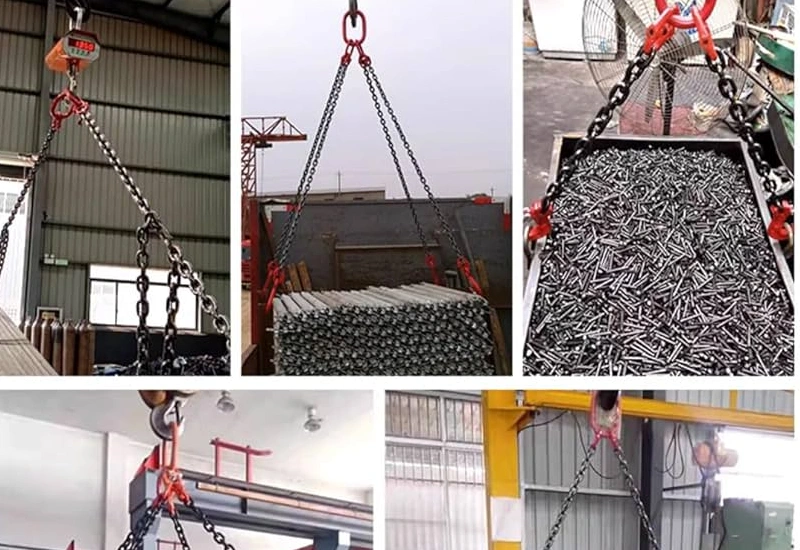

Mining Industry
Ideal for lifting mining equipment, conveyor parts, and heavy-duty machinery, ensuring durability and reliability under extreme working conditions.
Advantages
Corrosion & Finish Protection
High-quality coating protects against rust and corrosion, making the assembly reliable for long-term use even in marine and outdoor environments.
Customization & Traceability
Available in standard and custom sizes, each assembly is traceable with batch markings for safety, compliance, and supply chain control.
Load Control & Durability
Grade 80 alloy steel provides superior strength, ensuring controlled load handling and durability under repetitive heavy lifting operations.
Bulk Capacity & Lead Time
We support bulk orders with stable production capacity, competitive pricing, and short lead times to meet project deadlines and procurement needs.
Supporting Products
G80 Alloy Chain
Steel Wire Rope
Durable wire rope solution, ensuring flexibility and safety in lifting and rigging.
FAQ
What is a G80 European Type Master Link Assembly used for?
The G80 European Type Master Link Assembly is used as the main connecting component in lifting systems. It links chains, hooks, and lifting devices together, enabling multi-leg sling assemblies. Its strength and design make it essential for construction, offshore, and mining applications.
How does the material grade affect performance?
Manufactured from Grade 80 alloy steel, the master link assembly offers high tensile strength, impact resistance, and long service life. This ensures reliable performance under repeated heavy lifting operations, while also meeting EN and ISO safety standards.
Can I order customized sizes?
Yes. As a manufacturer, we provide both standard and customized shapes and sizes to meet specific lifting requirements. Customized solutions are available for different load capacities, working environments, and industry-specific needs.
Is it compatible with G80 Omega Hook?
The master link assembly is designed to work seamlessly with G80 Omega Hooks, making it versatile and easy to integrate into existing lifting systems.
Do you support bulk orders and global shipping?
Yes. We have large-scale production capabilities, short lead times, and global supply chain support. Bulk buyers, distributors, and project contractors can rely on us for stable quality and timely delivery.
