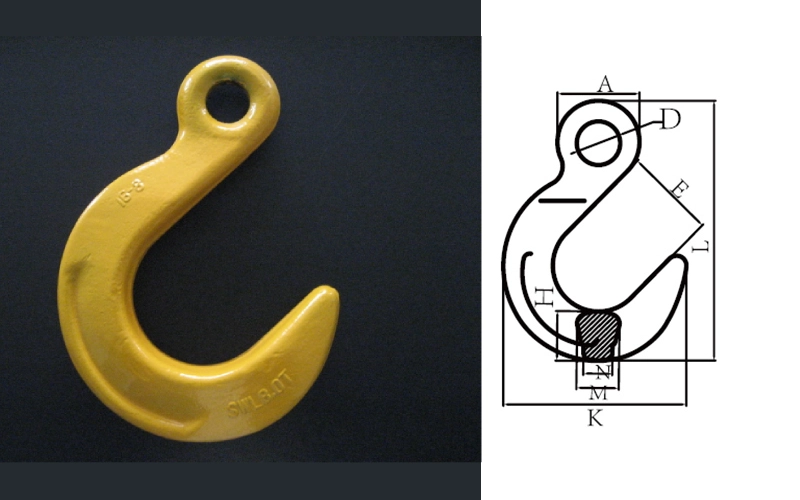

| SIZE (MM) | WEIGHT (KG/PC) | WLL (TON) | B.L (TON) | DIMENSIONS (MM) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | E | A | H | M | N | K | L | |||||
| 7/8 | 1.09 | 2 | 8 | 18 | 63.5 | 39 | 31 | 25.4 | 18 | 120 | 163 | |
| 10 | 2.04 | 3.15 | 12.6 | 22 | 76 | 50.8 | 38 | 32.6 | 23 | 146 | 200 | |
| 13 | 3.22 | 5.3 | 21.2 | 27 | 89 | 63.5 | 44.5 | 38.1 | 27 | 171 | 238 | |
| 16 | 5.53 | 8 | 32 | 32 | 102 | 76 | 52 | 46 | 32 | 198 | 278 | |
| 20 | 8.75 | 12.5 | 50 | 38 | 114.5 | 89 | 65 | 55 | 39 | 232 | 325 | |
| 22 | 11.93 | 15 | 60 | 45 | 127.5 | 102 | 69 | 57 | 40 | 256 | 361 | |
| 26 | 16.8 | 21.2 | 84.8 | 67.5 | 140 | 126 | 77 | 66 | 45 | 283 | 402 | |
| 32 | 26.6 | 31.5 | 126 | 81.5 | 153.5 | 151.5 | 97.5 | 80 | 58 | 327 | 461 | |
| Notes: WLL = Working Load Limit; B.L = Breaking Load. Always inspect hooks prior to use and follow applicable lifting standards. | ||||||||||||
Material Specification
Manufactured from Grade 80 alloy steel for superior strength.
Offered in clevis configuration for easy attachment.
Durable painted surface for corrosion resistance.
Clearly marked with permanent working load limit for safety.
Supporting Products

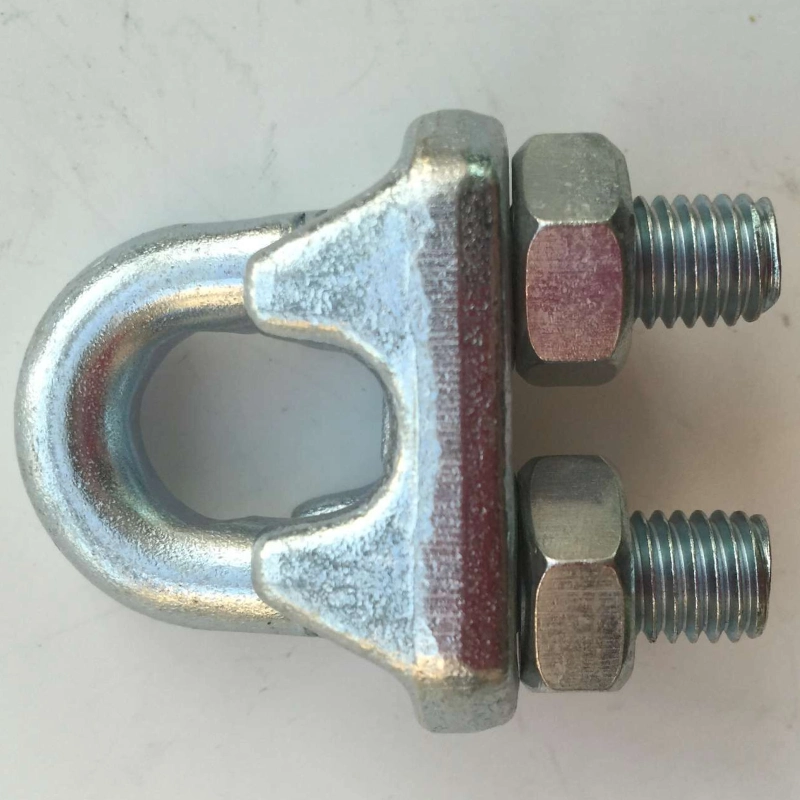

Italy Type Wire Rope Clips
Designed for secure wire rope connections, ensuring firm grip and easy installation in marine, construction, and lifting applications.

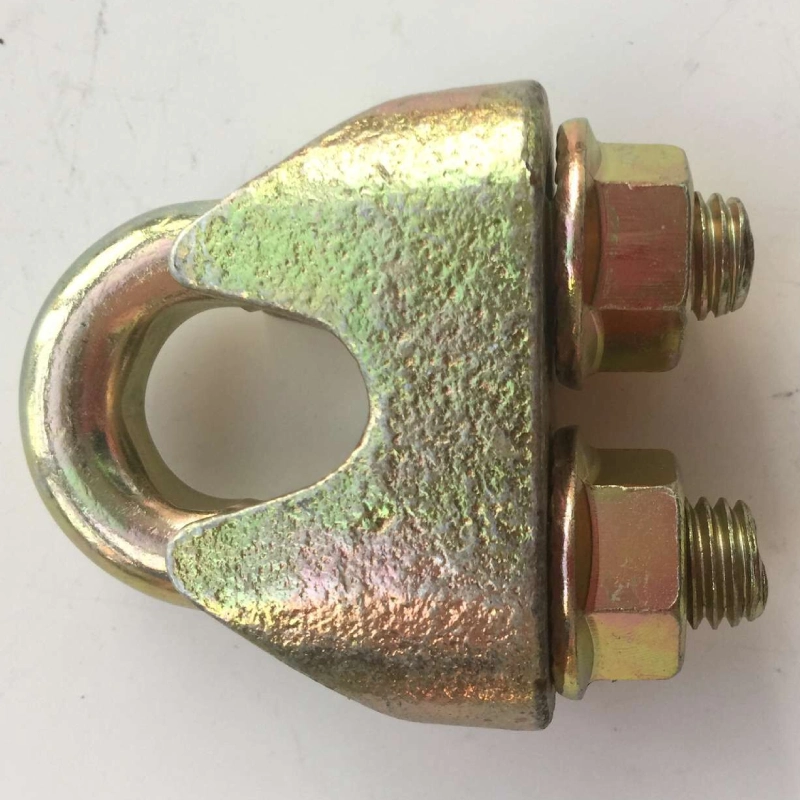

Wire Rope Clip Type Din
Built to DIN standards, provides strong clamping force and reliable fastening for wire rope assemblies in industrial and rigging operations.

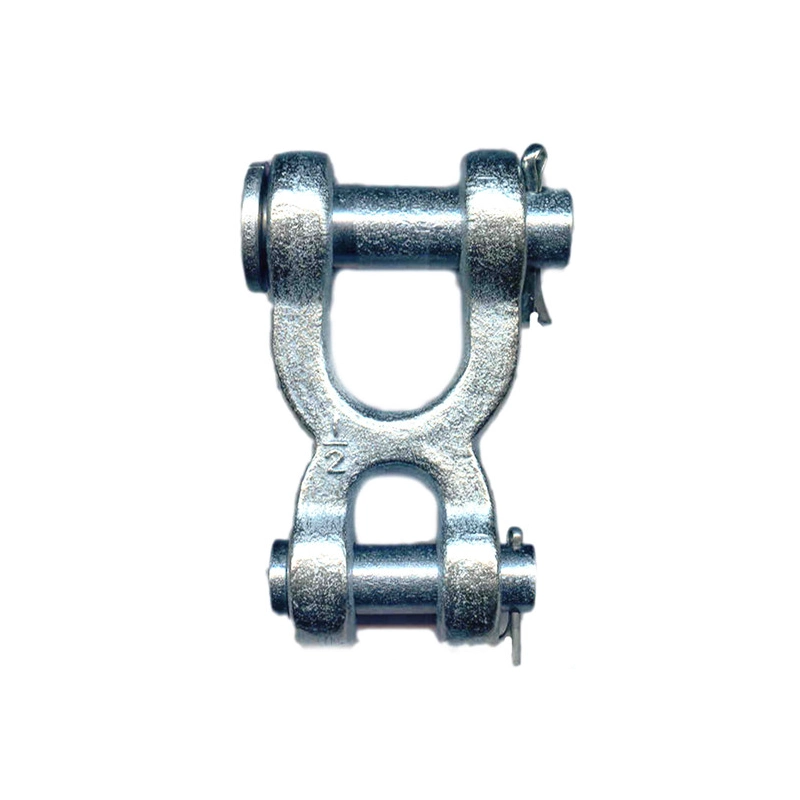

X Type Double Clevis Link
Heavy-duty connecting link for chain assemblies, offering strong load-bearing capacity and easy attachment in lifting and rigging tasks.

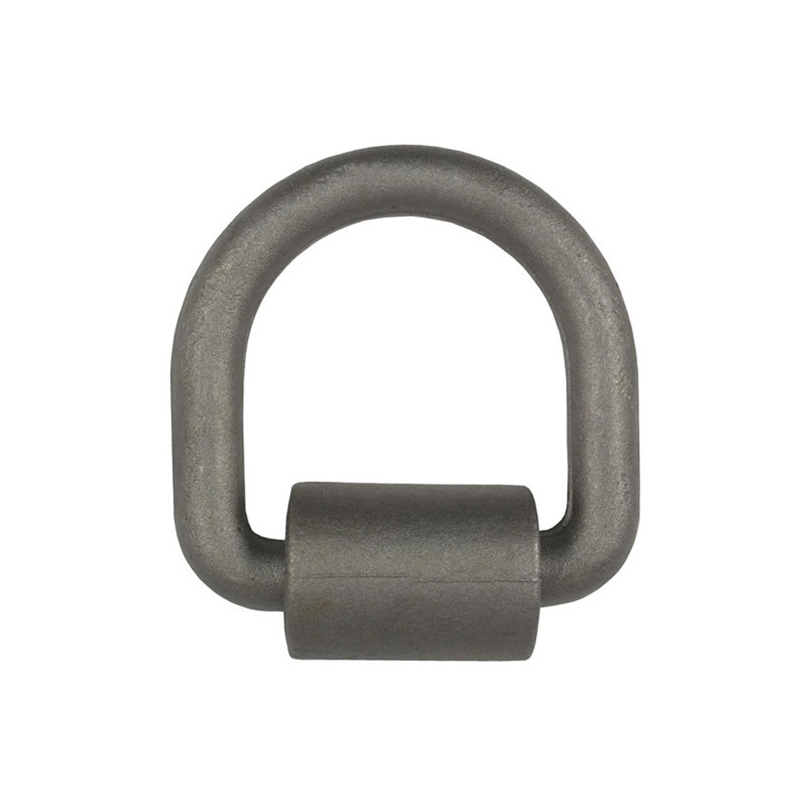

Durable D Rings With Wraps
Sturdy D-rings with protective wraps, ideal for cargo securing, towing, and tie-down applications in transport and logistics industries.
FAQ
What is a G80 Eye Foundry Hook used for?
A G80 Eye Foundry Hook is a heavy-duty lifting hook with a wide throat opening, designed to handle large and bulky loads that standard sling hooks cannot accommodate. It is commonly used in foundries, steel plants, and industrial lifting operations.
Is a G80 Eye Foundry Hook safe for overhead lifting?
Yes, it is designed for overhead lifting when used within its working load limit (WLL). Always check if your application allows hooks without safety latches and follow industry lifting standards for maximum safety.
What material is used to make G80 Eye Foundry Hooks?
They are made from high-strength Grade 80 alloy steel, known for its superior toughness, wear resistance, and ability to withstand heavy-duty lifting tasks. This material is heat-treated to meet international lifting safety standards.
How do I select the right G80 Eye Foundry Hook size?
Selection depends on your lifting capacity needs, sling type, and load size. Always choose a hook with a WLL higher than your maximum load and ensure compatibility with your lifting chain or sling.
Can G80 Eye Foundry Hooks be used with chains and slings?
Yes, they are compatible with Grade 80 lifting chains, wire rope slings, and synthetic slings, depending on your lifting setup. The eye design allows easy attachment and secure load handling.
Are these hooks corrosion-resistant?
Yes, most G80 Eye Foundry Hooks come with a durable painted or powder-coated finish, which helps resist corrosion in standard working environments. For highly corrosive areas, additional surface treatments may be available.
What is your delivery time for large orders?
Standard sizes are kept in stock for fast dispatch, while customized hooks can be produced and delivered within 15–25 working days, depending on order quantity.
