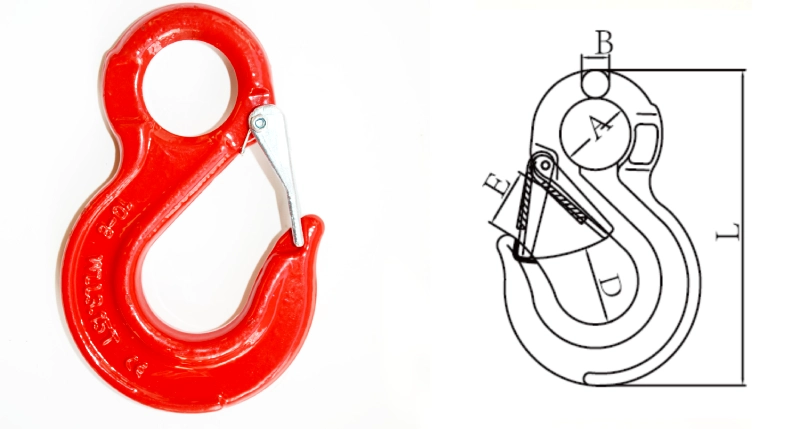

| G80 EYE SLING HOOK WITH LATCH | ||||||||
| SIZE | WEIGHT | WLL | B.L | DIMENSIONS(MM) | ||||
| MM | KG/PC | TON | TON | A | B | E | D | L |
| 6 | 0.3 | 1.12 | 4.48 | 20 | 9 | 24 | 21 | 108 |
| 7/8 | 0.4 | 2 | 8 | 25 | 11 | 30 | 26 | 133 |
| 10 | 0.9 | 3.15 | 12.6 | 38 | 15 | 34 | 39 | 167 |
| 13 | 1.7 | 5.3 | 21.2 | 43 | 19 | 39 | 54 | 213 |
| 16 | 3.2 | 8 | 32 | 50 | 23 | 46 | 64 | 255 |
| 20 | 5.8 | 12.5 | 50 | 62 | 24 | 40 | 80.4 | 305 |
| 22 | 8.5 | 15 | 60 | 62 | 32 | 71 | 100 | 348 |
| 26 | 13 | 21.2 | 84.8 | 64 | 35 | 81 | 108 | 394 |
| 32 | 17 | 31.5 | 126 | 88 | 37 | 102 | 112 | 480 |
Material Specification
-
Grade: Made of Grade 80 steel, providing high tensile strength and durability for heavy-duty lifting.
-
Finish: Zinc-plated surface offers basic corrosion resistance for indoor and moderate outdoor environments.
-
Attachment: Eye design allows easy and secure connection to chains or lifting slings.
-
Hook Type: Equipped with a latch to prevent accidental load release and enhance safety.
-
Material: High-test forged steel ensures long-lasting performance under demanding working conditions.
Supporting Products
01 TRY NET BLOCK
Durable lifting block designed for net handling, ensuring smooth and safe load movement.

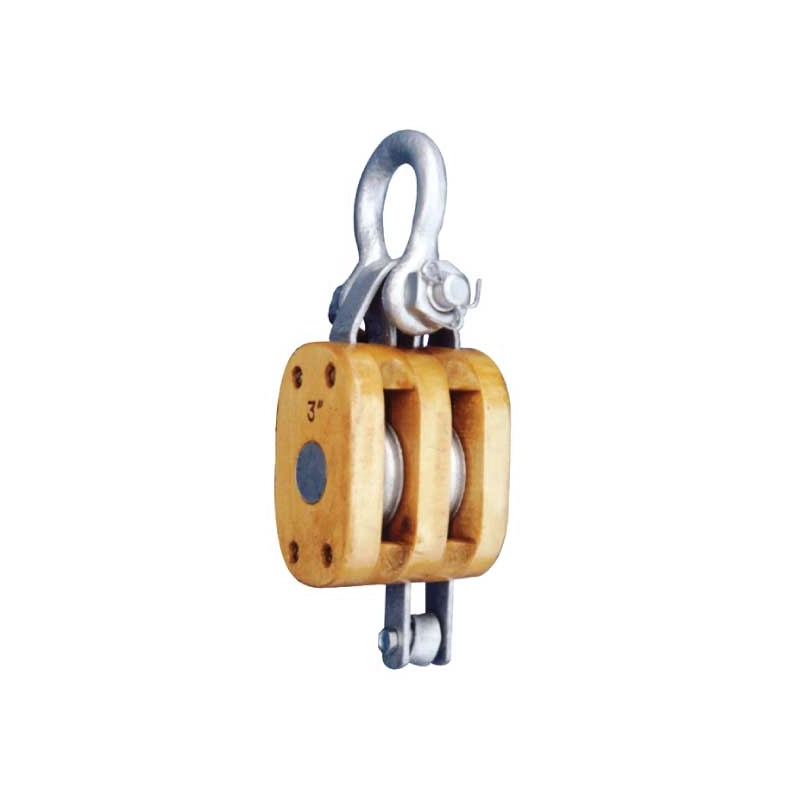

REGULAR WOOD BLOCK·DOUBLE WITH SHACKLE
Strong wooden double-sheave block with shackle, ideal for secure lifting and rigging tasks.

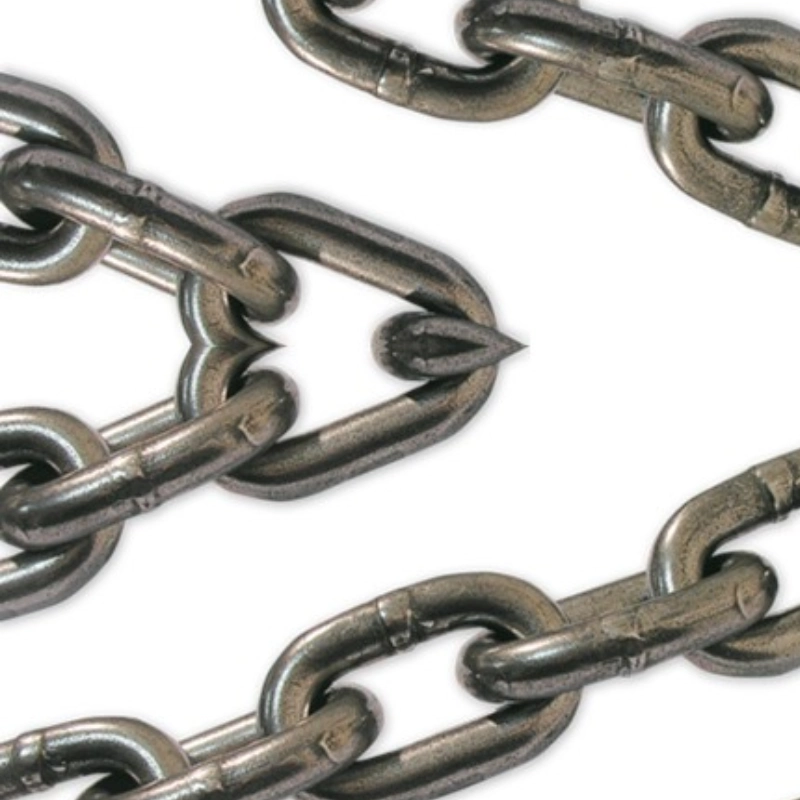

Din764 Link Chain
High-strength DIN764 chain for lifting, hoisting, and general industrial material handling applications.
FAQ
How does the safety latch improve its performance?
The built-in spring-loaded safety latch prevents the hook from slipping off during lifting operations. It ensures the load remains secure, reducing the risk of accidental disengagement and enhancing workplace safety.
What materials are G80 Clevis Sling Hooks made from?
These hooks are forged from high-strength Grade 80 alloy steel. This material provides superior durability, high load-bearing capacity, and resistance to wear, making them suitable for tough working conditions.
Are G80 Clevis Sling Hooks compliant with lifting standards?
Yes, they meet or exceed standard lifting regulations such as EN 1677 and ASME requirements. Compliance ensures consistent safety, reliability, and suitability for professional industrial use.
How do I choose the right size of G80 Clevis Sling Hook?
Select the hook based on the chain size, working load limit (WLL), and application requirements. Always check the manufacturer’s specifications to ensure proper compatibility and maximum safety.
How often should G80 Clevis Sling Hooks be inspected?
Regular inspection is essential—ideally before each use. Check for wear, deformation, cracks, or latch damage. Periodic professional testing is recommended for high-frequency lifting operations.
