| G80 EYE TYPE SELF LOCKING SAFETY HOOK | ||||||||
| SIZE | WEIGHT | WLL | B.L | DIMENSIONS(MM) | ||||
| MM | KG/PC | TON | TON | Φ | E | E1 | L1 | L |
| 6 | 0.5 | 1.12 | 4.48 | 21 | 35 | 28 | 110 | 141 |
| 7/8 | 0.88 | 2 | 8 | 25 | 40 | 35 | 136 | 175 |
| 10 | 1.58 | 3.15 | 12.6 | 34.5 | 50 | 45 | 168 | 214 |
| 13 | 3 | 5.3 | 21.2 | 40 | 60 | 52.5 | 207 | 268 |
| 16 | 5.9 | 8 | 32 | 50 | 65 | 63.3 | 254 | 332 |
| 18/20 | 7 | 12.5 | 50 | 64.5 | 80 | 86 | 274.5 | 332 |
| 22 | 12.3 | 15 | 60 | 70 | 83 | 76 | 319 | 415 |
| 26 | 20 | 21.2 | 84.8 | 80 | 106 | 96 | 362 | 472 |
| 32 | 44 | 31.5 | 126 | 105 | 140 | 133 | 470 | 614 |
Shows large eye and trigger latch of the robust self-locking G80 safety hook.
Highlights thick forged body and secure latch engagement of G80 eye hook.
Material Specification
-
Grade: Grade 43, for general-purpose use.
-
Finish: Zinc plated for basic corrosion resistance.
-
Attachment: Clevis style for secure chain connection.
-
Hook Type: Slip hook with latch for added safety.
-
Application: Suited for hardware, industrial use, and chain accessories.
-
Material: Made from high-test forged steel for strength.
Application
Construction
Securely lifts heavy beams and materials, ensuring safe, hands-free load retention on busy sites.

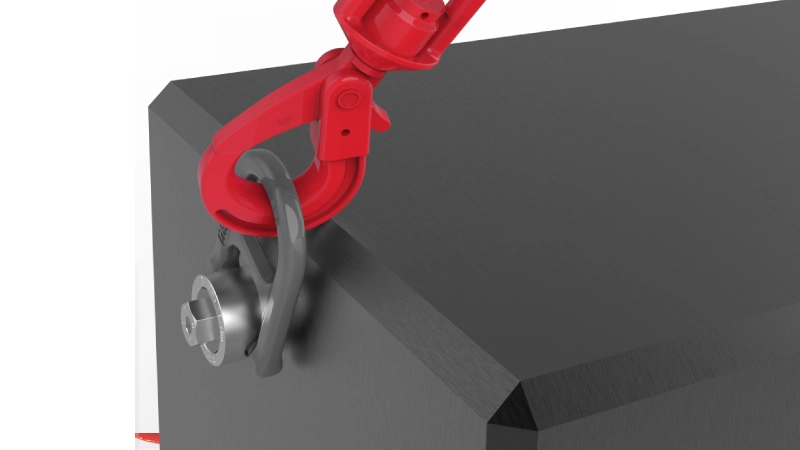

Shipping & Logistics
Handles containers and cargo bundles swiftly, minimizing accidental disengagement.

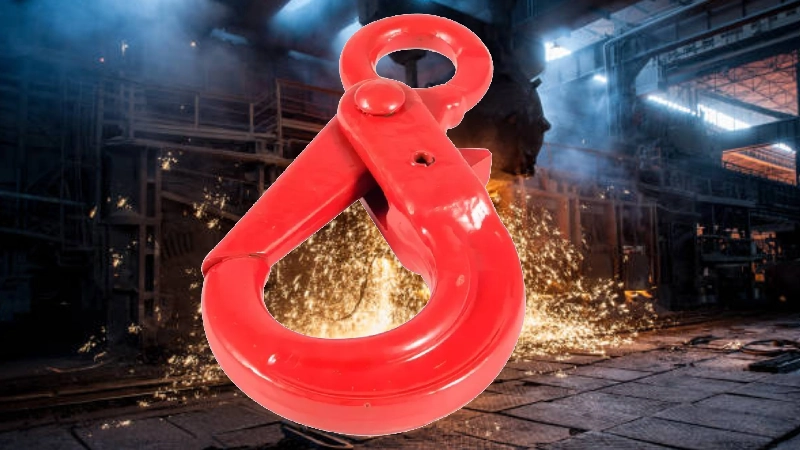

Manufacturing & Steel Mills
Transfers hot castings safely thanks to the automatic locking under load.
Supporting Products

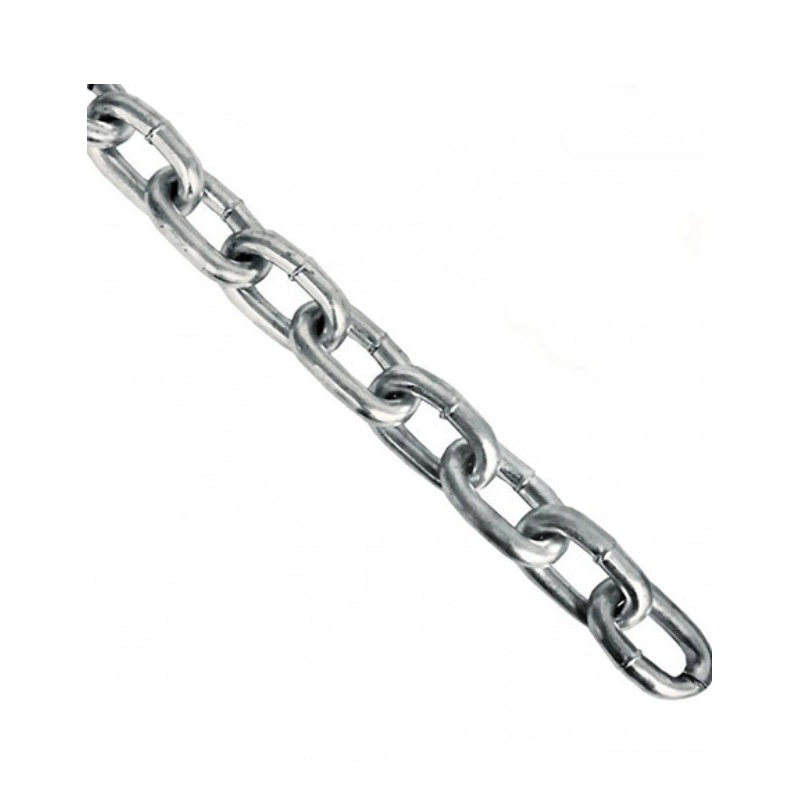

Grade 80 Alloy Chain
High-strength chain for safe, load-rated rigging; matches hook’s WLL

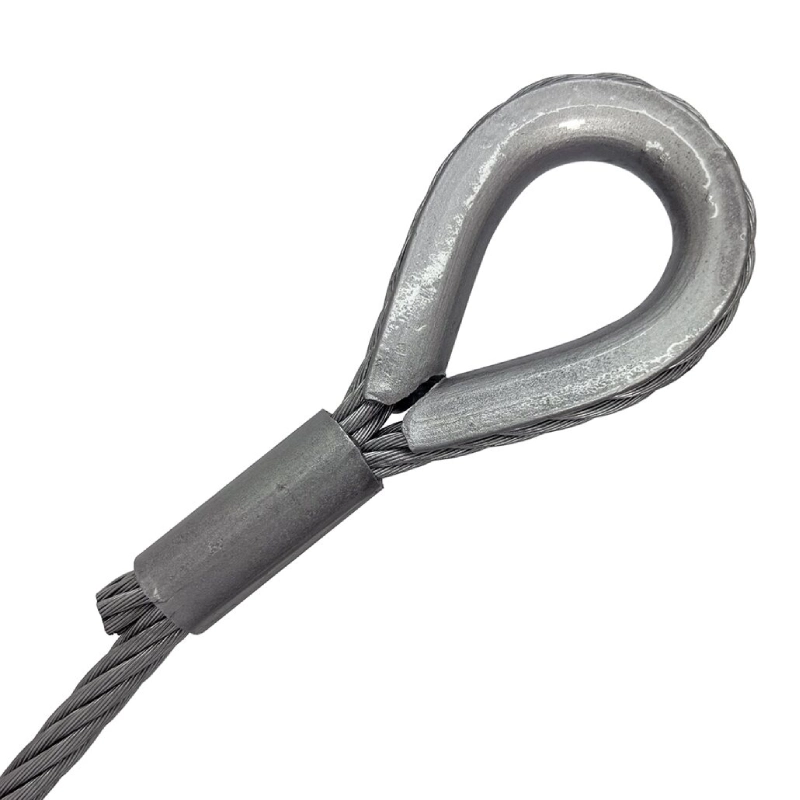

Wire-Rope Sling with Thimble
Flexible rope assembly that pairs with the hook’s eye for secure lifting.

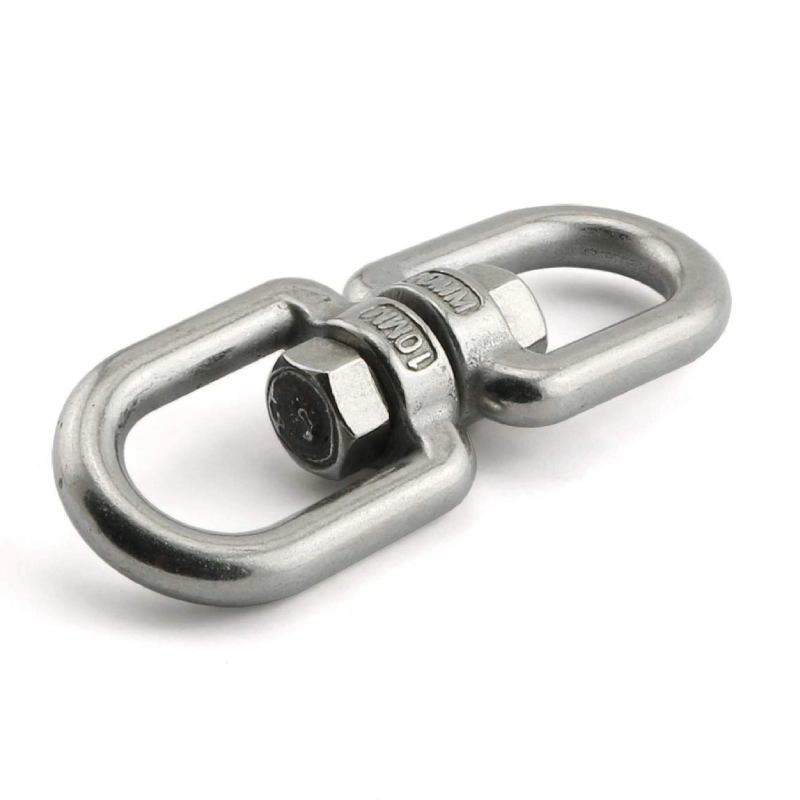

Swivel Link Connector
Prevents entanglement by allowing attached hook to rotate under load.
FAQ
What ensures the G80 Eye Self-Locking Hook stays secure under load?
The self-locking mechanism features a rear trigger latch that remains closed when the hook is under tension. This means the load cannot unexpectedly disengage—even if slack forms—offering peace of mind during lifting operations. Made from quenched and tempered alloy steel, it meets EN 1677-3 standards and maintains a 4:1 safety factor.
How is the hook tested for safety and reliability?
Each hook undergoes rigorous proof testing at 2.5× the Working Load Limit (WLL), with many also fatigue-tested for over 20,000 cycles at 1.5× WLL. Additionally, every piece is subjected to 100% Magnaflux crack detection for material integrity.
What load capacities are available for the hook?
The G80 Eye Self-Locking Hook is offered in various sizes—from approx. 1.12 t to over 31.5 t WLL. Common chain diameters: 6 mm to 32 mm, accommodating a wide range of industrial lifting needs.
Is the hook traceable and compliant with standards?
Yes—each hook is clearly stamped with its grade, size, manufacturer code, and batch or part number. This traceability ensures compliance with safety regulations and simplifies maintenance records.
Can the hook withstand harsh or corrosive environments?
The powder-coated or plastified surface finish protects against rust and wear, enhancing its durability in challenging conditions like steel mills or outdoor job sites.
Can customers customize hooks?
Yes. We offer OEM and customization services, including modifications to load ratings, trigger styles, finish colors (e.g., yellow, red), and special markings. Contact us with your specific project requirements and we’ll design the ideal solution for you.
Our standard delivery time is typically 2–4 weeks, depending on order volume and customization. We can also offer expedited production for urgent projects—just let us know your timeline, and we’ll do our best to accommodate.
