Product Specifications
| G80 WELD D RING | |||||||
| SIZE | WEIGHT | WLL | A | B | D | M | H |
| TON | KG/PC | TON | MM | MM | MM | MM | MM |
| 1T | 0.4 | 1.12 | 41 | 78.5 | 13 | 37 | 35 |
| 2T | 0.47 | 2 | 42 | 88 | 14 | 40 | 37 |
| 3T | 0.69 | 3.15 | 45 | 94 | 17 | 42.5 | 40 |
| 5T | 1.46 | 5.3 | 55 | 118 | 22 | 61 | 52 |
| 8T | 2.5 | 8 | 70 | 141 | 26.5 | 70.5 | 57 |
| 15T | 5.79 | 15 | 97 | 188 | 34 | 90 | 77 |

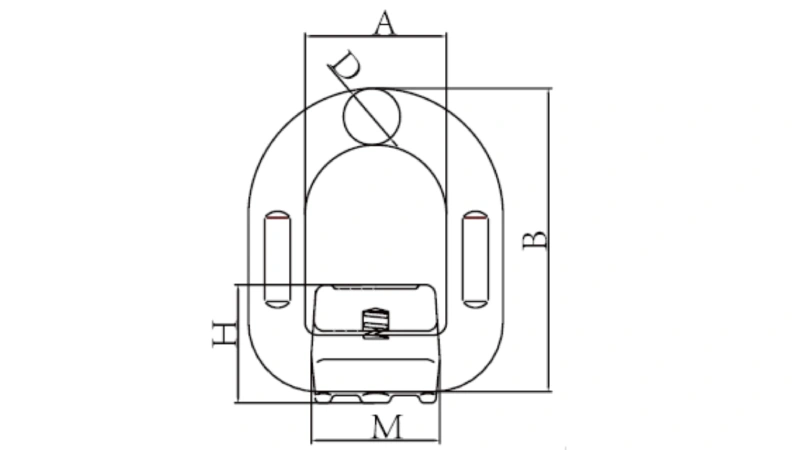

Products Diagrams

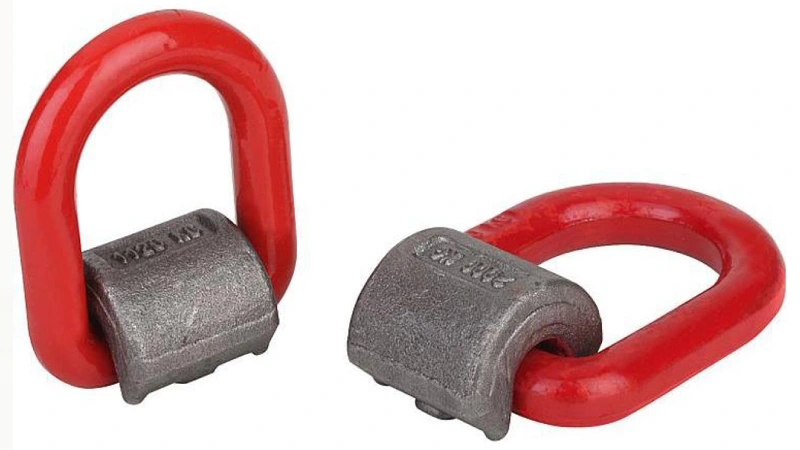

From an angled view, the G80 Weld D Ring shows its strong weld base and thick forged ring. This perspective highlights the seamless design with no weak points, ensuring users that it can handle heavy tension loads safely. Buyers immediately see its solid industrial-grade construction.

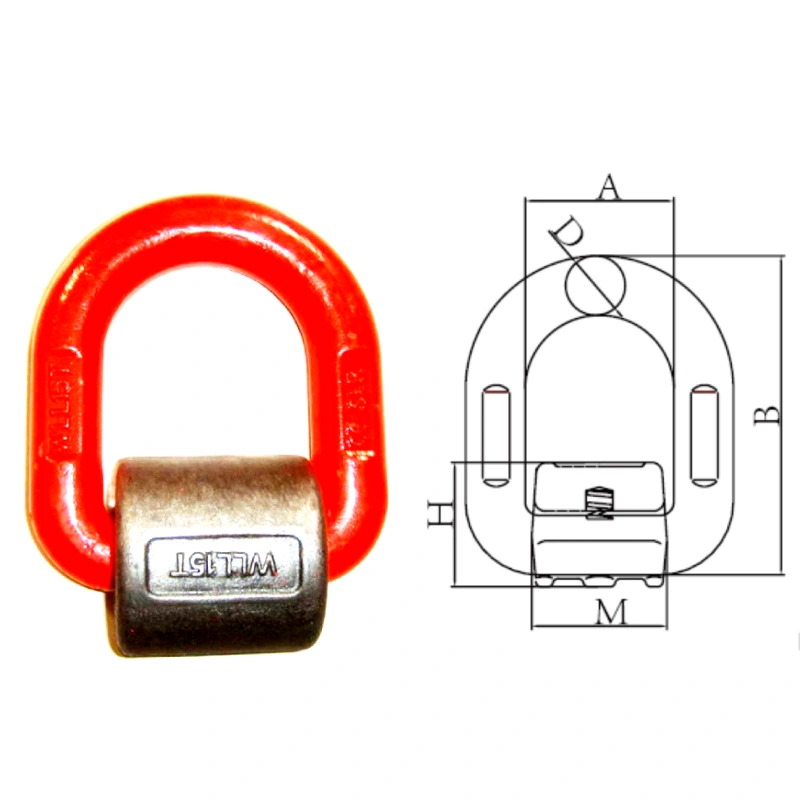

From the front, the G80 Weld D Ring demonstrates a wide opening that allows easy attachment to chains, hooks, or lifting slings. Its compact yet heavy-duty shape proves ideal for securing loads in industrial applications where reliability, quick connections, and long-term performance matter most.
Material Specification
Grade: Manufactured to strict Grade 80 standards, providing maximum tensile strength for lifting and securing loads.
Finish: Treated with anti-corrosion coating to resist rust and maintain long-term durability in harsh environments.
Attachment: Designed with a weld-on base plate for permanent installation on vehicles, trailers, or lifting devices.
Hook Type: Functions as a spring-loaded forged ring, enabling safe, quick, and secure load handling.
Material: Built from solid forged alloy steel, ensuring no seams, cracks, or weak points under heavy stress.
Application
Construction Industry
Used on heavy machinery, trailers, and lifting rigs, the G80 Weld D Ring ensures safe load handling in construction sites with demanding lifting operations.
Marine & Offshore
Ideal for ship decks and offshore rigs, the ring provides secure lifting points in harsh saltwater environments where corrosion resistance and strength are essential.
Mining Industry
Handles extreme loads in mining applications, providing reliable attachment points for chains and lifting gear under tough, abrasive, and high-impact working conditions.
Advantages
Corrosion & Finish Protection
Protective finish prevents rust and damage, ensuring long-term durability even in wet, salty, or outdoor environments where other rings may quickly wear out.
Customization & Traceability
Each ring can be supplied with traceable markings and custom specifications, giving buyers confidence in quality control and compliance with safety standards.
Load Control & Durability
Forged construction ensures safe lifting performance with high working load limits, maintaining reliability across thousands of cycles without failure.
Bulk Capacity & Lead Time
Large production capacity allows quick delivery of bulk orders, reducing downtime for wholesalers, distributors, and industrial buyers with urgent lifting equipment needs.
What Our Clients Say
FAQ
What makes the G80 Weld D Ring stronger than standard D rings?
The G80 Weld D Ring is forged from solid alloy steel with no seams or weak points. It’s heat-treated and meets strict Grade 80 standards, making it far stronger than regular welded rings commonly found in light-duty applications.
Can the G80 Weld D Ring be used outdoors or in marine conditions?
Yes, its anti-corrosion finish protects against rust in outdoor, marine, or offshore environments. With proper care and regular inspection, it maintains strength even under harsh exposure.
How do I install the G80 Weld D Ring securely?
The ring is designed with a weld-on base plate. A qualified professional welder should install it onto vehicles, trailers, or machinery to ensure permanent, safe attachment.
What industries benefit most from using this product?
Construction, marine & offshore, and mining industries rely heavily on the G80 Weld D Ring. Its strength, reliability, and durability make it ideal for heavy-duty lifting operations.
Can Powerful Machinery handle large wholesale or custom orders?
Yes, as a direct manufacturer, Powerful Machinery supports bulk orders and customized solutions with short lead times. Every piece comes with quality assurance and full traceability.
