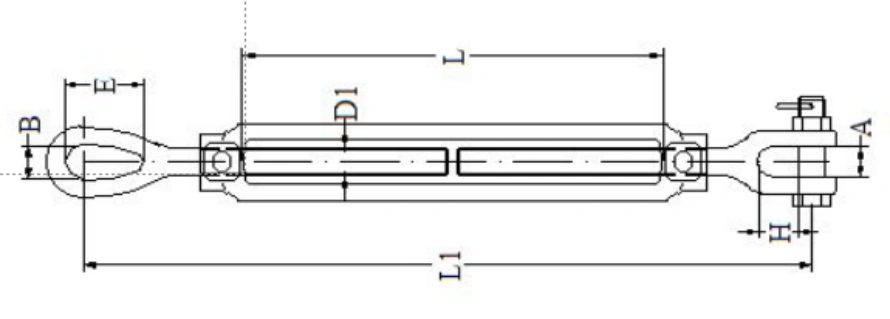

DIAGRAM
SPECIFICATIONS
| SIZE | L | L1 | A | B | E | H |
| in | in | in | in | in | in | in |
| 1/4 | 4 | 7.58 | 0.45 | 0.32 | 0.78 | 0.62 |
| 5/16 | 4.5 | 8.38 | 0.49 | 0.43 | 0.94 | 0.87 |
| 3/8 | 6 | 10.7 | 0.53 | 0.51 | 1.12 | 0.87 |
| 1/2 | 6 | 11.94 | 0.67 | 0.71 | 1.44 | 1.06 |
| 1/2 | 9 | 14.94 | 0.67 | 0.71 | 1.44 | 1.06 |
| 1/2 | 12 | 17.94 | 0.67 | 0.71 | 1.44 | 1.06 |
| 5/8 | 6 | 13.55 | 0.81 | 0.87 | 1.75 | 1.31 |
| 5/8 | 9 | 16.55 | 0.81 | 0.87 | 1.75 | 1.31 |
| 5/8 | 12 | 19.55 | 0.81 | 0.87 | 1.75 | 1.31 |
| 3/4 | 6 | 15 | 1.02 | 0.99 | 2.09 | 1.5 |
| 3/4 | 9 | 18 | 1.02 | 0.99 | 2.09 | 1.5 |
| 3/4 | 12 | 21 | 1.02 | 0.99 | 2.09 | 1.5 |
| 7/8 | 6 | 16.25 | 1.18 | 1.21 | 2.38 | 1.75 |
| 7/8 | 12 | 22.25 | 1.18 | 1.21 | 2.38 | 1.75 |
| 1 | 6 | 18.2 | 1.3 | 1.37 | 3 | 2.06 |
| 1 | 12 | 24.2 | 1.3 | 1.37 | 3 | 2.06 |
| 1-1/4 | 12 | 26.48 | 1.83 | 1.37 | 3.56 | 2.81 |
PRODUCT FEATURES
- Crafted from grade 316 or 304 stainless steel
- Smooth polished surface for added durability
- Jaw end with "U" shape for pin attachments
- Eye end with closed loop for secure, reliable anchoring
- Meets US industry standards for performance
- Forged or cast for strength and reliability
- Corrosion-resistant for use in challenging environments
INSTRUCTIONS & CAUTIONS
Proper Installation
When installing the jaw eye turnbuckle, make sure both the jaw and eye fittings are securely attached to their anchor points. Use the right-sized pins (clevis or bolt pins) to ensure a tight and safe connection. Be sure to tighten the turnbuckle body fully to remove any slack before adding tension. This helps your rigging system stay secure and functional.
Regular Inspection
Always inspect the turnbuckle before each use. Look closely for signs of wear, rust, or damage on the jaw, eye, and threads. If you find any issues, replace the turnbuckle right away. Regular checks are key to keeping your rigging gear working properly and preventing unexpected failures.
Avoid Over-Tightening
Don’t over-tighten the turnbuckle. Doing so can stress the components, damaging the threads or causing failure under load. Stick to the manufacturer’s recommended torque specifications to keep everything running smoothly and avoid damaging the equipment.
Correct Load Handling
Always make sure the load you’re handling is within the specified capacity for the turnbuckle. Exceeding the working load limit can cause premature wear or even failure. Double-check the load limits before each use to ensure you’re operating safely.
OUR ADVANTAGES
Custom-Engineered Solutions
We know each project has unique needs. That’s why we offer custom-engineered solutions to match your exact specifications. Whether it's special sizes or finishes, our team works with you to create the ideal turnbuckle for your rigging system, making sure it works perfectly every time.
Direct from Manufacturer
At Powerful Machinery, we cut out the middleman and deliver US Type Jaw Eye Turnbuckles directly from our factory. This way, you get top-quality products at a competitive price and faster delivery times. We handle everything in-house, so you’re always in control and can rely on us for a smooth experience.
Quality & Safety Assurance
We prioritize quality and safety with every turnbuckle we produce. Our products undergo thorough testing to meet US industry standards, ensuring you get durable, safe, and reliable hardware. When you choose us, you're choosing a product you can trust for your toughest rigging jobs.
Efficient Logistics & After-Sales Support
Our efficient logistics team ensures timely delivery of your turnbuckles, so you can keep your project on track. Plus, we don’t just leave you hanging after the sale—we provide ongoing after-sales support to help with anything you need, from technical questions to installation advice.
OUR REVIEWS
FAQ
What’s the lead time for bulk orders?
Our lead time is typically 2-4 weeks for bulk orders, depending on the size and any customization needed. We know that timing is crucial, especially on big projects, so we work hard to meet deadlines without compromising quality. We’ll keep you updated throughout the process, so you’re never left in the dark.
Can I order a small batch for testing before committing to a large order?
Absolutely! We understand that you might want to test the product before placing a big order. We’re happy to provide smaller quantities for trials, so you can ensure the turnbuckles meet your standards before committing to a larger purchase.
What’s the warranty on these turnbuckles?
We offer a standard warranty that covers any defects in materials or workmanship. If you encounter any issues with the turnbuckles during the warranty period, just let us know, and we’ll replace or repair them quickly. We stand behind the quality of our products.
Can I get a quote for a large order?
Of course! Simply reach out with your order details, and we’ll provide you with a competitive quote based on your quantity and any customization requests. We also offer volume discounts, so the more you order, the better the price. Let’s talk and get you a tailored quote for your project.
Can you provide certification for these turnbuckles?
Yes, we can provide certificates to verify the quality and compliance of our turnbuckles. We offer load capacity reports and material certifications, so you can be confident that you’re getting a product that meets all necessary standards. We’ll ensure your project stays compliant with all regulations.
How do I place an order for wholesale or customization?
-
Contact Our Sales Team
Reach out to our sales team with your project details, including quantity, size, material, and any customization requirements. -
Receive a Quote
We’ll provide you with a personalized quote based on your project needs and specifications. -
Order Confirmation
Once you confirm your order, we’ll finalize the details and prepare for production. -
Timely Delivery
We ensure timely delivery of your order, taking care of the entire production and shipping process.
