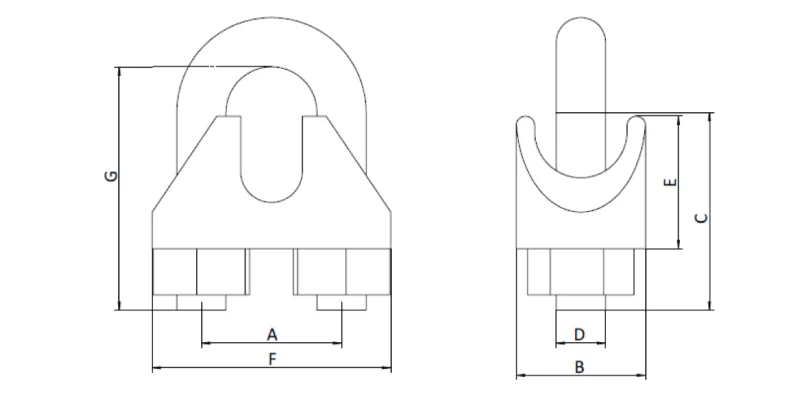

Product Specifications
| SIZE MM | A MM | B MM | C MM | D MM | E MM | F MM | G MM |
| 1/8 | 9 | 12 | 12 | 4 | 9.5 | 19 | 20 |
| 3/16 | 11 | 13.5 | 14 | 5 | 10.8 | 22 | 26 |
| 1/4 | 12.5 | 15.5 | 14 | 6 | 11.5 | 25 | 26 |
| 5/16 | 15.5 | 18 | 16 | 6 | 16 | 31 | 31 |
| 3/8 | 21 | 22 | 20 | 8 | 20 | 40 | 37 |
| 1/2 | 25 | 25 | 24 | 10 | 26 | 47 | 46 |
| 5/8 | 30 | 28 | 28 | 12 | 31 | 55 | 57 |
| 11/16 | 33 | 28.5 | 30 | 12 | 35 | 58.5 | 64 |
| 3/4 | 36.5 | 31 | 34 | 16 | 36 | 65 | 71 |
| 7/8 | 40 | 36 | 38 | 16 | 43 | 72 | 77 |
| 1 | 45 | 40 | 44 | 20 | 48 | 80 | 88 |
Products Diagrams

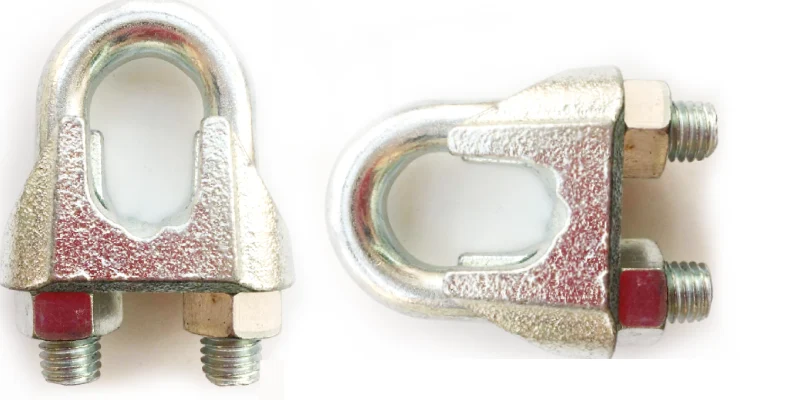

Malleable Wire Rope Clip Type B features a U-bolt and saddle structure that ensures even pressure distribution across wire strands. The malleable iron body offers resilience against stress and vibration, maintaining secure grip and preventing rope slippage during load-bearing and tensioning operations in industrial environments.
This Type B clip is engineered for simple installation and consistent performance. The smooth-threaded U-bolt and precision saddle reduce wear during tightening, while the malleable design absorbs minor load shifts, maintaining stability in dynamic or heavy-duty applications like lifting, anchoring, and rigging.
Material Specification
Grade:
Manufactured from malleable cast iron of industrial-grade strength, ensuring flexibility and impact resistance for general-purpose wire rope applications.
Finish:
Hot-dip galvanized for superior rust protection, providing reliable performance in humid, coastal, and outdoor working environments.
Attachment:
Securely fastens wire rope ends for forming eyes or loops, offering excellent grip and minimizing strand deformation.
Malleable Wire Rope Clip Type B Type:
Type B malleable wire rope clip designed for medium-load applications with smooth saddle contour and reliable tension control.
Material:
Crafted from premium malleable iron with galvanized coating, combining toughness, ductility, and long-term corrosion protection.
Application
Construction Industry
Used in scaffolding, barrier cables, and hoisting systems, ensuring stable load control and secure terminations for various construction rigging setups.
Marine & Offshore
Perfect for boat rigging, deck lines, and mooring operations, providing rust-resistant performance and dependable wire fastening under marine conditions.
Mining Industry
Applied in conveyor systems, lifting cages, and shaft safety cables, delivering durability and steady grip under continuous vibration and heavy loads.
Advantages
Corrosion & Finish Protection
Galvanized coating enhances corrosion resistance, ensuring long-term usability in outdoor, marine, and industrial environments with high humidity and exposure.
Customization & Traceability
OEM customization available with batch traceability and logo marking, ensuring full production transparency and easy sourcing for global distributors.
Load Control & Durability
Malleable design provides balanced strength and ductility, maintaining consistent load tension without cracking under heavy or fluctuating pressures.
Bulk Capacity & Lead Time
Strong production capacity ensures stable stock and quick turnaround times for bulk orders, meeting the demands of large-scale industrial projects.
What Our Clients Say
FAQ
What is Malleable Wire Rope Clip Type B used for?
Malleable Wire Rope Clip Type B is used to secure wire rope ends, forming loops or eyes for anchoring or lifting. It ensures a strong, reliable grip while maintaining flexibility, making it ideal for construction, marine, and general industrial applications.
What is the difference between Malleable and Drop-Forged Clips?
Malleable clips are made from cast iron and are suitable for medium-load or general-purpose applications. Drop-forged clips, however, are stronger and ideal for heavy-duty or overhead lifting where safety standards are critical.
How should Malleable Wire Rope Clip Type B be installed?
Install the U-bolt over the dead end of the wire rope and the saddle on the live end. Tighten nuts evenly and recheck torque after loading to ensure secure fastening.
Is this type suitable for marine environments?
Yes. The galvanized finish protects against corrosion from salt and moisture, making it reliable for ship rigging, dock mooring, and offshore operations.
Can I order customized Malleable Wire Rope Clip Type B sizes?
. Powerful Machinery offers OEM customization for dimensions, finishes, and branding. Custom packaging and labeling are also available to meet client specifications.
