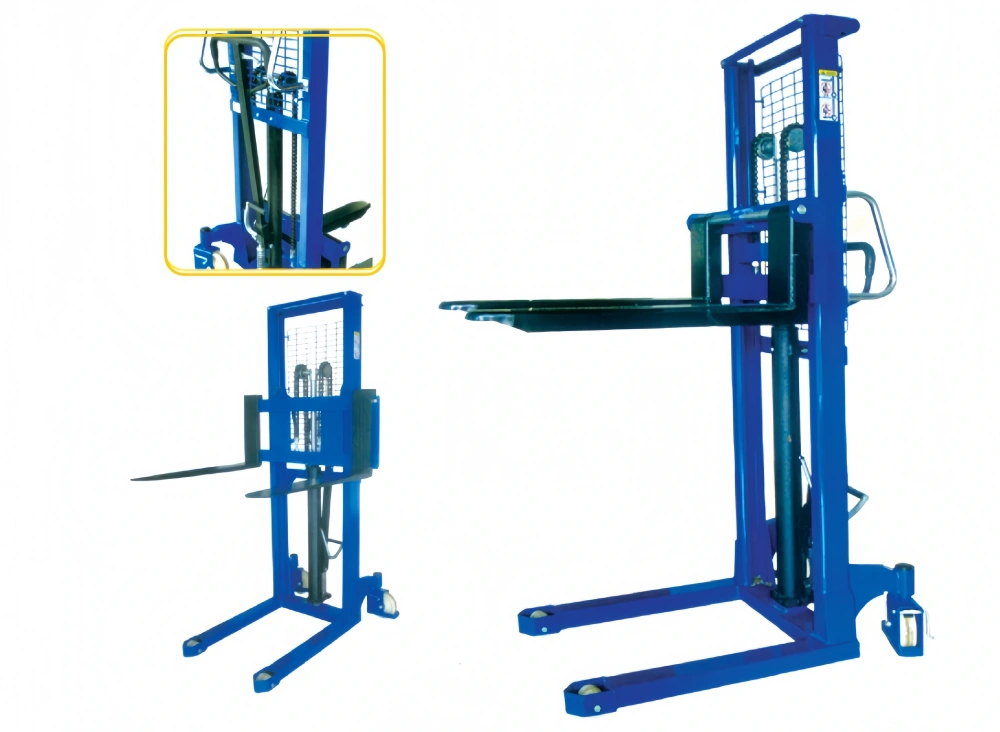

HAND WINCH STACKER DETAIL
LIFT WINCH STACKER SPECIFICATIONS
| Model | SYSD1 | SYSD1* | SYSD1.5 | SYSD2A | SYSD2B |
| Capacity (kg) | 1000 | 1000 | 1500 | 2000 | 2000 |
| Lifting height(mm) | 96-1600 | 75-1600 | 90-1600 | 85-1510 | 85-1510 |
| Overall Length(mm) | 1424 | 1600 | 1424 | 1424 | 1424 |
| Overall Width(mm) | 720 | 860-1280 | 720 | 1000 | 1000 |
| Overall height(mm) | 1980 | 1980 | 1980 | 2010 | 2010 |
| Fork Width (mm) | 133 | 133 | 133 | 120 | 120 |
| Fork Length(mm) | 900/1000* | 1070 | 900 | 900 | 900 |
| Distance of Fork Max. (mm) | 680/550 | 680 | 680 | 960 | 1060 |
| Distance of Fork Min. (mm) | 280 | 280 | 280 | 240 | 240 |
| Lifting&Lowering Speed | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Steering Radius(mm) | 1250 | 1430 | 1250 | 1280 | 1380 |
| Load Wheel(mm) | 80 | 80 | 80 | 80 | 80 |
| Caster Wheel(mm) | 180 | 180 | 180 | 180 | 180 |
| Stre\’addle Legs ID(mm) | 860-1280 | 480 | 610 | ||
| Net weight (kg) | 200 | 247 | 245 | 268 | 278 |
MANUAL HAND WINCH STACKER FEATURES
-
High-Strength Steel Gantry for reliability and durability
-
Quick Lift Air Pump for increased lifting efficiency
-
Thickened Double Chain for enhanced load safety
-
High-Precision Cylinder for smoother operation and longer-lasting performance
INSTRUCTIONS & CAUTIONS
Proper Load Handling
Before using the manual winch stacker, always verify that the load is balanced and within the stacker’s weight capacity. This ensures smooth operation and reduces wear on the stacker. Secure the load properly to prevent accidents during lifting or transportation. This step is crucial for maintaining safety and efficiency in your workplace.
Use on Level Surfaces Only
Always operate the manual winch stacker on stable, level surfaces. Avoid using it on slopes or uneven ground to minimize the risk of tipping. Checking the ground for stability beforehand ensures smoother operation and prevents unnecessary equipment damage.
Routine Inspection and Maintenance
Inspect your manual winch stacker regularly to check for any wear, damage, or loose components, particularly the winch, chains, and wheels. Consistent maintenance is key to ensuring that your stacker remains in peak condition and operates effectively. Adhere to the manufacturer’s guidelines to maintain the stacker’s performance.
Smooth Winch Operation
When operating the winch, avoid jerking or sudden movements, as these can damage the stacker or cause injury. Operate the winch smoothly and at a controlled speed, ensuring you never exceed the recommended load capacity. Maintain a firm grip on the handle at all times and avoid distractions during use.
OUR ADVANTAGES
Custom-Engineered for Your Business
No two businesses are alike, and we understand that. That’s why we provide custom-engineered solutions designed to meet your unique requirements. Whether it’s special features or unique dimensions, our team works closely with you to deliver equipment that enhances your operational efficiency and fits seamlessly into your workflow.
One-Stop Solution for All Your Needs
We streamline your sourcing process by offering a complete range of lifting equipment. Whether you need manual winch stackers or custom hydraulic lifts, we’ve got you covered. With our extensive product lineup and customizable options, you save time, reduce hassle, and improve the efficiency of your procurement.
Uncompromising Quality & Safety
At Powerful Machinery, we focus on delivering top-quality products with unmatched safety standards. Our equipment undergoes rigorous testing to ensure reliability, durability, and safety in even the most demanding environments. Each product complies with international safety certifications, helping you avoid costly accidents and downtime.
Reliable After-Sales Support
Our dedication to your satisfaction doesn’t stop after the sale. We offer comprehensive after-sales services including setup, maintenance, and support. Should any issues arise, our experienced team is always available to assist, ensuring that your equipment stays in optimal condition and reducing downtime for your business.
FAQ
What is a manual winch stacker and how does it work?
A manual winch stacker is a cost-effective material handling tool designed to lift and move heavy loads. It operates using a winch mechanism—simply turn the handle to raise or lower the load. This manual operation gives you precise control, making it perfect for smaller warehouses or spaces where powered machines aren’t needed.
Why should I choose a manual winch stacker over an electric one?
Manual winch stackers are affordable, low-maintenance, and durable. They’re perfect for businesses that don’t need continuous lifting and want a solution without the higher upfront cost of electric models. Plus, they’re more reliable in environments without easy access to power, and they don’t require much upkeep.
What should I consider when choosing a manual winch stacker for my warehouse?
When selecting a manual winch stacker, consider the following factors:
-
Weight and Height of Loads: Choose a stacker that matches the weight and lifting height required for your loads.
-
Aisle Widths: Ensure the stacker can fit through your warehouse aisles. Narrower models are perfect for tight spaces.
-
Mast Height: If you need to stack items to great heights, check that the mast is tall enough for your needs.
-
Space and Workspace Fit: Consider your warehouse layout and select a stacker that fits your available space.
-
Lifting Capacity: Ensure the stacker’s load capacity is sufficient for the tasks you intend to use it for, to avoid overloading.
How long can I expect a manual winch stacker to last?
With regular maintenance, a manual winch stacker can last up to 10 years or more. Proper care, including lubrication and regular inspections, will maximize its lifespan. Since manual stackers have fewer electrical components, they generally experience less wear and tear compared to powered models.
What safety features should a manual winch stacker have?
When selecting a manual winch stacker, ensure it includes the following safety features:
-
Anti-Slip Wheels: Prevents the stacker from slipping or sliding, ensuring stability while in use.
-
Secure Braking System: A reliable braking system is crucial for safely locking the stacker in place during lifting and lowering.
-
Winch Lock: A winch lock helps prevent accidental lowering of the load, reducing the risk of injury or damage.
-
Overload Protection: Ensures the stacker can safely handle the weight you intend to lift without exceeding its capacity.
-
Stable and Durable Structure: The stacker’s frame should be strong enough to handle heavy-duty use without compromising safety.
Can I buy replacement parts for manual winch stackers?
Yes, replacement parts such as winch cables, wheels, and hydraulic components are available for most manual winch stackers. It’s important to purchase OEM (original equipment manufacturer) parts to ensure the stacker continues to perform at its best. Contact your supplier or check their online store for parts availability and maintenance kits.
