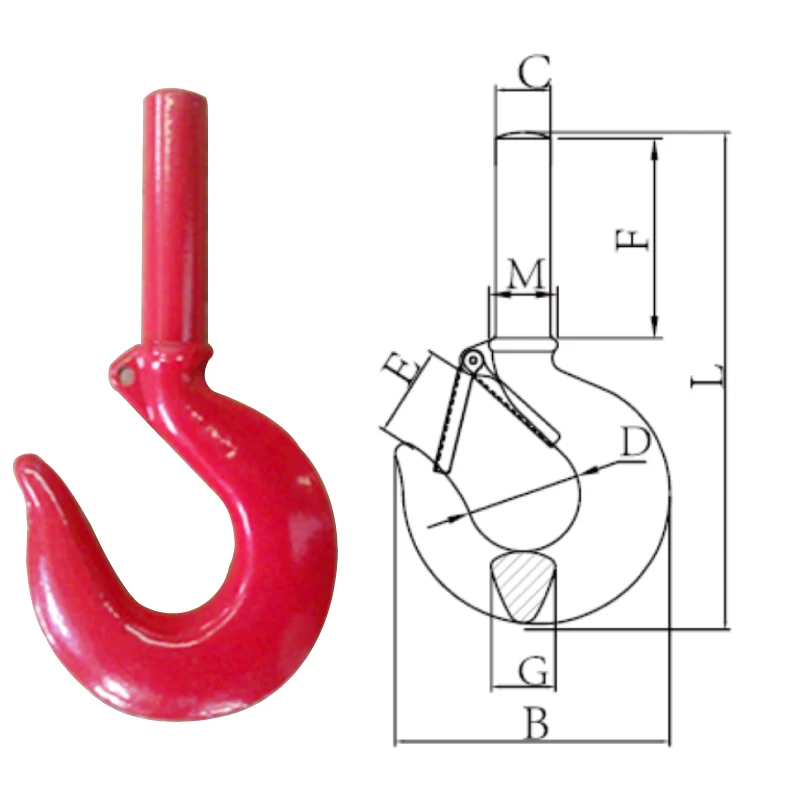

Product Specifications
| WLL(TON) | DIMENSIONS(MM) | WEIGHT | ||||||||
| CARBON | ALLOY | B | E | C | M | G | F | D | L | KG/PC |
| 3/4 | 1 | 73 | 25 | 15 | 18 | 16 | 51 | 32 | 127 | 0.23 |
| 1 | 1-1/2 | 80.3 | 25.5 | 16.7 | 20 | 18 | 58 | 35 | 147 | 0.34 |
| 1-1/2 | 2 | 92 | 30.4 | 18.4 | 23 | 22.5 | 67 | 38 | 165 | 0.45 |
| 2 | 3 | 105 | 32 | 22.4 | 26 | 24 | 69 | 41.4 | 177.5 | 0.84 |
| 3 | 5 | 126 | 38.5 | 29.5 | 32 | 29 | 82 | 51 | 216.5 | 1.75 |
| 5 | 7 | 167 | 47 | 35.8 | 40 | 36 | 95.5 | 64 | 262.5 | 3.29 |
| 7-1/2 | 11 | 192 | 61 | 46 | 51 | 47.7 | 111.2 | 76 | 323 | 6.1 |
| 10 | 15 | 214.6 | 66 | 50.8 | 55.6 | 55.5 | 114 | 82.5 | 342 | 8.2 |
| 15 | 22 | 262.5 | 89.5 | 65 | 68.8 | 68.5 | 141 | 108 | 426 | 16 |

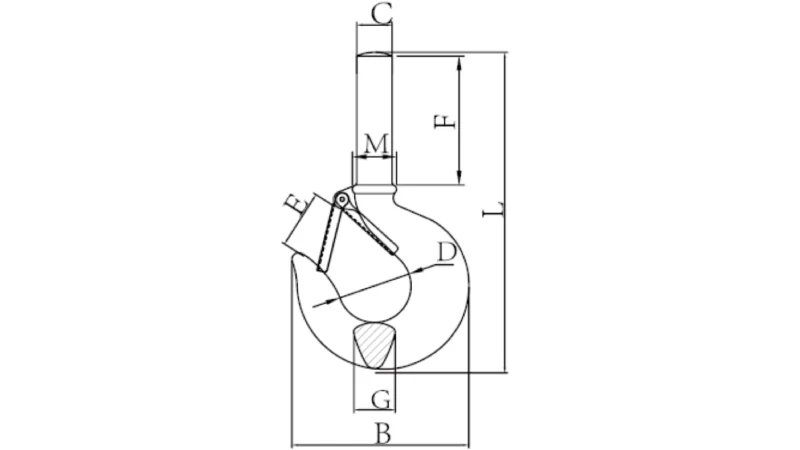

Products Diagrams

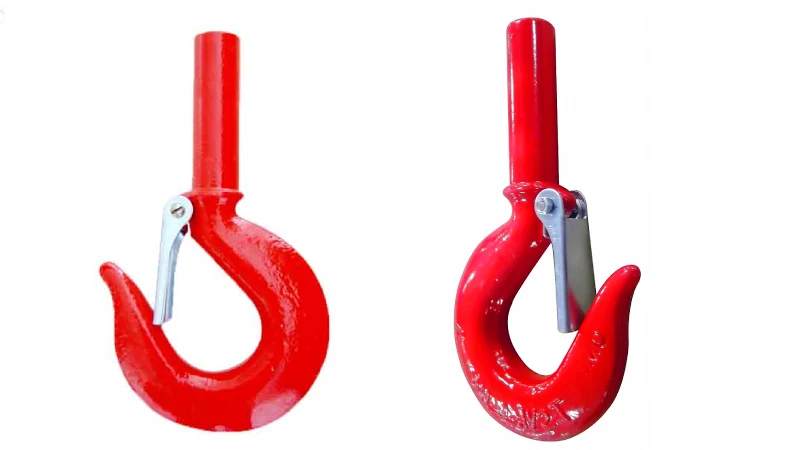

Each S-319 Forged Shank Hook is precision-forged with a reinforced shank and secure latch, ensuring maximum load integrity and operator safety during lifting and rigging tasks.
All hooks are machined with accurate dimensions and polished to a smooth finish for easy integration with chains, ropes, and lifting accessories while preventing surface abrasion.
Material Specification
Grade:
Manufactured from high-tensile Grade 80 or Grade 100 steel, ensuring exceptional load-bearing capacity and compliance with global lifting standards.
Finish:
Zinc-plated or painted surface provides enhanced corrosion protection, extending service life even in marine or outdoor environments.
Attachment:
Equipped with a threaded shank design for easy attachment to chains, slings, or mechanical assemblies in lifting systems.
S-319 Forged Shank Hooks Type:
Drop-forged shank hook with integrated spring latch for safety, ideal for chain block systems, hoists, and cranes.
Material:
Made from high-quality carbon alloy steel for superior toughness and resistance to wear under repeated loading.
Application
Construction Industry
Used for crane lifting, rigging, and securing materials, ensuring reliable load handling on construction sites and heavy projects.
Marine & Offshore
Perfect for shipbuilding, anchor handling, and offshore platforms, providing dependable performance in harsh saltwater conditions.
Mining Industry
Used in lifting machinery and material transport operations, offering strength and endurance in demanding mining environments.
Advantages
Corrosion & Finish Protection
Anti-rust coating ensures long service life, reducing maintenance costs and preventing damage in corrosive environments.
Customization & Traceability
Available in custom sizes and finishes, each unit traceable for safety compliance and quality control assurance.
Load Control & Durability
Precision-forged body provides excellent fatigue resistance and stable performance under dynamic loads.
Bulk Capacity & Lead Time
Large production capacity with efficient delivery systems guarantees consistent supply and short lead times for bulk orders.
What Our Clients Say
FAQ
What makes S-319 Forged Shank Hooks suitable for heavy-duty lifting?
Our hooks are made from forged alloy steel, providing exceptional strength and fatigue resistance. The spring latch adds an extra safety layer, preventing load slippage during use.
Can I customize the hook size and finish for specific applications?
Yes, we offer full customization, including dimensions, coating options, and threading types to fit your equipment or regional safety standards.
Are S-319 Forged Shank Hooks resistant to rust and corrosion?
Each hook is zinc-plated or powder-coated to prevent corrosion, making it ideal for marine and outdoor environments.
What certifications do your hooks comply with?
Our products meet international standards such as EN, ASME, and ISO for lifting hardware, ensuring top-tier safety and reliability.
Do you offer OEM or branding options for distributors?
Yes, we provide OEM production with custom branding, packaging, and logo printing for bulk orders, helping you expand your product range.
How can I get a quotation for bulk or customized orders?
Simply contact our sales team with your specifications. We’ll respond within 24 hours with pricing, lead time, and shipping options tailored to your needs.
