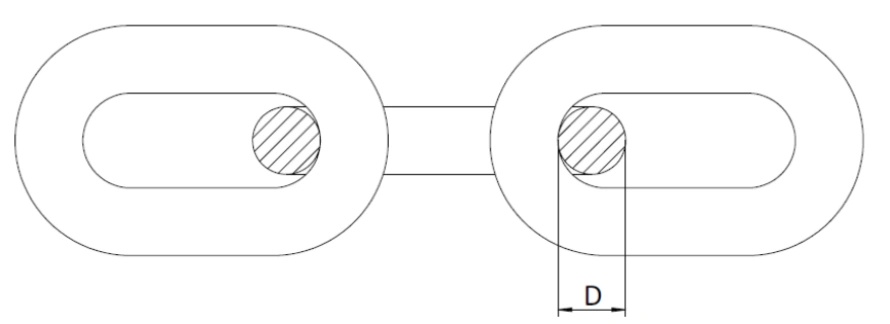

DIAGRAMS

PRODUCT SPECIFICATIONS
Trade Size | Material Diameter | Working Load Limit(Max.) | Proof Test(Min.) | Minimum Breaking Force | Inside Length(Max.) | Inside Width(Min.) | |||||||
in | mm | in | mm | Ibs | kg | Ibs | kN | Ibs | kN | in | mm | in | mm |
5/32 | 4 | 0.156 | 4.0 | 500 | 230 | 1,000 | 4.5 | 2,000 | 9.0 | 0.94 | 23.9 | 0.25 | 6.4 |
3/16 | 5 | 0.197 | 5.0 | 930 | 420 | 1,860 | 8.3 | 3,720 | 16.6 | 0.98 | 24.8 | 0.30 | 7.7 |
7/32 | 5.5 | 0.218 | 5.5 | 1,200 | 540 | 2,400 | 10.7 | 4,800 | 21.4 | 0.98 | 24.8 | 0.25 | 6.4 |
1/4 | 6.5 | 0.250 | 6.5 | 1,570 | 710 | 3,140 | 14.0 | 6,280 | 28.0 | 1.24 | 31.5 | 0.30 | 7.7 |
9/32 | 7 | 0.276 | 7.0 | 2,000 | 910 | 4,000 | 17.8 | 8,000 | 35.6 | 1.24 | 31.5 | 0.34 | 8.6 |
5/16 | 8 | 0.315 | 8.0 | 2,400 | 1,090 | 4,800 | 21.4 | 9,600 | 42.8 | 1.29 | 32.8 | 0.38 | 9.8 |
3/8 | 10 | 0.394 | 10.0 | 3,550 | 1,610 | 7,100 | 31.6 | 14,200 | 63.2 | 1.38 | 35.0 | 0.55 | 14.0 |
7/16 | 12 | 0.472 | 12.0 | 5,400 | 2,450 | 10,800 | 48.1 | 21,600 | 96.2 | 1.64 | 41.6 | 0.65 | 16.6 |
1/2 | 13 | 0.512 | 13.0 | 6,500 | 2,950 | 13,000 | 58.0 | 26,000 | 116.0 | 1.79 | 45.5 | 0.62 | 15.8 |
5/8 | 16 | 0.630 | 16.0 | 9,800 | 4,450 | 19,600 | 87.0 | 39,200 | 174.0 | 2.20 | 56.0 | 0.79 | 20.0 |
3/4 | 20 | 0.750 | 20.0 | 15,000 | 6,820 | 30,000 | 134.0 | 60,000 | 268.0 | 2.85 | 72.4 | 0.98 | 55.0 |
1 | 26 | 1.000 | 26.0 | 23,250 | 10,570 | 46,500 | 207.0 | 93,000 | 414.0 | 3.58 | 90.0 | 1.25 | 31.7 |
DESIGN
FINISH
- Highly Polished.
STANDARDS
- NACM 2010
FEATURE
- Corrosion resistant.
MATERIAL
- AISI304 or AISI316
APPLICATION
- Marine
- Industrial Application
- Chemical Industries
- Food Processing
- Some Extreme Environments.
