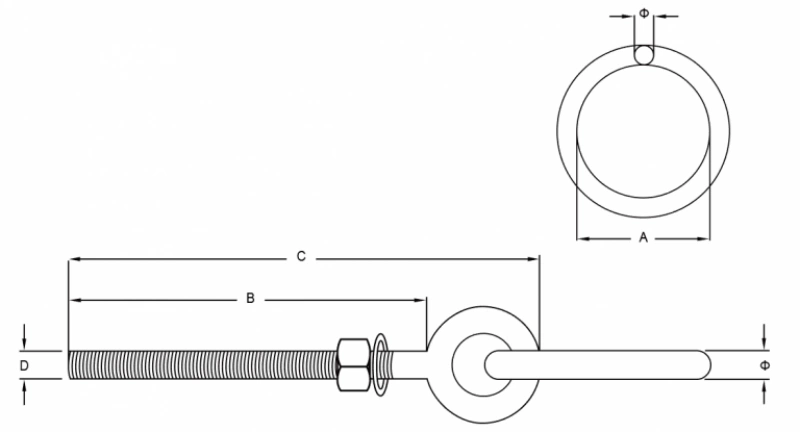

DIAGRAM
SPECIFICATIONS
| ITEM NO | Φ | A | B | C | D | SWL | BL |
| mm | mm | mm | mm | mm | KGS | KGS | |
| PF0032-A/B0540 | 5 | 30 | 40 | 60 | M5 | 200 | 800 |
| PF0032-A/B0650 | 6 | 35 | 50 | 75 | M6 | 250 | 1000 |
| PF0032-A/B0660 | 6 | 35 | 60 | 90 | M6 | 250 | 1000 |
| PF0032-A/B0850 | 8 | 45 | 50 | 85 | M8 | 450 | 1800 |
| PF0032-A/B0860 | 8 | 45 | 60 | 100 | M8 | 450 | 1800 |
| PF0032-A/B1050 | 9 | 50 | 50 | 100 | M10 | 600 | 2400 |
| PF0032-A/B1075 | 9 | 50 | 75 | 120 | M10 | 600 | 2400 |
| PF0032-A/B1270 | 12 | 60 | 70 | 120 | M12 | 1000 | 4000 |
| PF0032-A/B12100 | 12 | 60 | 100 | 150 | M12 | 1000 | 4000 |
| PF0032-A/B12101 | 12 | 60 | 120 | 180 | M12 | 1000 | 4000 |
PRODUCT FEATURES
-
Made from AISI304 or AISI316 stainless steel.
-
Polished finish for enhanced durability and corrosion resistance.
-
Supplied with a nut and washer for easy installation.
-
Designed for multiple applications, including lifting, securing, and tethering.
-
Available in various sizes to suit different load requirements.
INSTRUCTIONS & CAUTIONS
Installation
To install your stainless steel ring eye bolts, start by ensuring the threaded shank is securely screwed into the structure. Tighten the nut fully to lock the bolt in place. Double-check that the bolt is firmly set before using it to avoid any loosening. If you’re not sure about the process, our team can help with step-by-step guidance tailored to your needs.
Load Safety
Be mindful of the load capacity of the ring eye bolt. Always stay within the specified limits to avoid accidents or damage. If you’re using it for heavy-duty applications, make sure to choose the right size and check the specifications carefully. If you’re unsure about the load, feel free to contact us for expert advice.
Maintenance
Keep an eye on the ring eye bolt for any signs of wear or corrosion, especially if used outdoors or in marine environments. Tighten the nut regularly to ensure a secure fit. We recommend performing an inspection at least every 6 months or more often if the bolt’s under heavy use. For more detailed maintenance tips, reach out to our team — we’re happy to assist.
Proper Use
These bolts are designed for general attachment purposes and should be used with shackles, ropes, or cables. Avoid using them for critical lifting operations unless they are rated for such tasks. If you’re ever uncertain about your application, don’t hesitate to get in touch with us for advice on what works best for your setup.
OUR ADVANTAGES
Tailored Solutions for Every Need
At Powerful Machinery, we understand that every project is unique. We offer customized solutions to meet the specific needs of your business. Whether you need special sizes, unique finishes, or modifications, we work with you to provide the perfect product. We take the time to listen and ensure that our products align with your exact requirements.
Quality You Can Count On
We’re committed to providing high-quality rigging and hardware solutions that stand the test of time. Each product is carefully inspected to ensure it meets our strict quality standards. With us, you can trust that you're getting products designed to perform reliably in the toughest conditions. Quality is our promise, and we stand by it.
Expert Guidance and Support
When you choose Powerful Machinery, you're not just buying a product – you're gaining a partner. Our team of experts is here to guide you through every step of the process, from product selection to installation and maintenance. If you ever have a question or need advice, we’re just a phone call or email away.
Fast & Reliable Delivery
We know time is critical in your business. That’s why we prioritize fast and reliable delivery for all wholesale orders. Our streamlined processes ensure that your products arrive on time, every time, so you can keep your operations running smoothly. Need a quick turnaround? Just let us know, and we’ll make it happen.
OUR REVIEWS
FAQ
How do I install welded stainless steel ring eye bolts?
-
Align the Bolt: Ensure that the welded stainless steel ring eye bolt is properly aligned with the mounting surface before installation.
-
Tighten the Nut: Use an appropriate wrench to securely tighten the nut onto the threaded bolt, ensuring a tight fit.
-
Add a Locking Washer: For added stability and to prevent the nut from loosening, we recommend using a locking washer.
-
Check Torque Regularly: After tightening, always check the torque periodically, especially after heavy load applications, to ensure the bolt remains securely fastened.
What is the difference between welded and non-welded ring eye bolts?
Welded ring eye bolts are more durable and secure compared to non-welded bolts because the ring is welded to the bolt, ensuring it won’t come loose over time. This feature makes welded eye bolts ideal for high-stress applications, especially in environments where safety and reliability are critical. Non-welded bolts may be suitable for lighter-duty tasks but lack the same long-term security.
What is the best material for welded ring eye bolts in outdoor applications?
For outdoor applications, we recommend using welded stainless steel ring eye bolts made from AISI316, as it offers superior corrosion resistance against saltwater, harsh weather, and chemicals. AISI304 is also suitable for general outdoor use, but AISI316 is the top choice for marine environments or areas exposed to high moisture levels.
Are welded stainless steel ring eye bolts available for bulk purchase?
Yes, we offer welded stainless steel ring eye bolts for bulk orders, making them ideal for large-scale projects. Whether you need a few hundred or thousands of units, we can accommodate your needs. Bulk purchasing options provide cost savings and ensure you have a consistent supply for your ongoing projects.
