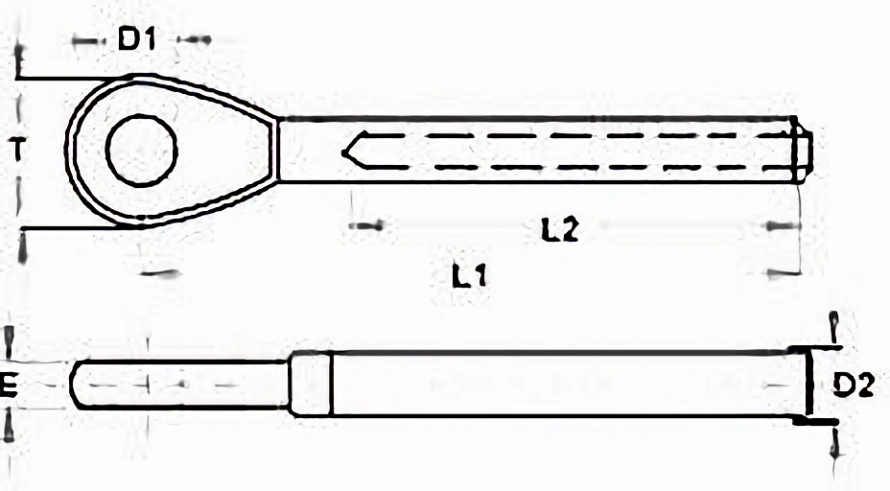

DIAGRAM
SPECIFICATIONS
| ITEM NO | WIREΦ | L1 | L2 | D2 | D1 | E | T | WT |
| mm | mm | mm | mm | mm | mm | mm | KGS | |
| HF0277-A0003 | 3 | 55 | 36 | 6.35 | 6.5 | 4 | 14 | 0.0133 |
| HF0277-A0004 | 4 | 65 | 39 | 7.5 | 8.5 | 5 | 18 | 0.021 |
| HF0277-A0005 | 5 | 80 | 50 | 9 | 10.5 | 6 | 22 | 0.042 |
| HF0277-A0006 | 6 | 94 | 62 | 12.6 | 12.5 | 8 | 28 | 0.09 |
| HF0277-A0007 | 7 | 105 | 68 | 16 | 12.5 | 9 | 28 | 0.105 |
| HF0277-A0008 | 8 | 124 | 85 | 16 | 14.5 | 10 | 32 | 0.144 |
| HF0277-A0010 | 10 | 142 | 90 | 18 | 16.4 | 11 | 36 | 0.245 |
| HF0277-A0012 | 12 | 160 | 105 | 20 | 19.3 | 15 | 40 | 0.319 |
PRODUCT FEATURES
-
Made from 316 stainless steel for maximum durability
-
Engraved with wire size and swage depth for simple installation
-
Ideal for marine and industrial environments
INSTRUCTIONS & CAUTIONS
Installation Precautions
When installing the stainless steel swage eye terminal, make sure the wire is clean and free from any dirt or debris. Use a proper swaging tool to ensure a secure and tight fit. Incorrect installation can lead to reduced performance and safety risks, so it’s important to follow manufacturer guidelines closely.
Check for Compatibility
Ensure that the wire size matches the terminal’s specifications. Each terminal is engraved with the wire size and swage depth for easy reference. Using the wrong size could compromise the integrity of your rigging system, especially in high-stress applications.
Inspect Regularly
Regularly inspect the swage eye terminals for any signs of corrosion, wear, or damage, especially in harsh environments like marine or industrial settings. If you notice any deformation or weakness in the terminal, replace it immediately to maintain safety and functionality.
Avoid Overloading
While stainless steel swage eye terminals are durable, avoid exceeding the rated load capacity. Overloading can cause the terminal to fail, leading to equipment damage or safety hazards. Always ensure that the terminal is used within its recommended limits for optimal performance.
OUR ADVANTAGES
Flexible Customization Options
We provide tailored solutions to meet your specific requirements. From custom sizes and finishes to unique designs, our team works with you to ensure the end product fits your needs perfectly. Our experience in rigging hardware guarantees high-quality results for your specific applications.
Competitive Pricing Without Compromise
We offer affordable pricing for wholesale and bulk orders, without sacrificing quality. Our pricing structure is transparent, and we strive to provide cost-effective solutions that benefit your bottom line. Get the best value for your money while ensuring top-tier product performance.
Exceptional After-Sales Support
We don't stop at delivery. Our dedicated customer service team is here to assist with any questions or concerns you have post-purchase. Whether it’s troubleshooting, installation advice, or handling returns, we are committed to providing you with top-notch support, ensuring you get the most out of your purchase.
Reliable Lead Times & Delivery
At Powerful Machinery, we understand the importance of meeting deadlines. We offer accurate delivery timelines, ensuring your orders arrive on time, every time. Whether you need bulk stock or custom orders, our efficient logistics ensure minimal delays and fast turnarounds, giving you peace of mind for every project.
OUR REVIEWS
FAQ
Can I order stainless steel swage eye terminals in bulk?
Yes, we offer bulk orders for stainless steel swage eye terminals. Simply contact our sales team with your required quantity, and we’ll provide a quote. We also offer flexible shipping and payment terms to accommodate large orders and ensure timely delivery.
How do I know which size swage eye terminal I need?
The size of the swage eye terminal depends on the diameter of the wire rope you are using. Each terminal is engraved with the corresponding wire size and swage depth to help you easily match it with your wire. If you’re unsure, our team can assist you in selecting the right size based on your specific application.
What should I do if I receive a damaged or incorrect swage eye terminal?
If you receive a damaged or incorrect terminal, please contact our customer service team immediately. We will assist you in resolving the issue by either providing a replacement or offering a refund. We take pride in quality control, but we understand mistakes happen, and we’re committed to making it right.
