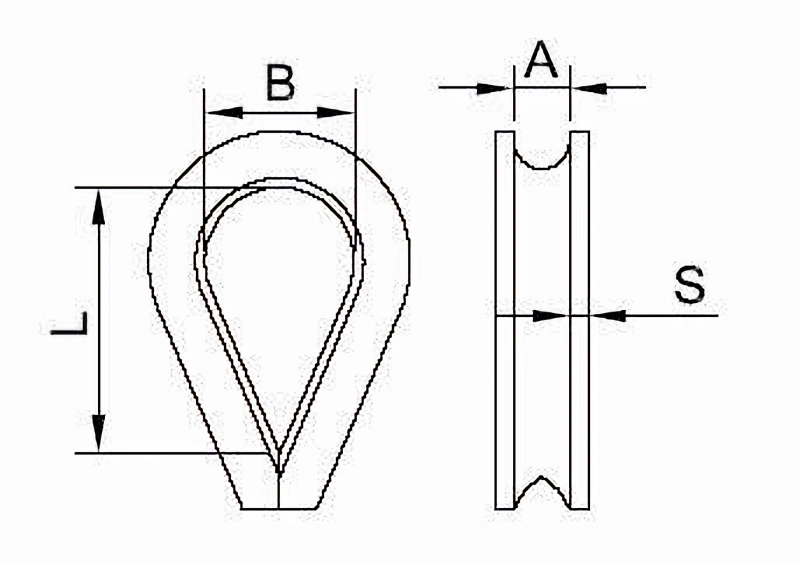

DIAGRAM
SPECIFICATIONS
| Size | A | B | L | S | Weight | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (kg/100) | |
| PF21-0002 | 2 | 2 | 7 | 10 | 1 | 0.2 |
| PF21-0025 | 2.5 | 2.5 | 8 | 14 | 1 | 0.2 |
| PF21-0003 | 3 | 3 | 10 | 17 | 1 | 0.4 |
| PF21-0004 | 4 | 4 | 11 | 18 | 1 | 0.5 |
| PF21-0005 | 5 | 5.5 | 13 | 20 | 1.2 | 0.7 |
| PF21-0006 | 6 | 6.5 | 15 | 25 | 1.2 | 1.0 |
| PF21-0008 | 8 | 9 | 18 | 33 | 1.5 | 1.8 |
| PF21-0010 | 10 | 11 | 23 | 41 | 2 | 3.8 |
| PF21-0012 | 12 | 14 | 27 | 48 | 2 | 5.0 |
| PF21-0014 | 14 | 15 | 34 | 53 | 2.5 | 10 |
| PF21-0016 | 16 | 17 | 36 | 57 | 3 | 12.5 |
| PF21-0018 | 18 | 19 | 40 | 67 | 3 | 16 |
| PF21-0020 | 20 | 22 | 45 | 75 | 4 | 26.5 |
| PF21-0022 | 22 | 24 | 52 | 84 | 4 | 32.5 |
| PF21-0024 | 24 | 26 | 56 | 96 | 5 | 46 |
| PF21-0028 | 28 | 30 | 65 | 115 | 6 | 80 |
| PF21-0032 | 32 | 34 | 82 | 144 | 6 | 105 |
| PF21-0036 | 36 | 40 | 94 | 170 | 6 | 142 |
PRODUCT FEATURES
-
Material: AISI304 or AISI316 stainless steel
-
Size Range: 2mm to 36mm
-
Finish: High-polished, hot dip galvanized, or electro galvanized
-
Ideal Use: Marine, landscaping, and outdoor environments
-
Designed for static applications only, not suitable for lifting
INSTRUCTIONS & CAUTIONS
Select the Right Size
Make sure you choose the right size of stainless steel wire rope thimble based on the diameter of your wire rope. A correct fit ensures the thimble will protect your rope from wear and deformation. Using one that’s too small or too large can cause issues. If you’re unsure, feel free to reach out for help with sizing.
For Static Use Only
These thimbles are meant for static applications only—don’t use them for lifting or hoisting. They’re not designed to handle dynamic loads. Using them in high-stress operations can lead to failures, so make sure they’re used properly to avoid safety risks.
Inspect and Clean Regularly
Inspect your stainless steel wire rope thimble regularly for signs of damage, rust, or wear, especially if it’s exposed to tough environments like saltwater. Clean the thimble after each use to keep it free of dirt and debris. If you spot any damage, replace it right away to keep your rigging system safe.
Don’t Overload
While these thimbles are built to last, avoid putting more tension on them than they’re rated for. Overloading can cause damage to both the thimble and the rope. Stick to the recommended limits to make sure everything works as it should and lasts longer.
OUR ADVANTAGES
Customization at Its Best
We know that each business has unique needs, so we offer custom-engineered solutions tailored to your specifications. Whether you need specific dimensions, finishes, or specialized designs, our experienced team works with you to create exactly what you need. This level of flexibility sets us apart from other manufacturers and gives you the edge in the market.
Competitive Pricing and After-Sales Support
We offer competitive prices without compromising on quality. With industry-leading customer service, we ensure that you get the best value for your investment. If any issues arise post-purchase, our after-sales support is always ready to assist you with troubleshooting, replacements, or any other queries you may have, ensuring a seamless experience from start to finish.
Comprehensive Product Range
At Powerful Machinery, we offer a one-stop sourcing solution for all your rigging hardware needs. From standard items to specialized equipment, we provide a wide variety of products to cover your entire supply chain. This helps streamline your ordering process and ensures you have access to high-quality components under one roof, saving you time and effort.
Efficient Shipping and Delivery
When you place an order with us, you can count on efficient logistics transportation. We understand the importance of timely deliveries, especially for large orders. Our well-established shipping processes ensure that your products arrive on schedule, reducing downtime and keeping your projects on track. Fast and reliable service is one of the cornerstones of our business.
OUR REVIEWS
FAQ
What is the difference between a light-duty and heavy-duty thimble?
A light-duty thimble is designed for static applications with lower stress, such as landscaping and garden projects. A heavy-duty thimble, on the other hand, is designed to handle higher loads and is suitable for industrial and marine applications. Choose based on the level of tension and the type of application.
Can stainless steel wire rope thimbles be used in high-temperature environments?
Yes, stainless steel wire rope thimbles made from AISI316 stainless steel can be used in high-temperature environments, making them ideal for industrial applications where elevated temperatures are common. However, if you are working in extreme heat (above 300°C), consult with our team to ensure you select the right material and specification.
How do I place a bulk order for stainless steel wire rope thimbles?
-
Contact our sales team with your order details: quantity, sizes, and any custom specifications.
-
We will provide you with a quote based on your requirements.
-
Receive estimated delivery timelines.
-
Get assistance with any customizations you need.
-
We offer competitive pricing for large orders.
Are your stainless steel wire rope thimbles certified?
Yes, our stainless steel wire rope thimbles meet the required industry standards, including G411 and G414 types. We ensure all products undergo quality checks and are manufactured according to the highest standards for safety and performance. If you require certification for specific projects, we can provide them as needed.
How fast can I expect my stainless steel wire rope thimbles to be delivered?
Delivery times vary depending on the size of the order and your location. For bulk orders, we generally ship worldwide via sea freight, and delivery typically takes 2-4 weeks. For urgent or smaller orders, we can ship by air for faster delivery. Our team will provide an estimated timeline upon order confirmation.
