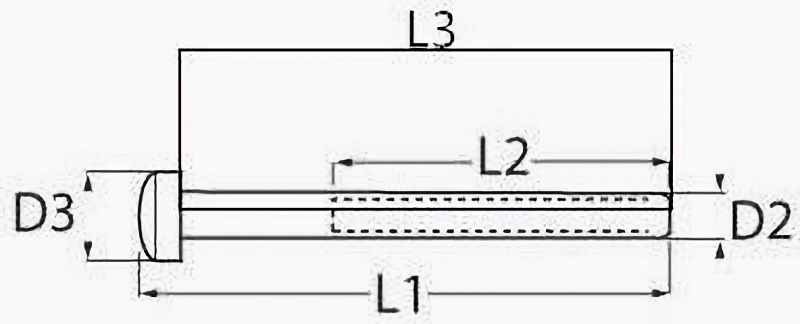

DIAGRAM
TECHNICAL DETAILS
| ITEM NO | WIRE | L1 | L2 | L3 | D2 | D3 | WT |
| mm | mm | mm | mm | mm | mm | ||
| HF0058-A0003 | 3 | 35 | 25 | 32 | 5.5 | 8 | 0.005 |
| HF0058-A0004 | 4 | 35 | 25 | 32 | 6.35 | 10 | 0.007 |
| HF0058-A0005 | 5 | 41 | 30 | 47 | 7.5 | 11.5 | 0.010 |
| HF0058-A0006 | 6 | 52 | 40 | 47 | 9 | 14 | 0.019 |
| HF0058-A0008 | 8 | 66 | 50 | 60 | 12.58 | 18 | 0.050 |
| HF0058-A0010 | 10 | 77 | 60 | 70 | 16 | 22 | 0.092 |
PRODUCT FEATURES
-
Made from high-quality AISI304/316 stainless steel
-
Polished finish for enhanced durability
-
Swage-on installation for a tight, secure fit
-
Ideal for marine, architectural, and balustrade systems
-
Available in both retail and bulk packaging options
INSTRUCTIONS & CAUTIONS
Use the Correct Swaging Tools
For the best results, always use the proper swaging tool to install the swage dome head terminal onto your wire rope. Swaging ensures a secure, tight fit, which is crucial for maintaining strength and safety. If you’re unsure about the right tools or the swaging process, our team can guide you with detailed instructions to ensure proper installation.
Regular Inspections Are a Must
Even though the swage dome head terminal is made of high-quality AISI304/316 stainless steel, regular inspections are essential. Check for signs of wear, corrosion, or loosening, particularly in harsh environments. Timely maintenance helps prevent issues before they become bigger problems, ensuring the terminal performs reliably over time.
Never Exceed Load Ratings
Be sure to use the swage dome head terminal within its specified load limits. Overloading can cause damage to the terminal, compromising the entire rigging system. Always confirm the load capacity of both the terminal and the wire rope before installation to avoid unnecessary strain on your equipment.
Secure the Terminal Properly Before Use
Before using the rigging system, double-check that the terminal is properly swaged and securely in place. A loose or improperly installed terminal can lead to failure under stress. Regular checks are key to maintaining the safety and effectiveness of your rigging setup, especially in high-stakes environments.
Note: Need help with installation or the swaging process? Our team is here to provide a step-by-step tutorial or assist with any specific questions. Don’t hesitate to reach out for expert guidance to get the most out of your swage dome head terminals.
OUR ADVANTAGES
Personalized Service That Fits Your Needs
At Powerful Machinery, we work closely with you to tailor our solutions to your specific project needs. Whether it’s a custom order or adjusting product specifications, we ensure you get the exact products you need for your business. Our dedicated team listens to your requirements and provides quick, efficient solutions that keep your operations running smoothly.
Competitive Pricing Without Sacrificing Quality
We offer competitive pricing that fits your budget, without compromising on product quality. By optimizing our manufacturing process and maintaining strong supplier relationships, we provide you with excellent value. You get top-quality rigging products at prices that help your business stay profitable.
Expert Support Whenever You Need It
We don’t just sell products; we support you throughout the entire process. From initial product selection to post-sale support, our team of experts is always ready to assist. Whether you need technical advice or help with product installation, we are here to provide fast, effective solutions that make your job easier.
Fast, Reliable Delivery for Large Orders
We know timing is critical for wholesalers and suppliers, which is why we prioritize fast, reliable delivery. Whether you're ordering in bulk or need a quick restock, we ensure your products arrive when you need them. You can rely on us for consistent shipping and accurate delivery times, so your supply chain never slows down.
OUR REVIEWS
FAQ
Can I order swage dome head terminals in bulk?
Yes, we offer bulk orders to meet the demands of large projects or ongoing supply needs. Whether you’re ordering a few hundred or several thousand terminals, we can handle it. Bulk pricing is available, and we work with you to ensure timely delivery.
What is the lead time for bulk orders of swage dome head terminals?
The lead time depends on the order quantity and customization requirements. For standard orders, we typically ship within 3-5 business days. If you need customized terminals, the timeline might be slightly longer. We’ll always provide a delivery estimate so you know when to expect your order.
Do you offer any discounts for large orders?
We offer competitive pricing and discounts for large orders. The more you order, the better the pricing. Our goal is to help you get high-quality terminals at the best possible value for your business.
Can I get a sample before placing a large order?
Yes, we can provide samples so you can evaluate the quality and fit of the terminals before committing to a large order. Just let us know what you need, and we’ll send a sample for you to test.
What are the shipping options for swage dome head terminals?
We offer a range of shipping options, from standard to expedited shipping, depending on the size of your order and your location. Our team ensures everything is packed securely and arrives in great condition.
How do I place an order for swage dome head terminals?
-
Contact Us:
Reach out to our team via phone or email to discuss your order requirements. -
Submit Your Specifications:
Provide details such as quantity, size, and any customization needs through phone, email, or our online form. -
Receive a Quote:
We’ll send you a detailed quote based on your specifications, including pricing and delivery estimates. -
Confirm Your Order:
Once you approve the quote, we’ll confirm your order and process it. -
Order Fulfillment:
We’ll handle the rest—processing, packaging, and shipping your order as quickly as possible.
