European Type Stainless Steel Swage Toggle Terminal​

European Type Stainless Steel Swage Toggle Terminal​

The Swage Toggle Terminal from Powerful Machinery is made from high-grade 316 stainless steel, offering excellent corrosion resistance and durability. Designed to minimize fatigue from cyclic or sideways loads, this terminal is perfect for marine rigging and lifeline applications. It features clear markings for wire size and hole depth, making installation and swaging onto wire simple, especially for diagonal or angled installations.
swage toggle terminal​

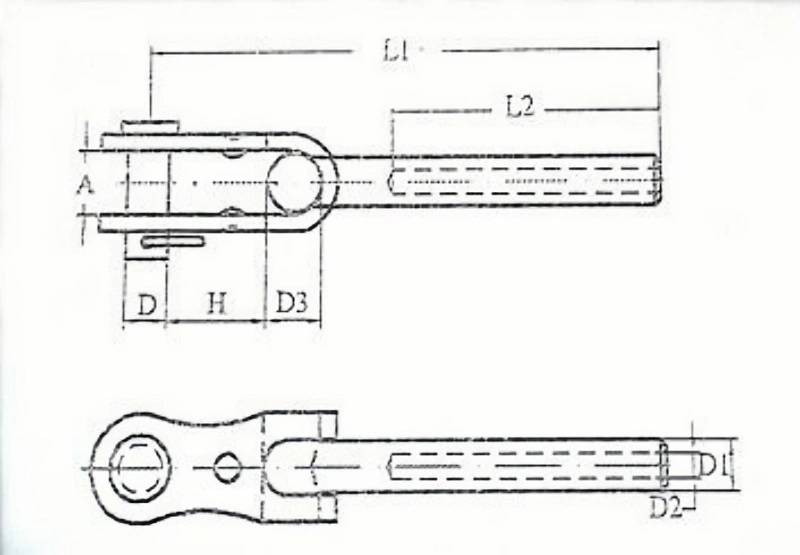

DIAGRAM

european type stainless steel swage toggle terminal​

SPECIFICATIONS

ITEM NO Φ L1 L2 D1 D2 D3 D A H WT
mm mm mm mm mm mm mm mm mm KGS
HF0275-A0003 3 75 38 6.35 3.3 7 6 7 15 0.035
HF0275-A0004 4 89 45 7.5 4.3 10 8 10 20 0.061

PRODUCT FEATURES

  • Made from durable 316 stainless steel

  • Reduces fatigue from cyclic or side loads

  • Suitable for marine and industrial applications

  • Clear markings for easy installation and swaging

  • Available in retail and bulk packaging options



INSTRUCTIONS & CAUTIONS

Proper Installation

Ensure the wire size and hole depth match the terminal’s specifications before swaging. Markings on the terminal help you identify the correct wire size and swage depth, so always double-check these before beginning the installation. Accurate installation will ensure the terminal performs optimally and avoid issues with load-bearing capacity.

Prevent Overloading

While the swage toggle terminal is designed to handle significant loads, avoid exceeding its rated load capacity. Using the terminal in applications that involve excessive sideward or cyclic stress can cause premature wear. Always assess your application needs and choose the appropriate size and material to prevent damage.

Regular Inspections

Periodically inspect the terminal for signs of wear, corrosion, or deformation, especially if used in harsh environments like marine or offshore conditions. Any cracks, pitting, or rust could compromise the terminal’s strength and reliability, so replace it as needed to maintain safety.



Avoid Misalignment

When installing the swage toggle terminal, ensure that the terminal is properly aligned with the rigging system. Misalignment during installation can cause uneven stress distribution, leading to fatigue or failure. Make sure to follow proper rigging practices to maintain the terminal’s integrity and extend its service life.

OUR ADVANTAGES

edit

Custom Solutions Tailored to You

We offer a wide range of customization options to meet your specific needs. From sizes to materials and finishes, we work with you to deliver the perfect solution for your project. Our engineering team can also assist with custom designs, ensuring you get the exact product for your application.

Quality You Can Count On

At Powerful Machinery, we prioritize product quality. We use high-grade materials and adhere to strict manufacturing standards, ensuring every product meets durability and performance requirements. You can trust our products to perform consistently, reducing the need for replacements and lowering your overall costs.

Fast & Reliable Delivery

We understand the importance of timely shipments. At Powerful Machinery, we ensure quick order processing and fast delivery options, whether you need bulk orders or customized products. Our efficient logistics and global shipping network help you meet tight deadlines, minimizing any downtime for your business.

Dedicated Customer Support

Our customer service team is always ready to assist you. Whether you have questions about a product, need technical advice, or require post-sale support, we're here for you. We aim to provide the best service at every step, from the moment you place your order to after delivery, ensuring a smooth experience.

OUR REVIEWS

Ethan Lancaster
Ethan Lancaster
We've been ordering swage toggle terminals in bulk from Powerful Machinery for our marine projects, and the experience has been great. The team really helped us with custom sizes, and everything arrived on time. The quality's solid and our clients have had no complaints.
Oliver Kingsley
Oliver Kingsley
Ordered a batch of swage toggle terminals from Powerful Machinery for a big project. We needed some custom specs, and their team made it easy to get everything right. The products arrived quickly and just as we requested. We've been using them in some heavy-duty applications, and no issues so far.
Harrison Caldwell
Harrison Caldwell
As a long-time customer, we’ve always been happy with the service and quality from Powerful Machinery. We recently placed a custom order for swage toggle terminals for an offshore project, and everything was on point. Their team made sure our specs were correct, and the delivery was right on time.

FAQ

Lead time for bulk orders of swage toggle terminals typically ranges from 1 to 3 weeks, depending on the size and quantity of your order. Custom orders may take slightly longer due to the additional manufacturing steps involved. We provide an estimated delivery timeline upon receiving your order details and ensure that all orders are processed promptly.

We offer several shipping options for bulk orders of swage toggle terminals. For larger orders, sea freight is the most cost-effective method, but we also offer air freight for smaller or urgent orders. We can arrange the shipping according to your preferences and ensure timely delivery to meet your project deadlines.

If you encounter any issues with your swage toggle terminals, our dedicated customer service team is ready to assist you. We offer a warranty for our products and ensure that all orders are shipped in good condition. If there are any defects or issues with the product, we will arrange for a return or replacement as per our terms and conditions.

Yes, swage toggle terminals are commonly used in lifeline systems. They allow the wire to move within two planes, which helps minimize fatigue caused by cyclic loading. This makes them a reliable choice for lifeline applications, ensuring safety and long-lasting performance.
