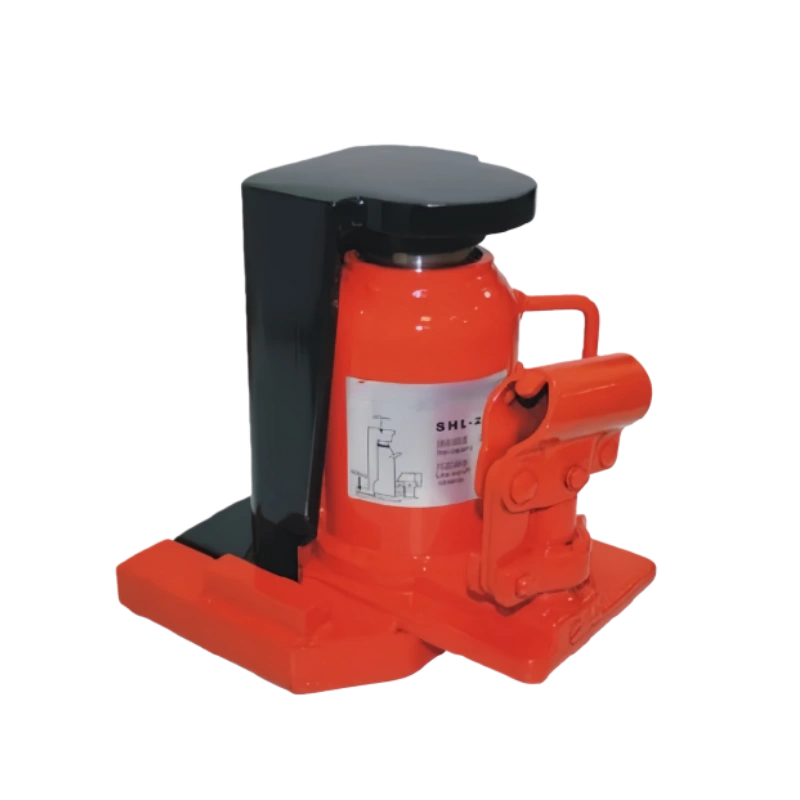

SHL TOE JACKS

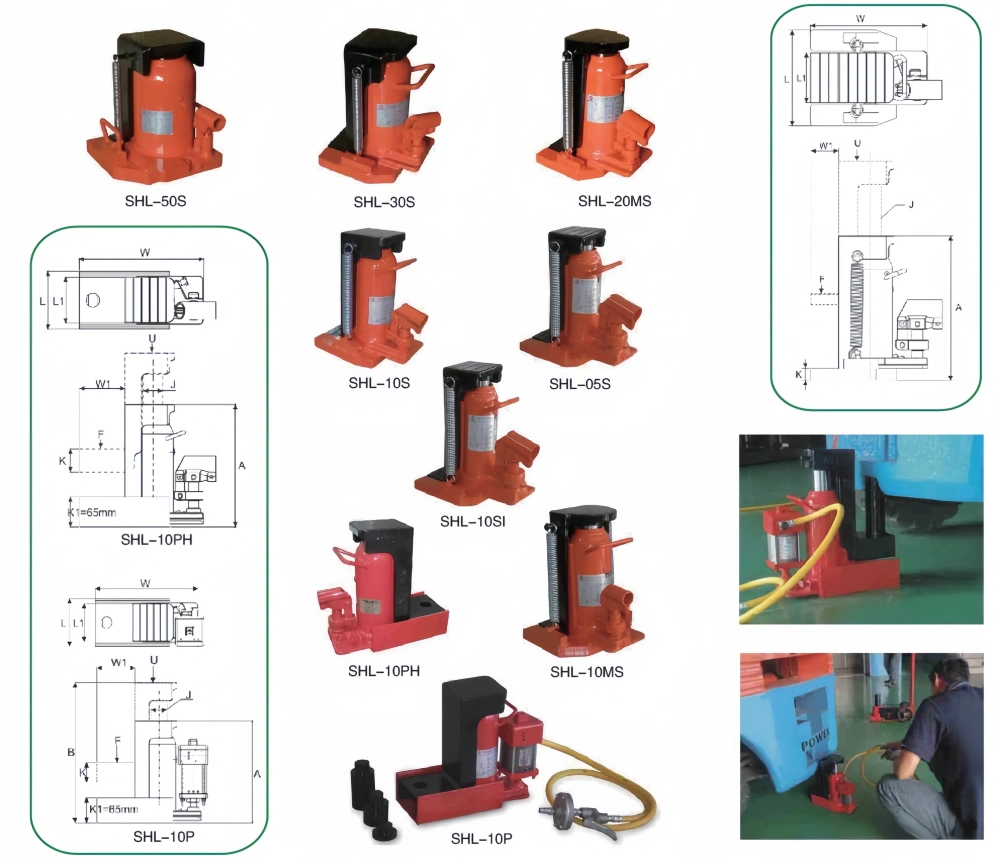

HYDRAULIC TOE JACK SPECIFICATIONS
| Model Number | Top Capacity U (ton) | Low toe-Lift Capacity F (ton) | Stroke (mm) | Min. Height A (mm) | Ext. Height B (mm) | Plunger Diam. J (mm) | Base Dimensions L×W (mm) | JR Height K(mm) | Toe-Lift Base L1×W1 (mm) | Weight (kg) |
| SHL-05S | 5 | 2.5 | 110 | 230 | 340 | 32 | 152 X 200.5 | 16 | 78 X 47 | 8.5 |
| SHL-10S | 10 | 5 | 135 | 280 | 415 | 42 | 185 X 235 | 22 | 98 X 55 | 19.5 |
| SHL-10SI | 10 | 5 | 135 | 280 | 415 | 42 | 185 X 235 | 22 | 98 X 55 | 20.5 |
| SHL-10MS | 10 | 5 | 135 | 277 | 412 | 42 | 220 X 229 | 22 | 130 X 52 | 20.0 |
| SHL-20MS | 20 | 10 | 150 | 317 | 467 | 55 | 220 X 240 | 25 | 132 X 36 | 31.5 |
| SHL-30S | 30 | 15 | 150 | 335 | 486 | 62 | 265 X 272 | 28 | 149 X 60 | 44.0 |
| SHL-50S | 50 | 25 | 150 | 370 | 520 | 85 | 340 X 354 | 40 | 190 X 75 | 88.5 |
| SHL-10P | 10 | 5 | 134 | 266 | 400 | 42 | 125 X 275 | 50 | 100 X 100 | 20.0 |
| SHL-10PH | 10 | 5 | 134 | 266 | 400 | 42 | 125 X 275 | 50 | 100 X 100 | 20.0 |
HYDRAULIC TOE JACKS FEATURES
-
Heavy-duty lifting for industrial use and heavy machinery.
-
Durable carbon steel base with automated welding.
-
Chrome-plated plunger for corrosion resistance.
-
Dual strain control for added safety.
-
Compact and portable design for use in tight spaces.
INSTRUCTIONS & CAUTIONS OF HYDRAULIC TOE JACKS
Proper Positioning
Always ensure the hydraulic lift toe jack is positioned on a flat and stable surface. Before lifting, make sure the jack is aligned correctly beneath the load. This ensures maximum lifting efficiency and safety, especially when working in tight or confined spaces. Clearance is key—ensure the toe of the jack fits comfortably under the object.
Verify Load Capacity
Check the load’s weight before using the toe jack. Never exceed the jack’s rated capacity. Overloading the jack can cause damage to both the equipment and the object being lifted. For safety, always double-check the specifications to make sure you’re within the recommended limits. If in doubt, reach out for professional advice.
Operate with Steady, Controlled Movements
When lifting or lowering the load, turn the handle slowly to avoid jerky motions. Rapid movements can cause instability and strain on the hydraulic system. A smooth, controlled operation ensures both the load and the jack remain secure, and it contributes to the longevity of the equipment.
Use Safety Supports
After lifting, always place safety stands or blocks under the load for added support. Never rely solely on the jack to hold the load for long periods, particularly during repairs or maintenance. It’s essential to take the proper safety precautions to prevent accidents.
OUR ADVANTAGES
Top-Notch Quality & Safety
At Powerful Machinery, we prioritize quality and safety in every product we manufacture. We follow rigorous testing and quality control measures to ensure each unit meets the highest standards. Our equipment is designed to deliver reliable performance, minimize risks, and maximize efficiency, making it a trusted choice for industries that demand durability and precision.
Comprehensive One-Stop Sourcing
We provide a complete one-stop sourcing solution for all your lifting equipment needs. From custom-designed solutions to ready-made products, we handle everything. Our streamlined processes save you time and reduce costs, ensuring that your supply chain stays efficient and hassle-free. Let us be your trusted partner for sourcing top-quality lifting equipment.
Fast, Reliable Logistics & Delivery
We understand the importance of timely deliveries. With our efficient logistics and reliable transportation systems, we ensure your orders arrive on time, no matter where you are. Whether it’s by land, air, or sea, we work with trusted shipping partners to deliver your products quickly and safely, minimizing downtime and keeping your operations running smoothly.
Excellent After-Sales Service
We stand behind our products with exceptional after-sales support. From installation to maintenance, our team is always ready to help. We provide technical assistance, troubleshooting, and spare parts when needed. Our goal is to ensure your equipment works as efficiently as possible throughout its lifespan, offering peace of mind and extending the longevity of your investment.
FAQ
What is a Toe Jack?
A toe jack is a hydraulic tool designed to lift heavy equipment in tight spaces where traditional jacks can’t fit. It has a horizontal lifting arm (the “toe”) that slides under machinery or equipment, making it perfect for use in confined or low-clearance environments. It’s commonly used in industries where precision and heavy-duty lifting are required.
How Does a Toe Jack Work?
A toe jack operates by using hydraulic pressure to lift objects. The toe (horizontal lifting arm) slides under machinery or equipment with low clearance, and once activated, the jack safely raises the load. Its precision and control make it ideal for lifting heavy items in tight spaces where other jacks may not fit.
Toe Jack vs Bottle Jack – What’s the Difference?
-
Toe Jack:
-
Designed for heavy lifting in tight spaces.
-
Uses a horizontal arm to fit under the load.
-
Ideal for industrial machinery and heavy equipment.
-
Provides precise control in confined areas where other jacks won’t fit.
-
-
Bottle Jack:
-
Uses a vertical lifting mechanism.
-
Typically used for vehicle lifting or general lifting tasks.
-
More compact and easy to store.
-
Suitable for general applications, but may not fit in tight spaces.
-
What Are the Benefits of Using a Toe Jack?
-
Ideal for Heavy Machinery Lifting:
-
Perfect for lifting heavy machinery and large equipment with low clearance.
-
-
Precision and Stability:
-
Offers precise control and stability, even in tight spaces where other lifting devices can’t fit.
-
-
Compact and Easy to Use:
-
Compact design and ease of use make it a practical tool for lifting in confined areas.
-
-
Essential for Key Industries:
-
A must-have in industries like manufacturing and construction, where heavy lifting is frequently required.
-
What Should I Check Before Using a Toe Jack?
-
Position on a Stable Surface:
-
Ensure the toe jack is placed on a flat, stable surface for safe operation.
-
-
Check Load Capacity:
-
Verify that the jack can handle the weight by checking the load capacity to avoid overloading.
-
-
Inspect the Hydraulic System:
-
Check for any leaks or signs of damage in the hydraulic system to ensure smooth operation.
-
-
Test the Toe Arm Movement:
-
Ensure the toe arm moves freely under the load without any obstruction, for effective lifting.
-
-
Alignment Check:
-
Confirm that the toe jack is properly aligned under the load before use to prevent instability.
-
How Do I Maintain My Toe Jacks?
-
Regular Cleaning:
-
Clean the toe jack regularly to remove dirt and debris, especially after use in dusty environments.
-
-
Lubricate Moving Parts:
-
Lubricate the moving parts to reduce friction and ensure smooth operation.
-
-
Check Hydraulic Fluid Levels:
-
Inspect hydraulic fluid levels regularly and top up if necessary to ensure optimal performance.
-
-
Inspect for Leaks:
-
Look for any leaks in the hydraulic system and address them immediately to prevent damage.
-
-
Proper Storage:
-
Store the jack in a dry, clean area to prevent rust and extend its lifespan.
-
Can I Use a Toe Jack for Lifting Objects Other Than Machinery?
While toe jacks are designed for machinery lifting, they can also be used for lifting other heavy objects, as long as the load fits under the toe arm and the weight is within the jack’s capacity. Always ensure the load size and weight are compatible with the jack’s specifications.
