Toggle and Toggle Turnbuckle

Powerful Machinery’s toggle and toggle turnbuckle offer flexibility and reliability for wire rope connections in rigging applications. Made from Type 316 marine-grade stainless steel, these turnbuckles are highly corrosion-resistant and ideal for high-chloride environments. Featuring flexible pivoted jaws, removable clevis pins, and UNC threads, they provide superior strength and are interchangeable with other fittings. Perfect for heavy-duty applications like marine rigging, these turnbuckles are lighter and stronger than traditional cast turnbuckles.
toggle and toggle turnbuckle

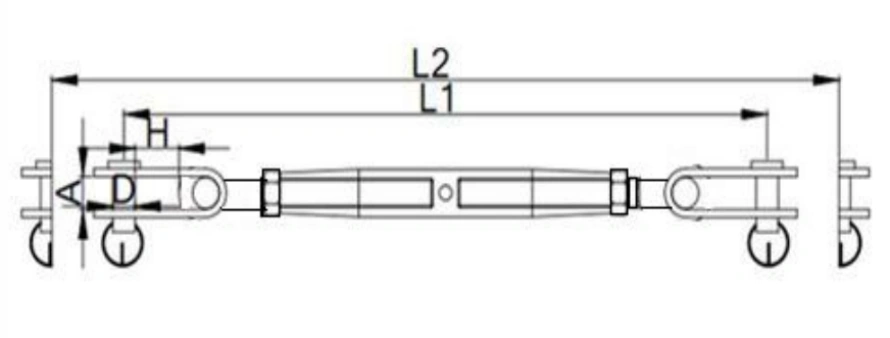

DIAGRAM

toggle jaw turnbuckle

SPECIFICATIONS

SIZEDL1L2AHWT
mmmmmmmmmmKGS
M661602307150.100
M8819026510200.191
M10923032012250.399
M121228039013300.630
M161637051017401.450
M20194305702045

TRAWL BLOCK​ DESIGN

INSTRUCTIONS & CAUTIONS

Installation of Toggle Turnbuckles

To install toggle turnbuckles, begin by inserting the wire rope into the jaw or swage end of the turnbuckle. Secure it with the appropriate fasteners and connect the other side to the rigging system. Once everything is in place, use a wrench to tighten the turnbuckle until the cable is taut. Make sure the turnbuckle is aligned correctly to avoid uneven tension, and regularly inspect it for proper tightening.

Adjusting Tension

When adjusting the tension of a toggle turnbuckle, rotate the central body clockwise to tighten or counterclockwise to loosen. Always use a wrench to make the adjustment easier. Be sure to check both ends of the turnbuckle for equal tension, as uneven tension can cause damage to the turnbuckle or cable. Don’t over-tighten, as it could lead to unnecessary stress on the system.

Prevent Loosening

To prevent your toggle turnbuckle from loosening, always ensure that it is properly tightened during installation. Use the locking mechanism or clevis pins securely to ensure stability. Regularly inspect the turnbuckle for any signs of loosening or wear, especially in high-vibration environments. If needed, apply a thread-locking compound to keep the turnbuckle in place.



Avoid Overloading

Avoid using toggle turnbuckles beyond their rated load capacity. While they offer great strength and flexibility, overloading the turnbuckle can compromise its performance and cause failure. Always check the load specifications before installation and ensure the turnbuckle is suitable for the application. Use only the recommended wire rope diameter and ensure that the turnbuckle is properly sized for your rigging needs.

OUR ADVANTAGES

edit

Custom Engineered Solutions

Need something specific? Our team works closely with you to create custom toggle turnbuckles or rigging solutions tailored to your project. Whether it's special sizing, unique materials, or custom threading, we provide engineered solutions that meet your exact requirements. This flexibility ensures you can tackle any challenge with confidence and precision, making us the perfect partner for large-scale projects.

Direct from Manufacturer

By purchasing directly from us, you eliminate the middleman, which means more cost savings for you. We offer better prices and faster lead times, ensuring you get the best value for your investment. Plus, you get direct access to our expert team for any questions or support, streamlining your order process and guaranteeing that you're getting exactly what you need.

Fully Certified, Safe Products

We prioritize safety and compliance. Our toggle turnbuckles and rigging hardware are fully certified to meet industry standards, ensuring you’re getting reliable and safe products every time. This means fewer risks and more peace of mind, knowing you're using high-quality equipment that stands up to the toughest conditions, whether it's for marine, construction, or architectural use.

Efficient Logistics & Fast Delivery

We know time is money. That's why we offer efficient logistics and quick shipping to get your bulk orders to you on time. With streamlined processes, we make sure your toggle turnbuckles and other products are delivered without delays. Whether you're in need of standard or customized parts, you can count on us to meet your deadlines and keep your projects on track.

OUR REVIEWS

Ethan Lancaster
Ethan Lancaster
We’ve been ordering toggle turnbuckles from Powerful Machinery for the past year. The process is always seamless, and their customer service is spot on. We recently placed a bulk order for a large construction project, and the turnbuckles arrived within the promised time frame. They were exactly as specified, and we had no issues with installation. The quality and service are unbeatable.
Oliver Kingsley
Oliver Kingsley
We’ve ordered toggle and toggle turnbuckles from Powerful Machinery multiple times for various rigging jobs. They are reliable, durable, and able to withstand heavy-duty use. Recently, we used them for a large-scale wire railing installation, and the performance was outstanding. The turnbuckles held up under pressure, and there were no complaints from our clients. Highly recommend!
Harrison Caldwell
Harrison Caldwell
We were able to secure a large order of toggle turnbuckles at a competitive price, which made a big difference for us in a tight budget situation. Not only did the pricing work out well, but the support from the Powerful Machinery team was fantastic. They helped us choose the right specs for our project and ensured everything was delivered without any hitches. We’re definitely placing another order soon.

FAQ

Toggle turnbuckles work by adjusting the central body to either tighten or loosen the tension on the connected cables. The swage or jaw end attaches to wire ropes, while the toggle end allows for smooth pivoting and flexible adjustments. By rotating the turnbuckle, you can ensure even tension across the cable system, which is vital for structural stability and load-bearing efficiency.

Toggle turnbuckles are typically made from high-quality materials like Type 316 stainless steel, which provides excellent corrosion resistance, making them suitable for marine and high-chloride environments. AISI 304 stainless steel is also used for general applications. These materials ensure durability, strength, and long-lasting performance in various weather conditions and demanding projects.

  • Use a Wrench:
    Rotate the central body of the toggle turnbuckle using a wrench.

  • Clockwise to Tighten:
    Turn it clockwise to tighten the tension.

  • Counterclockwise to Loosen:
    Turn it counterclockwise to loosen the tension.

  • Ensure Even Adjustment:
    Make sure both ends are adjusted evenly to maintain balanced tension across the system.

  • Check Regularly:
    Always check the tension regularly to prevent over-tightening, which can damage the turnbuckle or cable.

Yes, toggle turnbuckles feature UNC threads, making them compatible with a variety of other rigging components like clevises, hooks, and other turnbuckle bodies. This ensures easy integration into your existing rigging systems without the need for additional modifications or fittings.

  • Use a Wrench:
    Rotate the central body of the toggle turnbuckle using a wrench.

  • Clockwise to Tighten:
    Turn it clockwise to tighten the tension.

  • Counterclockwise to Loosen:
    Turn it counterclockwise to loosen the tension.

  • Ensure Even Adjustment:
    Make sure both ends are adjusted evenly to maintain balanced tension across the system.

  • Check Regularly:
    Always check the tension regularly to prevent over-tightening, which can damage the turnbuckle or cable.

Yes, we offer bulk orders of toggle turnbuckles at competitive pricing for wholesale buyers. We can also customize the order according to your specific needs, whether it’s for large-scale industrial projects or long-term stock requirements. Contact us with your order details, and we’ll provide you with a tailored solution.

Delivery times vary depending on the order size and location, but we work efficiently to ensure timely shipping. For bulk orders, we aim to dispatch the products within 7–10 business days, and we can provide a more accurate timeline once we receive your order details. We also offer expedited shipping options for urgent requirements.
