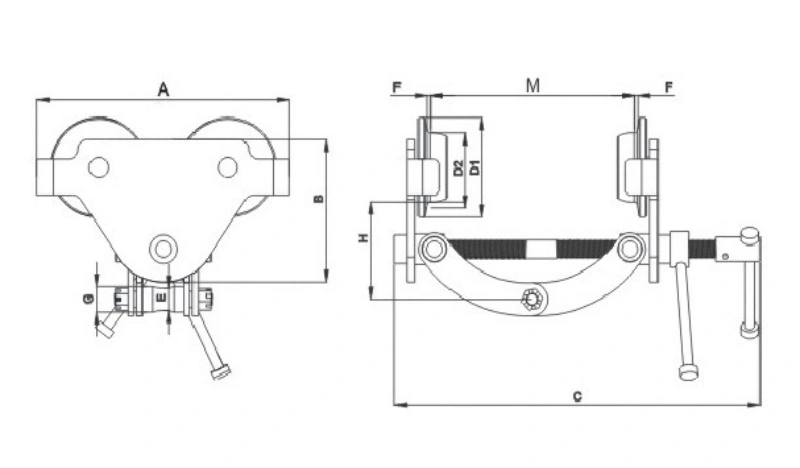

TROLLEY CLAMP DRAWING
TROLLEY BEAM CLAMP SPECIFICATIONS
| Model | Capacity (tons) | Min. Curve Radius (m) | Beam Flange Width(mm) | Dimensions(mm) | Net Weight (kg) | ||||||||
| M | A | B | C | D1 | D2 | F | E | G | H | ||||
| TPC−0.5 | 0.5 | 0.8 | 64−210 | 214 | 142 | 373 | φ78 | φ57 | 1.5−3 | φ21.5 | φ25 | 105−161 | 5.9 |
| TPC−1 | 1.0 | 0.9 | 64−210 | 252 | 162 | 373 | φ96 | φ67 | φ21.5 | φ25 | 95−155 | 9.3 | |
| TPC−2 | 2.0 | 1.0 | 76−210 | 281 | 180 | 373 | φ109.6 | φ80 | φ21.5 | φ25 | 120−177 | 15.3 | |
| TPC−3 | 3.0 | 1.2 | 76−210 | 328 | 204 | 409 | φ129.3 | φ92 | φ26 | φ32 | 148−193 | 24.7 | |
| TPC−5 | 5.0 | 1.3 | 114−210 | 380 | 239 | 409 | φ143 | φ109 | φ26 | φ32 | 196−229 | 39 | |
BEAM CLAMP TROLLEY FEATURES
-
Heavy Duty Construction: Built with premium materials for lasting durability.
-
Sealed Ball Bearings: Ensures smooth and efficient movement of the wheel.
-
Anti-Drop Plates: Provides enhanced safety during operations.
-
Optional Buffer Rubber Blocks: Adds extra protection for sensitive equipment.
-
Choice of Wheels: Available with forged steel or casting wheels to suit different needs.
INSTRUCTIONS & CAUTIONS
Proper Installation is Critical
Ensure the trolley beam clamp is securely mounted on the I-beam or monorail before use. It’s important that the clamp fits properly and is aligned correctly. Any loose connections or improper installation can lead to unsafe conditions. Always double-check that everything is tightly secured to avoid any operational issues.
Verify Load Capacity
Before using the trolley beam clamp, always check its load capacity. Never exceed the weight limit specified for the clamp. Overloading can damage the equipment and pose safety risks. Make sure the load you’re lifting falls within the recommended range to ensure safe and efficient operation.
Routine Maintenance is a Must
For optimal performance, regularly maintain your trolley beam clamp. Lubricate moving parts, such as the ball bearings, and check for signs of wear, corrosion, or damage. Replace any worn components immediately to prevent malfunctions. Proper maintenance extends the life of the clamp and ensures smooth, reliable operation.
Operate in Stable Conditions
Use the clamp in a safe, stable environment. Ensure the rail system is in good condition and free of obstructions. Avoid using the clamp on uneven or unstable surfaces, as this can lead to accidents or damage. A clean, stable setup is crucial for maintaining the clamp’s performance and safety.
OUR ADVANTAGES
Custom Solutions That Fit Your Needs
At Powerful Machinery, we specialize in providing custom-engineered solutions tailored to your specific requirements. Whether it’s adjustments to design, material, or functionality, we work closely with you to deliver the best results. This personalized approach ensures optimal performance and reliability in your operations, giving you a competitive advantage in your industry.
Comprehensive One-Stop Sourcing
We make sourcing easy by offering a full-service solution. From product selection to packaging, delivery, and after-sales support, we manage every detail. This all-in-one approach saves you time, streamlines your supply chain, and ensures that everything you need comes from a single, trusted source. Convenience and reliability are at the core of our service.
Efficient Delivery & Competitive Pricing
We understand the importance of fast, reliable delivery and competitive pricing. With our efficient logistics network, your orders arrive on time, every time. We combine speed and affordability, ensuring you get top-quality equipment without delays or excessive costs, so you can stay competitive in the market while maximizing value.
Top-Notch Customer Support
Our commitment to outstanding customer service sets us apart. From the moment you inquire about our products, our expert team is ready to assist you. Whether it’s answering technical questions or offering post-purchase guidance, we’re always available to ensure your equipment performs at its best and your business operates smoothly.
FAQ
What is a trolley beam clamp?
A trolley beam clamp is a device used to secure trolleys to I-beams or monorails during lifting operations. It ensures stable attachment, allowing for smooth and controlled movement of loads. Commonly used in warehouses, construction sites, and manufacturing facilities, it helps lift and transport heavy items safely and efficiently.
How do I install a trolley beam clamp?
-
Attach the Clamp to the Rail System: Ensure the trolley beam clamp is properly aligned with the rail system.
-
Secure with Bolts: Tighten all bolts to fasten the clamp firmly in place.
-
Check for Proper Fitment: Double-check the clamp to ensure it fits securely before use.
-
Verify Alignment: Ensure the clamp is correctly aligned for smooth operation.
-
Final Safety Check: A proper installation prevents accidents and ensures safe, reliable operation during lifting tasks.
Can trolley beam clamps be adjusted to fit different beam sizes?
Yes, many trolley beam clamps feature adjustable components to accommodate different beam sizes. Some models include screw hangers or adjustable fittings that allow the clamp to be customized for specific rail systems. Make sure the clamp is properly adjusted to prevent operational issues and ensure stability during use.
What should I do if my trolley beam clamp isn’t working properly?
If your trolley beam clamp isn’t working as expected, first check for visible damage or loose parts. Ensure the clamp is properly installed and that all fasteners are tight. Lubricate moving parts to ensure smooth operation. If issues persist, contact the supplier for troubleshooting or replacement parts. Avoid using the clamp until it is fully functional to prevent accidents.
How do I maintain a trolley beam clamp?
-
Clean Regularly: Clean the trolley beam clamp to remove dirt, debris, or buildup that could affect performance.
-
Inspect for Rust or Wear: Check for signs of rust, corrosion, or any wear that could weaken the clamp over time.
-
Lubricate Moving Parts: Apply lubricant to moving components like bearings to ensure smooth operation.
-
Check for Loose Bolts: Inspect bolts and fasteners regularly to ensure they’re tight and secure.
-
Replace Damaged Components: Replace any worn or damaged parts immediately to maintain optimal function and avoid performance issues.
