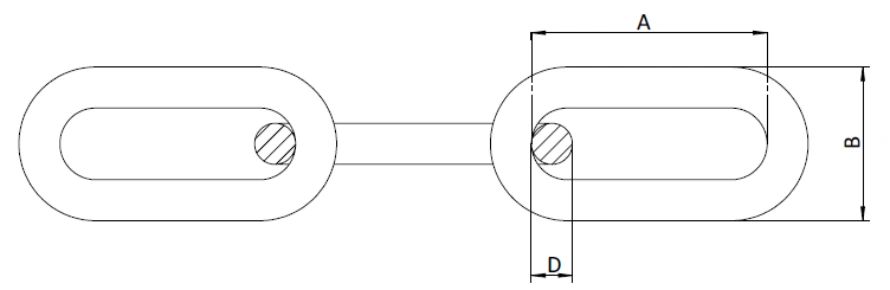

DIAGRAMS
PRODUCT SPECIFICATIONS
| LINK SPECIFICATION | TEST LOAD | BREAKING LOAD | NETWT PER 200FT(KG) | ||||
| D | L | W | |||||
| IN | MM | MM | MM | KG | KG | B.F. | H.D.G. |
| 1/8 | 3.20 | 20 | 12 | 200 | 400 | 10.40 | 11.00 |
| 5/32 | 4.00 | 23 | 15 | 300 | 600 | 17.40 | 18.00 |
| 3/16 | 4.70 | 25 | 18 | 400 | 800 | 24.40 | 25.00 |
| 7/32 | 5.50 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 |
| 1/4 | 6.35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 |
| 5/16 | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 |
| 3/8 | 9.50 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 |
| 7/16 | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 |
| 1/2 | 12.70 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 |
| 5/8 | 15.80 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 |
| 3/4 | 19.00 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 |
| 7/8 | 22.20 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 |
| 1 | 25.40 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 |
DESIGN
MATERIAL
- Carbon Steel, SS316, SS316L
CERTIFICATION
- 3rd Party Inspection Certificate, Such as Abs, Bv, Lr, Nk, Kr, Ccs
FINISH
- Self-Colored, Black, Hot Dip Galvanized
SAMPLE
- Available
INSTRUCTIONS & CAUTIONS
WORKING LOAD LIMITS: This is the maximum load (in pounds) a chain should ever handle, even when it’s new and the load is evenly distributed along a straight, untwisted length. The “working load limit” doesn’t reflect the load the chain could potentially endure if conditions like wear, twisting, misuse, overloading, or corrosion are introduced. These factors can reduce the chain’s strength, so regular inspections are crucial to ensure safety.
PROOF TEST: This is the load (in pounds) a chain undergoes before leaving the factory. The chain is tested under direct tension in a straight line at a consistent speed using a standard testing machine. The purpose of this test is to identify any material or manufacturing defects.
All Uk Standard Long Link Chain, Uk Standard Medium Link Chain, and Uk Standard Short Link Chain are proof tested. When using attachments like hooks or rings, make sure they match the chain’s grade, type, and size for proper load-bearing performance.
GENERAL WARNING: Chains made from low and high carbon steel, along with weldless and welded options, are designed for pull or tension applications only. Do not use them for lifting or hoisting, especially in situations where failure could cause injury or damage. Avoid jerking or rapidly applying loads, as this can significantly increase stress on the chain.
OUR ADVANTAGES
Tailored Customization
We provide custom UK standard link chains to fit your specific needs. Whether it’s size, material, finish, or strength grade, we’ve got you covered. This flexibility makes our chains ideal for everything from industrial to agricultural and marine applications.
Built to Last
Our chains are made from high-quality materials like carbon steel and stainless steel, designed to perform under tough conditions. They resist corrosion, handle heavy use, and keep working long-term, no matter how demanding the environment.
Industry-Approved
All our chains are made to meet UK standards and other relevant certifications, so you can trust their safety and reliability. We ensure that every chain performs to the highest specifications, keeping you compliant with industry regulations.
Great Value with Bulk Discounts
Get the best value for your money with our competitive pricing and bulk discounts for large orders. We make sure you get a great deal without compromising on the quality of our UK standard link chains.
OUR REVIEWS
FAQ
Can I customize the size or finish of the chains?
Yes! We offer custom sizes and finishes, including self-colored, black, and hot dip galvanized options. Whether you need a specific length or finish for your environment, we can customize the chains to fit your project requirements.
How do I ensure the safety of my lifting operations with these chains?
Safety is our top priority. Our UK standard medium link chains meet strict safety standards, including CE certification, so you can be confident in their reliability. Regular inspections and proper installation are essential to maintaining safe lifting operations.
How quickly can I receive delivery of UK standard medium link chains?
We offer fast delivery, with most orders arriving within 7 days for urgent needs. Whether you’re ordering in bulk or need a quick turnaround, we ensure timely and reliable service to keep your projects on track.
