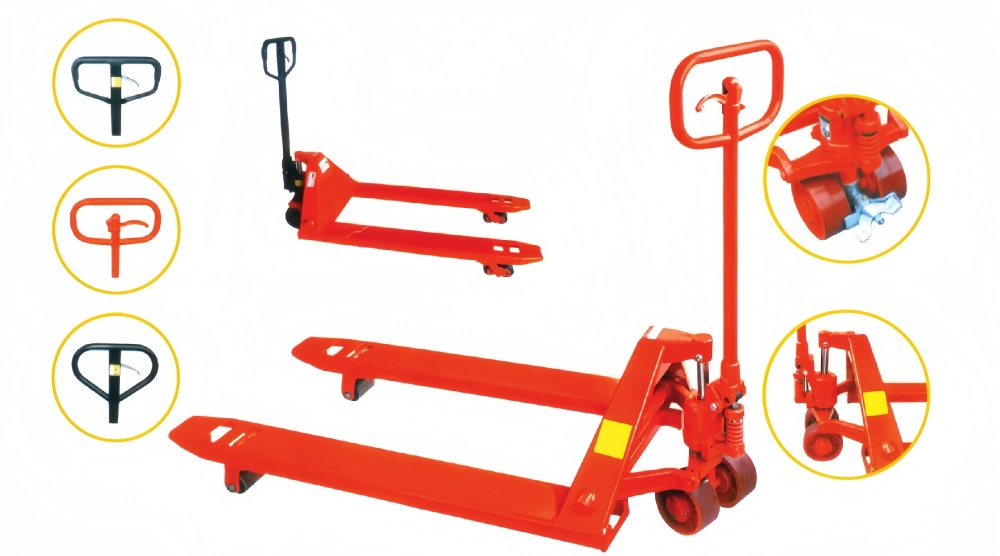

HAND HYDRAULIC PALLET TRUCK DRAWING
HYDRAULIC HAND PALLET TRUCK SPECIFICATIONS
| Model | CYPA |
| Capacity (kg) | 2000, 2500, 3000* |
| Fork Width (mm ) | 400*, 460*, 520, 550, 665, 840* |
| Fork Length (mm) | 810, 915, 1070, 1150, 1220 |
| Lowered Height (mm) | 80, 74, 65, 50* |
| MaxLift Height(mm) | ≥110 |
| Net weight (kg) | 75-110 |
| Loading Qty(20*container)(pcs) | 180(Fork width ≤550mm); 180(Fork width 685mm) |
HYDRAULIC HAND PALLET TRUCKS FEATURES
-
Durable and Reliable Frame
The frame is engineered for maximum strength and durability, making it suitable for heavy-duty tasks and ensuring long-lasting performance. -
Advanced Pump and Safety Features
Equipped with a welded pump, oil return system, and safety relief valve, this pallet truck offers smooth operation and built-in protection against overloads. -
User-Friendly Three-Stage Control Handle
The three-stage control handle provides precise control during operation, enhancing ease of use and increasing productivity. -
Precise Fork Control
The fork lowering speed is adjustable, offering more control during use. The forks are also equipped with guide rollers to ensure smooth movement and prevent damage to surfaces. -
Customizable Wheel Options
Choose from a variety of wheel options, including nylon, polyurethane, and rubber wheels. You can also select from single or tandem front wheel configurations, tailored to your specific needs. -
Solid Steel Linkage for Enhanced Fork Durability
The steel linkage reinforces the forks, ensuring they can handle heavy loads without compromising on durability. -
Tailored Sizes Available
We offer customizable widths and lengths to meet the specific requirements of your operations, ensuring a perfect fit for your warehouse or facility.
INSTRUCTIONS & CAUTIONS
Inspect Before Use
Before using the hand hydraulic pallet truck, always inspect the forks, handle, and wheels for any signs of wear or damage. This ensures safe operation and extends the life of the truck. If any parts are damaged, replace them immediately to prevent accidents during use.
Do Not Overload
Make sure you never exceed the truck’s rated load capacity. Overloading can cause damage to the hydraulic pump, forks, and other components, leading to reduced performance or failure. Always double-check the weight of the load before moving it.
Keep a Safe Distance
While operating the pallet truck, keep your hands, feet, and clothing away from the moving parts, especially the forks and hydraulic components. This reduces the risk of injury and ensures a smooth, safe operation.
Proper Handling of the Control Handle
Use the control handle carefully. Always operate it in a smooth, steady motion. Avoid jerking or sudden movements, as this can damage the mechanism and make it harder to control the load.
OUR ADVANTAGES
Tailored Solutions for Your Business Needs
We offer customized trawl blocks that meet the specific demands of your operations. Whether you need a particular size, load rating, or special feature, we tailor the blocks to suit your exact requirements. No matter your operation, we provide the perfect fit for your marine and offshore needs.
Reliable After-Sales Support
Our commitment doesn’t end with the sale. We provide exceptional after-sales service, including timely maintenance, parts replacement, and technical support. With Powerful Machinery, you can trust that we’ll stand by you to ensure your equipment runs smoothly throughout its lifespan.
Fast, Efficient Delivery and Availability
We understand the urgency of your projects. Powerful Machinery guarantees fast and reliable delivery, ensuring your equipment arrives on time. We also maintain a robust stock of parts and accessories, minimizing any downtime and keeping your operations running without delays.
Competitive Pricing with High-Quality Standards
We offer competitive pricing without compromising on quality. Our equipment is built to last and withstand tough working conditions, making us the smart choice for wholesalers, suppliers, and large businesses looking for cost-effective, durable lifting solutions.
FAQ
What is a Hand Hydraulic Pallet Truck?
A hand hydraulic pallet truck is a manual lifting device that uses a hydraulic system to raise and lower heavy loads. It helps move palletized goods with less physical effort, ideal for warehouses, factories, and retail environments. The truck’s hydraulic pump reduces manual strain, allowing workers to handle heavier loads safely.
How Do I Use a Hand Hydraulic Pallet Truck?
-
Position the Forks: Start by placing the forks of the hand hydraulic pallet truck under the pallet you wish to move.
-
Lift the Load: Pump the handle to activate the hydraulic system and raise the pallet to the desired height.
-
Move the Truck: Once the load is lifted, push or pull the pallet truck to transport the load to the desired location.
-
Lower the Load: Once at your destination, release the hydraulic valve to lower the load smoothly and safely.
-
Ensure Balance and Capacity: Always make sure the load is evenly balanced and never exceed the truck’s rated weight capacity for safe operation.
Can I Customize the Fork Length or Width of a Hand Hydraulic Pallet Truck?
Yes, hand hydraulic pallet trucks can often be customized to suit specific needs. Fork length and width can be tailored to fit different pallet sizes or load requirements. Talk to your supplier to customize the model based on your business requirements before ordering.
How Do I Perform an Inspection on a Hand Hydraulic Pallet Truck?
-
Check for Hydraulic Leaks: Inspect the hydraulic system for any signs of leakage, which could affect the truck’s performance.
-
Inspect the Forks: Examine the forks for any cracks, bends, or signs of damage that could compromise their strength.
-
Verify the Wheels: Ensure the wheels are in good condition and free of any debris or damage that could hinder movement.
-
Test Lifting and Lowering Functions: Test the hydraulic system to ensure smooth lifting and lowering of the load.
-
Contact for Repairs: If any issues are found, contact a technician or your supplier for necessary repairs.
Can I Use a Hand Hydraulic Pallet Truck for Lifting Non-Palletized Loads?
While hand hydraulic pallet trucks are designed for palletized loads, you can lift non-palletized items if they are placed on a pallet. However, using the truck on non-palletized loads may reduce efficiency or cause instability, so it’s best to use specialized equipment for such applications.
How Do I Troubleshoot Common Issues with My Hand Hydraulic Pallet Truck?
-
Check Hydraulic Fluid Level: If the truck is not lifting properly, verify the hydraulic fluid level and refill if necessary. Low fluid can affect lifting performance.
-
Look for Leaks: Inspect the hydraulic system for leaks. Any leakage may indicate damage or wear, reducing the efficiency of the truck.
-
Inspect the Fork Mechanism: If the forks aren’t lowering, check for any debris or blockages in the mechanism that may be obstructing movement.
-
Examine the Hydraulic Pump: If the pump is unresponsive, inspect it for damage or malfunction that may be preventing proper operation.
-
Contact Supplier or Technician: For more complex issues, reach out to your supplier or a technician to ensure proper diagnosis and repair.
Can I Order Replacement Parts for My Hand Hydraulic Pallet Truck?
Yes, replacement parts for hand hydraulic pallet trucks are available for items like hydraulic pumps, forks, wheels, and handles. Contact your supplier to order genuine parts that are compatible with your model to maintain peak performance.
