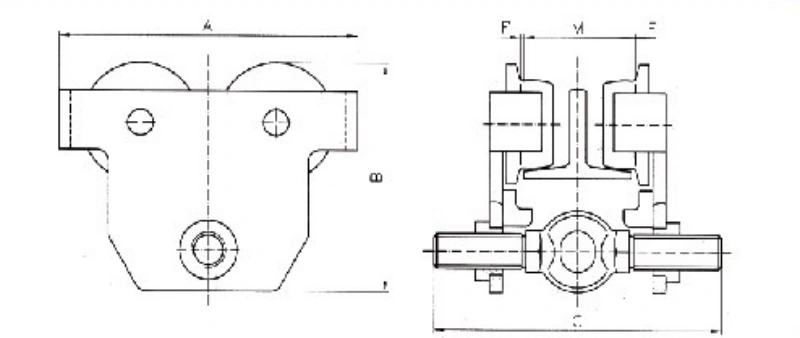

MANUAL GEAR TROLLEY DRAWING
HAND GEARED TROLLEY SPECIFICATIONS
| Model | GCL-B0.5T | GCL-B1T | GCL-B2T | GCL-B3T | GCL-B5T | ||
| Capacity(kg) | 500 | 1000 | 2000 | 3000 | 5000 | ||
| Running test load(kn) | 7.35 | 14.7 | 29.42 | 44.13 | 61.29 | ||
| Min radius of curve(m) | 0.9 | 1 | 1.2 | 1.3 | 1.4 | ||
| Dimensions(mm) | A | 225 | 252 | 300 | 360 | 392 | |
| B | 173 | 188 | 226 | 290 | 313 | ||
| C | a | 292 | 300 | 310 | 324 | 329 | |
| b | 377 | 385 | 395 | 409 | 414 | ||
| Dmin | a | 292.5 | 302.5 | 319.5 | 354 | 365 | |
| b | 383 | 393 | 398 | 425.5 | 430.5 | ||
| F | ~3 | ||||||
| Asius table beam width(mm) | M | a | 64–220 | 64–220 | 88–220 | 102–220 | 114–220 |
| b | 160–305 | 160–305 | 160–305 | 160–305 | 160–305 | ||
| Net weight(kg) | a | 13.3 | 15.9 | 23.2 | 37.7 | 48.9 | |
| b | 13.7 | 16.4 | 24 | 38.8 | 50.3 | ||
| Volume(cm) | a | 33X29X24.5 | 33X29X24.5 | 38.5X33X29 | 39X38X35 | 46.5X39X37 | |
| b | 42X29X24.5 | 42X29X24.5 | 46X33X29 | 46X38X35 | 53X39X37 | ||
TRAWL BLOCK DESIGN
Brand Customization: OEM services, color, logo, and more.
Material Customization: Options like T80/T100 chains, copper alloy, stainless steel, and aluminum alloy.
Function Customization: 360° operation, load-limiting features, electronic scale, rust-proof, and riot-proof.
Chain Customization: Polished, electro-galvanized, nickel-plated, or blackened.
Adjustable Beam Width: Easily adjustable to fit any I-beam width using screw hangers.
High-Quality Construction: Made with high-grade steel, sealed ball bearings, and galvanized chains.
Compact Design: Minimal installation size for efficient power transfer and smooth movement.
Applications: Ideal for equipment installation, maintenance, and goods transport, especially in areas without power.
INSTRUCTIONS & CAUTIONS
Proper Installation is Key
Make sure the manual geared trolley is correctly installed on the I-beam before use. The trolley should glide smoothly along the bottom flange of the rail. Adjust the beam width using the screw hanger to ensure a secure fit. Proper installation prevents damage to the trolley or the beam and guarantees safe operation.
Respect Load Limits
Always check that the load doesn’t exceed the trolley’s weight capacity. Available in capacities from 1/2 ton to 5 tons, the manual geared trolley is designed to handle specific loads. Exceeding the rated capacity can cause serious damage, so always stay within the recommended limits to avoid any risks or malfunctions.
Keep It Well-Maintained
Regular maintenance is essential to keep your manual geared trolley running smoothly. Lubricate the hand chain, inspect the ball bearings, and look for signs of rust or wear. A well-maintained trolley lasts longer and performs more efficiently, reducing downtime and ensuring safety.
Ideal for Power-Free Environments
The manual geared trolley is perfect for areas with no power supply. It operates manually, so there’s no need for electricity. Use it for equipment installation, material handling, and maintenance tasks in warehouses, factories, and other power-free environments.
OUR ADVANTAGES
Customized Solutions for Your Needs
At Powerful Machinery, we focus on providing tailor-made solutions. We listen to your specific requirements and offer designs, materials, and functionalities that perfectly fit your needs. Our custom-engineered products help you gain a competitive advantage, ensuring you get the best equipment for your business and operations.
Streamlined One-Stop Service
We simplify sourcing by offering a complete service package. From OEM options to packaging, delivery, and after-sales support, we handle all aspects of the process. This saves you time and hassle, allowing you to focus on your business while we take care of everything from start to finish. Reliability and convenience come standard with us.
Fast Logistics & Competitive Pricing
We understand the importance of quick delivery and cost-efficiency. Powerful Machinery offers reliable logistics and competitive prices without compromising on quality. Our focus on efficient shipping and affordable solutions helps you stay on schedule and within budget, making us the go-to partner for your lifting equipment needs.
Exceptional Customer Support
At Powerful Machinery, we prioritize your satisfaction. Our expert team provides responsive and knowledgeable support every step of the way. From pre-sales guidance to after-sales service, we are committed to ensuring your equipment works seamlessly. Our focus on customer service sets us apart, ensuring you always have the help you need.
FAQ
What is a geared trolley?
A geared trolley is a manual lifting device used to move heavy loads along I-beams or monorails. By pulling a hand chain, the trolley’s internal gears help transfer force efficiently, making it easier to move large items with minimal effort. This makes it ideal for industrial environments where electricity isn’t available, offering a reliable, cost-effective solution.
How does a manual geared trolley work?
A manual geared trolley operates by pulling a hand chain, which activates internal gears to move the trolley along the rail. The gears reduce the manual effort needed to lift and transport loads, providing better control and precision. It’s perfect for environments where power isn’t an option, delivering efficient, reliable performance without needing electricity.
Geared Trolley vs Plain Trolley: What’s the Difference?
Gears vs Manual Force: A geared trolley uses a hand-operated chain to engage internal gears, making it easier to lift and move heavy loads with less effort.
Ease of Operation: Geared trolleys require less manual force, making them ideal for heavy-duty tasks and providing better control.
Efficiency: Geared trolleys are more efficient than plain trolleys, especially for lifting and transporting large, heavy loads.
Suitability: Plain trolleys rely entirely on the operator’s manual force, which can be tiring and less effective for heavier loads.
Can I use a manual geared trolley on any rail system?
Manual geared trolleys are designed to run on I-beams or monorails, but you need to ensure the rail system’s specifications match the trolley’s requirements. Most trolleys come with adjustable beam width features to ensure compatibility. Always confirm the beam width and ensure the trolley is securely attached for smooth operation.
What materials are manual geared trolleys made from?
Manual geared trolleys are typically constructed from high-strength steel for durability. Some models feature corrosion-resistant coatings like galvanized steel or stainless steel, making them suitable for harsh environments. The hand chain may also be treated to resist wear, ensuring smooth operation over time. Quality materials ensure the trolley’s long-term reliability.
