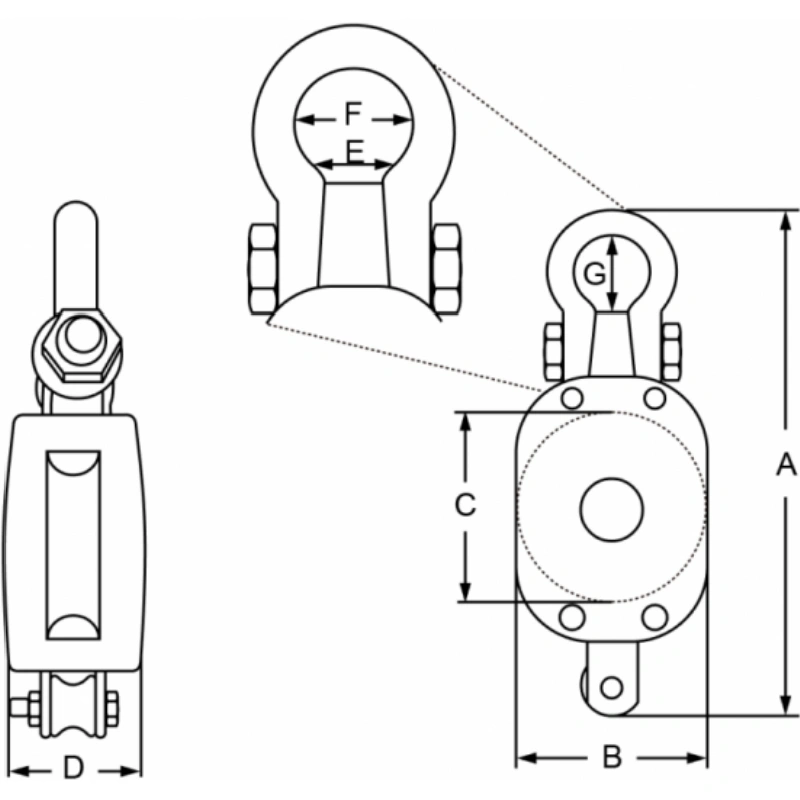

DIAGRAMS
SPECIFICATIONS
| SIZE | S.W.L | DIAM OF ROPE |
| (IN) | (LBS) | （IN） |
| 3 | 500 | 3/8 |
| 4 | 1000 | 1/2 |
| 5 | 1200 | 5/8 |
| 6 | 1800 | 3/4 |
| 8 | 2800 | 1 |
| 10 | 5000 | 1 1/8 |
| 12 | 6800 | 1 1/4 |
| 14 | 9600 | 1 3/4 |
| 16 | 12000 | 2 |
PRODUCT FEATURES
Material & Build
- Hardwood Shells
- Varnished Finish
- Drop Forged Fittings
Fitting Options
- Galvanized Metal Shackle
- Screw Pin Anchor Shackle
Performance Features
- Single Sheave Design
- Bronze Bushings
- Galvanized Parts
Application
- Heavy Duty Attachment and Pulley Applications
INSTRUCTIONS & CAUTIONS
Always Check Before Using
Before you get to work, give the single wooden rope block a quick once-over. Look for any cracks or damage to the wood or fittings. Check the shackle and make sure everything’s tight and secure. If something seems off, don’t risk using it—better safe than sorry.
Stay Within the Load Limit
Make sure the load you’re lifting is within the working load limit of the block. Overloading can cause damage to the wood or fittings, and we definitely don’t want that. Double-check the weight of the load before you start lifting to avoid any surprises.
Use the Right Rope Size
Be sure to use the right-sized manila rope with the block. If the rope is too thick or too thin, it won’t work as smoothly and could wear out the block faster. If you’re unsure, just reach out to us. We’re happy to help you make sure everything fits properly.
Handle with Care
The single sheave wood block is built to last, but you still need to handle it gently. Avoid dropping it or putting too much strain on it. Also, when you’re not using it, store it in a dry spot to keep it in good shape. Proper care and storage help keep the block working for the long haul.
OUR ADVANTAGES
Direct from Manufacturer
At Powerful Machinery, we cut out the middleman, offering you single sheave wood blocks directly from our factory. By doing this, we control every aspect of production, ensuring top-notch quality and competitive pricing. You get a reliable product at a great value, and we handle everything from manufacturing to delivery, so you can count on fast and efficient service without delays.
Built for Quality & Safety
When you buy our single sheave wood blocks, you’re getting more than just a product—you’re getting peace of mind. Each block is made with premium hardwood shells, drop-forged fittings, and galvanized metal parts. We ensure every block is rigorously tested for strength, durability, and safety. With us, you’re investing in a block that meets the highest standards of performance and safety.
One-Stop Sourcing
Why shop around when we have everything you need? Along with single sheave wood blocks, we offer a full range of rigging hardware, including shackles, hooks, and ropes. Whether you need a single item or a full system, we’re your one-stop shop. This saves you time and energy, allowing you to focus on the job while we take care of the rest, delivering all your supplies in one order.
Custom-Engineered to Fit Your Needs
Every project is different, and we understand that. If you need a single sheave wood block tailored to specific requirements, we’ve got you covered. We offer custom-engineered solutions, including adjusting sheave sizes, fittings, or materials to fit your lifting system perfectly. This ensures you get the best possible performance for your unique application, making your job easier and more efficient.
FAQ
How do I choose the right single wooden rope block for my job?
To choose the right single wooden rope block, consider the load you need to lift and the type of rope you’re using. The block’s working load limit must match or exceed the load you plan to lift. Make sure the sheave size is compatible with your rope diameter for smooth operation. If you’re unsure, our team is happy to help you select the perfect block for your needs.
Can I use single wooden rope blocks with synthetic ropes?
Yes, single wooden rope blocks can be used with synthetic ropes as long as the rope fits correctly within the sheave. Synthetic ropes tend to be more flexible than traditional manila ropes, so it’s important to ensure the rope diameter is compatible with the sheave size. Proper fit reduces wear and increases the block’s lifespan, making it suitable for your lifting needs.
How do I maintain single wooden rope blocks with shackle?
-
Clean Regularly
Clean your single wooden rope blocks frequently to remove dirt, debris, and any buildup that could affect performance. -
Inspect for Wear or Damage
Check the wood shell and fittings for cracks, rust, or any visible signs of damage. Pay special attention to the shackle and other components. -
Lubricate Moving Parts
If necessary, lubricate the moving parts of the block to ensure smooth operation and reduce friction that could cause wear. -
Store in a Dry, Clean Place
When not in use, always store the block in a dry, clean area to protect it from moisture, dirt, or environmental damage.
How do I maintain single wooden rope blocks with shackle?
-
Clean Regularly
Clean your single wooden rope blocks frequently to remove dirt, debris, and any buildup that could affect performance. -
Inspect for Wear or Damage
Check the wood shell and fittings for cracks, rust, or any visible signs of damage. Pay special attention to the shackle and other components. -
Lubricate Moving Parts
If necessary, lubricate the moving parts of the block to ensure smooth operation and reduce friction that could cause wear. -
Store in a Dry, Clean Place
When not in use, always store the block in a dry, clean area to protect it from moisture, dirt, or environmental damage.
Can I use single wooden rope blocks for towing?
Yes, single wooden rope blocks are excellent for towing applications. The shackle provides a solid attachment point for securing the rope, while the wooden shell and metal fittings ensure the block can handle the forces involved in towing. Always ensure the block’s working load limit is suitable for the weight being towed to avoid equipment failure.
Can I replace the shackle if it gets damaged?
Yes, if the shackle on your single wooden rope block becomes damaged, it can be replaced. It’s important to use the correct size and type of shackle to ensure the block continues to perform safely. Always check that the new shackle is securely attached and fits the block’s specifications for optimal performance.
