DIN 582 Eye Nut Size, Dimensions and Load Data
Compare the size table with the dimension drawing when selecting a DIN 582 eye nut for an existing stud or bolt. Dimensions and load values are listed by size. The terms “Upright Strength” and “Diagonal 45° Strength” follow the source specification and should not be interpreted as a working load limit (WLL) without approved documentation for the supplied product. Weight is shown per 100 pieces.
| SIZE(d1) | d2 | d3 | d4 | e | h | k | r | WEIGHT | WLL |
| MM | MM | MM | MM | MM | MM | MM | KG/PC | TON | |
| M6 | 20 | 36 | 20 | 8.5 | 36 | 8 | 4 | 0.05 | 0.08 |
| M8 | 20 | 36 | 20 | 8.5 | 36 | 8 | 4 | 0.05 | 0.14 |
| M10 | 25 | 45 | 25 | 10 | 45 | 10 | 4 | 0.09 | 0.23 |
| M12 | 30 | 54 | 30 | 11 | 53 | 12 | 6 | 0.16 | 0.34 |
| M14 | 35 | 63 | 35 | 13 | 62 | 14 | 6 | 0.24 | 0.34 |
| M16 | 35 | 63 | 35 | 13 | 62 | 14 | 6 | 0.24 | 0.7 |
| M18 | 40 | 72 | 40 | 16 | 71 | 16 | 8 | 0.36 | 0.7 |
| M20 | 40 | 72 | 40 | 16 | 71 | 16 | 8 | 0.36 | 1.2 |
| M22 | 50 | 90 | 50 | 20 | 90 | 20 | 12 | 0.72 | 1.2 |
| M24 | 50 | 90 | 50 | 20 | 90 | 20 | 12 | 0.72 | 1.8 |
| M27 | 65 | 108 | 60 | 25 | 109 | 24 | 15 | 1.32 | 1.8 |
| M30 | 65 | 108 | 60 | 25 | 109 | 24 | 15 | 1.32 | 3.2 |
| M33 | 75 | 126 | 70 | 30 | 128 | 28 | 18 | 2.08 | 3.2 |
| M36 | 75 | 126 | 70 | 30 | 128 | 28 | 18 | 2.08 | 4.6 |
| M39 | 85 | 144 | 80 | 35 | 147 | 32 | 20 | 3.11 | 4.6 |
| M42 | 85 | 144 | 80 | 35 | 147 | 32 | 20 | 3.11 | 6.3 |
| M45 | 100 | 166 | 90 | 40 | 168 | 38 | 22 | 5.02 | 6.3 |
| M48 | 100 | 166 | 90 | 40 | 168 | 38 | 22 | 5.02 | 8.6 |
| M52 | 110 | 184 | 100 | 45 | 187 | 42 | 25 | 6.69 | 8.6 |
| M56 | 110 | 184 | 100 | 45 | 187 | 42 | 25 | 6.69 | 11.5 |
| M64 | 120 | 206 | 110 | 50 | 208 | 48 | 25 | 9.3 | 16 |
| M72X6 | 150 | 260 | 140 | 60 | 260 | 60 | 35 | 18.5 | 20 |
| M80X6 | 170 | 296 | 160 | 70 | 298 | 68 | 35 | 27.3 | 28 |
| M100X6 | 190 | 330 | 180 | 80 | 330 | 75 | 40 | 36.4 | 40 |

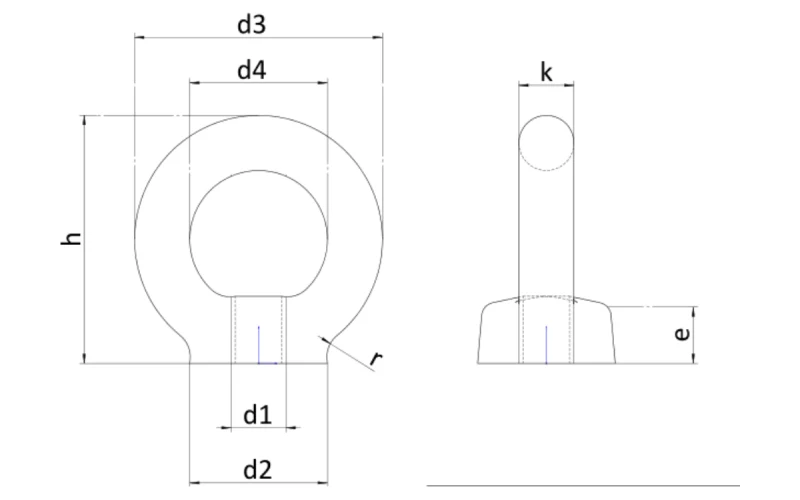

Products Diagrams

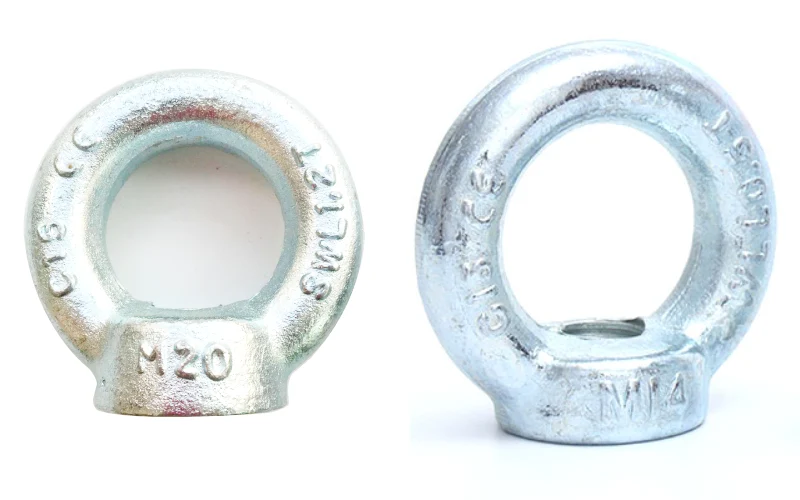

The DIN582 Eye Nut features a perfectly rounded eye with a strong threaded base, designed for precise alignment and uniform load distribution. Its compact geometry ensures safety and stability during lifting or suspension operations.
From a side and top view, the consistent wall thickness and smooth contours minimize stress points, while the polished stainless finish enhances both mechanical strength and appearance for industrial and decorative purposes.
How to Match a DIN 582 Eye Nut to Your Assembly
A DIN 582 eye nut has an internal metric thread and a forged eye. It screws onto a compatible external thread to provide a lifting or attachment point. Check the thread designation, thread engagement, mating material, seating face, clearance for connected hardware, and intended direction of pull against the approved drawing and installation instructions. For the externally threaded counterpart, see our DIN 580 eye bolts.
This model is supplied as a drop-forged eye nut. Material grade, surface finish, heat treatment, certification, and stainless steel requirements should be specified with your enquiry so the supplied configuration can be confirmed against your order requirements.
Installation and Load Direction
Before loading, confirm that the threads match and that the eye nut is fully engaged and firmly seated on a suitable flat surface in accordance with the approved installation instructions. Inspect the eye and threads for damage, deformation, or other conditions that could affect safe use.
The specification table provides separate Upright Strength and Diagonal 45° Strength values. Do not apply the upright value to an angled pull or interpret either value as a working load limit (WLL) unless this is confirmed by approved documentation for the supplied product. A competent person should verify the complete load path, approved rating, pull direction, and connected hardware before lifting.
For broader inspection guidance, see our rigging equipment inspection guide.
Choosing a Size and Requesting a Quote
Send us the required DIN 582 thread size, quantity, assembly drawing or stud details, intended load direction, operating environment, and any requirements for material, surface finish, marking, testing, or documentation. If applicable, also specify the required standard edition and working load limit (WLL) for your application. We will review the requested configuration against the relevant product documentation before confirming supply.
When comparing different connection styles, you can also browse our eye bolts and eye nuts range.
FAQ
What Sizes Are Available for the DIN 582 Eye Nut?
Sizes range from M6 to M100×6. Refer to the size table above for dimensions and weight, and confirm the mating thread and availability before ordering.
Are the Strength Values a Working Load Limit (WLL)?
Not automatically. Use only the approved working load limit and supporting documentation confirmed for the supplied product.
Can You Supply Stainless Steel or a Specific Coating?
Material and finish options should be confirmed for the required size and application. Include any stainless steel, coating, or documentation requirements in your RFQ.
