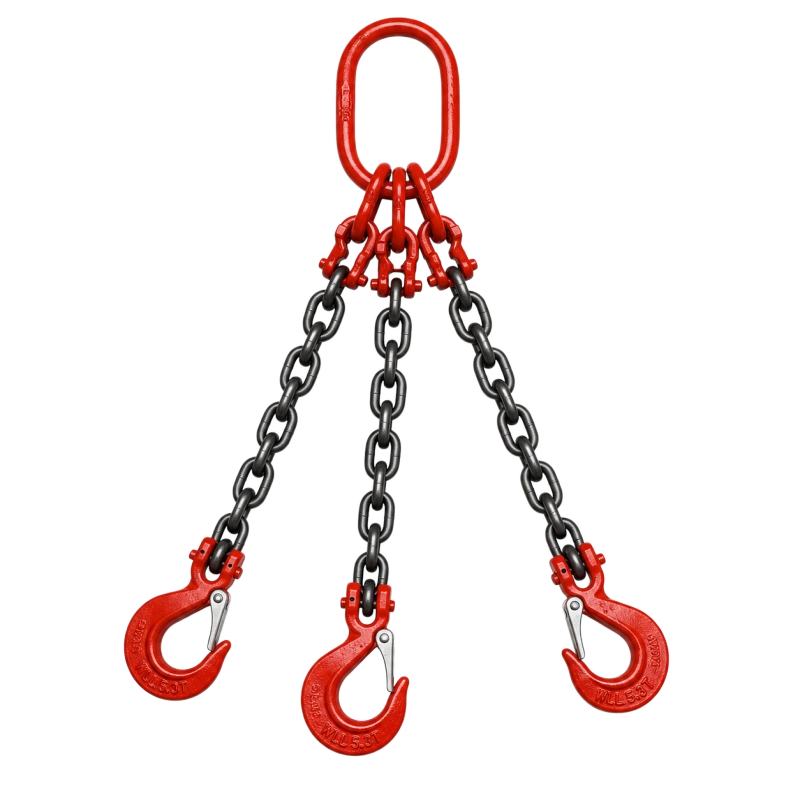

Custom Chain Sling Configurations
Choose the arrangement that matches your lifting points. The assembly rating is confirmed for the final components and lifting geometry.
Adjustable Reach
If the lifting points are at different heights, tell us the reach needed for each leg. A compatible shortening arrangement can be reviewed for the selected assembly.
Specify Your Custom Chain Sling
Describe the Lift
Provide the load weight, lifting-point layout, and a drawing or photo if available.
Choose Chain and Fittings
Tell us your preferred chain grade, upper link, and end fitting. If you are unsure, share the hoist hook and lifting-point dimensions so we can review the options. See our lifting chain range and master link options.
Confirm Reach and Angle
State the effective reach for each leg and the expected leg angle measured from vertical. If these are unknown, send the lifting geometry for review.
Send Your RFQ
Include the quantity, destination, and any required standard or documentation. We will confirm the proposed configuration and rating in the quotation.
Chain Sling Components
If the lifting points are at different heights, tell us the reach needed for each leg. A compatible shortening arrangement can be reviewed for the selected assembly.
| Position | Options to Discuss | Selection Check |
|---|---|---|
| Upper fittings | Master link; master link assembly | Confirm hoist hook fit, leg count, and rating. |
| Connecting hardware | Connecting link; coupling link | Confirm grade, nominal size, and connection geometry. |
| End fittings | Clevis or eye sling hook; self-locking hook; grab hook; foundry hook; swivel self-locking hook | Select by lifting point, opening, connection, and component rating. |
| Length adjustment | Compatible shortening hook or chain shortening clutch | Confirm final reach and WLL after adjustment. |
See the chain and rigging accessories range for individual hardware.
Grade 80 and Grade 100 Options
Grade 80 Chain Slings
Grade 80 chain can be considered for one- and multi-leg assemblies with compatible links and hooks. The finished sling rating depends on the complete configuration.
Grade 100 Chain Slings
Grade 100 chain can be considered where compatible components are available. Ask us to confirm the finished sling rating for the chain size, number of loaded legs, and lifting angle.
Working Load Limit and Sling Angle
A chain size rating is not the working load limit (WLL) of a finished chain sling. The finished assembly must be rated for its chain, fittings, configuration, and loading conditions. A lower-rated component limits the assembly rating.
For an angle chart, β is the angle of a sling leg measured from vertical. As β increases, leg tension increases for the same load. Give the expected angle and lifting-point layout so the finished sling can be rated for the intended arrangement.
A standard multi-leg rating assumes the conditions stated with that rating, including the specified angle and load sharing. Unequal loading needs a qualified assessment. Tell us about sharp edges, unusual temperatures, or chemical exposure so the assembly and use conditions can be reviewed. Avoid shock loading.
Custom Reach and Adjustment
Effective reach is the distance between the upper and lower bearing points, including the fittings. Give a separate reach for each leg if the lifting points are at different heights.
If the reach must change between lifts, ask about a compatible shortening device. Its usable range and the finished sling rating at the selected setting require confirmation. Never shorten a sling by knotting or twisting it.
Assembly and Documentation Review
We will review the drawing, proposed chain and fittings, required reach and finished sling rating before quotation. State any marking, inspection, test or document requirements in your RFQ so their availability can be confirmed for the order.
Typical Applications
Custom chain slings may be specified for machinery handling, fabricated steel, construction assemblies, industrial maintenance and suitable shipyard lifts. Describe the load, lifting points, and working environment so the arrangement can be reviewed.
Custom Chain Slings FAQ
Will all four legs of a four-leg chain sling share the load equally?
Not necessarily. Load sharing depends on the lifting-point geometry, leg lengths, and the load itself. Provide a drawing of the lifting arrangement so the loaded-leg configuration can be reviewed.
Can I specify a self-locking hook?
Yes. Self-locking hooks are among the end-fitting options that can be reviewed for a custom assembly. See our lifting hook range and provide the required opening and connection dimensions.
Can I request test records or certificates?
Yes, but availability depends on the assembly and requirements. State the applicable standard and the specific inspection, testing, or documentation required in your RFQ so it can be confirmed before quotation.
